The SMA (SubMiniature version A) female connector is a precision, subminiature coaxial interface widely used in high-frequency RF and microwave systems up to 18 GHz (with precision versions extending to 26.5 GHz or even 34 GHz). Characterised by its threaded coupling, 50‑ohm impedance, and compact size, the SMA female is the connector of choice for telecommunications, aerospace, defence, test instrumentation, and medical equipment. At Zhenjiang Linkworld Microwave Communication Co., Ltd., we combine over 20 years of RF expertise with an R&D team that brings 25 years of product development experience to engineer SMA female connectors that deliver exceptional signal integrity, low VSWR (as low as 1.10), and outstanding durability. Fully compliant with IEC60169 standards and backed by our core value of “Honesty and Perfection,” our connectors are trusted in mission‑critical environments worldwide.
SMA female connectors offer several distinct advantages. Their miniature size allows for dense packaging on PCBs and front panels, saving valuable board space while maintaining excellent electrical performance up to 18 GHz or higher. The threaded coupling mechanism provides a secure, vibration‑proof connection that ensures repeatable mating and low contact resistance—critical for precision measurements and high‑reliability systems. Linkworld’s SMA female connectors feature VSWR as low as 1.10, insertion loss below 0.15 dB at typical operating bands, and passive intermodulation (IMD) as low as –168 dBc for low‑PIM applications. Their brass or stainless steel construction with gold or silver plating ensures corrosion resistance and a mating life exceeding 500 cycles, making them ideal for both laboratory and field deployments.
SMA female connectors come in various configurations to suit different mounting and cabling needs. Panel‑mount jacks feature a flange or bulkhead design for secure attachment to chassis or enclosures, while PCB‑mount types include edge‑mount, through‑hole, or surface‑mount variants for direct integration onto printed circuit boards. Cable‑mount SMA females are available for flexible, semi‑flexible, or semi‑rigid cables, with crimp, solder, or clamp termination styles. Additionally, hermetic SMA female connectors incorporate glass‑to‑metal seals for applications requiring airtight integrity, such as satellite payloads or downhole tools, and can operate at temperatures up to 350°C. Linkworld offers customised designs with specific attenuation values, power ratings, or mechanical dimensions to match your exact system requirements.

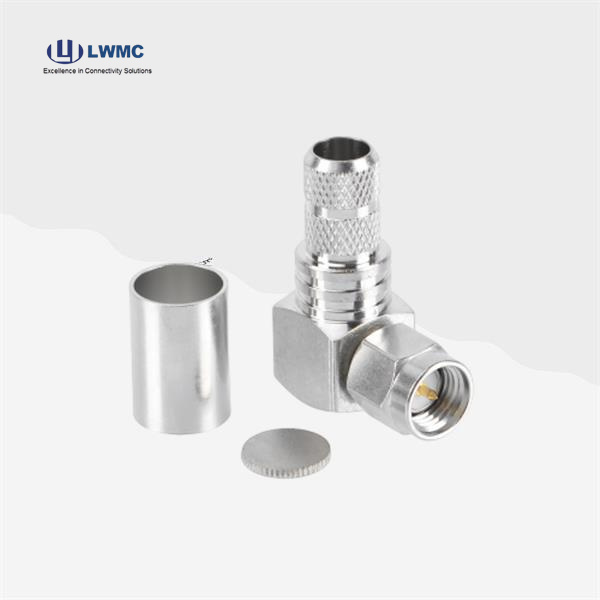

Proper installation begins with inspecting the SMA female socket for debris, damaged threads, or a deformed centre socket. Align the mating male connector axially, then thread the coupling nut by hand until finger‑tight—never force the connection. Use a calibrated torque wrench to apply the recommended torque, typically 0.8–1.1 N·m for standard SMA; over‑tightening can distort the dielectric or centre conductor, while under‑tightening increases VSWR. For maintenance, regularly clean the threads and mating surfaces with isopropyl alcohol and lint‑free swabs, and inspect the centre socket under magnification for signs of pitting or wear. Apply connector‑grade lubricant to threads (never to the dielectric) to ease disassembly and extend service life. Linkworld’s SMA female connectors are designed for high durability, but routine inspection—especially before critical measurements—ensures consistent performance.

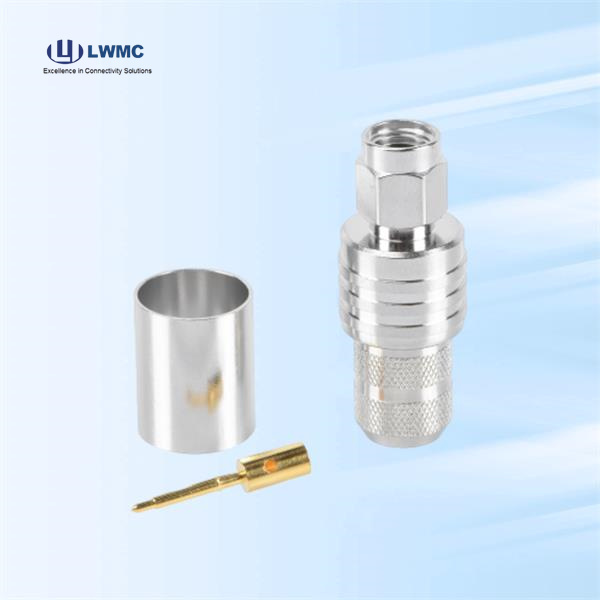

SMA female connectors are highly compatible with a wide range of devices and systems. They mate directly with standard SMA male plugs, making them suitable for connecting antennas, amplifiers, filters, attenuators, and test instruments such as network analysers and spectrum analysers. Through inter‑series adapters, SMA females can interface with N, TNC, 3.5mm, 2.92mm, or 2.4mm connectors, bridging different system architectures seamlessly. Linkworld’s comprehensive product portfolio includes SMA female connectors in various configurations, as well as matching cable assemblies (flexible, semi‑flexible, and semi‑rigid), adapters, and passive components—all designed to work together flawlessly. Whether you are building a compact handheld device, a laboratory calibration setup, or a high‑reliability aerospace system, our SMA female connectors provide the performance and versatility you need to achieve superior signal integrity and system success.
