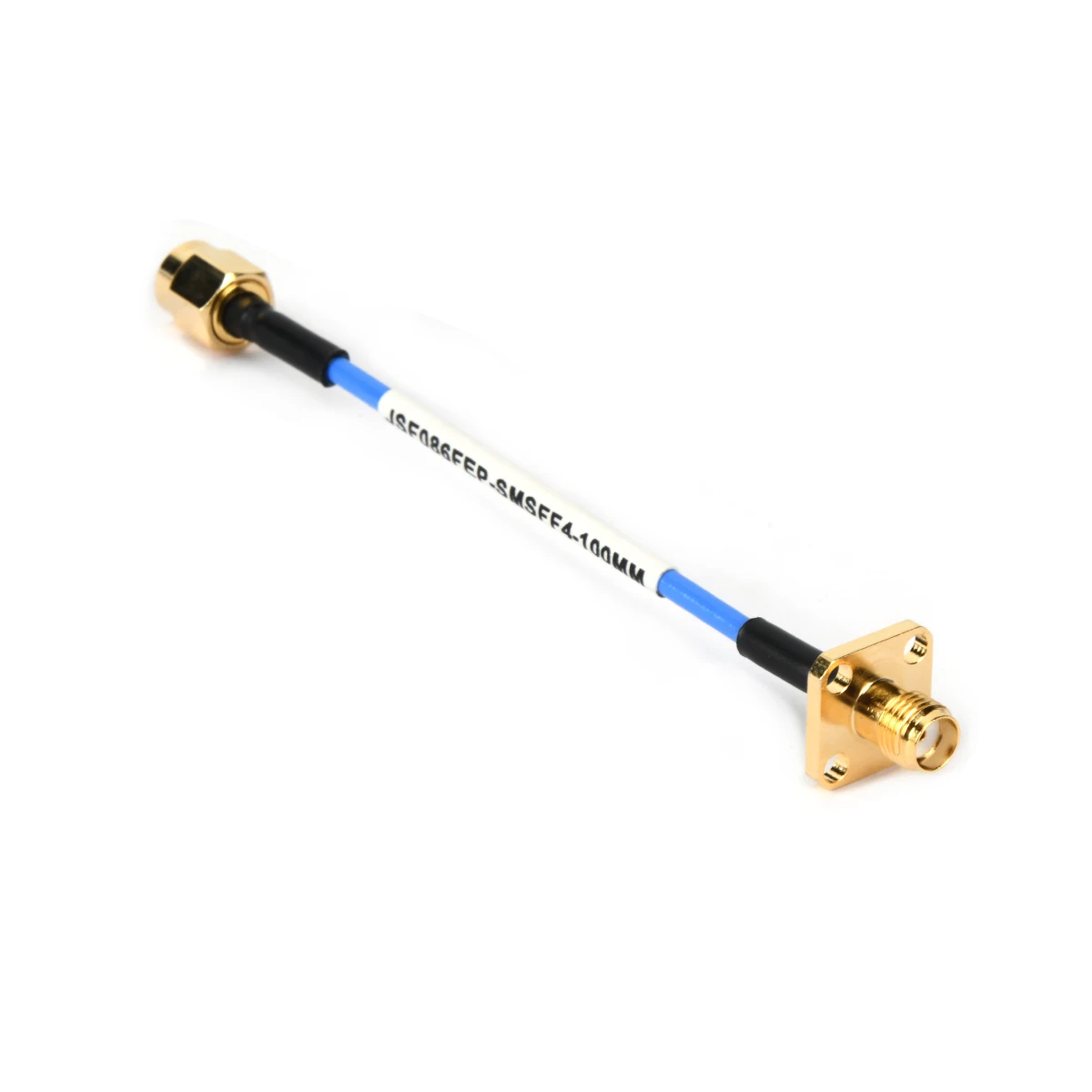

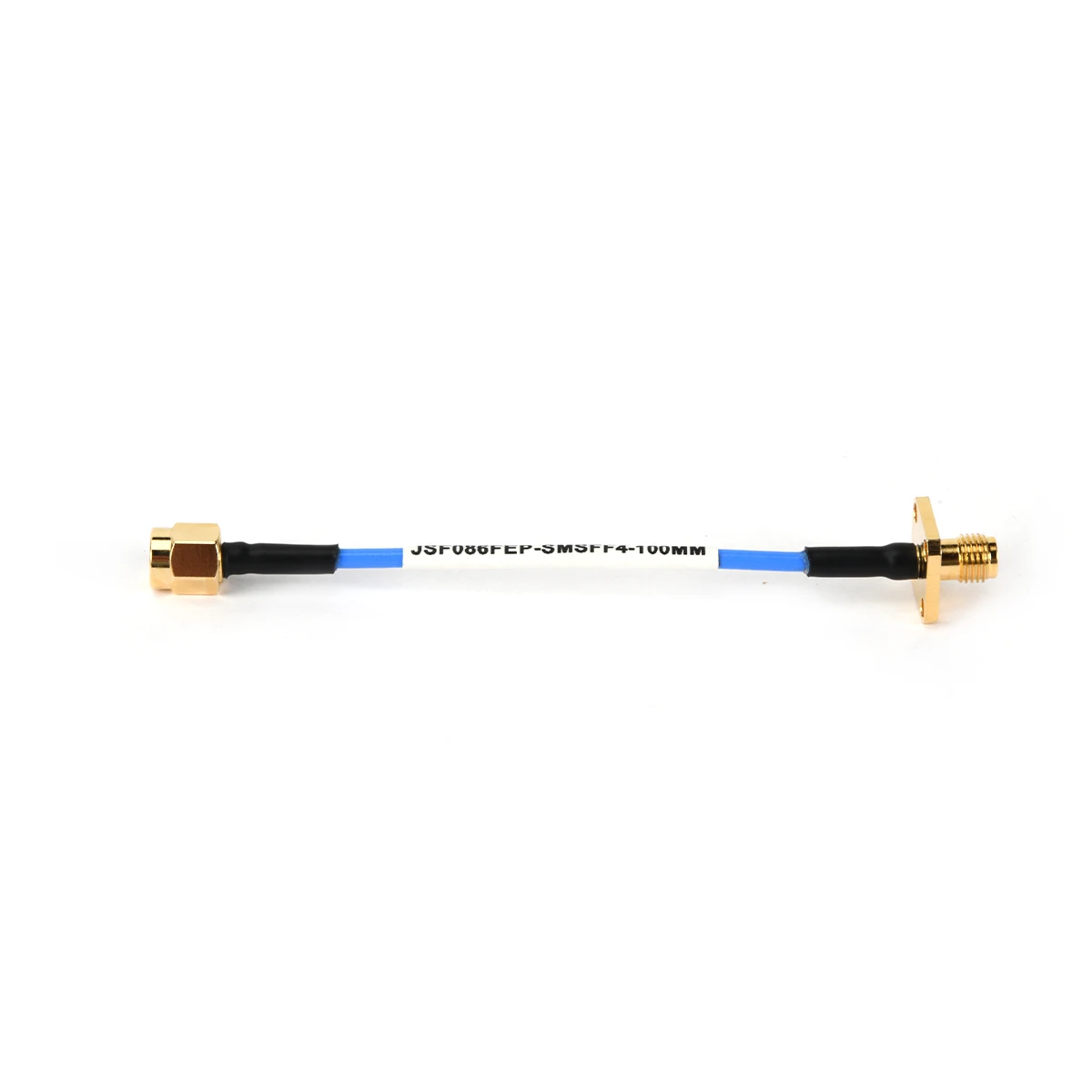

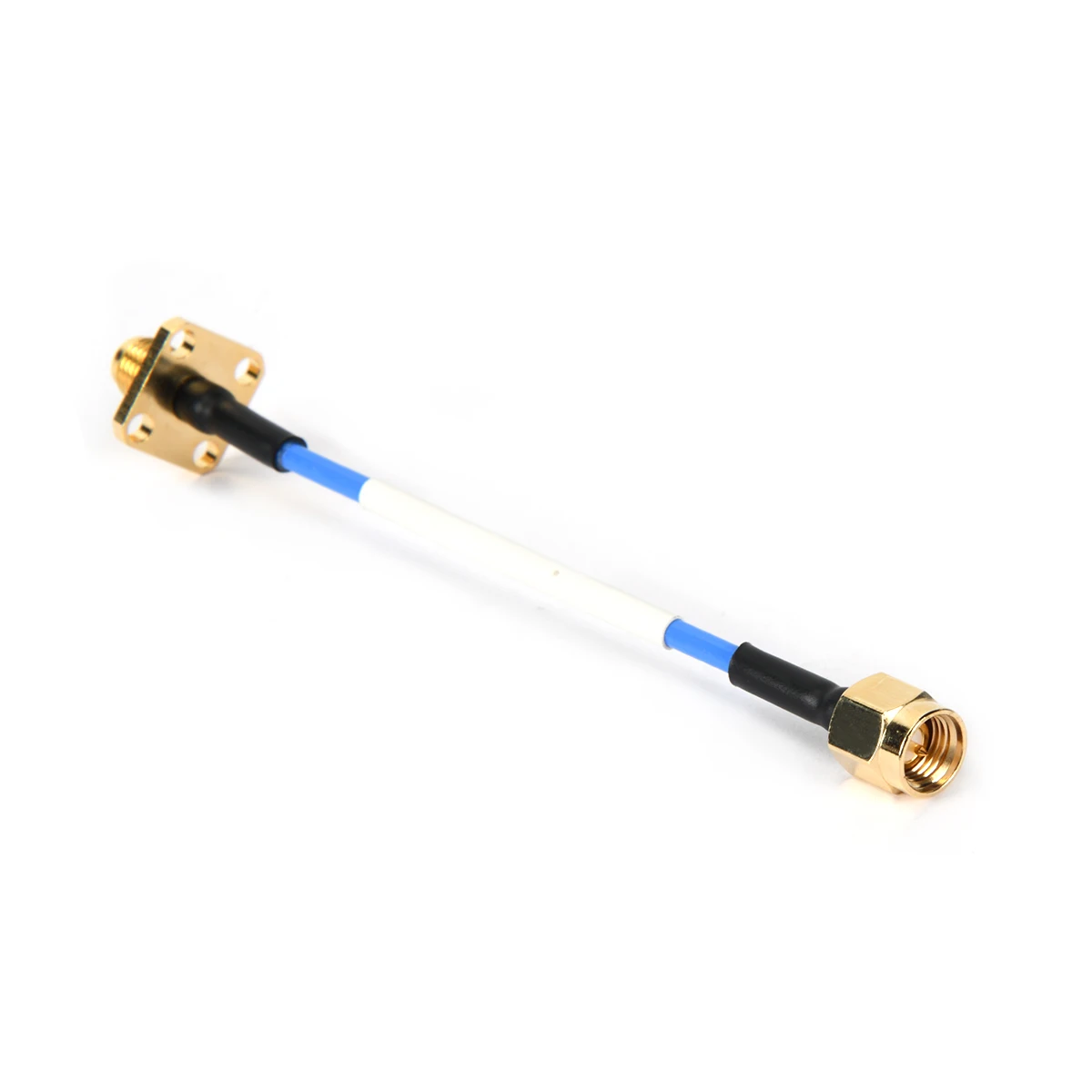

SMA Male to SMA Female 4 Holes Flange Mounted to Solder for .086 Cable 8G001_L100mm

SMA Male to SMA Female 4 Holes Flange Mounted to Solder for .086 Cable 8G001_L100mm

SMA male conn Center Conductor Brass,Gold Plating Insulators PTFE Body Brass,Gold Plating Coupling Nut Brass,Gold Plating C'ring Phosphor Bronze Ga...

Introduction

SMA Male to SMA Female 4 Holes Flange Mounted to Solder for .086 Cable 8G001_L100mm supplier

SMA Male to SMA Female 4 Holes Flange Mounted to Solder for .086 Cable 8G001_L100mm details

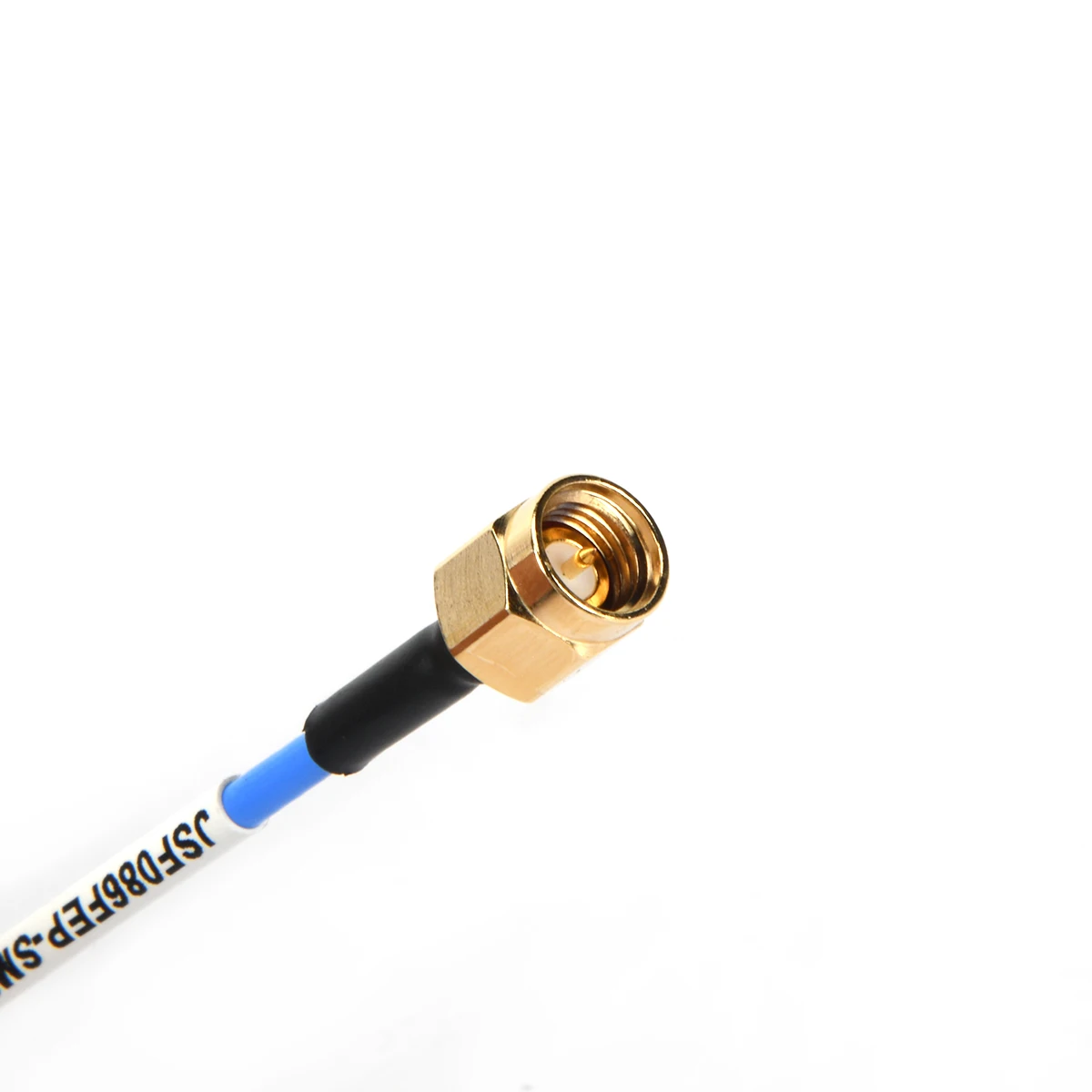

SMA male conn
Center Conductor	Brass,Gold Plating
Insulators	PTFE
Body	Brass,Gold Plating
Coupling Nut	Brass,Gold Plating
C'ring	Phosphor Bronze
Gasket	silicone

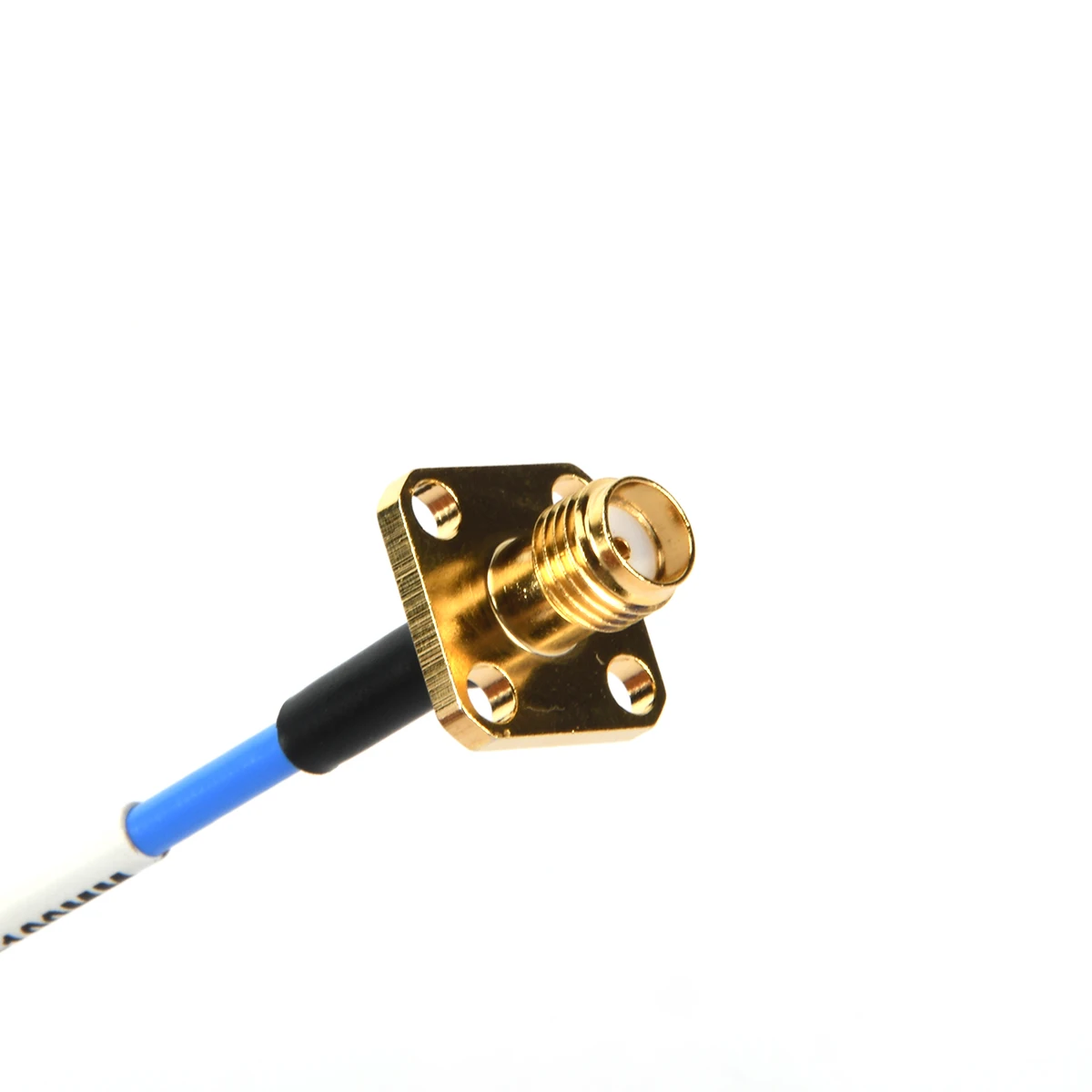

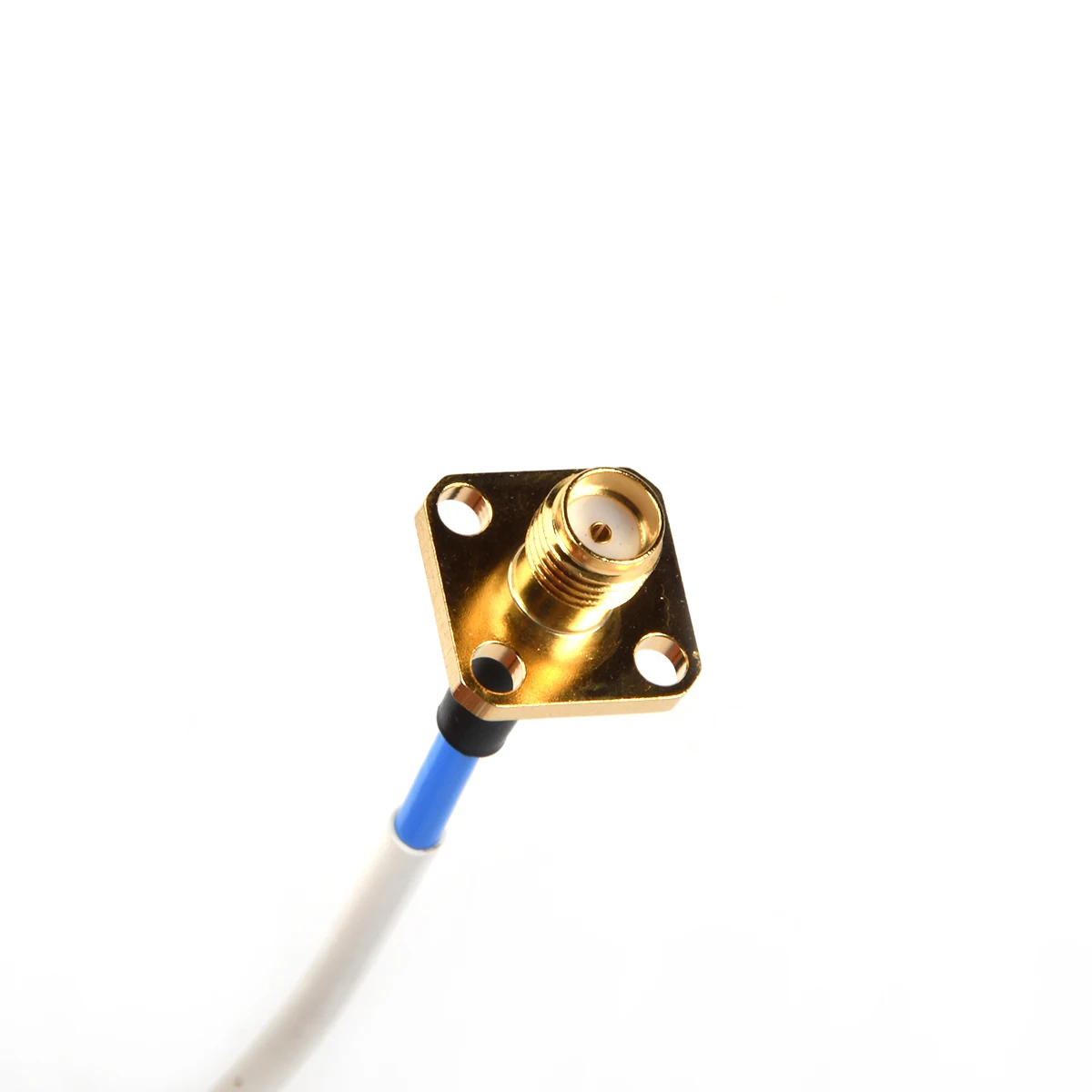

SMA female conn
Center Conductor	Beryllium copper,Gold plating
Insulators	PTFE
Body	Brass,Gold Plating
Characterstic
inpedance	50 ohm
Frequency Band	DC to 8 GHz
VSWR	1.3 max
Dielectric withstand voltage	750v

SMA Male to SMA Female 4 Holes Flange Mounted to Solder for .086 Cable 8G001_L100mm manufacture

SMA Male to SMA Female 4 Holes Flange Mounted to Solder for .086 Cable 8G001_L100mm factory

Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF

format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
