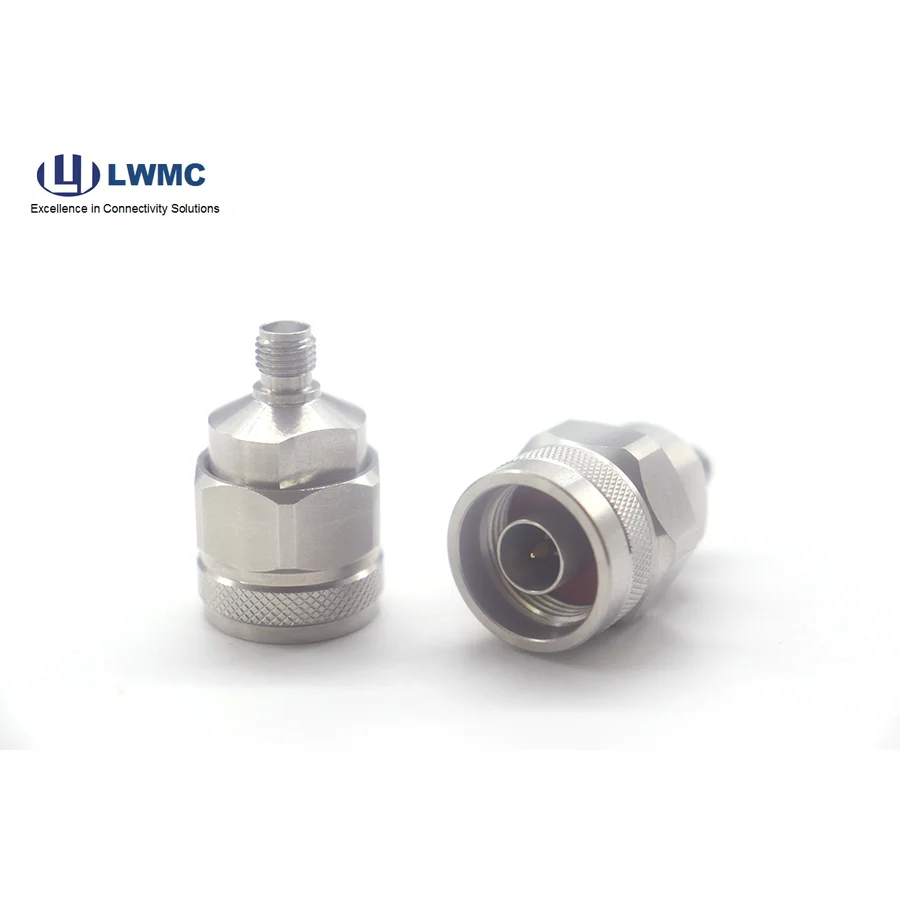

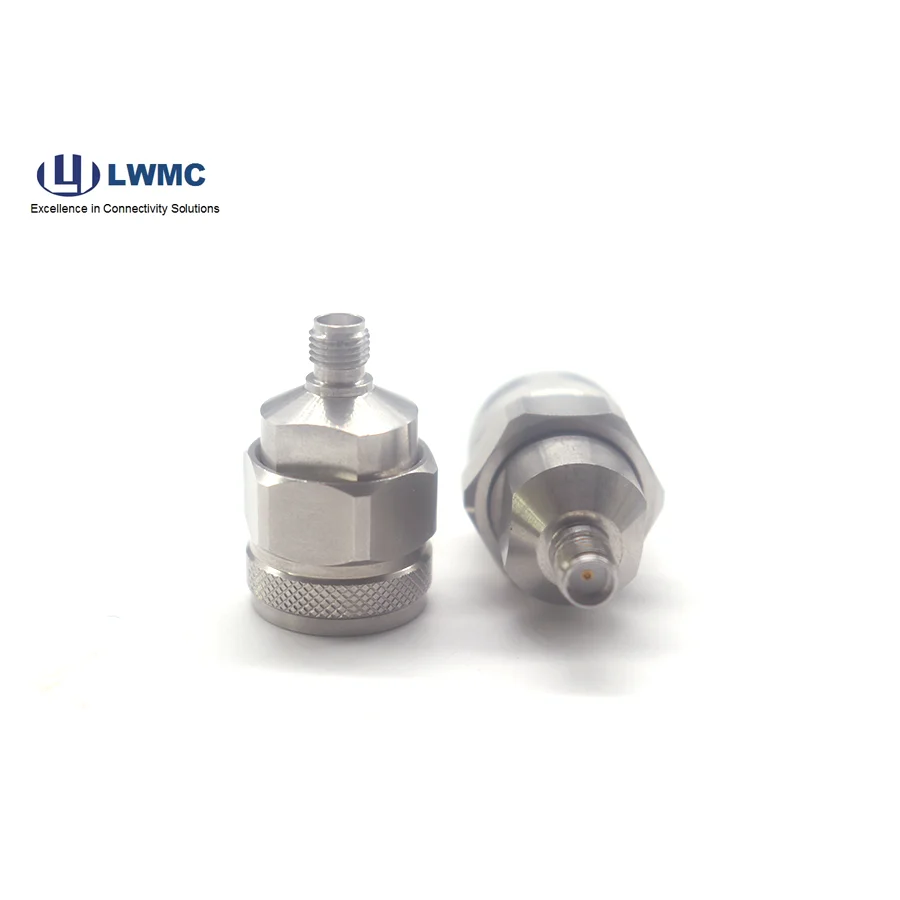

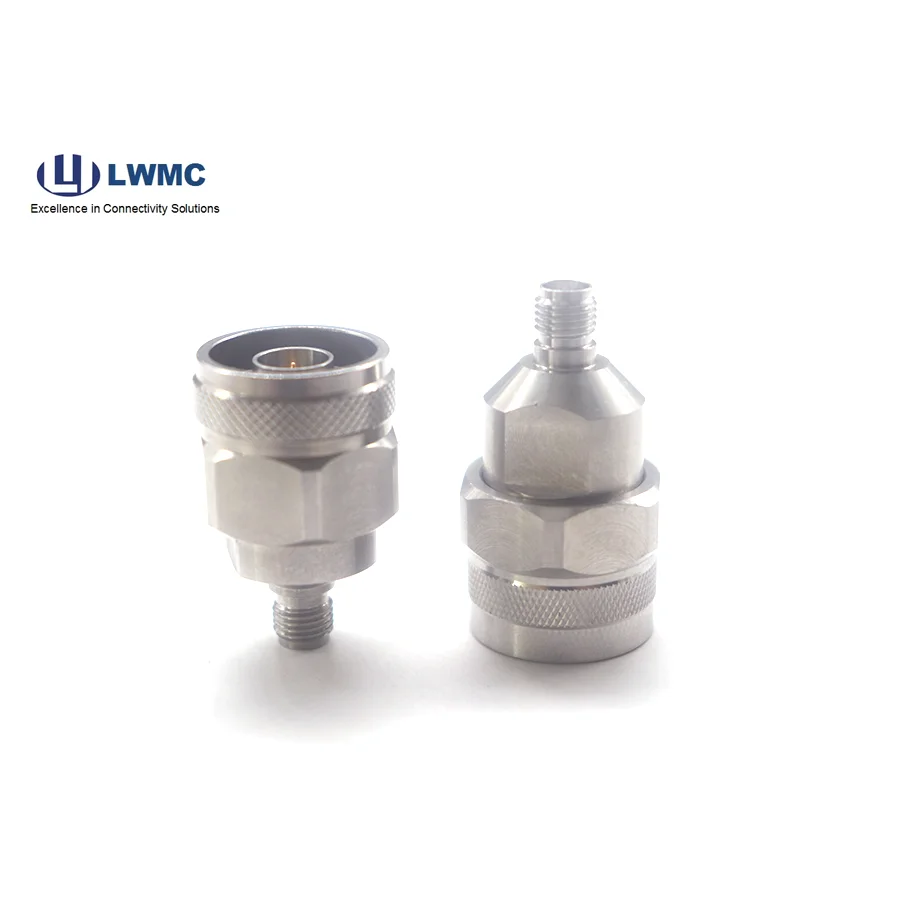

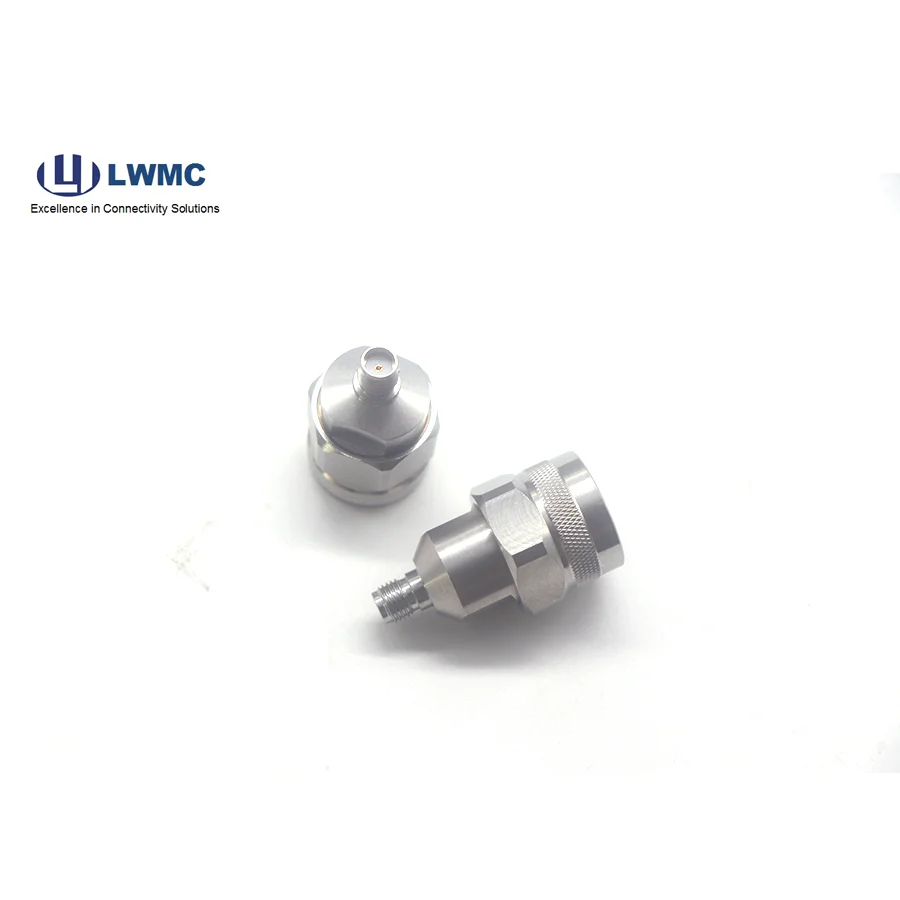

N Male to SMA Female Adaptor

Center ConductorBeryllium Copper,Gold platingInsulatorsPTFEC'RingPhosphor Bronze, PassivatedGasketSilicone Coupling NutStainless steel,PassivatedBody Stainless steel,PassivatedImpedanc...

Introduction

N Male to SMA Female Adaptor manufacture

Center Conductor	Beryllium Copper,Gold plating
Insulators	PTFE
C'Ring	Phosphor Bronze, Passivated
Gasket	Silicone
Coupling Nut	Stainless steel,Passivated
Body	Stainless steel,Passivated
Impedance	50 ohm
Frequency Band	DC to 18 GHz
VSWR	1.3 max
Dielectric withstand voltage	1500v
Contact resistance	Center Conductor ≤3mΩ Outer Conductor≤2.5mΩ
Insulation resistance	≥5000mΩ
Temperature range	-4℃~+125℃
Durability	≥500

Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF

format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
