In the most demanding RF applications—from the vacuum of space to the heart of sensitive medical implants—conventional connectors fall short. These environments demand an absolute barrier against gases, moisture, and contaminants while maintaining flawless signal integrity. This is the domain of Glass Seal connectors, also known as hermetic feedthroughs. These are not mere adapters, but engineered solutions that form a permanent, impervious barrier between environments. By fusing a metal conductor within a glass or ceramic insulator inside a metal housing, they create a vacuum-tight, pressure-resistant, and exceptionally reliable RF passage. As a specialized component in Linkworld's portfolio, Glass Seal technology represents our capability to solve the most extreme interconnect challenges, ensuring performance where failure is not an option.
The core principle of a Glass Seal connector is the creation of a matched hermetic seal. This is achieved through a process of carefully controlled heating, where a specialized glass or ceramic dielectric is melted to form a permanent, molecular bond with both the central conductor (pin) and the outer metal shell (ferrule). The materials are chosen for their closely matched coefficients of thermal expansion (CTE). This precise matching is critical; it ensures the seal remains intact and stress-free across extreme temperature cycles, from cryogenic conditions to high heat, without cracking or developing micro-leaks. The result is a monolithic, one-piece assembly that provides outstanding mechanical strength, exceptional electrical insulation, and the definitive hermetic barrier required for long-term reliability in sealed systems.

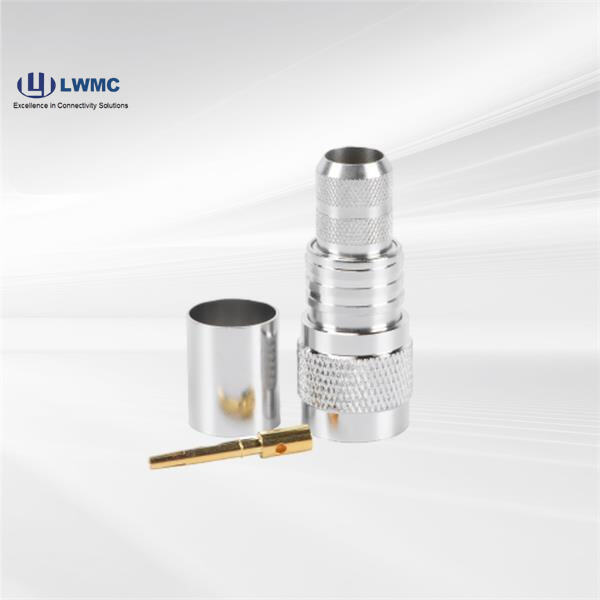

While the primary function is hermetic sealing, electrical performance cannot be sacrificed. High-quality Glass Seal connectors are engineered to maintain excellent RF characteristics. The design minimizes parasitic capacitance and inductance inherent in the seal structure, ensuring stable impedance (typically 50 ohms) and minimal signal reflection. They exhibit low insertion loss and are capable of supporting high-frequency operation into the GHz range, depending on the design and construction. The glass or ceramic dielectric provides superior insulating properties, resulting in high voltage breakdown thresholds and excellent isolation. This makes them ideal for transitioning RF signals into or out of shielded enclosures, vacuum chambers, pressure vessels, or any package where maintaining a controlled internal atmosphere is as crucial as maintaining signal fidelity.

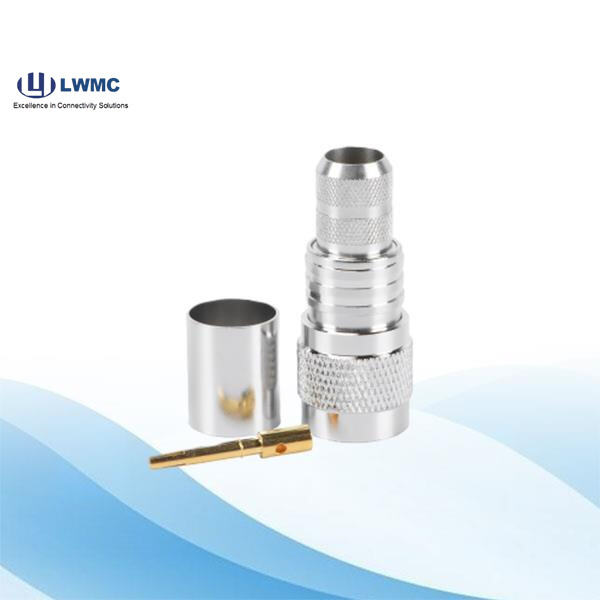

Glass Seal connectors are enablers of technology in environments where ordinary components cannot survive. Their primary applications are predictably extreme:
Aerospace & Satellite Systems: Used in satellite transponders, launch vehicle electronics, and space probes, where they must withstand the vacuum of space, violent launch vibrations, and extreme thermal cycling.
Medical Implants & Life Sciences: Critical for hermetically sealing sensitive electronics in devices like pacemakers, neurostimulators, and implantable sensors, protecting internal circuitry from bodily fluids while allowing diagnostic or telemetry signals to pass through.
High-Vacuum & Analytical Equipment: Essential for feedthroughs in mass spectrometers, electron microscopes, and semiconductor processing chambers, allowing power and signals to enter the vacuum without compromising it.
Military & Deep-Sea Electronics: Deployed in sonar systems, torpedoes, and submerged sensors that must resist immense pressure and corrosive environments while maintaining communication links.

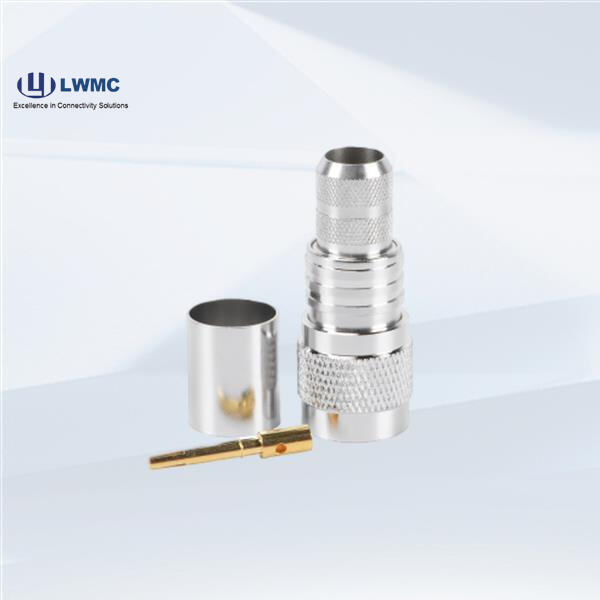

The value of a Glass Seal lies in its precise integration into a larger system. Linkworld's expertise extends beyond supplying the basic seal to providing a complete, reliable interface solution. This includes:
Custom Housing Integration: Designing and machining the metal shell to be laser-welded, brazed, or otherwise permanently bonded into a customer's specific housing or bulkhead.
Cable Assembly Termination: Professionally integrating the glass-sealed feedthrough with coaxial cable assemblies, creating a ready-to-install hermetic port that connects directly to system wiring.
Connector Interface Options: Providing the hermetic seal with standard connector interfaces (such as SMA, TNC, or custom pins) on the external side for easy mating with system cables.
Rigorous Testing: Subjecting every unit to rigorous leak testing (using helium mass spectrometry for the most sensitive applications) and full electrical characterization to ensure both hermetic integrity and RF performance meet the strictest specifications.
