In the world of RF and microwave engineering, the adapter type N—specifically, an N-type coaxial adapter—is an indispensable component for interconnecting systems with different interfaces or extending signal paths. Unlike travel power adapters, this precision RF device ensures seamless, low-loss transmission of high-frequency signals between N-type connectors and other interfaces such as SMA, TNC, 3.5mm, 2.92mm, or 2.4mm. At Zhenjiang Linkworld Microwave Communication Co., Ltd., we combine over 20 years of RF innovation with an R&D team that brings 25 years of product development experience to engineer N-type adapters that deliver VSWR as low as 1.10 within 18 GHz narrow bandwidth, low intermodulation (IMD) performance down to -168 dBc under 2×43dBm carrier test conditions on low-PIM precision components, and mating lives exceeding 500 cycles. Fully compliant with IEC60169 standards and backed by our core value of “Honesty and Perfection,” our adapter type N products are trusted in telecommunications, aerospace, defence, and test laboratories worldwide.
For RF engineers and field technicians travelling between global project sites, an adapter type N is as essential as a passport. Different regions and systems often employ varying connector interfaces, and an N-type adapter bridges these differences, allowing you to connect your test equipment, antennas, or transmission lines to local infrastructure without hassle. Whether you are commissioning a base station in Europe, calibrating radar in Asia, or troubleshooting satellite ground terminals in the Americas, Linkworld’s N-type adapters ensure interoperability. Our compact, rugged designs fit easily into any tool kit; our standard N-type adapters support up to 11 GHz, and our inter-series precision adapters (1.85mm interface) cover DC to 67 GHz for millimeter-wave test systems, making them your trusted companion for global RF work covering everything from legacy systems to next-generation 5G and aerospace applications.

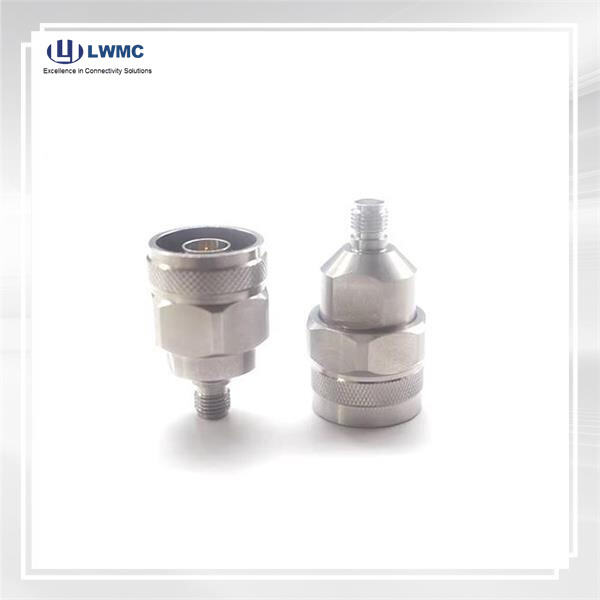

Linkworld’s adapter type N products are precision-machined from high-grade stainless steel or beryllium copper, with gold, silver, or nickel plating for superior conductivity and corrosion resistance. They are available in inter-series configurations (N to SMA, N to TNC, N to 3.5mm, N to 2.92mm, N to 2.4mm) and intra-series configurations (N male to N male, N female to N female, or N male to N female). Key electrical features include VSWR as low as 1.10 within 18 GHz narrow bandwidth, insertion loss below 0.15 dB at low and mid frequencies, and low passive intermodulation under standard test conditions, ensuring signal integrity even in dense multi-carrier environments. Mechanically, they feature a threaded coupling mechanism for secure, vibration-proof connections, operate across a wide temperature range (–55°C to +155°C, or up to 350°C with hermetic seals), and are designed for over 500 mating cycles—delivering reliability you can count on. General standard connectors and adapters are rated for over 500 mating cycles, while dedicated test cable assemblies are reinforced for over 5,000 dynamic mating cycles for laboratory repeated use.

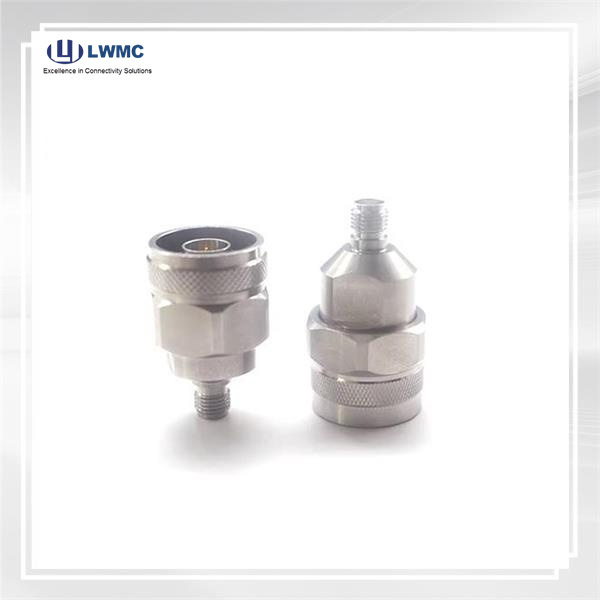

Using an N-type adapter effectively starts with identifying the correct interface on your device and selecting the matching adapter configuration. Inspect both the adapter and the device connectors for debris or damage, align them axially, and thread the coupling nut by hand until finger-tight—never cross-thread. Use a calibrated torque wrench to apply the manufacturer’s recommended torque (typically 1.0–1.7 N·m (9–15 in-lb) for N-types) to achieve optimal VSWR and minimise signal reflection. For critical measurements, clean the threads and mating surfaces with isopropyl alcohol and lint-free swabs before connection. Linkworld’s adapters are designed to maintain phase-stable and amplitude-stable performance, ensuring that your signal path remains consistent from device to device, whether you are extending cables, changing connector types, or integrating multiple test setups.
The benefits of adopting Linkworld’s N-type adapters extend beyond simple connectivity. They provide a cost-effective solution for upgrading legacy systems to modern interfaces, eliminating the need for expensive cable replacements. Their low VSWR and high power handling (up to several hundred watts) ensure that signal quality and efficiency are preserved, which is critical for high-power transmitters, sensitive receivers, and precision measurement equipment. Additionally, our adapters are available in both 50-ohm versions for aerospace, test & telecom RF systems and 75-ohm versions for cable TV broadcast infrastructure to match your system impedance, reducing reflections and improving overall network performance. With end-to-end support from design optimisation to after-sales service, Linkworld ensures that every adapter type N you choose delivers exceptional reliability, versatility, and value—making it the smart choice for RF professionals worldwide.
