The SMA crimp connector represents a vital junction point in modern RF assembly, providing a robust and reliable interface for connecting coaxial cables to a wide range of devices. Characterized by its threaded coupling mechanism and compact size, the crimp-style SMA connector is engineered for efficient field installation and repair, offering a consistent and durable connection without the need for soldering. This component is essential for applications demanding both high-frequency performance and assembly flexibility, making it a cornerstone in telecommunications, test and measurement, and various wireless systems.
SMA crimp connectors offer distinct operational benefits, particularly in field deployment and maintenance scenarios. Their primary advantage lies in the speed and consistency of installation. With proper tooling, a technician can achieve a factory-quality, gas-tight connection in minutes, significantly reducing system downtime. This method also minimizes the risk of thermal damage to the cable dielectric that can occur with soldering. Furthermore, crimp connections provide excellent mechanical strength and vibration resistance, ensuring long-term reliability in mobile or harsh environments. The repeatability of a properly executed crimp ensures uniform electrical performance across multiple assemblies.
Achieving optimal performance from an SMA crimp connector hinges on a precise and disciplined assembly process. The procedure begins with precise cable preparation: stripping the outer jacket, braid, and dielectric to exact lengths specified by the connector manufacturer using calibrated strippers. Next, the components must be assembled in the correct order—typically the connector body, ferrule, and center contact. The crimp itself is a two-step process: first, the ferrule is crimped onto the cable's outer braid to ensure grounding and strain relief; second, the center contact is crimped onto the center conductor. Using a ratcheting, hex-style crimp tool matched to the connector's dimensions is non-negotiable for applying the correct, consistent force.
When installed correctly, a crimped SMA connector delivers electrical performance on par with factory-assembled or soldered counterparts. High-quality connectors are precision-machined to maintain the critical 50-ohm impedance of the SMA interface, minimizing signal reflection and Voltage Standing Wave Ratio (VSWR) up to 18 GHz. The crimp creates a cold-weld bond that ensures low DC resistance and stable electrical characteristics over time and across temperature cycles. The robust mechanical bond also maintains superior shielding integrity, preserving the cable's effectiveness against electromagnetic interference (EMI). This combination makes a properly crimped SMA connection a reliable node in any high-frequency signal chain.

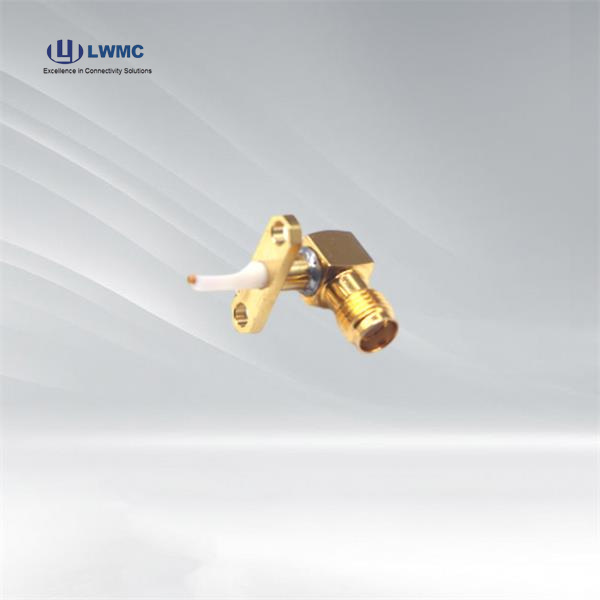

The versatility and reliability of SMA crimp connectors make them suitable for a broad spectrum of applications. They are extensively used in wireless communications for installing and repairing antenna jumpers, GPS antennas, and connections on small cell nodes. In aerospace and defense, they are valued for field maintenance of avionics and communication equipment. The test and measurement industry relies on them for creating custom-length test leads and adapters quickly. Additionally, they are fundamental in broadcast equipment, medical devices, and IoT hardware, where rapid prototyping, installation, or in-field servicing is required without compromising RF performance.
