In the world of radio frequency (RF) systems, achieving reliable and efficient signal transmission often hinges on the components that form the most basic links—the connectors. Among the essential products like RF Adapters and Coaxial Cable Assemblies, the Right Angle N Connector stands out as a critical solution for complex physical layouts. This specialized connector type is engineered to address common spatial challenges without compromising electrical performance, making it an indispensable part of modern RF infrastructure.
Right Angle N Connectors streamline system design and installation by fundamentally altering the cable exit path. In many equipment setups, cables must run parallel to mounting surfaces or navigate along chassis walls. A standard straight connector would force the cable to protrude perpendicularly, creating awkward bends, strain, and wasted space. By providing a precise 90-degree turn, these connectors allow coaxial cables to connect flush and route cleanly along equipment contours. This simplifies cable management, reduces the need for additional strain relief, and leads to a more organized, professional installation. Integrating a Right Angle N Connector into a Coaxial Cable Assembly is often the simplest way to achieve a seamless fit in constrained environments.

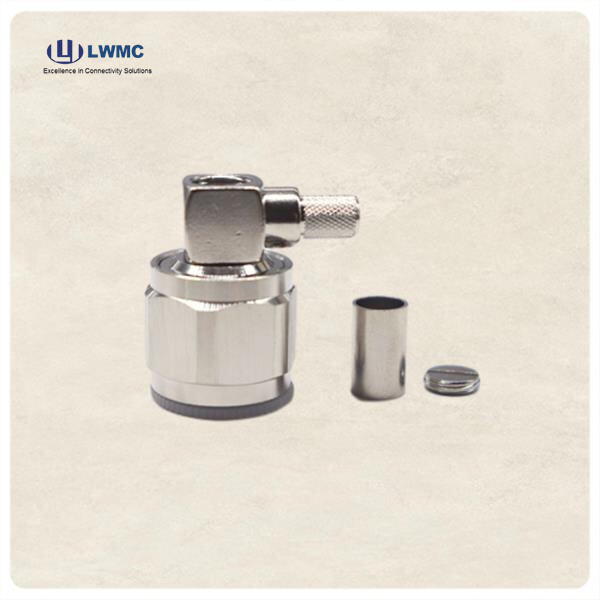

The primary advantage of these connectors becomes most apparent in dense electronic enclosures, behind racks, or in portable field equipment where every millimeter counts. In such tight spaces, using a straight connector can lead to excessive cable bending, which may deform the cable, impair the signal integrity, or even damage the connector port. Right Angle N Connectors eliminate this issue by turning the corner directly at the connection point. This preserves the minimum bend radius of the cable, protects the port from leverage-based stress, and maximizes the use of available space. The result is a more reliable physical connection, reduced risk of accidental disconnection or damage, and a cleaner, more compact system layout that is easier to service and maintain.
The effectiveness of a Right Angle N Connector lies in its robust design. Built to meet the same stringent electrical specifications as their straight counterparts, these connectors typically maintain the N-type's standard for performance up to 11 GHz, depending on the quality and design (e.g., standard or precision-grade). Internally, the central conductor is carefully bent or terminated at a right angle within a mechanically stable housing, ensuring consistent impedance and minimizing signal reflection. The threaded coupling mechanism of the N-type interface remains fully functional, providing the characteristic secure, weatherproof connection. Furthermore, they are commonly available as plug or jack versions and can be integrated with various cable types. When combined with an RF Adapter, such as a right-angle N male to female straight adapter, they offer even greater configuration flexibility without the need for a custom cable assembly.
Beyond spatial benefits, Right Angle N Connectors play a direct role in enhancing signal transmission reliability. By preventing sharp, uncontrolled cable bends immediately at the connection point, they help maintain the coaxial cable's structural and electrical integrity. This controlled bend minimizes unwanted variations in impedance, reduces signal loss (attenuation), and lowers the potential for Voltage Standing Wave Ratio (VSWR) spikes. In high-frequency applications, such clean management is crucial for preserving signal strength and data integrity. Whether used as a standalone component or as part of a pre-configured Coaxial Cable Assembly, the right-angle design ensures that the high-performance standards of the N connector series are upheld, delivering stable and efficient RF connectivity in even the most challenging physical setups.
