In the world of demanding RF applications, from cellular base stations to aerospace systems, the integrity of every physical connection is paramount. Among the most trusted solutions for such critical links is the N type male connector, a rugged and versatile interface designed for reliability. Characterized by its threaded coupling mechanism and robust construction, this connector is engineered to maintain stable electrical performance from DC up to 11 GHz while withstanding harsh environmental conditions.
The N type male connector is defined by a specific set of mechanical and electrical attributes that ensure its performance. Its primary feature is the male threaded coupling nut, which engages with the corresponding female interface to create a secure, vibration-resistant connection. The central male pin is precisely machined to mate with a female socket, ensuring stable electrical contact. Constructed from high-quality materials like brass or stainless steel with selective gold or silver plating on the contacts, these connectors are built for durability and minimal signal degradation. Key design elements focus on maintaining a consistent 50-ohm impedance, low Voltage Standing Wave Ratio (VSWR), and high power handling capacity. This meticulous engineering makes the N type male connector suitable for both high-power transmission and sensitive signal reception in demanding frequency ranges.

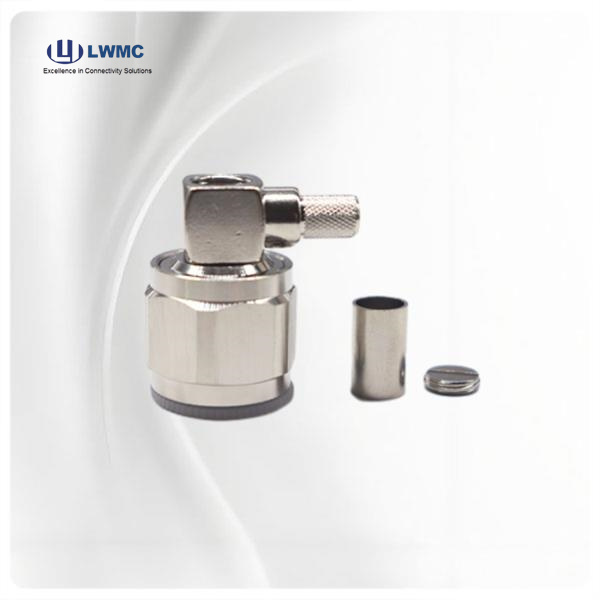

The true value of the N type male connector is realized through its integration into complete RF systems. As a common termination point in Linkworld's custom Coaxial Cable Assemblies, it is expertly attached to various cable types—from flexible LMR-400 to low-loss Heliax—using precise crimping or soldering techniques. This creates ready-to-deploy, high-reliability links. Furthermore, its utility is extended through a wide range of RF Adapters, such as N type male to SMA female or N type male to 7/16 DIN. These adapters provide essential flexibility, enabling seamless interoperability between equipment with different port standards without compromising performance. This versatility supports applications across telecommunications infrastructure, defense and aerospace electronics, broadcast systems, and scientific instrumentation, where reliable, high-frequency connections are non-negotiable.

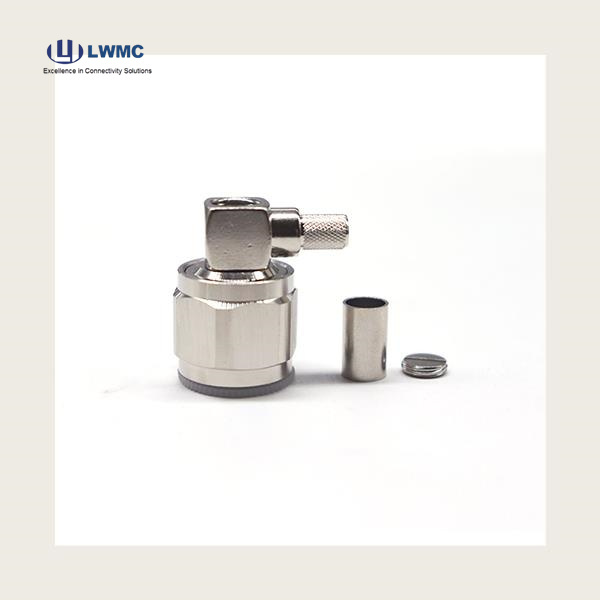

The N type male connector is specifically engineered to excel where other connectors might fail. Its threaded coupling provides excellent resistance to vibration and mechanical shock, a critical requirement for mobile, airborne, or maritime applications. When equipped with appropriate sealing gaskets or weatherproofing kits, it offers superior protection against moisture, dust, and corrosion, making it the connector of choice for outdoor installations. This environmental resilience, combined with its stable electrical characteristics, ensures long-term reliability in settings such as rooftop cellular antennas, radar installations, and remote telemetry stations. The connector's ability to maintain low signal loss and consistent impedance under physical and environmental stress is what establishes it as a cornerstone of field-proven RF infrastructure.

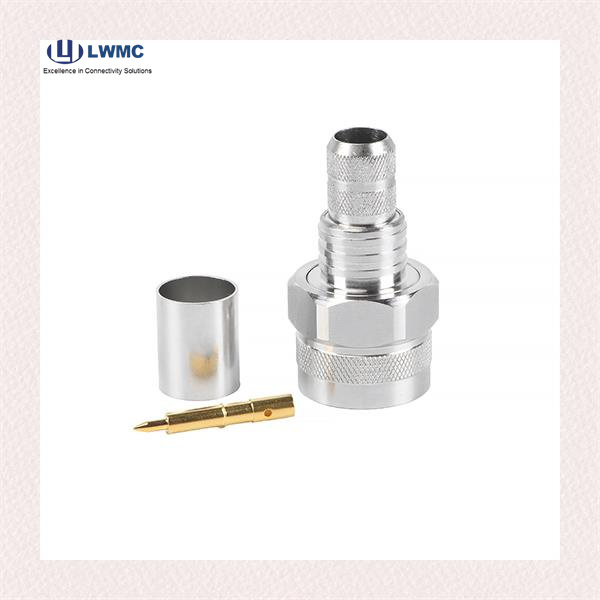

Our manufacturing process adheres to stringent protocols, from material selection to final inspection. Every connector undergoes rigorous testing to verify its electrical specifications, including VSWR and insertion loss, ensuring it meets or exceeds industry requirements. We understand that these components are deployed in systems where failure can have significant consequences. Therefore, our commitment extends beyond mere compliance to delivering products that offer engineers and system integrators absolute confidence. Whether supplied as a standalone component, integrated into a custom cable assembly, or as part of an adapter solution, the Linkworld N type male connector represents a benchmark of durability, performance, and reliability for the world's most critical connectivity challenges.
