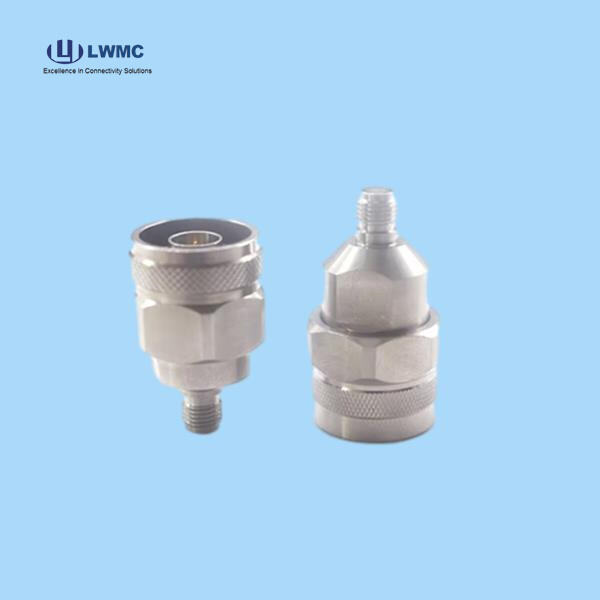

In the diverse ecosystem of RF system design, a common challenge is the seamless interconnection of equipment and components utilizing different connector standards. The N Male to SMA Female adapter is a precisely engineered solution designed to address this exact scenario. It serves as a critical interface bridge, enabling a direct and reliable transition from the robust, threaded N-type interface to the compact, high-frequency SMA standard. This adapter is an indispensable tool for engineers and technicians, facilitating system integration, test and measurement setups, and field deployments where interoperability between legacy and modern equipment is essential.
This adapter is a hybrid component that combines the mechanical and electrical characteristics of two distinct connector families. The N Male side features the connector's characteristic threaded coupling nut and a male center pin, designed for secure mating with an N-type female jack. Known for its durability and excellent performance up to 11 GHz, the N interface is typically used for higher-power or outdoor applications. The SMA Female side features the smaller, threaded interface with a recessed female contact, designed to mate with an SMA male plug. Optimized for frequencies up to 18 GHz, the SMA interface is the standard for most modern RF modules, test equipment, and internal board-level connections. The adapter's internal construction is meticulously engineered to maintain a consistent 50-ohm impedance transition, minimizing signal reflection and insertion loss across its operational bandwidth.
The primary value of the N Male to SMA Female adapter lies in its ability to solve specific interconnect challenges. Its most common applications include:
Test & Measurement: Connecting benchtop equipment with SMA ports (e.g., spectrum analyzers, signal generators) to field devices, antennas, or systems terminated with N-type connectors.
Telecommunications: Interfacing modern RRUs (Remote Radio Units) or indoor small cells (often using SMA interfaces) with existing feeder cables or legacy antennas terminated with N-type connectors.
Aerospace & Defense: Bridging connections between ruggedized chassis or antenna systems (using N-type) and sensitive internal RF modules or test points (using SMA).
System Prototyping & Lab Work: Providing flexible, reconfigurable connections during the design and validation phases of RF projects, eliminating the need for custom cable assemblies for every interface combination.
It is a core component within Linkworld's ecosystem of RF Adapters, working in concert with our RF Connectors and Coaxial Cable Assemblies to provide complete interconnect solutions.
The performance of an adapter is measured by its ability to act as an "invisible" link in the signal chain. For the N Male to SMA Female adapter, critical performance parameters include its operational frequency range, Voltage Standing Wave Ratio (VSWR), and insertion loss. A high-quality adapter from Linkworld is designed to support the overlapping frequency ranges of both connector types effectively, typically guaranteeing optimal performance through at least 6-8 GHz with a low, stable VSWR (e.g., <1.25:1). The transition between the larger N-type center conductor and the smaller SMA contact must be engineered to avoid abrupt impedance changes that could cause signal degradation. Advanced machining, precise dielectric design, and high-quality contact plating (often gold) are employed to ensure reliable, repeatable electrical performance.
Given its role as a critical junction point, the build quality of the adapter is paramount. Linkworld manufactures these adapters using premium materials such as stainless steel or brass bodies with passivated or nickel-plated finishes for corrosion resistance. The center contacts are precisely machined and plated to ensure excellent conductivity and mating reliability. Each unit undergoes rigorous electrical testing to verify its specifications are met. This commitment to quality ensures that the adapter does not become the weak link in a system. For engineers, specifying a Linkworld N Male to SMA Female adapter means choosing a component that offers dependable performance, mechanical durability, and the assurance of a seamless interface transition, thereby protecting the integrity of the entire RF signal path.
