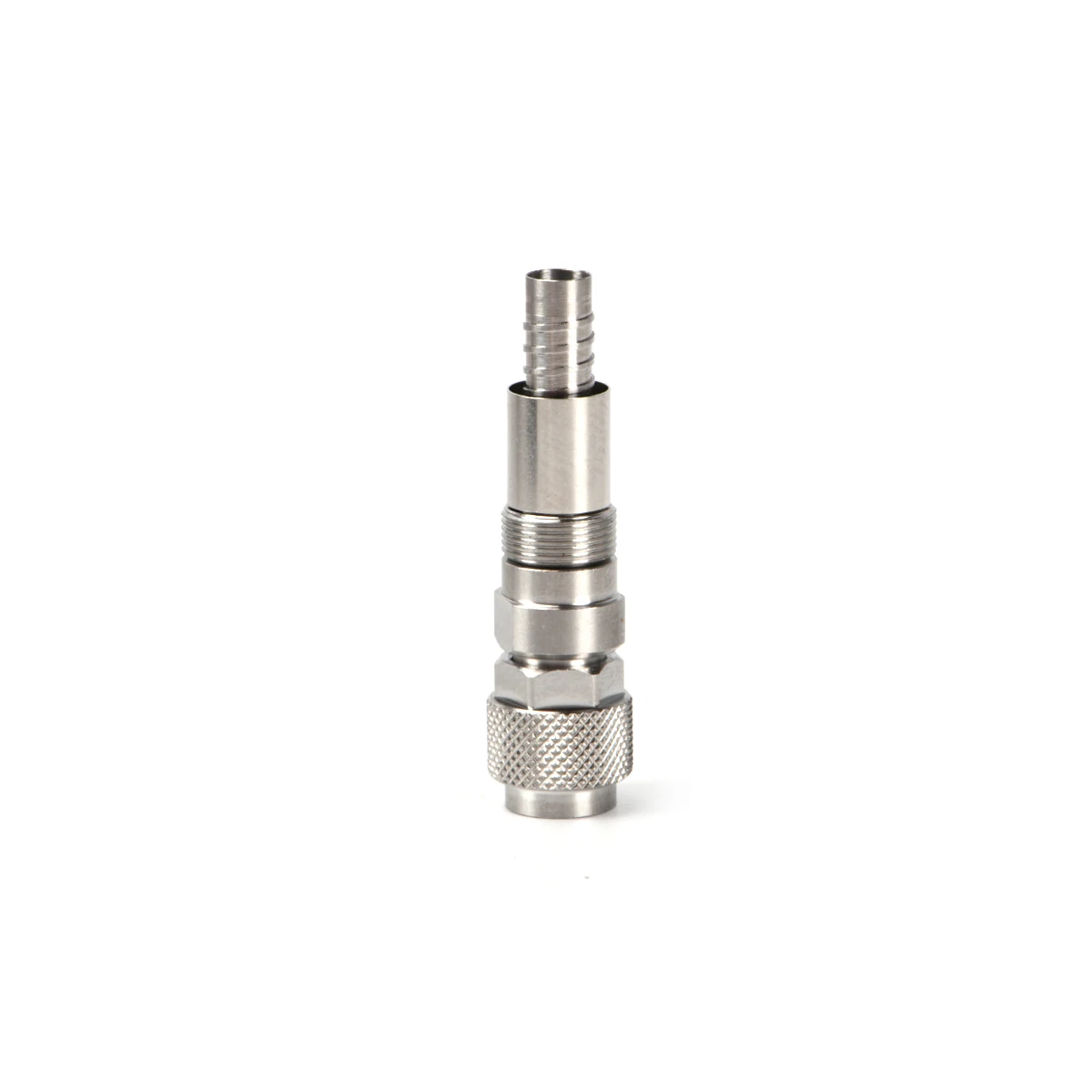

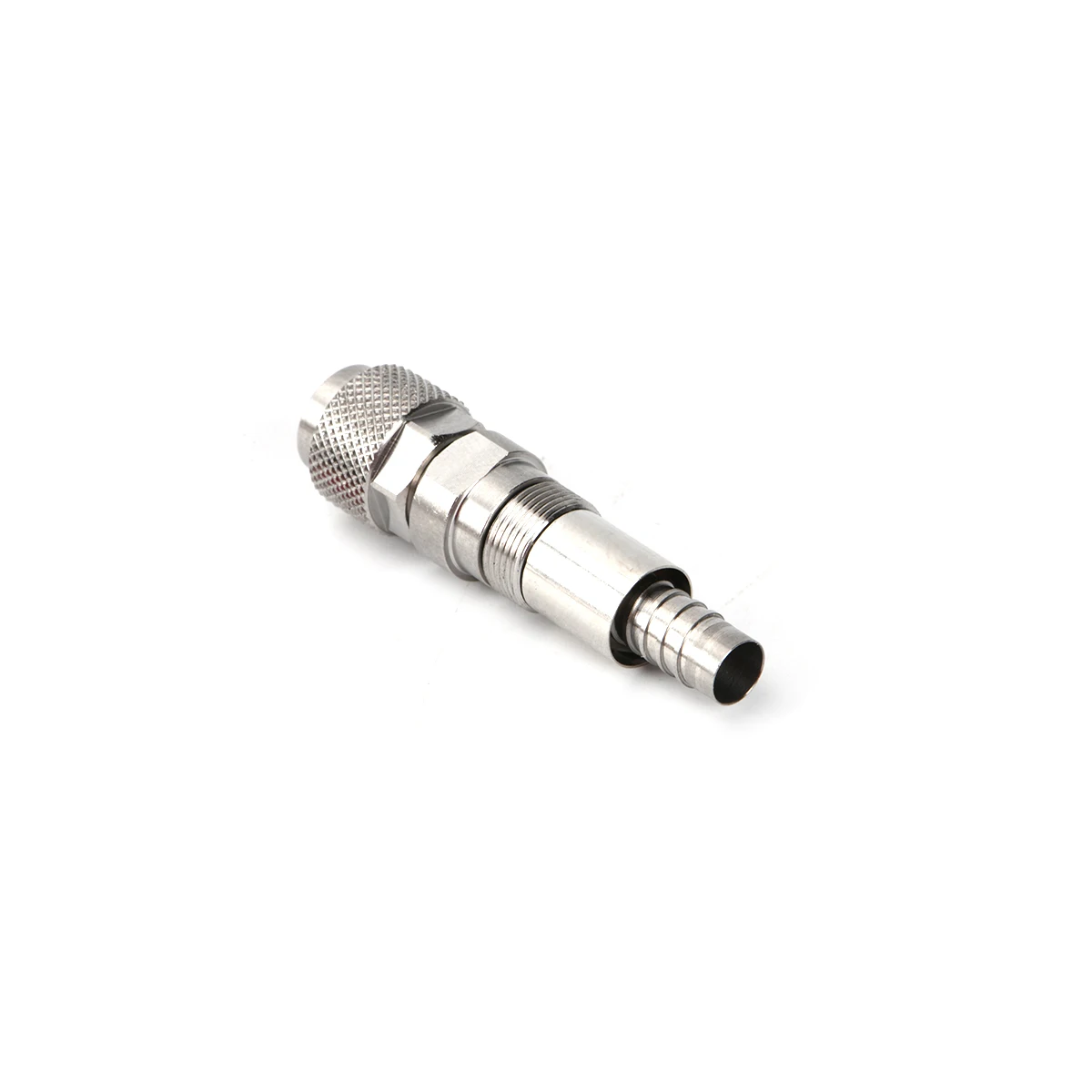

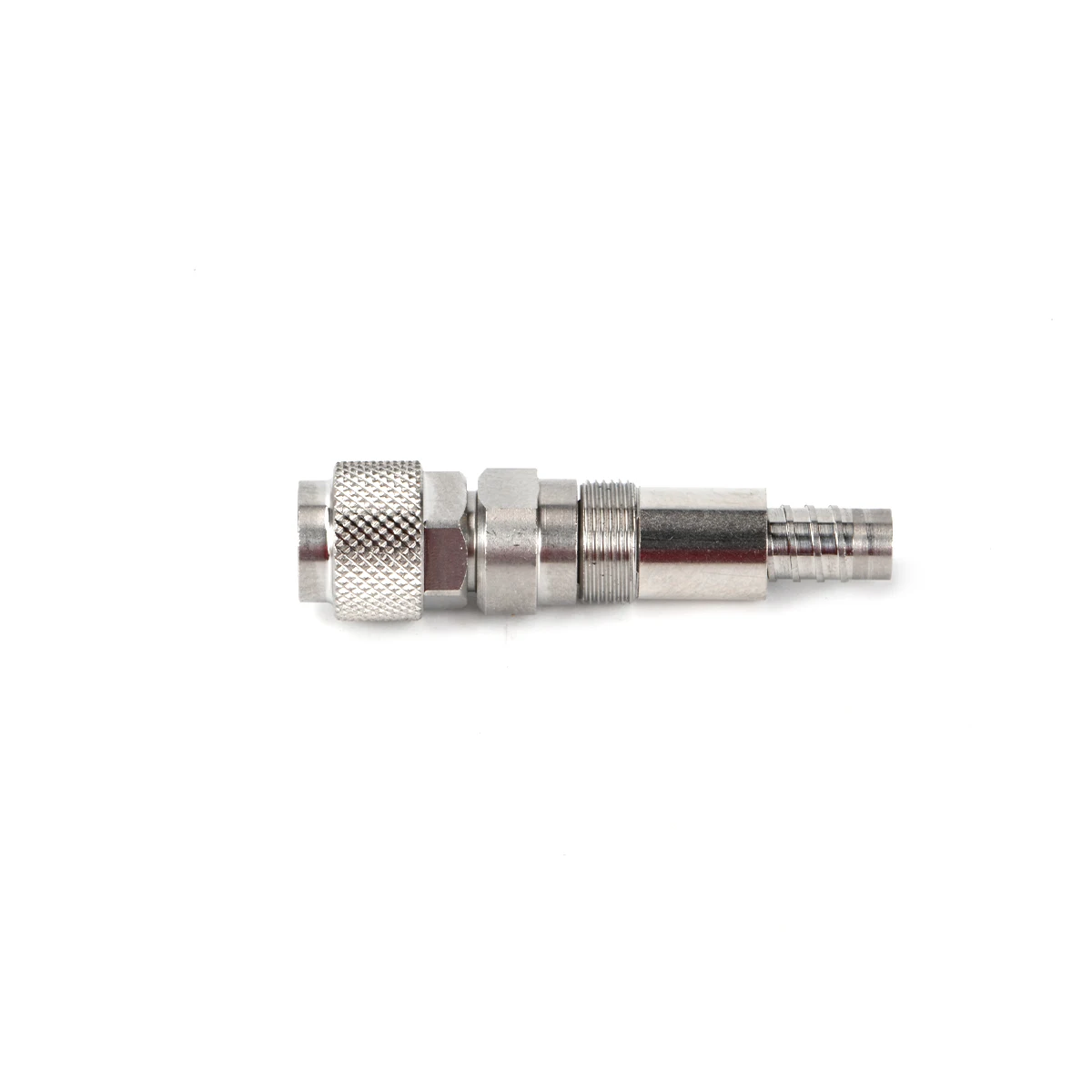

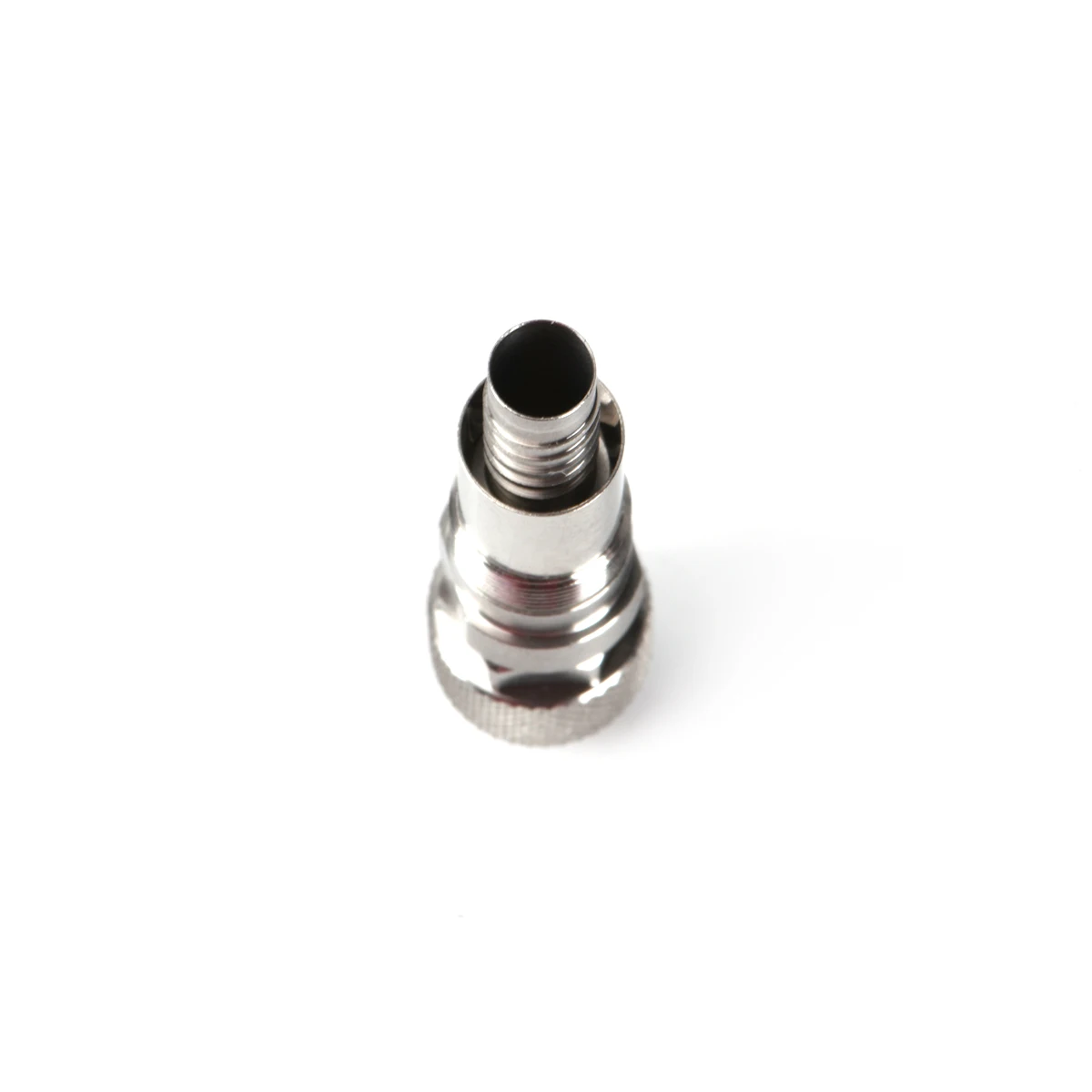

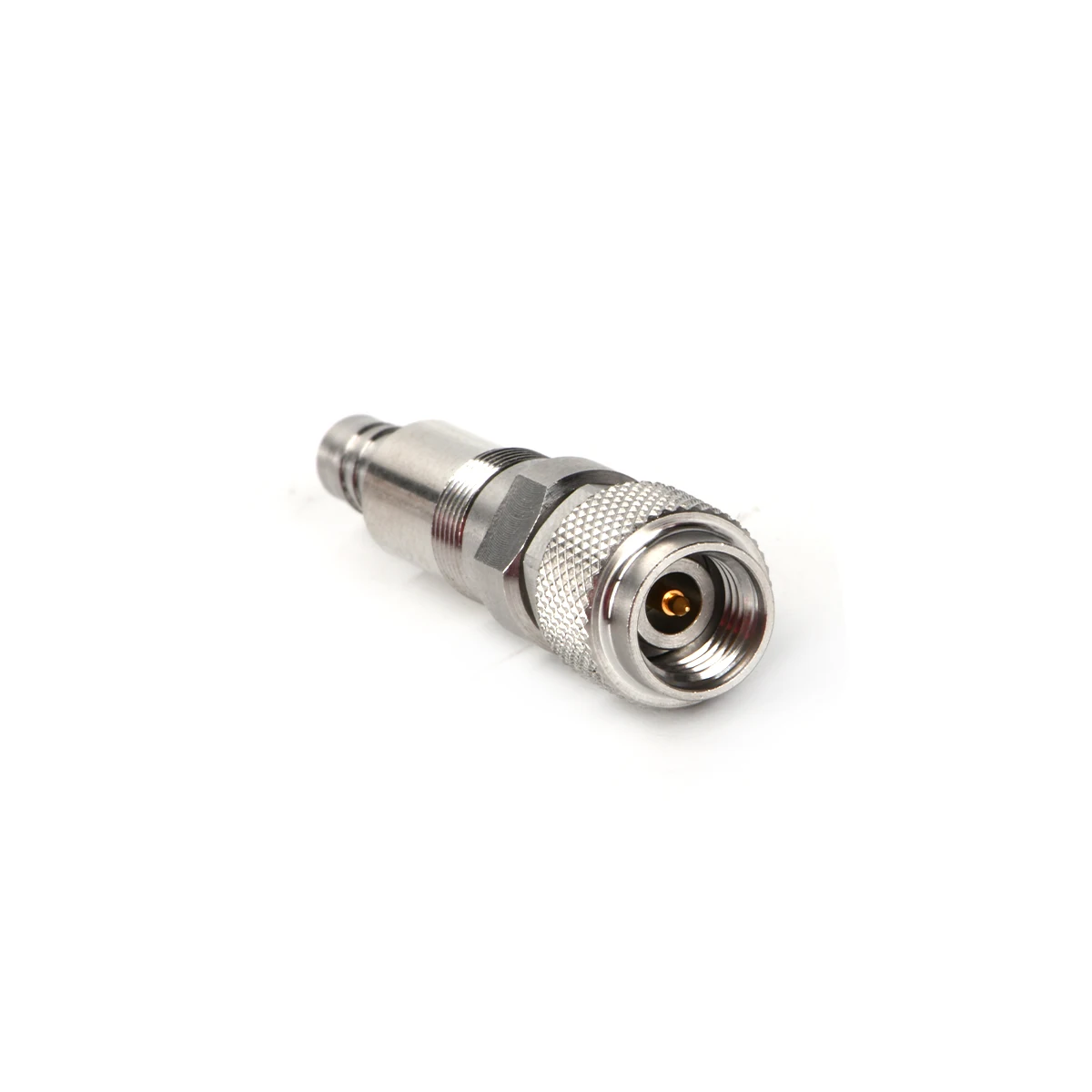

2.92mm Male Solder for WB410 Cable

Center ConductorBeryllium Copper,Gold platingInsulatorsPEIBody Stainless steel,PassivatedCoupling NutStainless steel,PassivatedNutStainless steel,PassivatedSleeveBrass,Ternary alloy plating...

Introduction

2.92mm Male Solder for WB410 Cable details

2.92mm Male Solder for WB410 Cable supplier

2.92mm Male Solder for WB410 Cable factory

2.92mm Male Solder for WB410 Cable manufacture

Center Conductor	Beryllium Copper,Gold plating
Insulators	PEI
Body	Stainless steel,Passivated
Coupling Nut	Stainless steel,Passivated
Nut	Stainless steel,Passivated
Sleeve	Brass,Ternary alloy plating
Bushing	Stainless steel,Passivated
C'Ring	Phosphor Bronze
Impedance	50 ohm
Frequency Band	DC to 40 GHz
VSWR	1.25 max
Dielectric withstand voltage	1000v
Contact resistance	Center Conductor ≤3mΩ Outer Conductor≤2mΩ
Insulation resistance	≥5000MΩ
Durability	≥500

Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF

format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
