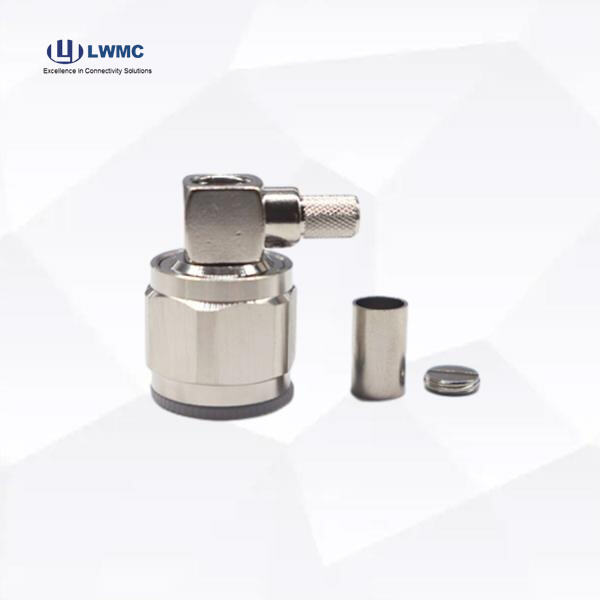

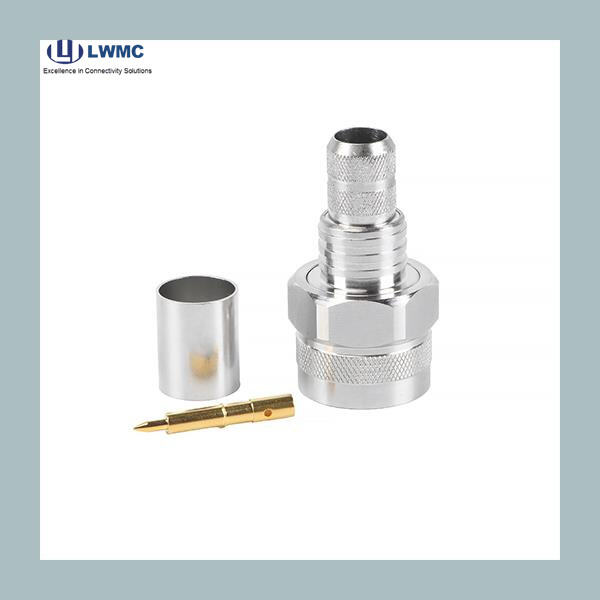

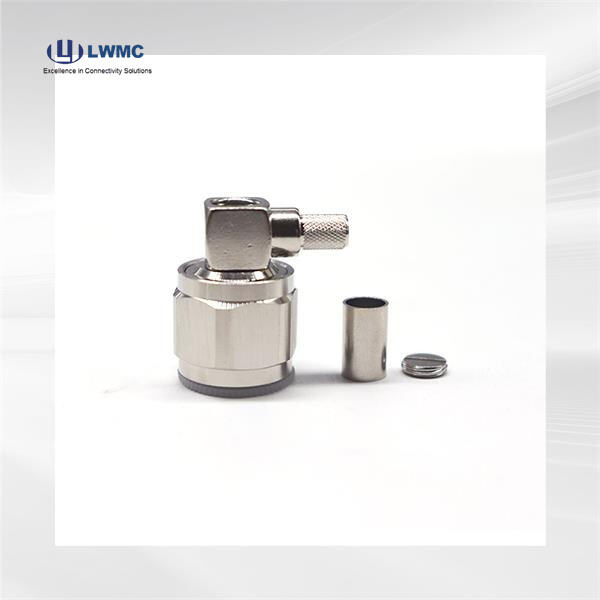

The N connector male is one of the most widely used threaded coaxial interfaces in RF and microwave engineering, prized for its durability, weather resistance, and stable electrical performance from DC up to 18 GHz (with precision versions reaching 67 GHz). At Zhenjiang Linkworld Microwave Communication Co., Ltd., we design and manufacture these connectors to meet the most demanding requirements of telecommunications, military aerospace, satellite ground stations, radar systems, and test instrumentation. With over 20 years of RF expertise and an R&D team that brings 25 years of product development experience, Linkworld delivers N connector male solutions that combine precision machining, low VSWR, high power handling, and long service life—ensuring your critical signals remain intact in any environment.
The N connector male features a threaded outer coupling nut and a captive center pin, providing a secure, vibration-proof connection that maintains consistent 50‑ohm (or 75‑ohm) impedance across the transmission path. Its air‑dielectric interface minimizes insertion loss and reflection, making it ideal for high‑power transmitters, base station feeders, and laboratory measurement setups. Linkworld’s N connector male products are fully compliant with IEC60169 standards and are available in various material finishes—including stainless steel, brass with silver or nickel plating—to suit indoor, outdoor, and corrosive environments. Whether you need a standard panel-mount jack, a cable plug for flexible or semi‑rigid cables, or a custom design with specific attenuation and power ratings, our engineering team collaborates with you from the early design stage to ensure the connector exactly matches your system’s mechanical and electrical requirements.
Correct installation begins with a visual inspection: check the center pin for straightness and cleanliness, and examine the mating female connector for debris or damaged threads. Align the two connectors axially, then thread the coupling nut onto the female jack by hand until it is snug—do not force it. Next, use a calibrated torque wrench to apply the manufacturer’s recommended torque (typically 1.0–1.7 N·m for standard N‑types); over‑tightening can deform the dielectric or center conductor, while under‑tightening causes poor contact and elevated VSWR. For outdoor installations, protect the joint with weatherproof tape and sealant to prevent moisture ingress. Linkworld’s N connector male products feature a mating life exceeding 500 cycles, but for optimal performance, always clean the threads and mating surfaces with isopropyl alcohol and lint‑free swabs before each critical connection, and avoid touching the center pin to prevent contamination.
Adopting the N connector male gives your system a competitive edge through its superior power handling (typically up to several hundred watts), low passive intermodulation (as low as -168 dBc), and excellent repeatability across temperature and mechanical cycling. In high‑frequency applications (18–67 GHz), Linkworld’s precision‑grade N connector males offer phase‑stable and amplitude‑stable characteristics, ensuring consistent measurements and reliable data transmission in radar arrays, satellite uplinks, and 5G infrastructure. Moreover, our integrated manufacturing and trading capabilities allow us to offer these connectors as standalone items, as part of custom cable assemblies (flexible, semi‑flexible, or semi‑rigid), or integrated with glass‑to‑metal seals for hermetic environments up to 350°C. With end‑to‑end support—from design optimization to real‑time usage tracking and after‑sales service—choosing Linkworld means you stay ahead with proven, high‑performance interconnection solutions.
The key to a strong, reliable connection lies not only in the connector’s mechanical design but also in its material quality, manufacturing precision, and proper usage. Linkworld’s N connector male products are engineered with advanced CNC machining, strict quality control, and 100% RF testing to guarantee VSWR as low as 1.10, ensuring minimal signal reflection and maximum power transfer. Our commitment to “Honesty and Perfection” drives us to deliver high‑reliability products that withstand harsh conditions—whether in aerospace, oil exploration, or medical equipment. Backed by a dedicated R&D team and responsive after‑sales service, we provide the confidence you need that every N connector male in your setup will perform flawlessly, cycle after cycle, safeguarding your mission‑critical communications and measurements.
