The Male N connector is a cornerstone of modern RF and microwave systems, renowned for its ruggedness, weather resistance, and stable performance up to 18 GHz (and extended versions to higher bands). At Zhenjiang Linkworld Microwave Communication Co., Ltd., we engineer these threaded, medium-sized coaxial interfaces to meet the rigorous demands of telecommunications, aerospace, radar, and test instrumentation. With over 20 years of RF innovation and an R&D team possessing 25 years of product development experience, we deliver Male N connectors that combine precision manufacturing, low VSWR, and exceptional durability—ensuring your signal chain remains robust in both indoor and outdoor environments.
The Male N connector serves as the critical interface between cables, antennas, and equipment, responsible for launching and receiving RF signals with minimal loss and reflection. Its threaded coupling mechanism provides a secure, vibration-proof connection that maintains consistent impedance (typically 50 ohms) across the transmission path. Linkworld’s Male N connectors are designed to achieve VSWR as low as 1.10, ensuring that reflected power is minimized and signal integrity is preserved—even in high-power or frequency-sensitive applications. Whether deployed in base station feeders, satellite ground terminals, or laboratory calibration setups, these connectors reliably carry signals from DC up to 67 GHz (for precision-grade variants), making them indispensable for both legacy and next-generation communication systems.

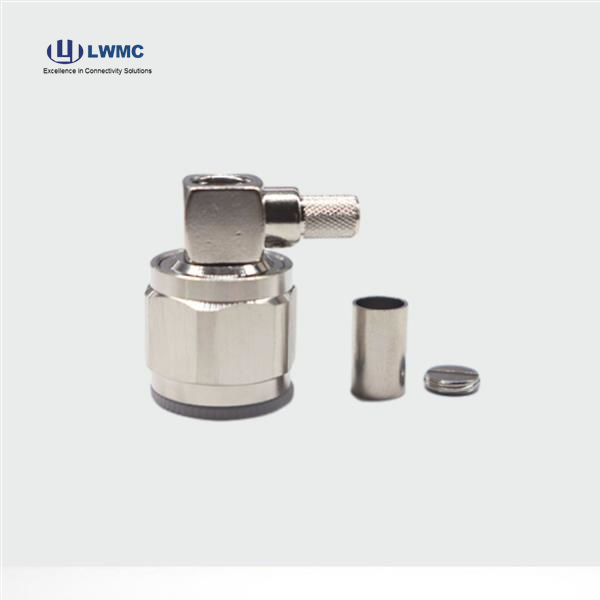

Selecting the optimal Male N connector depends on your frequency range, power handling, environmental conditions, and mating interface. Linkworld offers a full range compliant with IEC60169 standards, supporting interfaces such as N, SMA, 3.5mm, 2.92mm, and 2.4mm—with inter-series adapters available to bridge different systems. For outdoor base stations, our connectors feature corrosion-resistant plating and weatherproof sealing, while for test laboratories, our precision-grade versions offer phase-stable and amplitude-stable characteristics critical for repeatable measurements. We also provide custom designs with specific attenuation values and power ratings, collaborating closely with your R&D team from the design phase to ensure the chosen connector matches your mechanical and electrical requirements exactly—enhancing performance, reliability, and cost-efficiency.

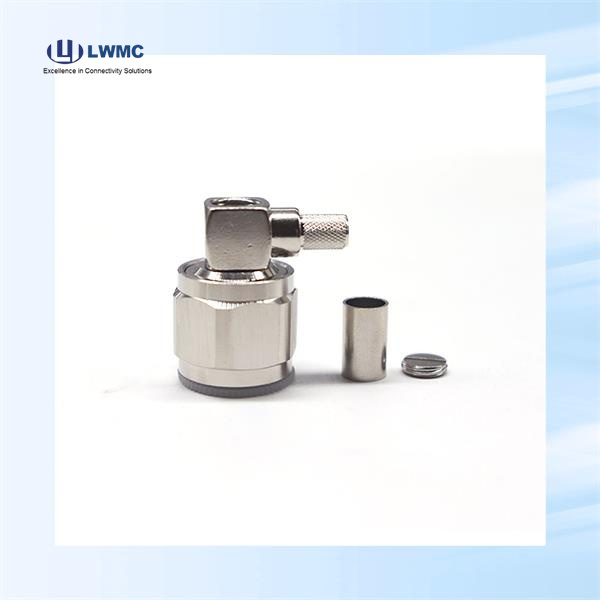

Proper installation begins with inspecting the Male N connector’s center pin (male pin) for straightness and cleanliness, and the mating female socket for debris or damage. Align the threads carefully and tighten by hand until snug, then apply a torque wrench to the specified value—typically 1.0–1.7 N·m for N-type—avoiding over-tightening that can deform the dielectric or center conductor. For outdoor installations, wrap the joint with self-amalgamating tape and weatherproof sealant to prevent moisture ingress. Maintenance involves periodic visual inspection under magnification, cleaning threads with isopropyl alcohol and a lint-free cloth, and checking VSWR performance using a network analyzer. Linkworld’s Male N connectors are built with a mating life exceeding 500 cycles, but regular care—including re-torquing after thermal cycling—ensures long-term reliability in mission-critical environments.

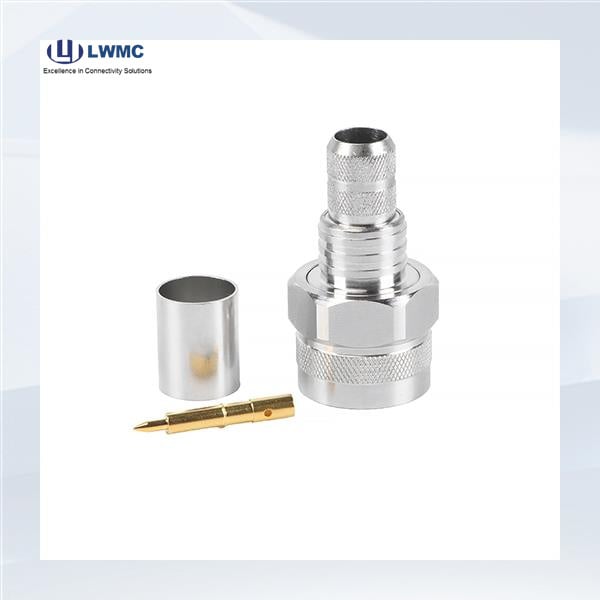

The Male N connector offers distinct advantages: its air-dielectric interface and precision-machined outer conductor deliver low insertion loss and excellent return loss across a wide bandwidth, while its threaded coupling withstands high vibration and repeated connect-disconnect cycles without degradation. Compared to smaller connectors like SMA, the N-type handles higher power levels (typically up to several hundred watts) and performs more consistently in harsh weather, making it the preferred choice for broadcast transmitters, radar feeders, and cellular infrastructure. Linkworld’s integrated manufacturing and trading capabilities ensure that every Male N connector—whether standalone, part of a cable assembly, or integrated with glass-to-metal seals for hermetic applications (up to 350°C)—meets our core value of “Honesty and Perfection.” Backed by end-to-end support from design optimization to after-sales tracking, our Male N connectors empower communication systems with superior signal integrity, durability, and cost-effective performance across global markets.
