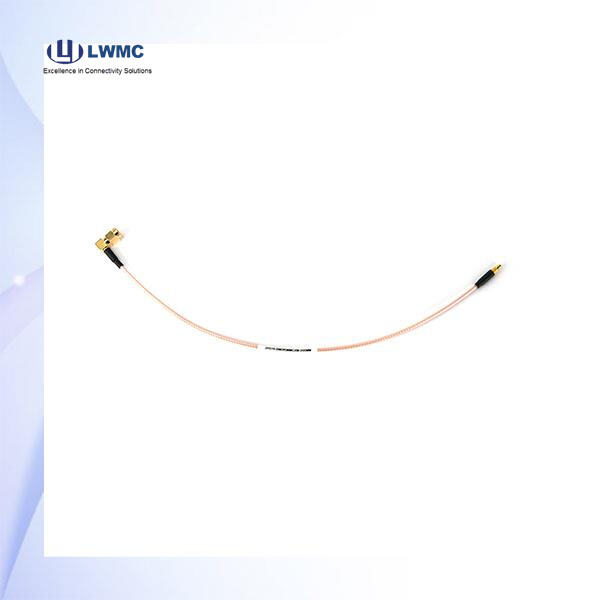

In the demanding world of radio frequency (RF) and microwave systems, off-the-shelf cable assemblies often fall short of meeting the precise mechanical, electrical, and environmental requirements of specialized applications. Custom coax assemblies provide the ultimate solution, offering a tailored approach to connectivity. These assemblies are engineered from the ground up, integrating specific coaxial cables, connectors, and assembly techniques to deliver optimized performance where standard products cannot. From complex aerospace systems to dense telecommunications infrastructure, custom assemblies ensure that the critical link between components is not a compromise, but a performance-enhancing asset.
The foundation of any superior custom assembly is the precise selection and specification of the coaxial cable itself. This involves far more than just choosing a length. Engineers consider factors such as the required attenuation (signal loss) over the operational frequency band, phase stability for phased-array systems, flexibility and minimum bend radius for routing in tight spaces, and environmental robustness against factors like moisture, temperature extremes, UV exposure, or chemical corrosion. By selecting the exact cable type—be it a low-loss flexible cable, a phase-stable semi-rigid cable, or a high-power variant—the assembly is built on a foundation designed to meet your exact electrical and physical demands.

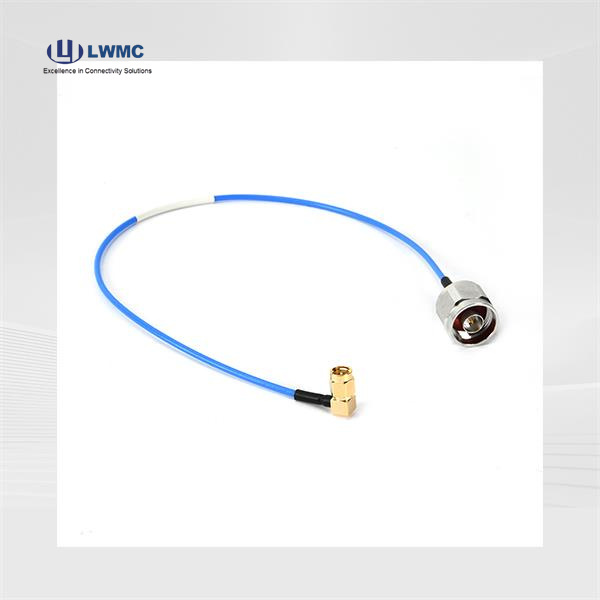

A custom assembly maximizes signal integrity by ensuring perfect harmony between all components. This includes impedance matching across the entire assembly to minimize Voltage Standing Wave Ratio (VSWR) and signal reflections. Precision machining of connector interfaces and meticulous assembly techniques (such as soldering or crimping) guarantee consistent 50-ohm or 75-ohm characteristics. Furthermore, shielding effectiveness is maximized through specific braid designs or combination shields, drastically reducing electromagnetic interference (EMI) and signal leakage. This holistic approach to design results in lower insertion loss, higher power handling, and greater bandwidth efficiency compared to adapting generic assemblies.
The versatility of custom assemblies makes them indispensable across a vast spectrum of industries. In Aerospace & Defense, they are built to withstand extreme vibration, wide temperature swings, and meet stringent MIL-SPEC requirements for radar and avionics. Telecom and 5G Infrastructure utilize them for precise phase-matched jumpers in antenna arrays and durable, weather-sealed feeder lines. Medical Imaging equipment, such as MRI machines, relies on custom assemblies for critical low-noise signal transmission. Test & Measurement applications benefit from phase-stable, low-VSWR assemblies that ensure calibration accuracy. Essentially, if an application has unique spatial, performance, or durability challenges, a custom coax assembly provides the solution.

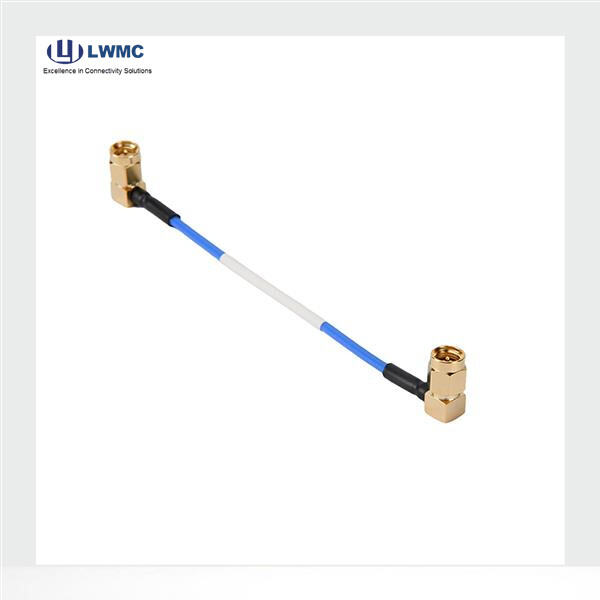

Ultimately, investing in custom coax assemblies translates directly into system-level efficiency and reliability. A perfectly fitted assembly with the correct connector orientations and cable length eliminates unnecessary slack, reduces weight, and simplifies installation in complex racks or enclosures. This precision engineering reduces points of failure, minimizes maintenance needs, and extends the operational life of the entire system. By delivering optimal signal strength and integrity exactly where and how it is needed, custom assemblies ensure that your equipment operates at its maximum designed efficiency, protecting your overall investment and guaranteeing performance.
