In the frontier of microwave engineering where performance extends to the upper reaches of the frequency spectrum, the integrity of every connection is non-negotiable. The 2.4mm connector series stands at this frontier, defining the standard for reliable, repeatable, and high-performance interconnects up to 50 GHz. This series is engineered not merely as a passive component but as a critical enabling technology for innovation in research, defense, and next-generation communications. As the demands on bandwidth and signal fidelity intensify, the 2.4mm series provides the robust and precise interface that ensures the integrity of the most sensitive microwave signals, from laboratory measurement to deployed systems in the field.

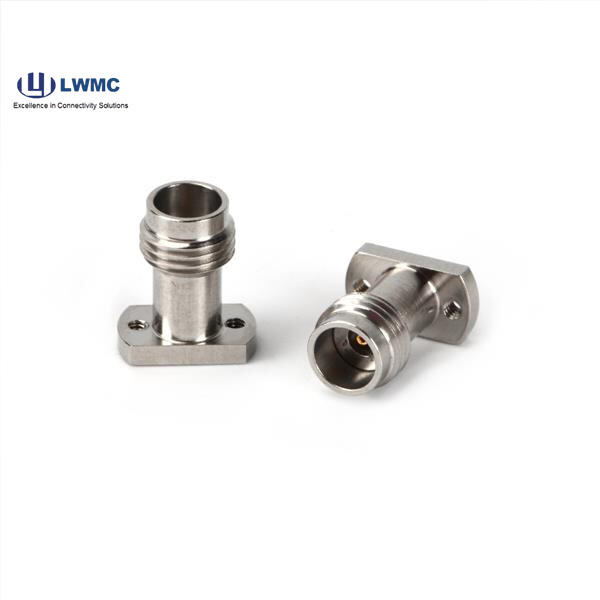

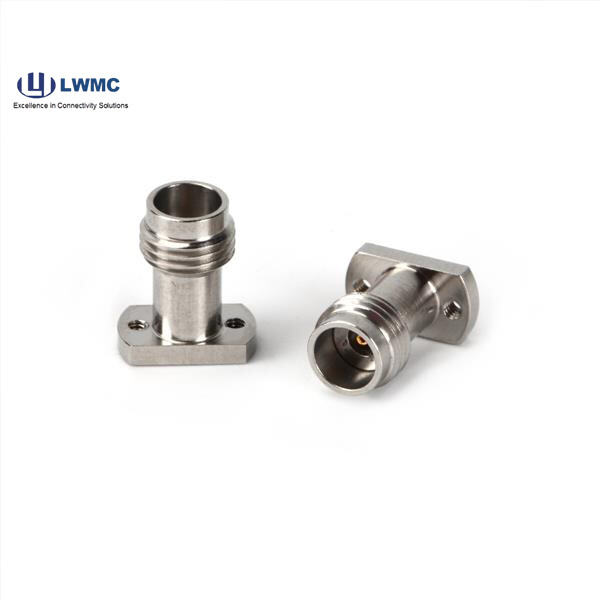

The 2.4mm series is distinguished by a design philosophy that prioritizes mechanical integrity as the foundation for electrical performance. The connector's nomenclature originates from the inner diameter of the female connector's outer conductor. A key feature of its design is a robust, sexless interface that provides excellent structural support, minimizing conductor damage and ensuring long-term mating cycle durability. The 2.4mm Male Solder connector, designed for termination to semi-rigid cables, and the corresponding 2.4mm Female interface are precision-machined to exacting tolerances. They utilize high-grade materials—often featuring beryllium copper contacts with gold plating and stainless steel or brass bodies—to guarantee low electrical loss, stable impedance, and reliable performance under thermal and mechanical stress.
The primary mission of the 2.4mm series is to deliver superior electrical characteristics across its entire operating bandwidth. Its design ensures minimal signal reflection and attenuation, characterized by an exceptionally low Voltage Standing Wave Ratio (VSWR) and insertion loss up to 50 GHz. The air-interface construction at the mating plane minimizes dielectric loss, which is critical for maintaining signal purity at microwave frequencies. This makes the 2.4mm series indispensable in applications where measurement accuracy is paramount, such as in high-precision Vector Network Analyzers (VNAs) and spectrum analyzers. Its ability to maintain a consistent 50-ohm impedance path ensures that calibration standards are preserved and measurement uncertainties are minimized, forming the bedrock of trustworthy high-frequency data.
The robust performance of the 2.4mm series unlocks its use across a range of demanding sectors. It is the connector of choice in advanced Test & Measurement for characterizing devices, components, and integrated circuits operating at millimeter-wave frequencies. Within Aerospace and Defense, it is deployed in sophisticated radar systems, satellite communication payloads, and electronic warfare suites where broadband capability and signal integrity are mission-critical. Furthermore, it plays a vital role in the research and development of 5G/6G infrastructure and other high-speed digital systems, providing the reliable interface needed for prototyping and validating cutting-edge technologies. Its versatility bridges the gap between R&D and field-deployed solutions.

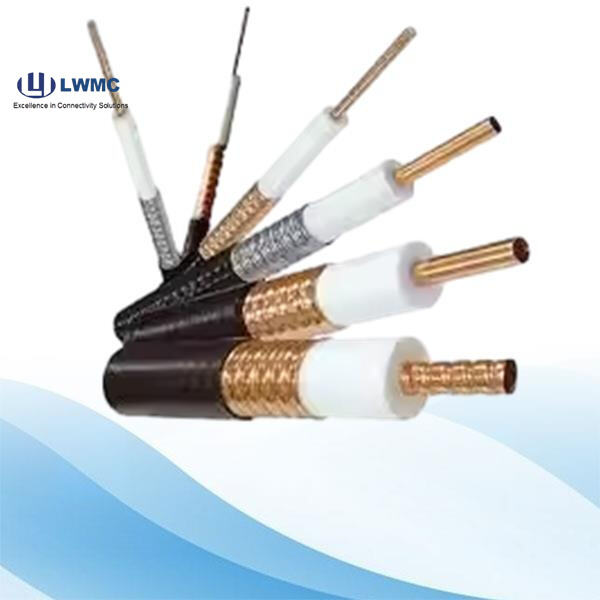

The value of the 2.4mm series is fully realized through professional integration and customization. While the connectors themselves are standardized, Linkworld specializes in transforming them into complete, application-ready solutions. This includes the production of precision cable assemblies where the connectors are expertly soldered onto ultra-low-loss, phase-stable coaxial cables, resulting in a calibrated and reliable microwave link. Additionally, a comprehensive range of RF adapters—such as 2.4mm to 3.5mm or 2.4mm to 1.85mm—ensures seamless interoperability with equipment using different interface standards. Every assembly and adapter is subjected to rigorous electrical testing to verify performance specifications, guaranteeing that engineers receive a component that performs as an integral, flawless part of their high-frequency system.
