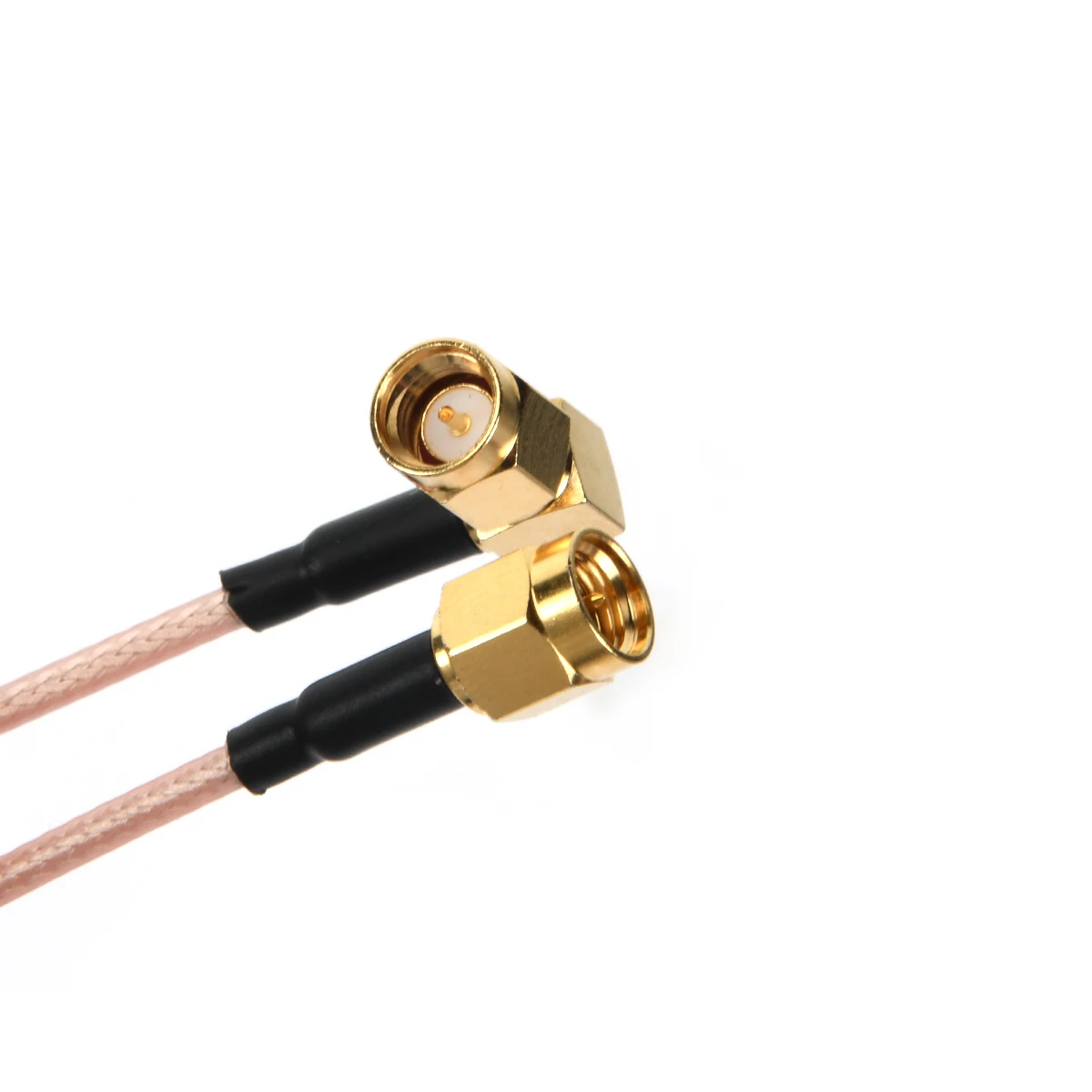

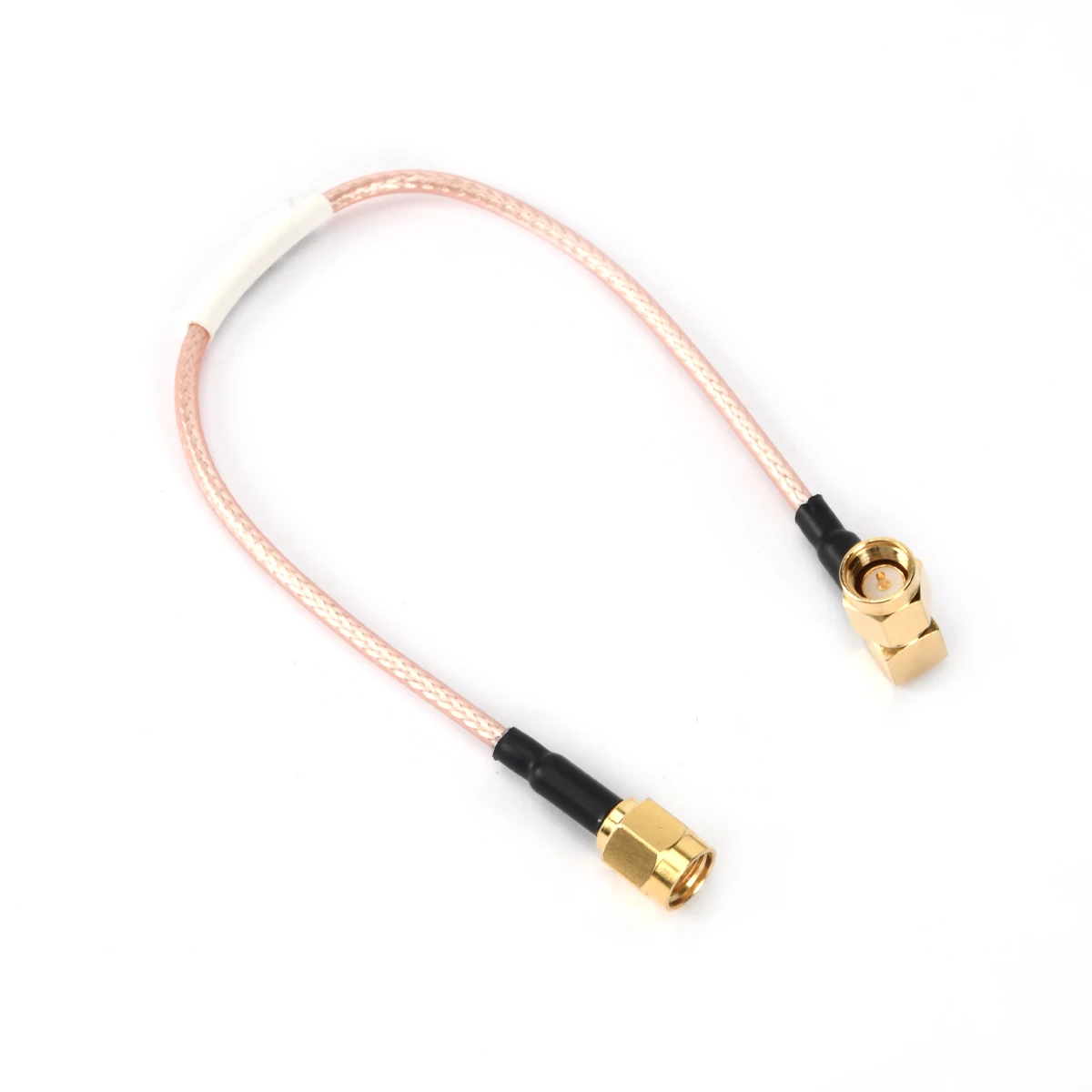

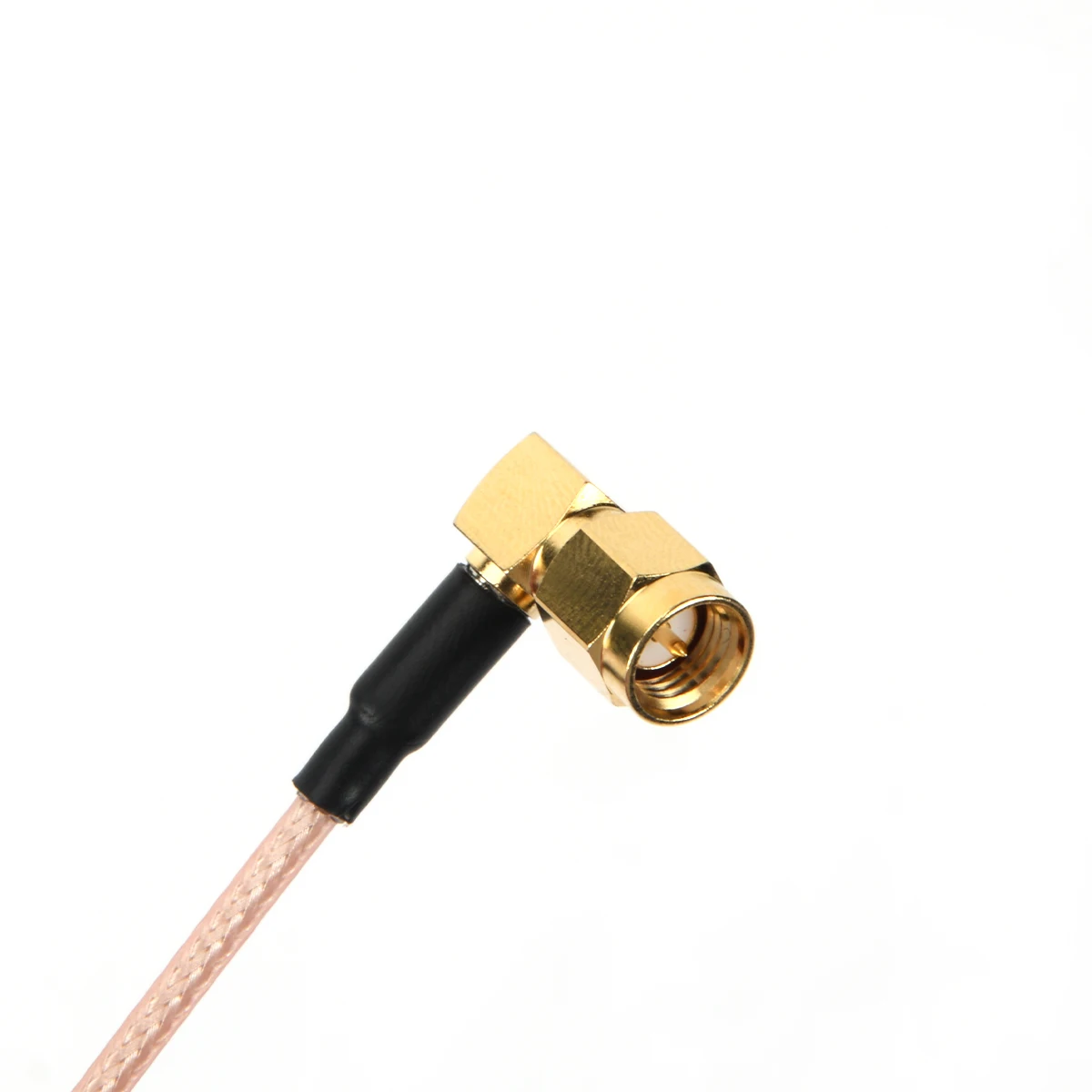

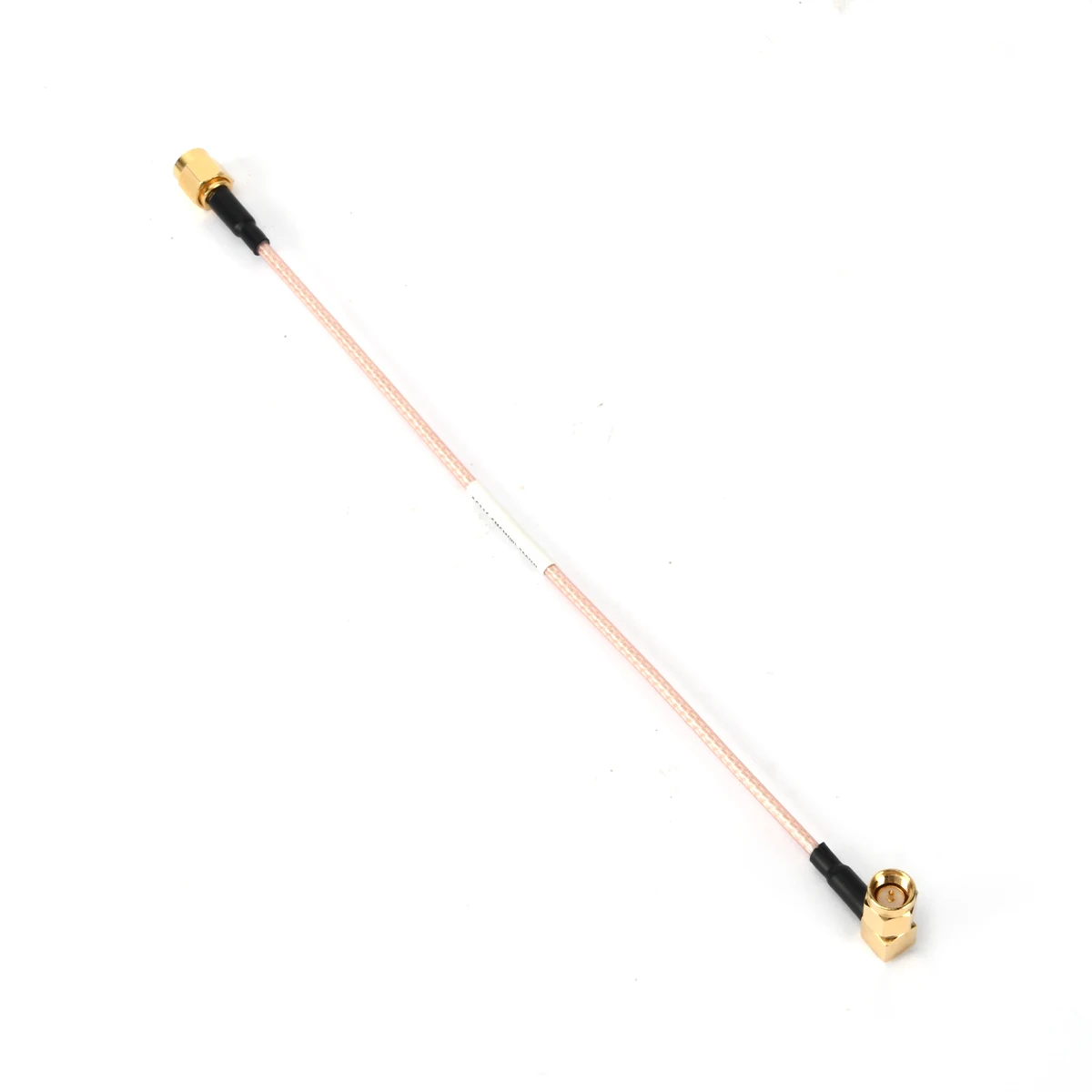

SMA Male to SMA Male R/a Crimp for Rg316 Cable 6G001_L200mm

SMA Male to SMA Male R/a Crimp for Rg316 Cable 6G001_L200mm

SMA male conn: Center Conductor Brass,Gold Plating Insulators PTFE Body Brass,Gold Plating Coupling Nut Brass,Gold Plating C'ring Phosphor Bronze G...

Introduction

SMA Male to SMA Male R/a Crimp for Rg316 Cable 6G001_L200mm details

SMA Male to SMA Male R/a Crimp for Rg316 Cable 6G001_L200mm manufacture

SMA Male to SMA Male R/a Crimp for Rg316 Cable 6G001_L200mm factory

SMA male conn:
Center Conductor	Brass,Gold Plating
Insulators	PTFE
Body	Brass,Gold Plating
Coupling Nut	Brass,Gold Plating
C'ring	Phosphor Bronze
Gasket	Silicone
Sleeve	Brass,Nickel plating
SMA male R/A conn:
Center Conductor	Brass, Gold plating
Insulators	PTFE
Body	Brass, Gold plating
Coupling Nut	Brass, Gold plating
C'ring	Phosphor Bronze
Gasket	Silicone
Sleeve	Brass, Nickel plating
Cap	Brass, Gold plating
Characteristic:
Impedance	50 ohm
Frequency Band	DC to 6 GHz
VSWR	1.3 max
Dielectric withstand voltage	750v

SMA Male to SMA Male R/a Crimp for Rg316 Cable 6G001_L200mm supplier

Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF

format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
