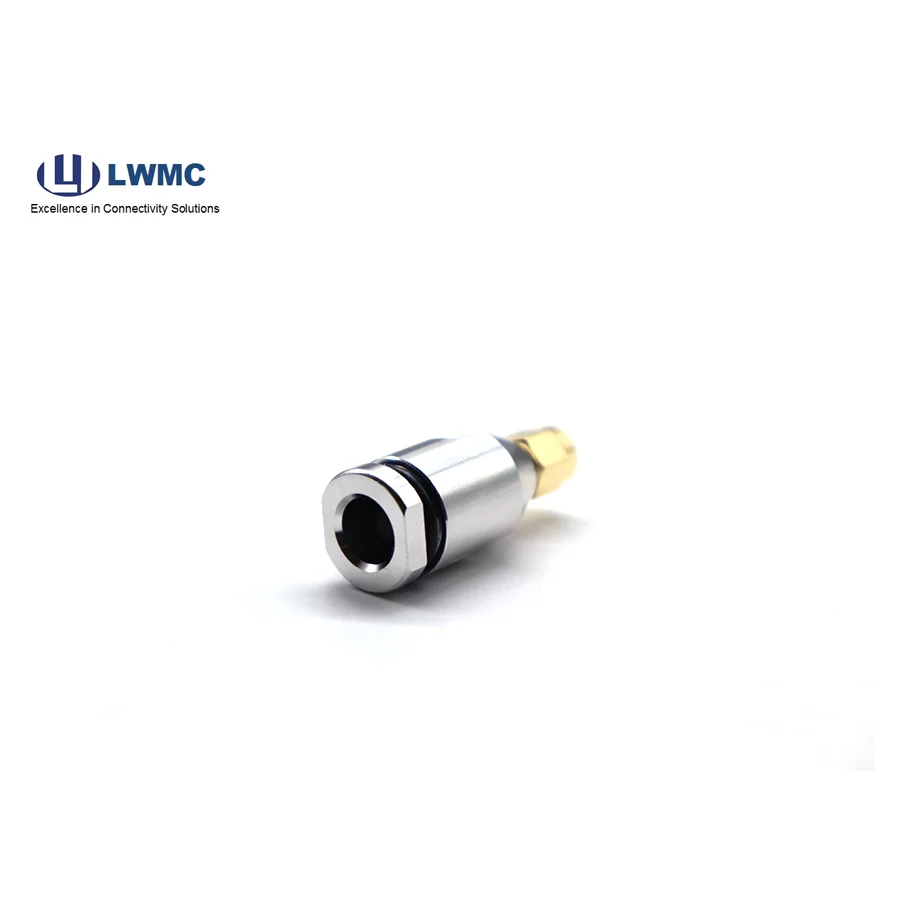

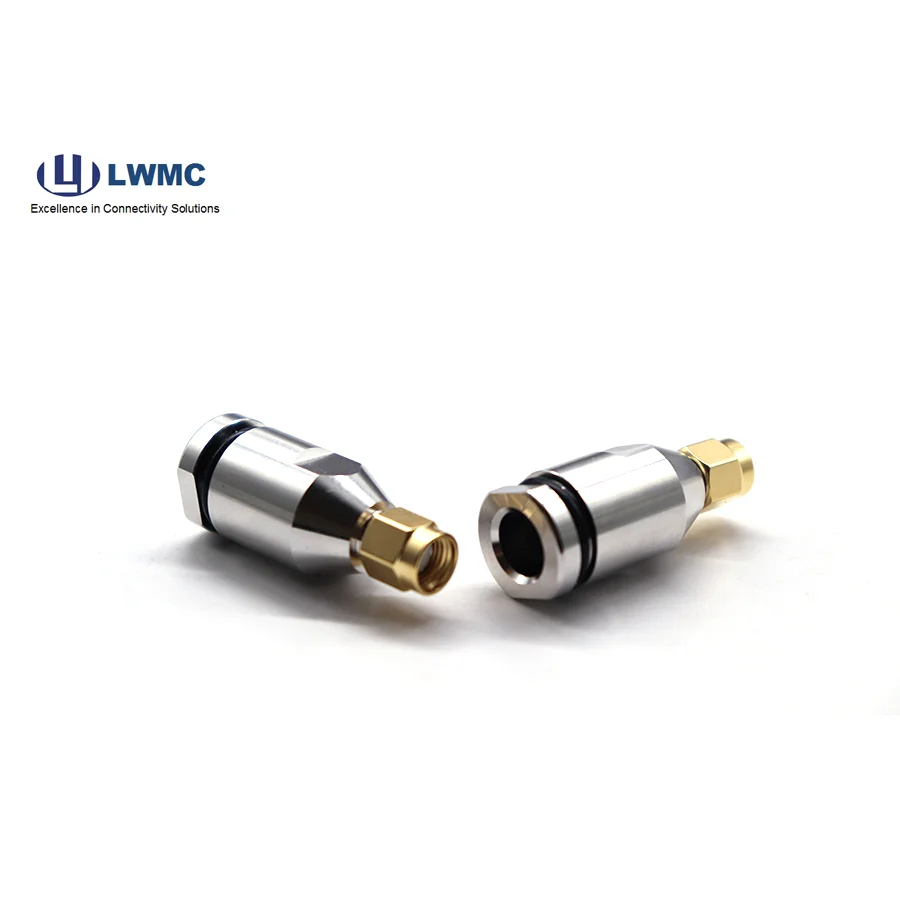

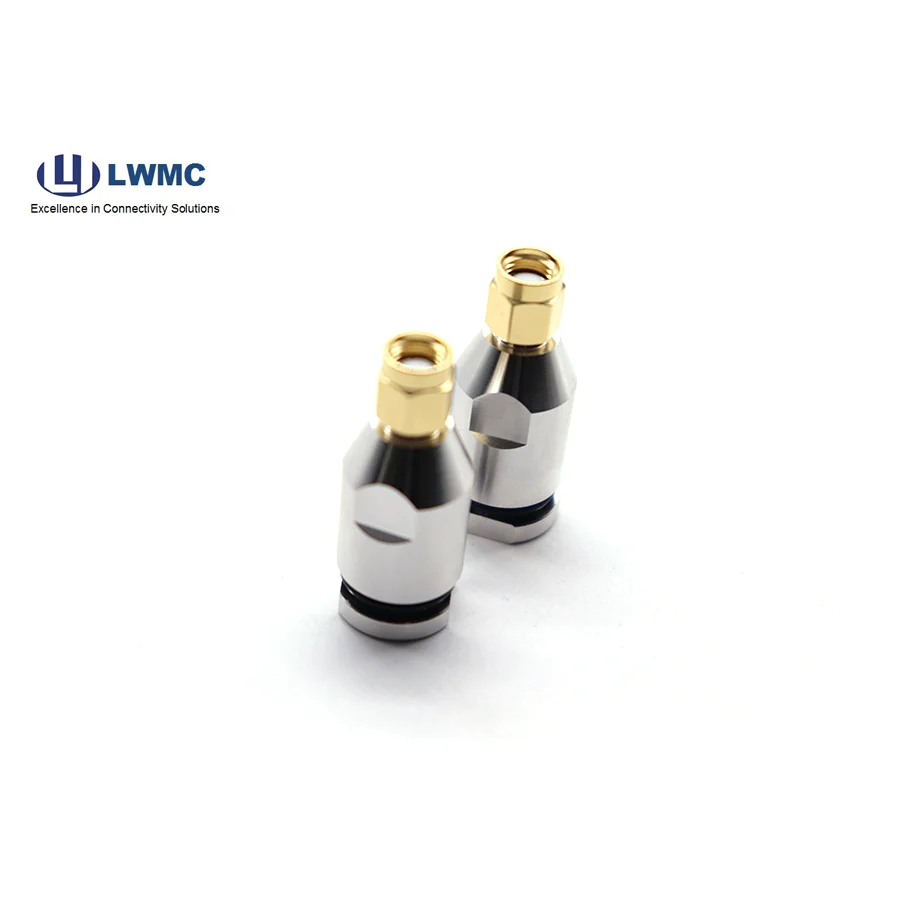

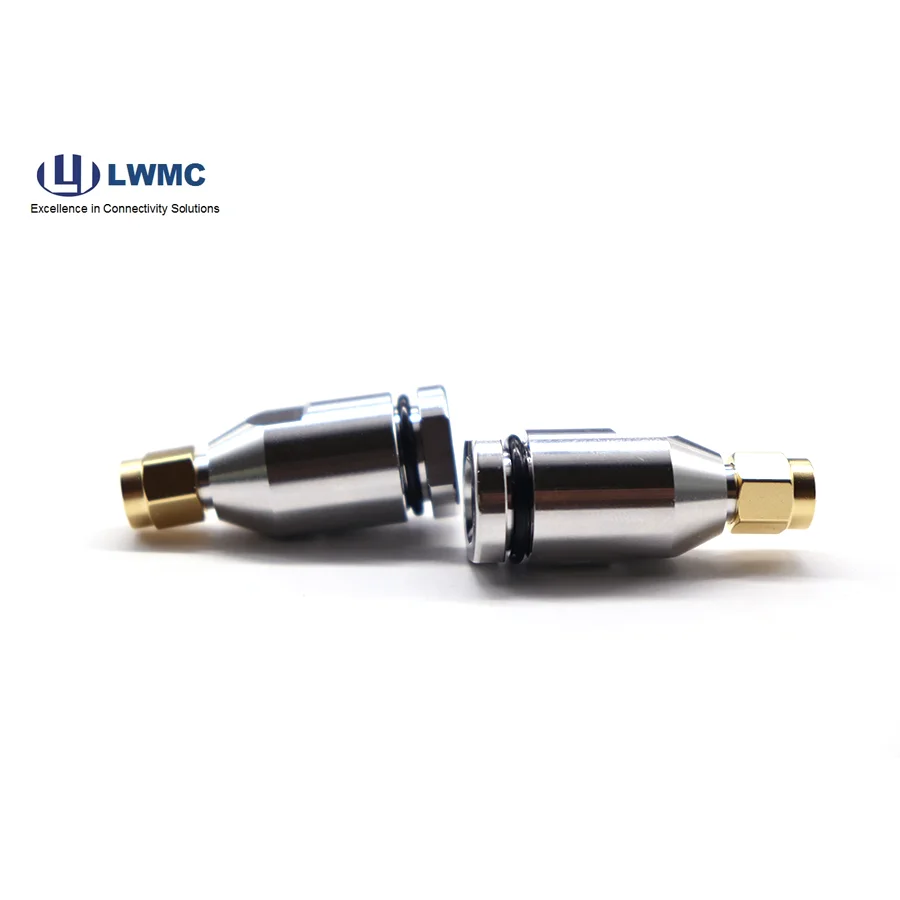

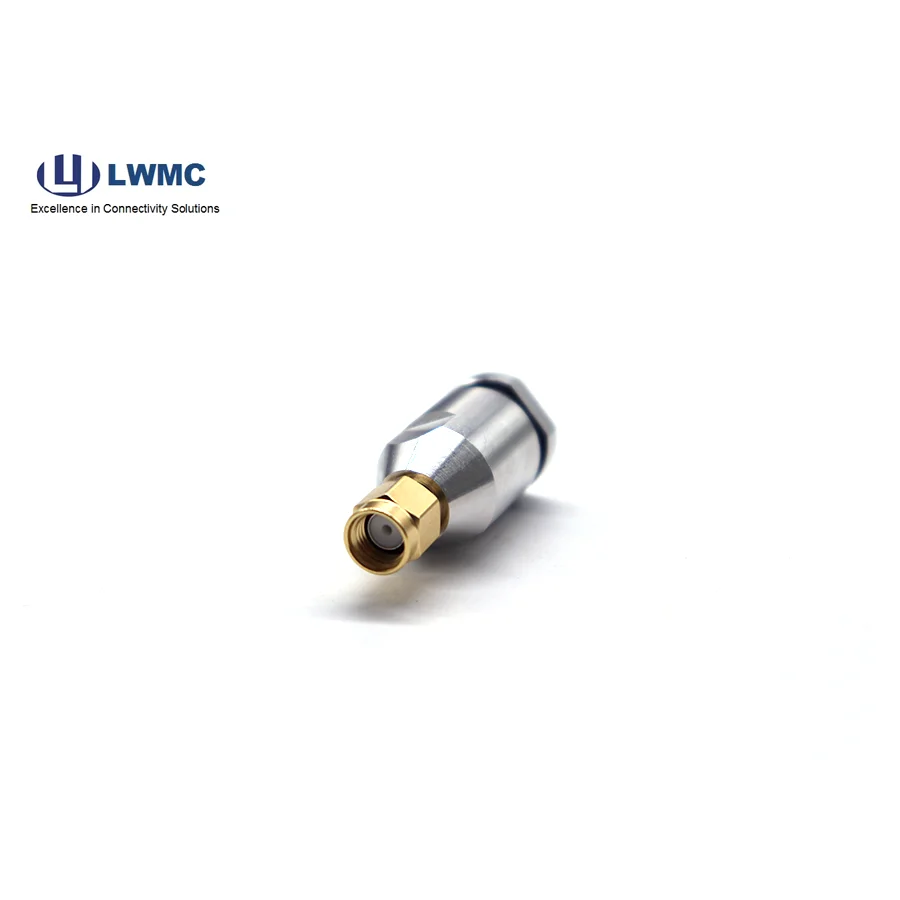

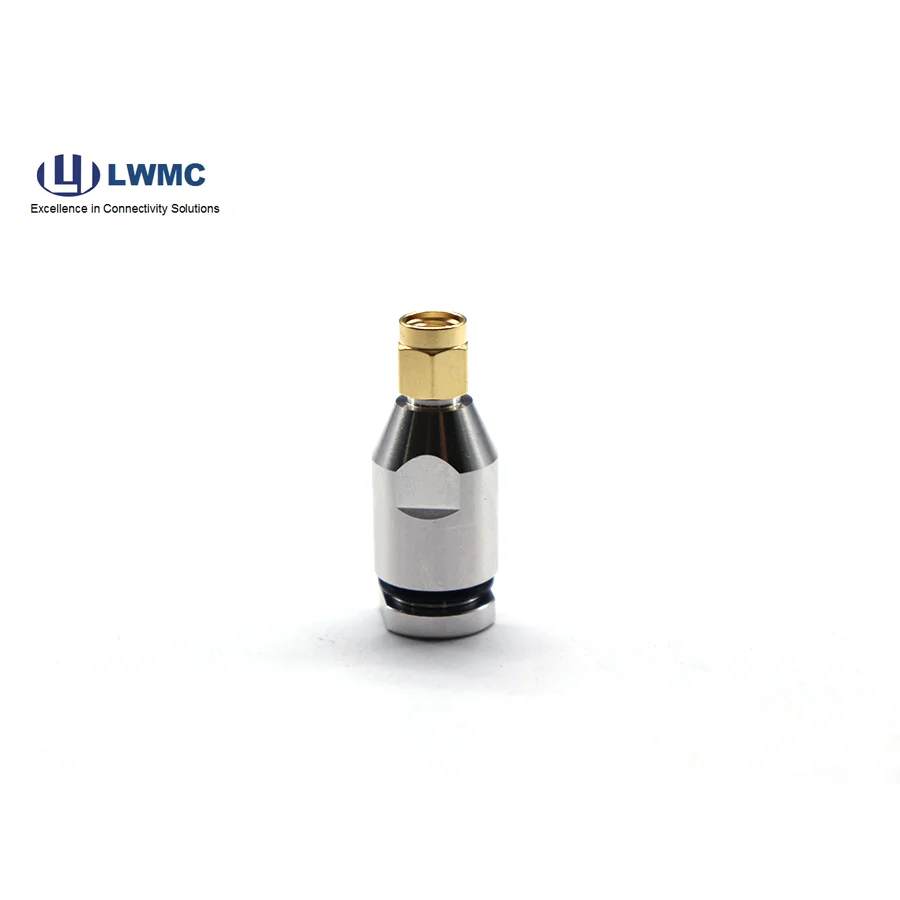

SMA male clamp for M&P-ULTRAFLEX 7 Cable
SMA male clamp for M&P-ULTRAFLEX 7 Cable
SMA male clamp for M&P-ULTRAFLEX 7 Cable
SMA male clamp for M&P-ULTRAFLEX 7 Cable
SMA male clamp for M&P-ULTRAFLEX 7 Cable
SMA male clamp for M&P-ULTRAFLEX 7 Cable
SMA male clamp for M&P-ULTRAFLEX 7 Cable
SMA male clamp for M&P-ULTRAFLEX 7 Cable
SMA male clamp for M&P-ULTRAFLEX 7 Cable
SMA male clamp for M&P-ULTRAFLEX 7 Cable
SMA male clamp for M&P-ULTRAFLEX 7 Cable
SMA male clamp for M&P-ULTRAFLEX 7 Cable

SMA male clamp for M&P-ULTRAFLEX 7 Cable

Center ConductorBrass,Gold Plating(0.05um)InsulatorsPTFEBody Brass,Ternary allloy  plating(3um)Coupling NutBrass,Gold Plating(0.05um)NutBrass,Ternary allloy plating(3um)BushingBrass,Ternary allloy plating(3um)WasherBrass,Ternary allloy plating(3um)C'...

Get a Quote
Introduction
product sma male clamp for mp ultraflex 7 cable-0
product sma male clamp for mp ultraflex 7 cable-1
product sma male clamp for mp ultraflex 7 cable-2
product sma male clamp for mp ultraflex 7 cable-3
Center Conductor
Brass,Gold Plating(0.05um)
Insulators
PTFE
Body
Brass,Ternary allloy  plating(3um)
Coupling Nut
Brass,Gold Plating(0.05um)
Nut
Brass,Ternary allloy plating(3um)
Bushing
Brass,Ternary allloy plating(3um)
Washer
Brass,Ternary allloy plating(3um)
C'ring
Phosphor Bronze
O'ring
silicone rubber(black)
Gasket
silicone rubber
Gasket2
silicone rubbe(black)
Impedance
50 ohm
Frequency Band
DC to 18 GHz
Dielectric withstand voltage
1000v
VSWR
1.2max@DC~3GHz
Contact resistance
Center Conductor ≤3mΩ
Outer Conductor≤2mΩ
Insulation resistance
≥5000mΩ
product sma male clamp for mp ultraflex 7 cable-4
product sma male clamp for mp ultraflex 7 cable-5
product sma male clamp for mp ultraflex 7 cable-6
product sma male clamp for mp ultraflex 7 cable-7
product sma male clamp for mp ultraflex 7 cable-8
product sma male clamp for mp ultraflex 7 cable-9
product sma male clamp for mp ultraflex 7 cable-10
product sma male clamp for mp ultraflex 7 cable-11
product sma male clamp for mp ultraflex 7 cable-12
product sma male clamp for mp ultraflex 7 cable-13
product sma male clamp for mp ultraflex 7 cable-14
product sma male clamp for mp ultraflex 7 cable-15
product sma male clamp for mp ultraflex 7 cable-16
product sma male clamp for mp ultraflex 7 cable-17
product sma male clamp for mp ultraflex 7 cable-18
product sma male clamp for mp ultraflex 7 cable-19
Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF
format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
