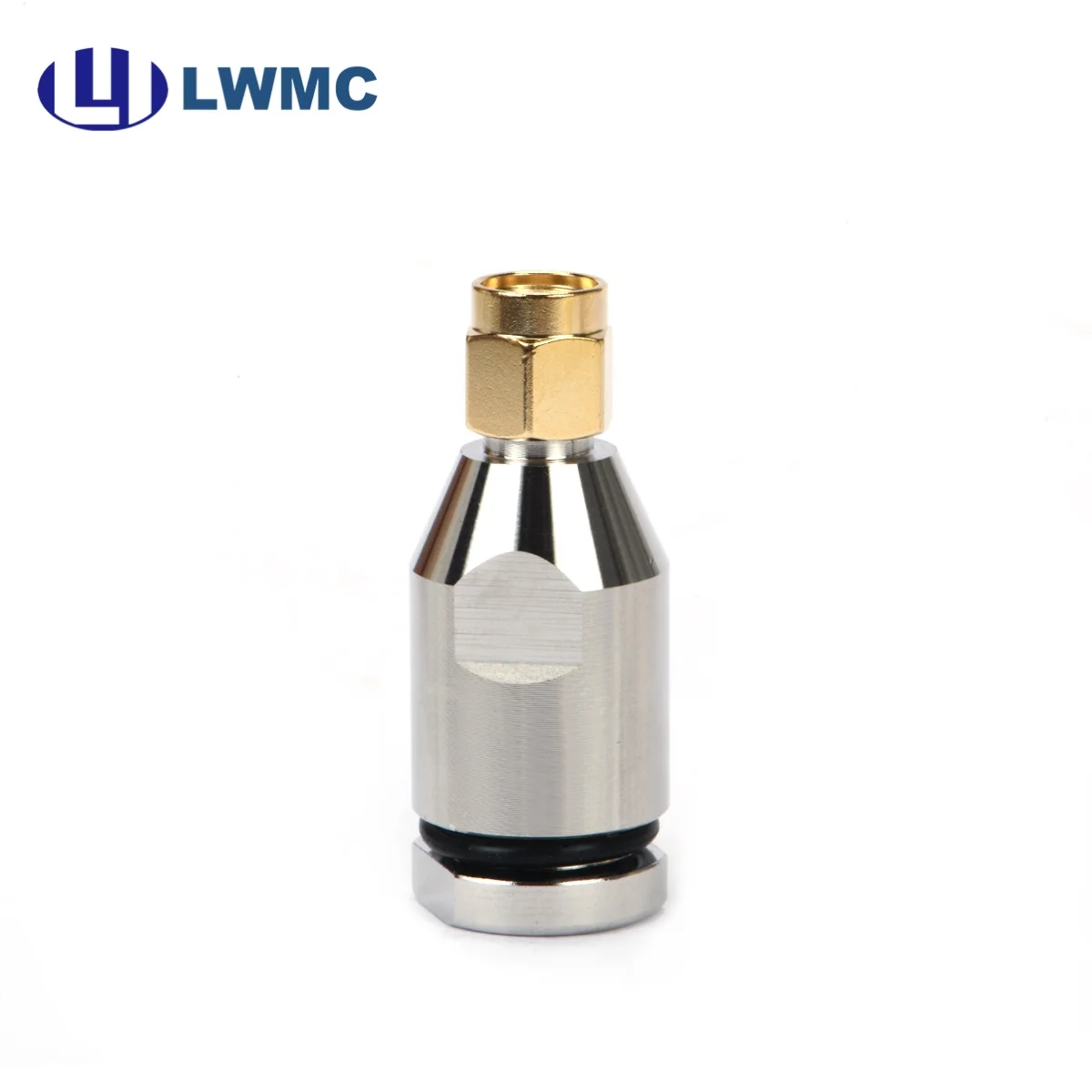

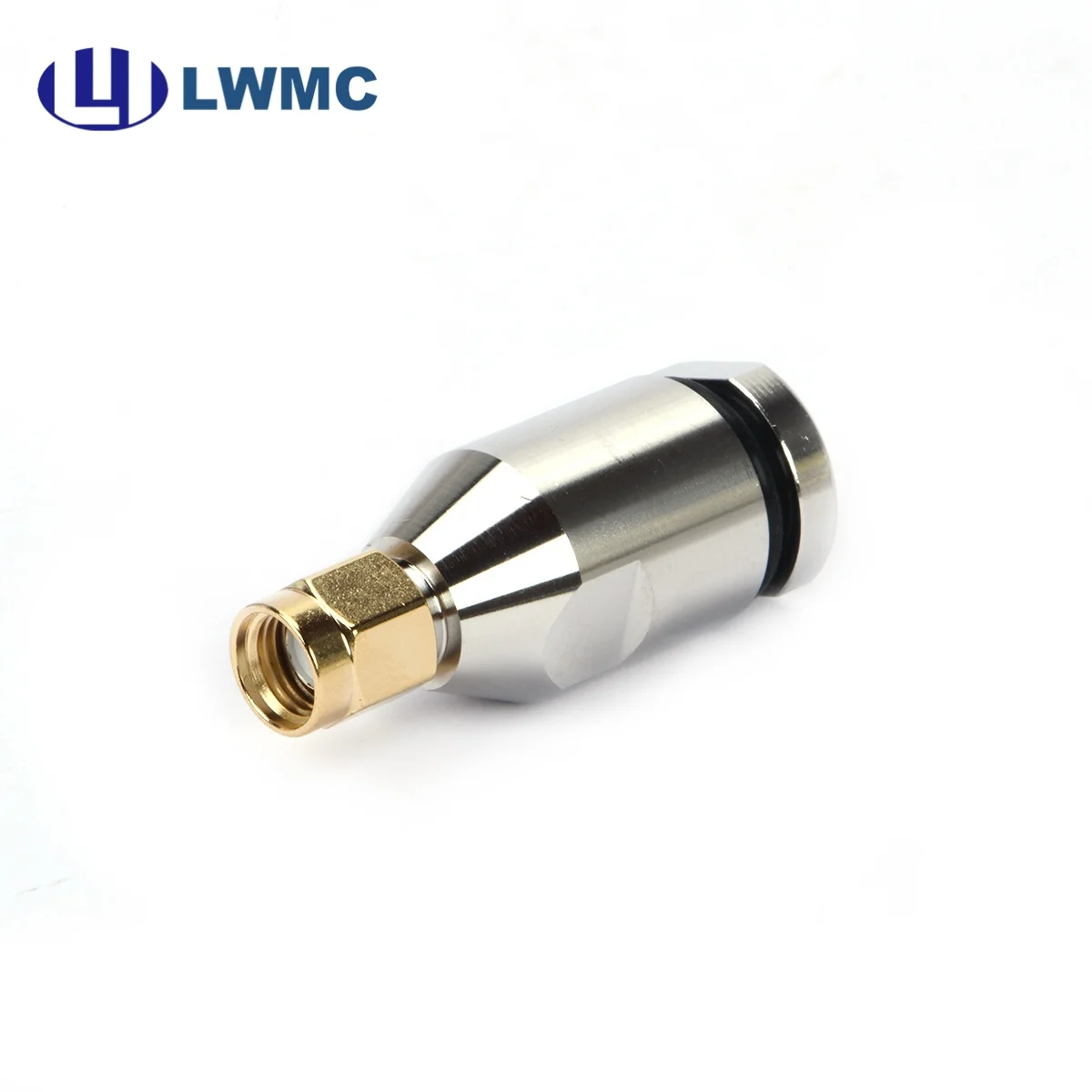

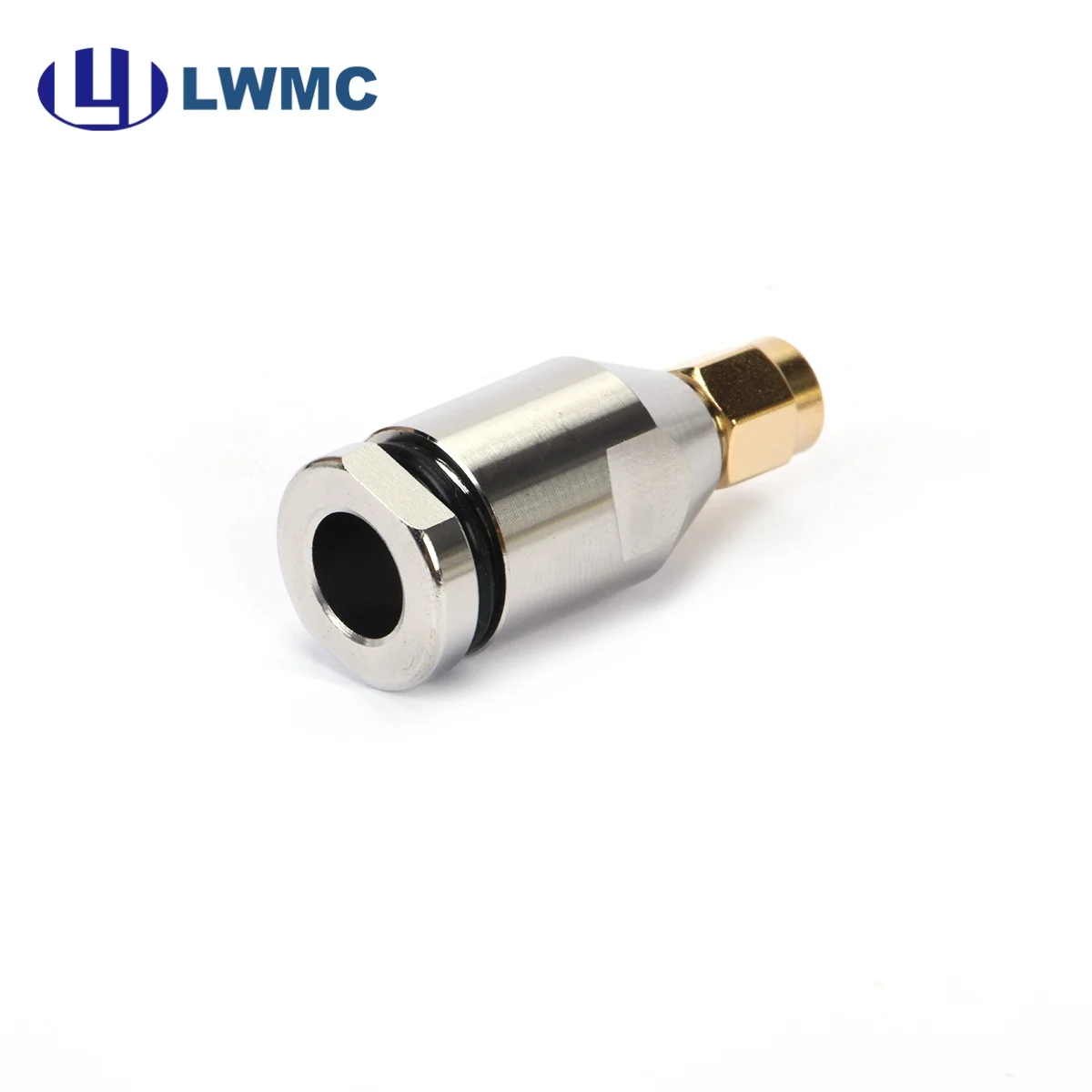

LWMC Good Sale 50 Ohm Coaxial Connectors (rf) SMA Male Clamp for M&P-ULTRAFLEX 7 Cable

LWMC Good Sale 50 Ohm Coaxial Connectors (rf) SMA Male Clamp for M&P-ULTRAFLEX 7 Cable

Spu:

1601576997064

Introduction

Introduction

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-0

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-1

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-2

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-3

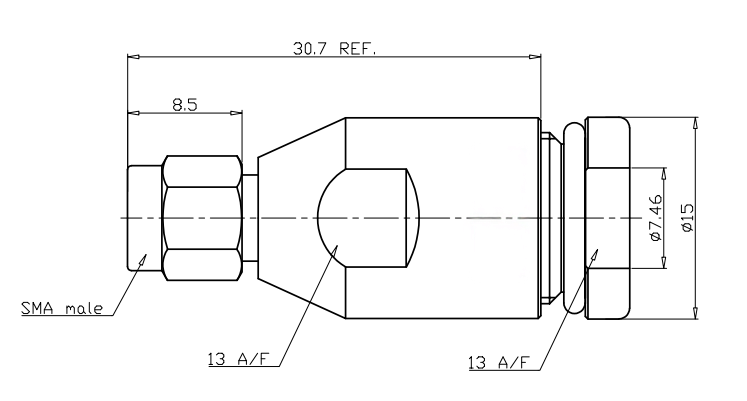

SMA_11_222_144_01MP_RevB

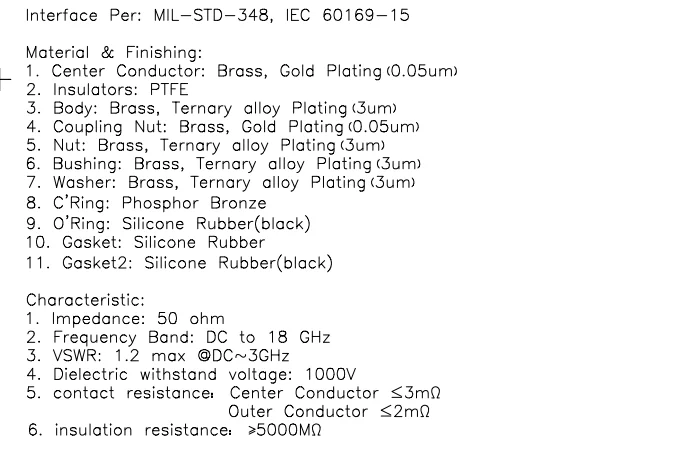

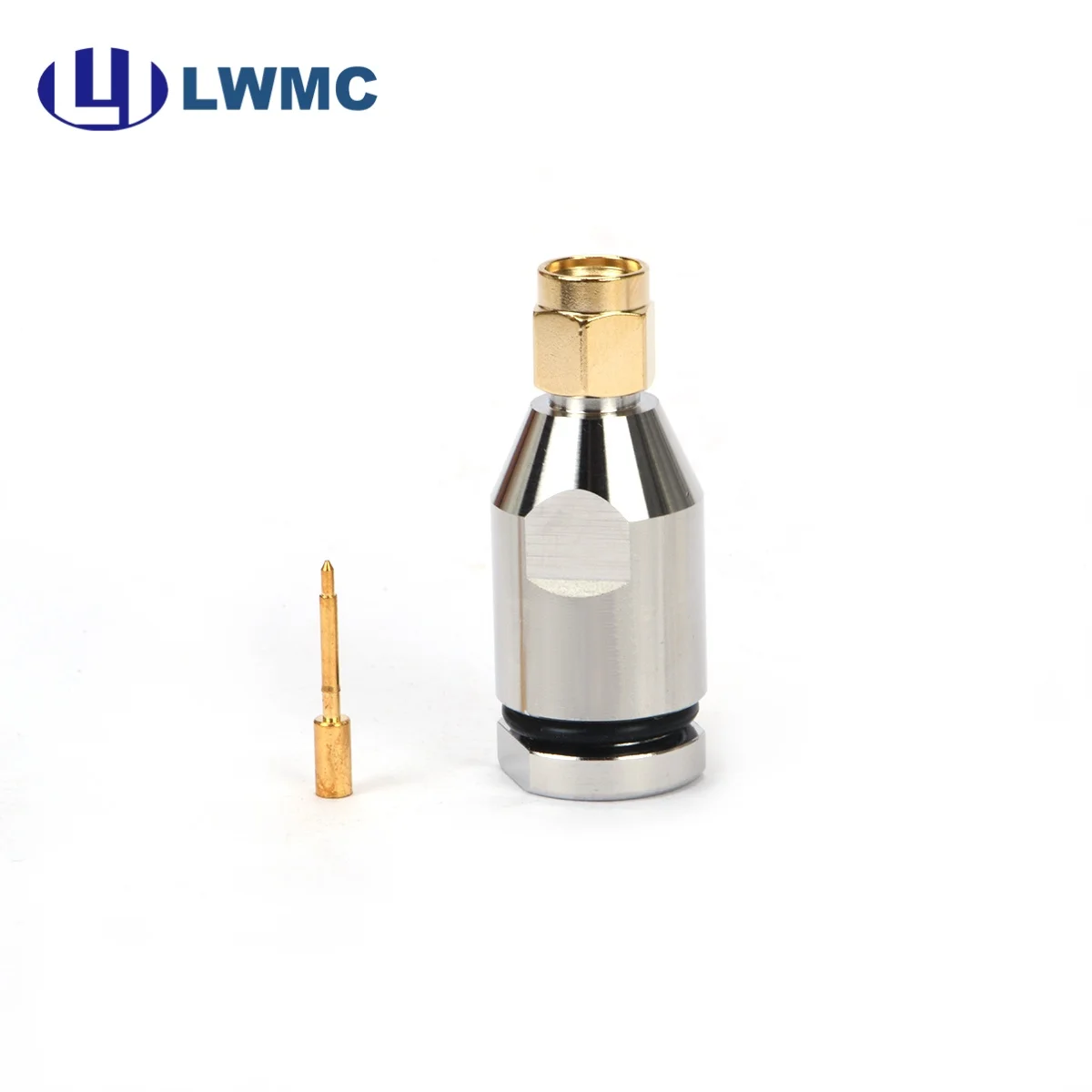

Center Conductor	Brass, Gold Plating (0.05um)
Insulators	PTFE
Body	Brass, Ternary alloy Plating (3um)
Coupling Nut	Brass, Gold Plating (0.05um)
Nut	Brass, Ternary alloy Plating (3um)
Bushing	Brass, Ternary alloy Plating (3um)
Washer	Brass, Ternary alloy Plating (3um)
C'Ring	Phosphor Bronze
O'Ring	Silicone Rubber (black)
Gasket	Silicone Rubber
Gasket2	Silicone Rubber (black)
Impedance	50 ohm
Frequency Band	DC to 18 GHz
VSWR	1.20 max @DC~3GHz
Dielectric withstand voltage	1000V
contact resistance	Center Conductor ≤3mΩ
contact resistance	Outer Conductor ≤2mΩ
Insulation resistance	≥5000MΩ

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-4

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-5

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-6

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-7

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-8

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-9

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-10

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-11

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-12

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-13

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-14

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-15

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-16

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-17

product lwmc good sale 50 ohm coaxial connectors rf sma male clamp for mp ultraflex 7 cable-18
