SSMP Female Thread Mounted Receptacle (Full Detent)

SSMP Female Thread Mounted Receptacle (Full Detent)

Center ConductorPhosphor Bronze,Gold PlatingInsulatorsPEIBody Brass,Gold PlatingImpedance50 ohmFrequency BandDC to 40 GHzVSWR1.30max@DC to 18 GHzInsertion loss0.12*√F(GHz)dB maxcontac...

Introduction

SSMP Female Thread Mounted Receptacle (Full Detent) supplier

SSMP Female Thread Mounted Receptacle (Full Detent) manufacture

SSMP Female Thread Mounted Receptacle (Full Detent) factory

Center Conductor	Phosphor Bronze,Gold Plating
Insulators	PEI
Body	Brass,Gold Plating
Impedance	50 ohm
Frequency Band	DC to 40 GHz
VSWR	1.30max@DC to 18 GHz
Insertion loss	0.12*√F(GHz)dB max
contact resistance	Center conductor≤6mΩ Outer conductor≤2.5mΩ
insulation resisitance	≥1000mΩ
Durability	≥500

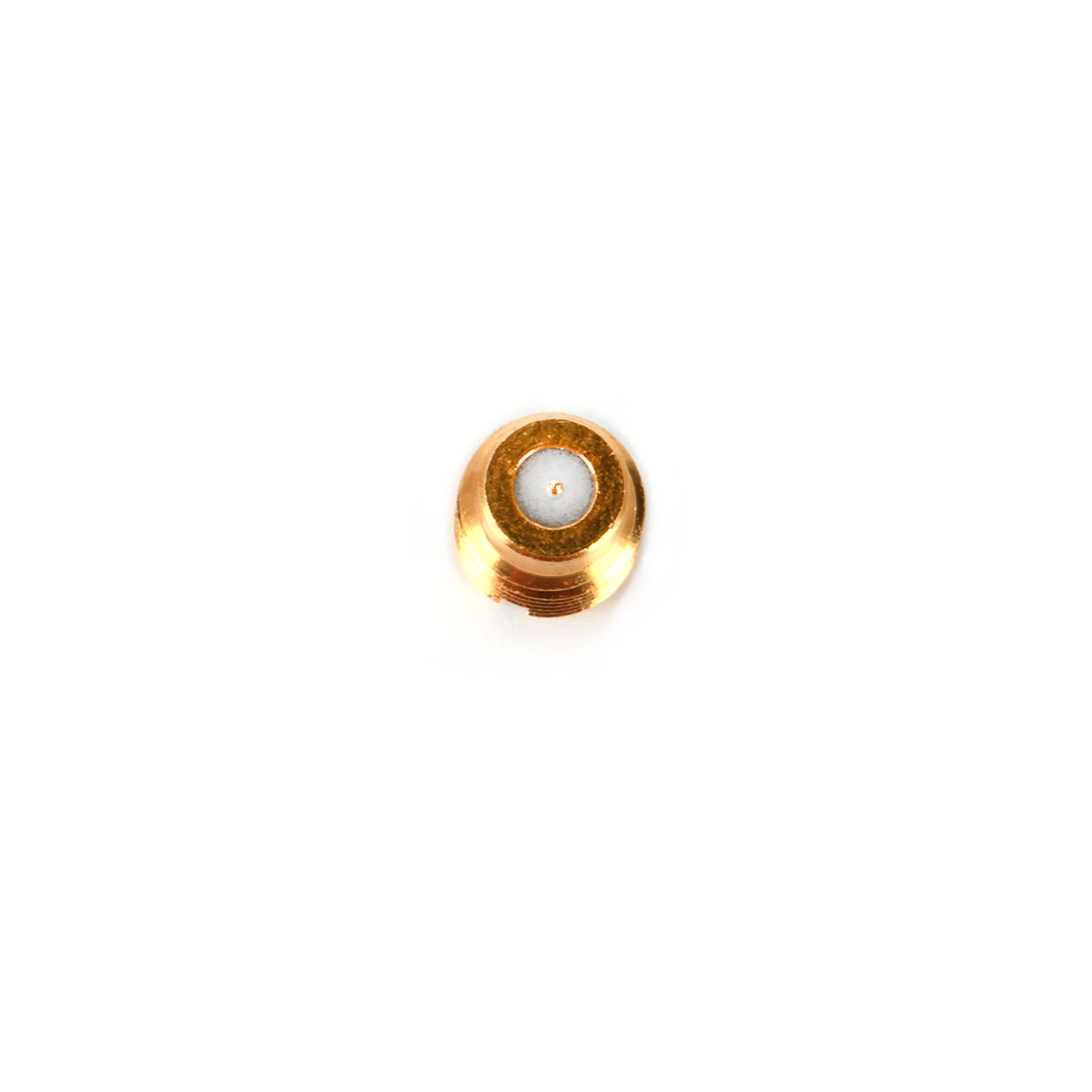

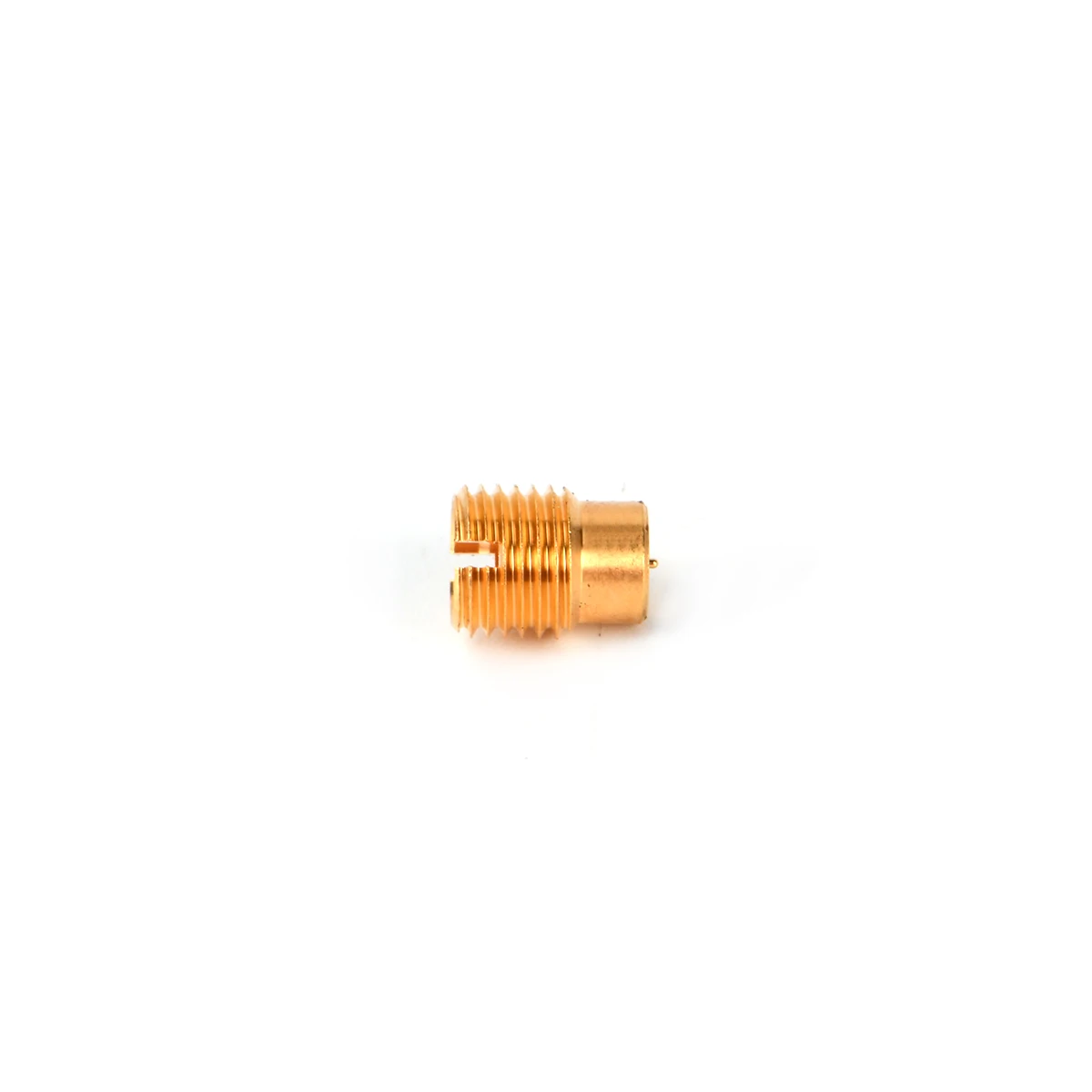

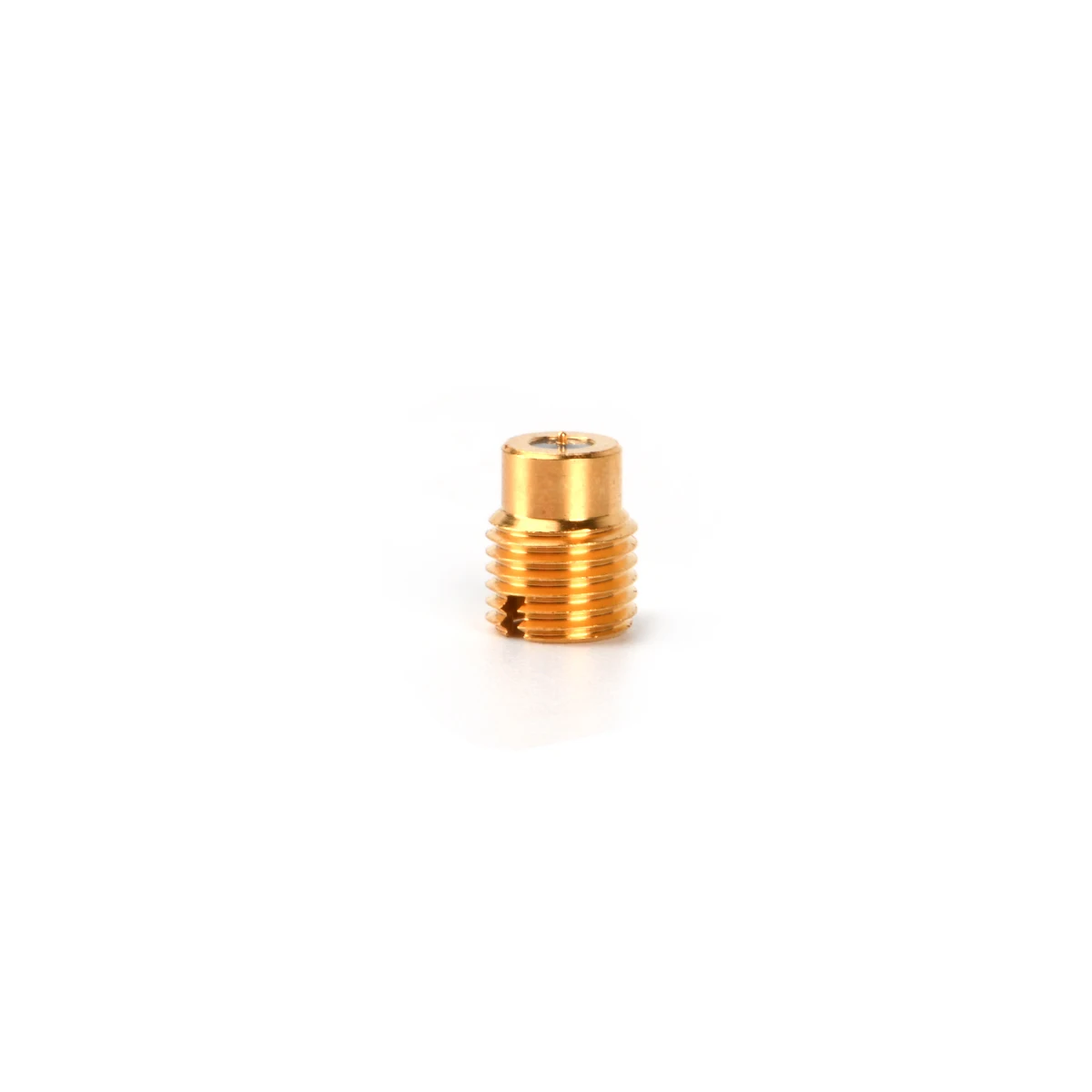

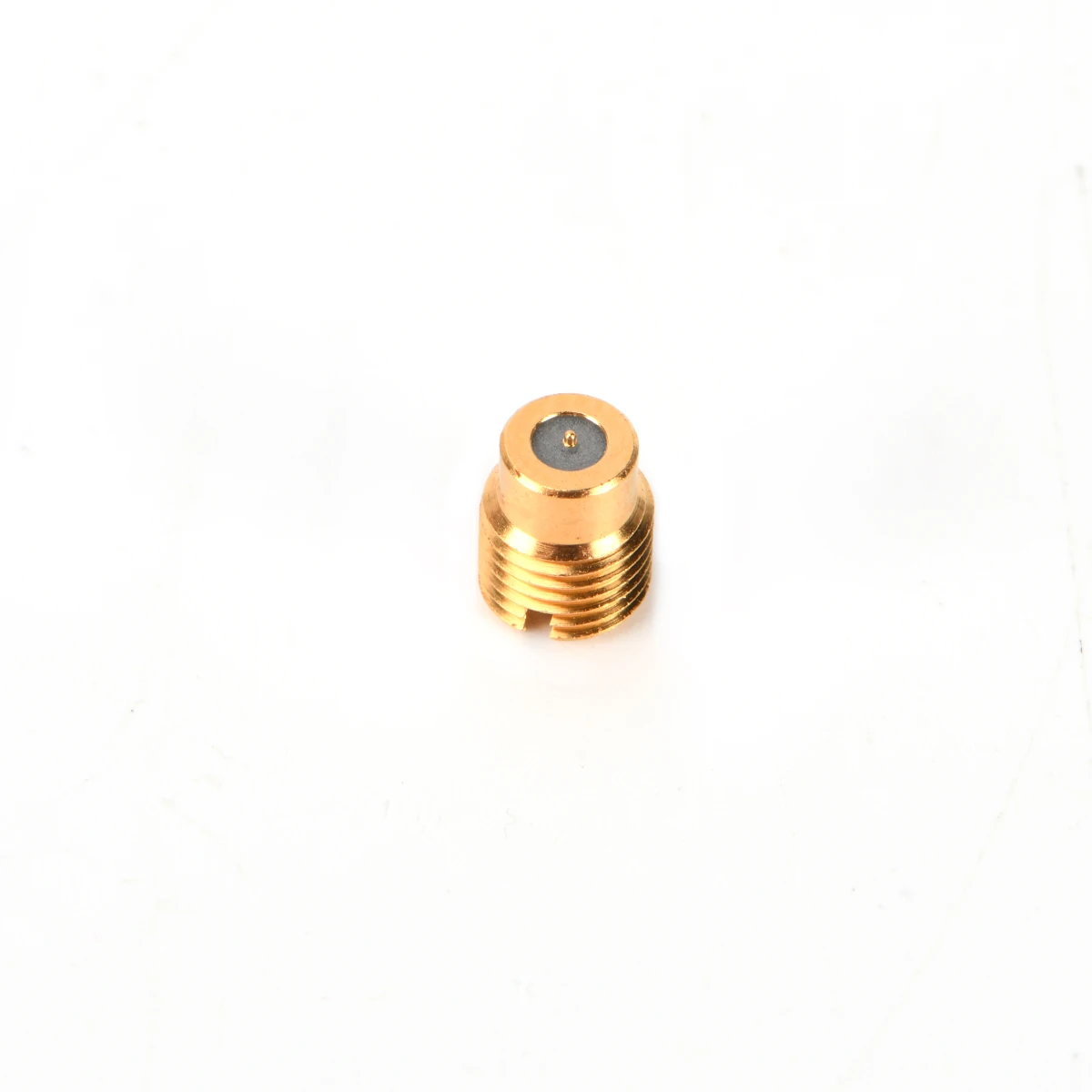

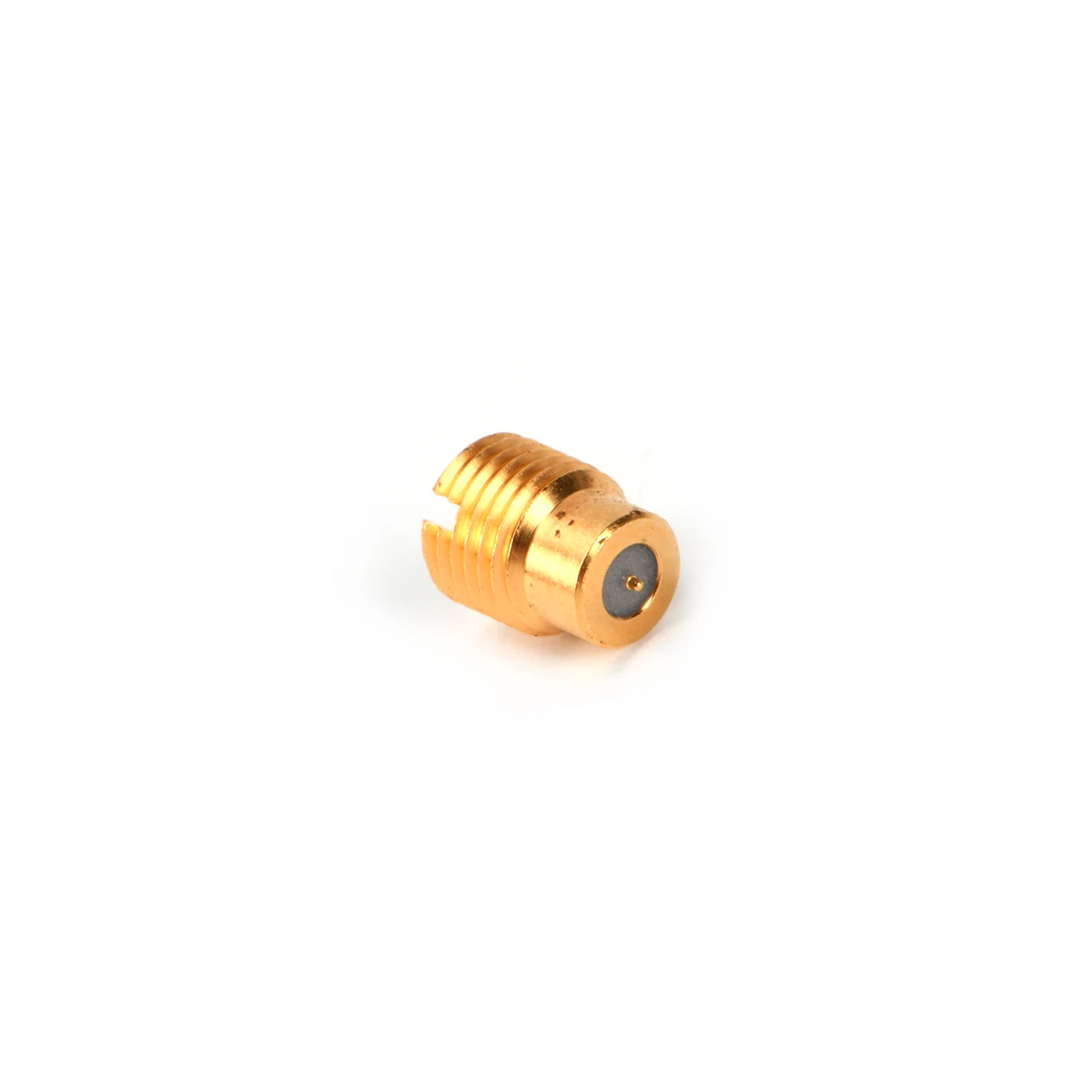

SSMP Female Thread Mounted Receptacle (Full Detent) details

Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF

format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
