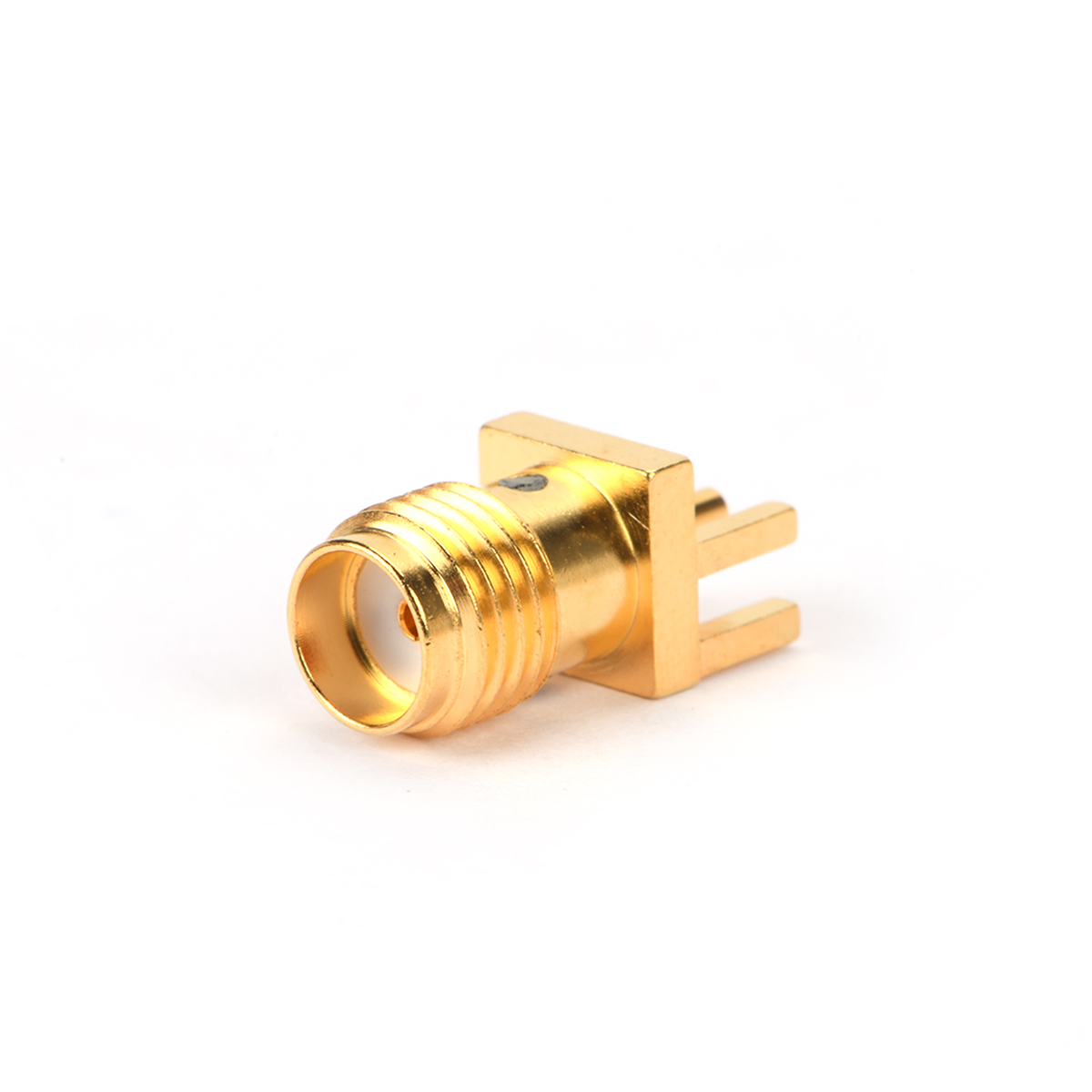

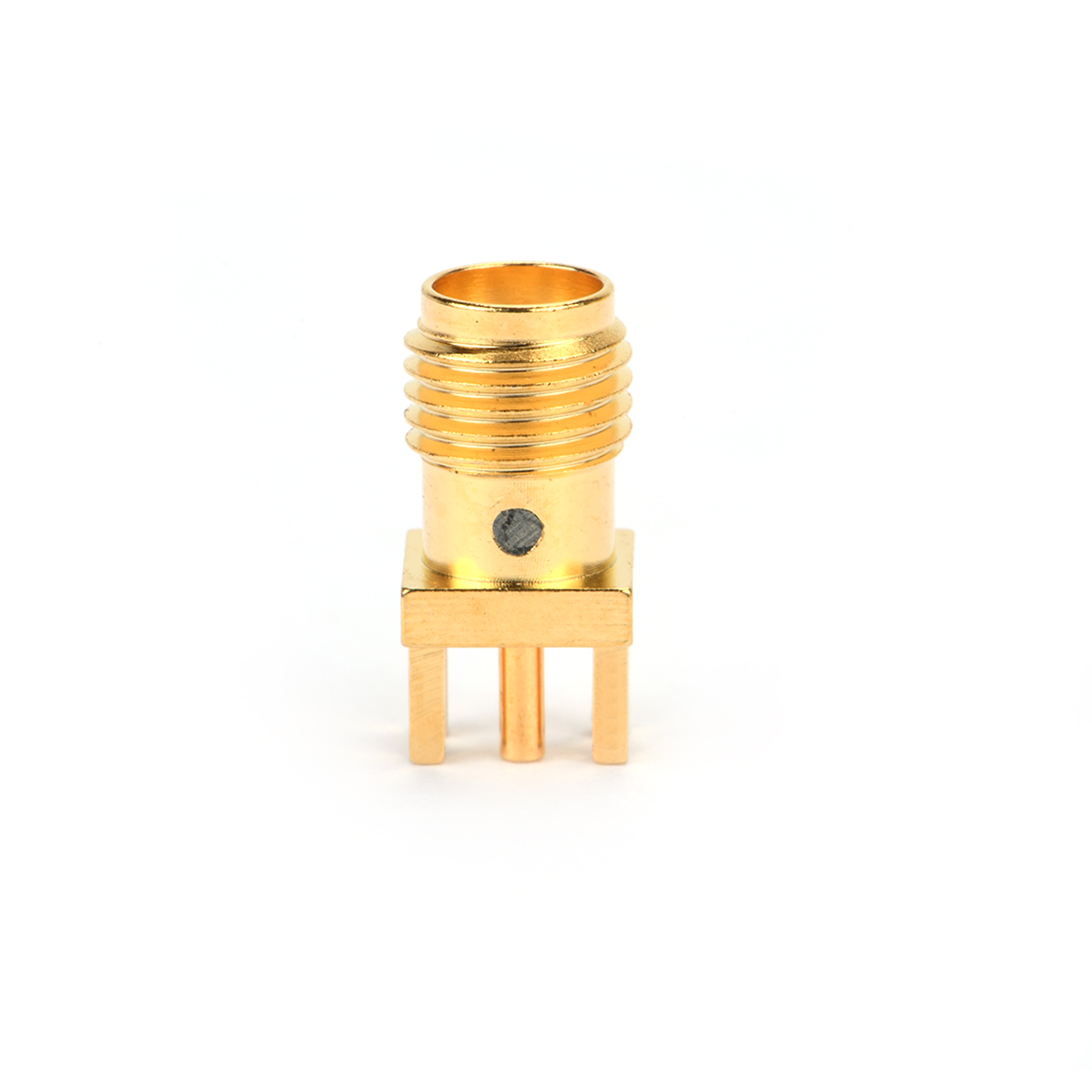

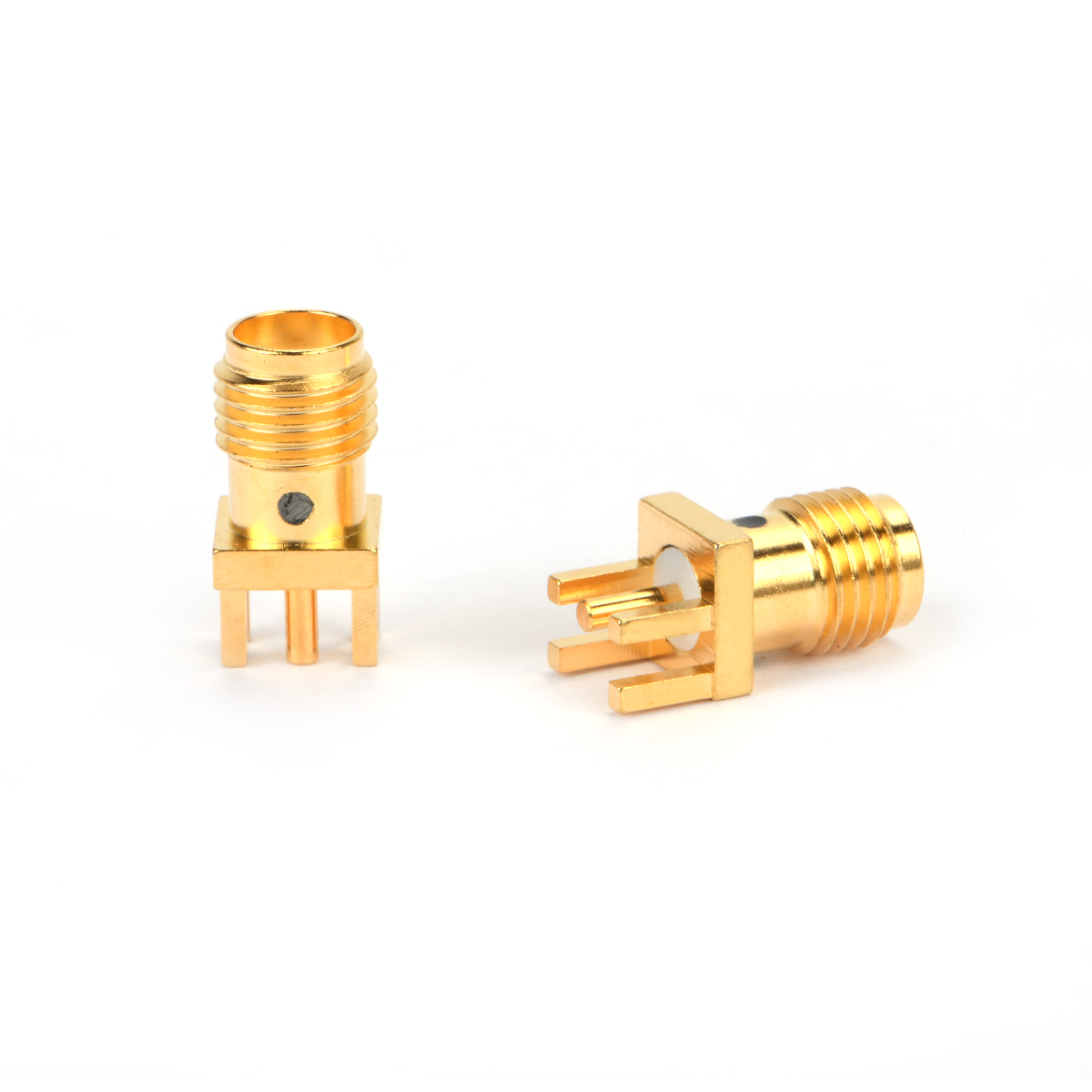

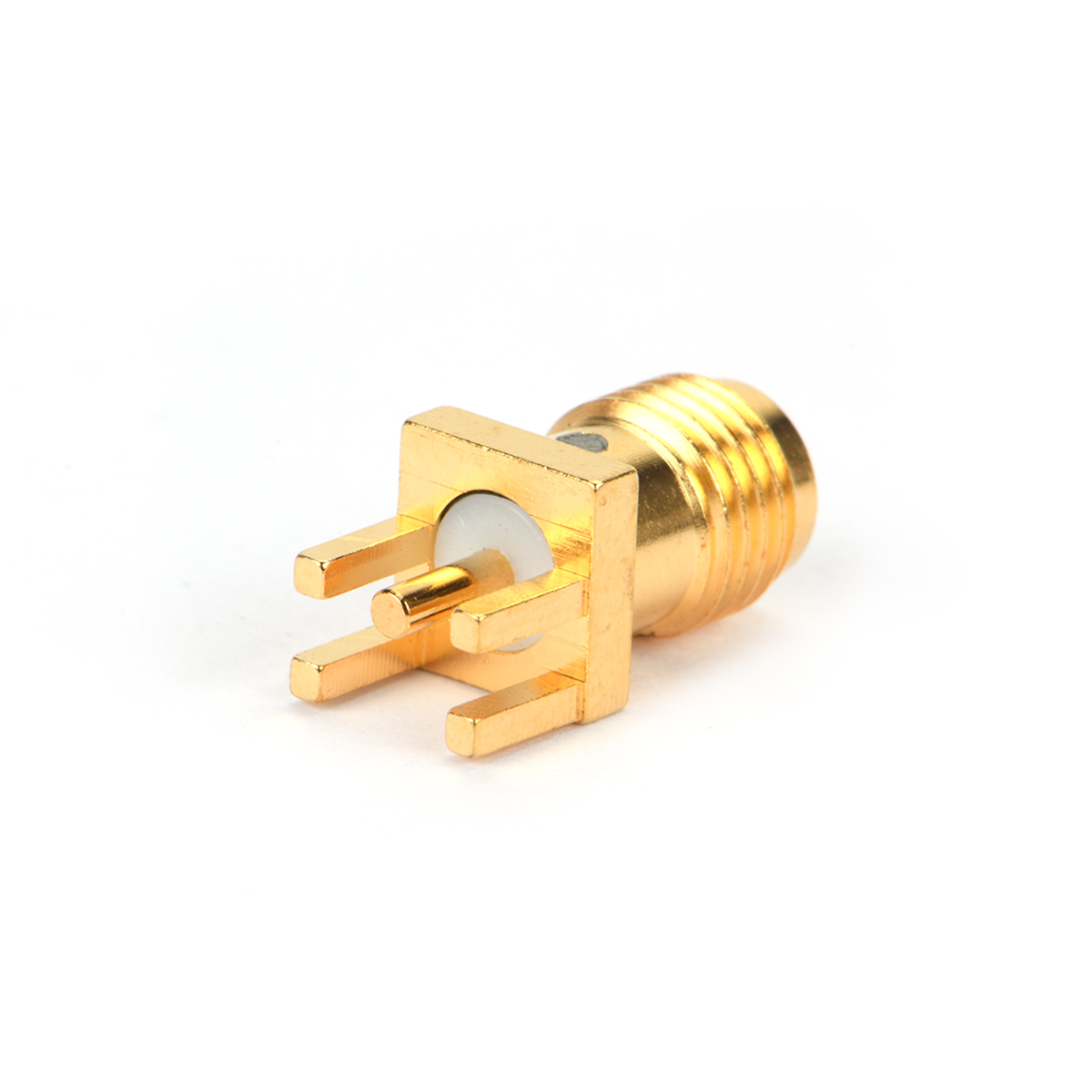

High-performance RF coaxial connector with gold-plated brass body and beryllium copper center conductor, compliant with MIL-STD-348 and IEC 60169-15.
Why Choose Our SMA PCB Mount Connector?
Core Technology: Precision-engineered for mission-critical RF systems. Our SMA PCB mount connector supports frequencies from DC up to 18 GHz, providing stable impedance matching and high-speed data transmission.
Reliability: Built with premium materials, including a gold-plated beryllium copper center conductor and PTFE insulator. This ensures minimum contact resistance and maximum signal stability even after 500+ mating cycles.
Military-Grade Standards: Fully compliant with MIL-STD-348 and IEC 60169-15 interfaces, making it a drop-in solution for global microwave devices, radar systems, and aerospace equipment.
High Durability: Gold plating offers excellent corrosion resistance, ensuring this RF coaxial connector performs reliably in harsh industrial and outdoor communication environments.
| Feature | Specification |
|---|---|
| Product Type | SMA PCB Mounted Jack Receptacle |
| Impedance | 50 Ohm |
| Frequency Range | DC to 18 GHz |
| VSWR | 1.35 Max |
| Interface Standard | MIL-STD-348, IEC 60169-15 |
| Body Material | Brass (Gold Plated) |
| Center Conductor | Beryllium Copper (Gold Plated) |
| Insulator | PTFE |
| Dielectric Withstand Voltage | 1000V |
| Insulation Resistance | >5000 MΩ |
| Contact Resistance | Center: ≤3 mΩ; Outer: ≤2 mΩ |
| Durability | >500 Mating Cycles |
| Compliance | RoHS Compliant |
Your Reliable Microwave RF Component Partner Linkworld Microwave (LWMC) combines 25 years of R&D expertise with a focus on high-frequency precision. Our products cover DC-67GHz, serving over 40 countries with 100% positive customer ratings. Each SMA PCB mount connector undergoes strict dielectric and VSWR testing to guarantee performance.
