SMP-JYD113G

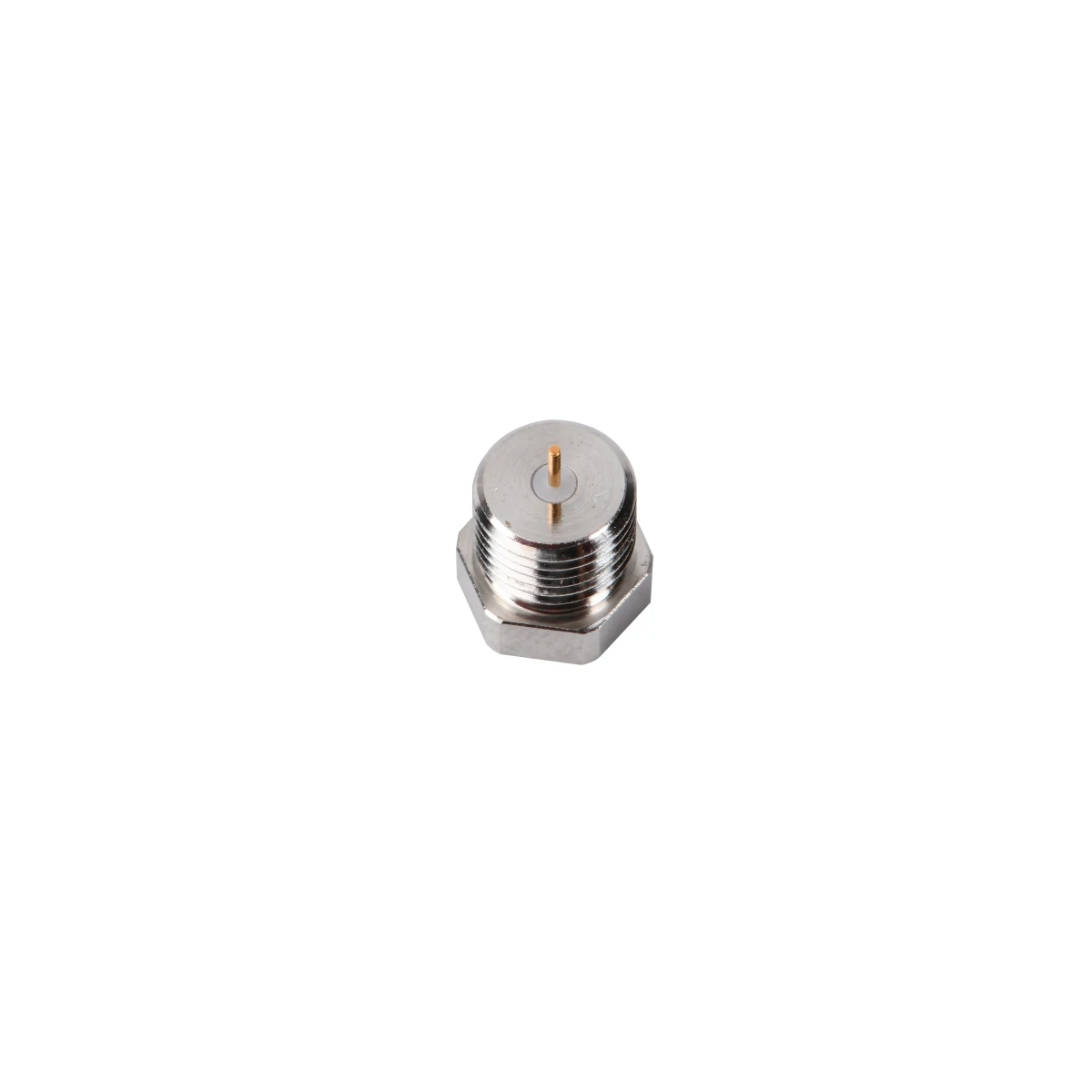

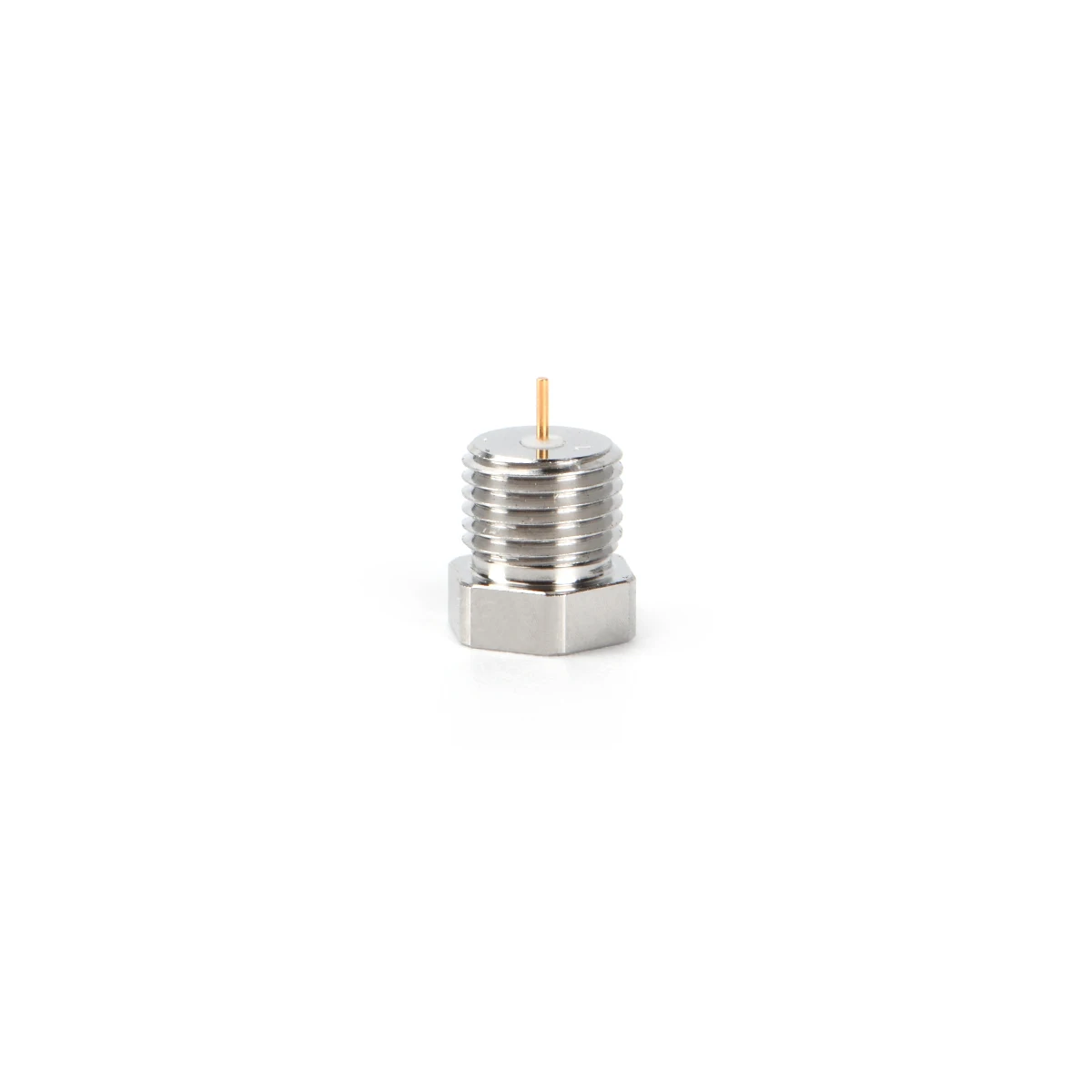

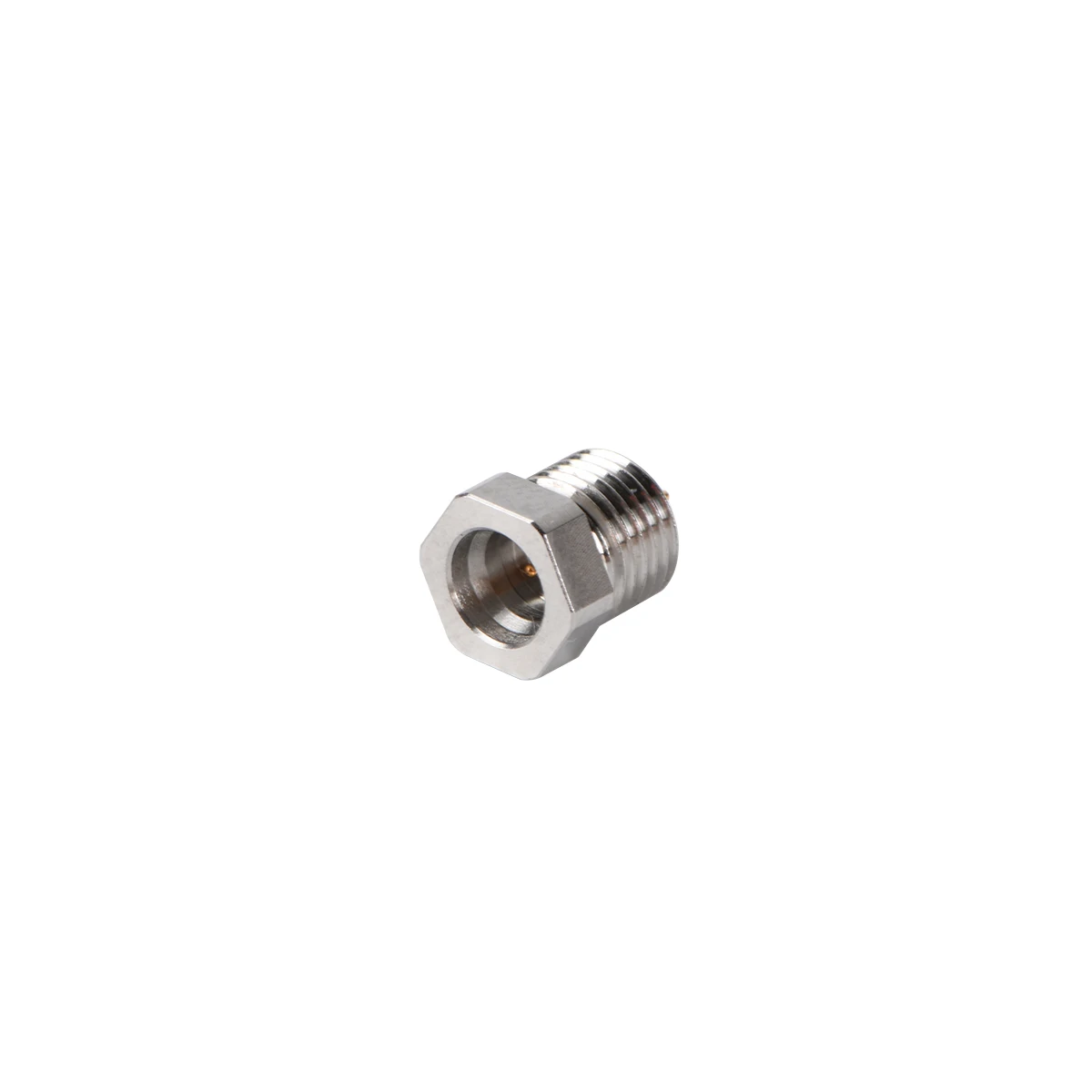

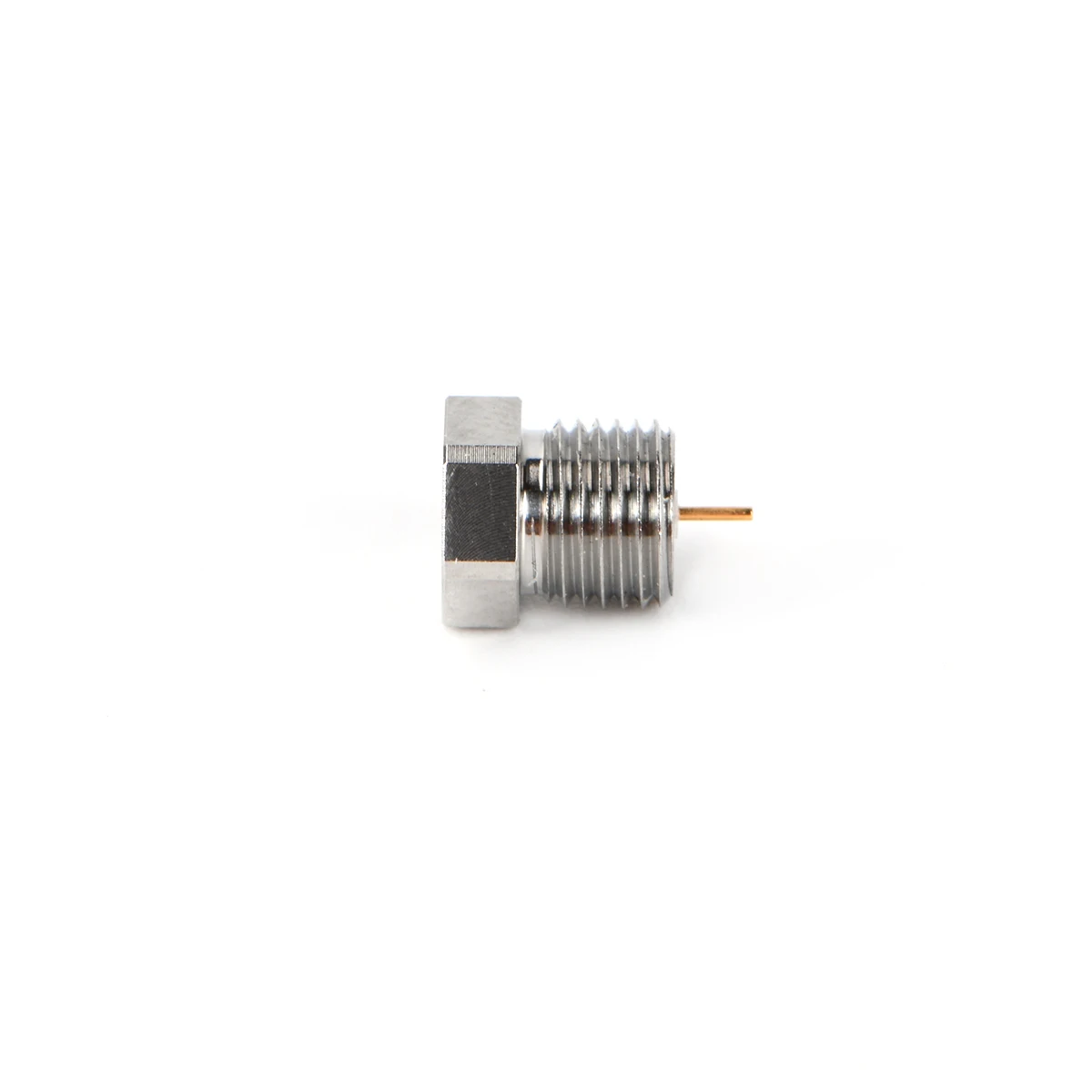

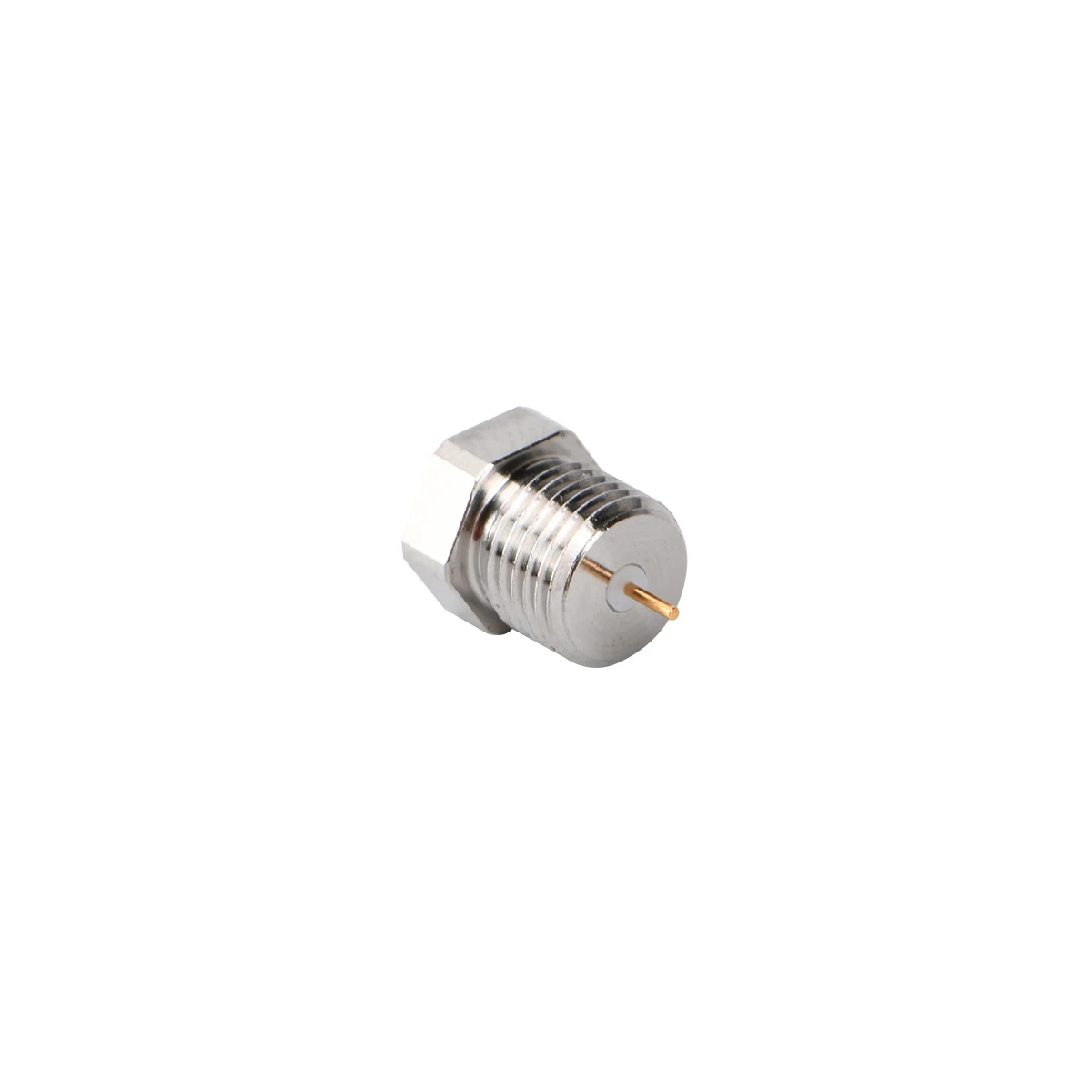

SMP-JYD113G: SMP Female PCB Jack Receptacle, 50Ω, DC-18GHz, for High-Density Board-to-Board RF Interconnect

Introduction

Introduction

Center Conductor	Beryllium Copper,Gold Plating(Au0.5um)
Insulators	PTFE
Body	Stainless Steel (304),Passivated
Impedance	50 ohm
Frequency Band	DC to 18 GHz
VSWR	1.10max@DC to 12 GHz
insertion loss	0.05dB max @DC to 12 GHz
Phase stability	±0.75°
Dielectirc withstand voltage	500v
contact resistance	center conductor ≤6mΩ Outer conductor ≤2.5mΩ
insulation resistance	≥1000MΩ
Durability	≥500
Salt spray test	96H
