SMA Female Bulkhead Crimp for RG316 Cable

SMA Female Bulkhead Crimp for RG316 Cable

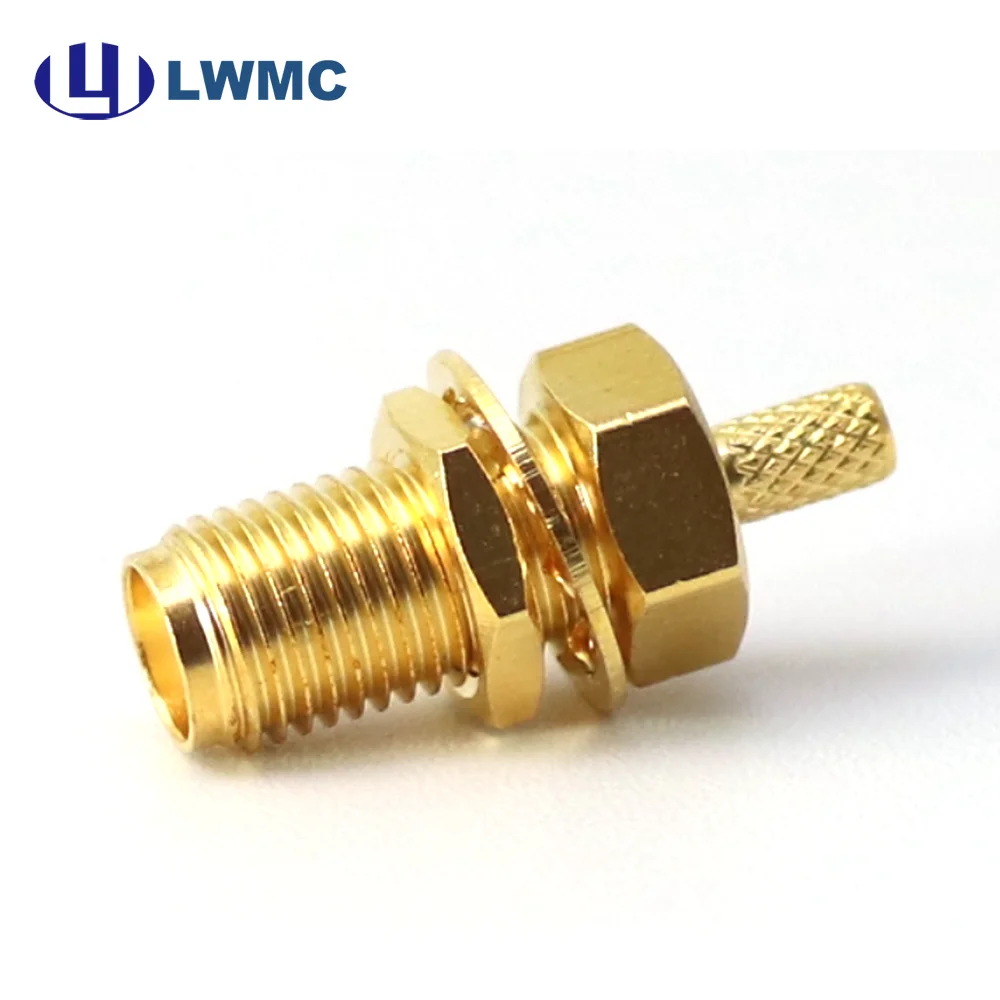

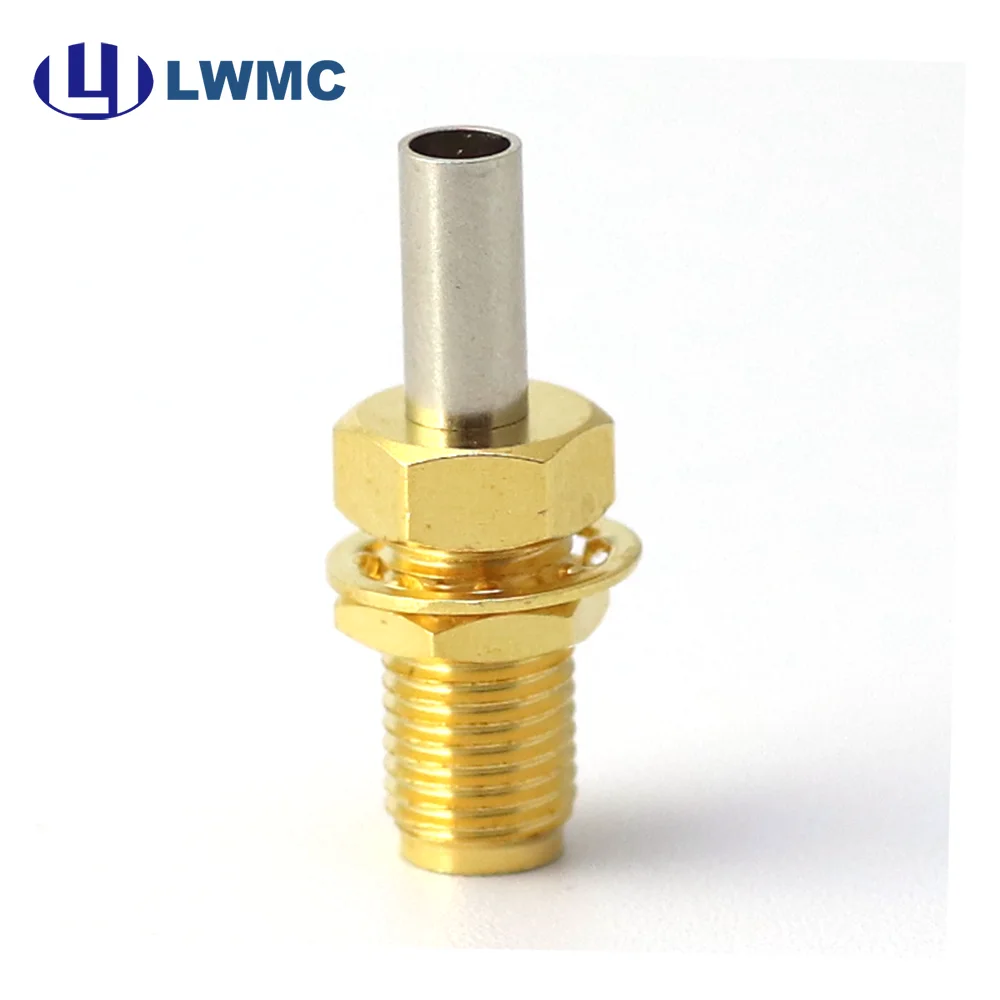

Precision SMA Female Bulkhead Crimp for RG316 – DC to 13GHz, Low Insertion Loss, VSWR <1.35

Spu:

1601626842770

Introduction

Introduction

sma female bulkhead crimp for rg316 cable-0

sma female bulkhead crimp for rg316 cable-1

sma female bulkhead crimp for rg316 cable-2

sma female bulkhead crimp for rg316 cable-3

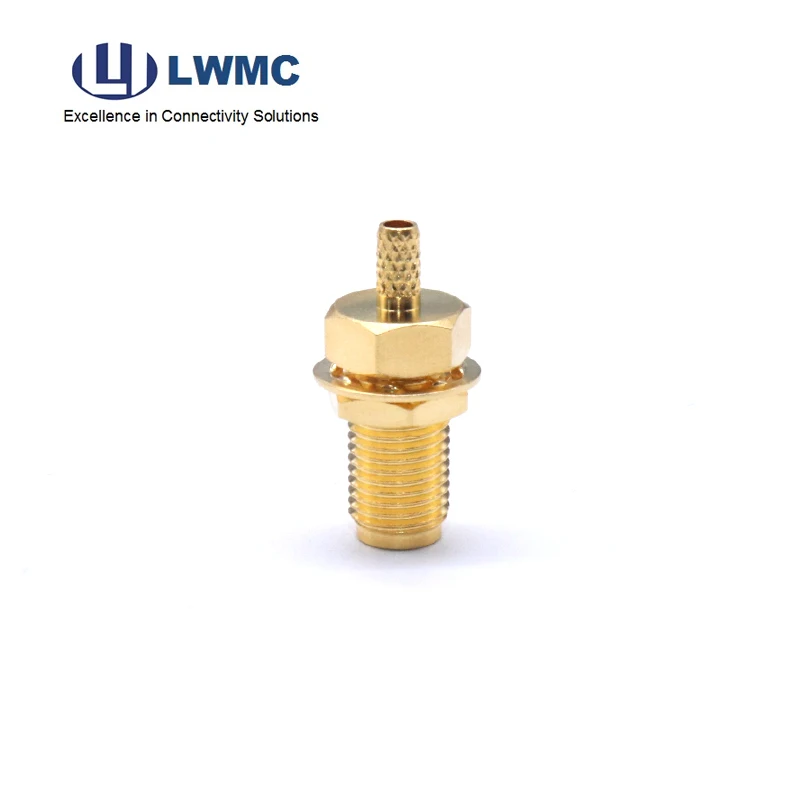

sma female bulkhead crimp for rg316 cable-4

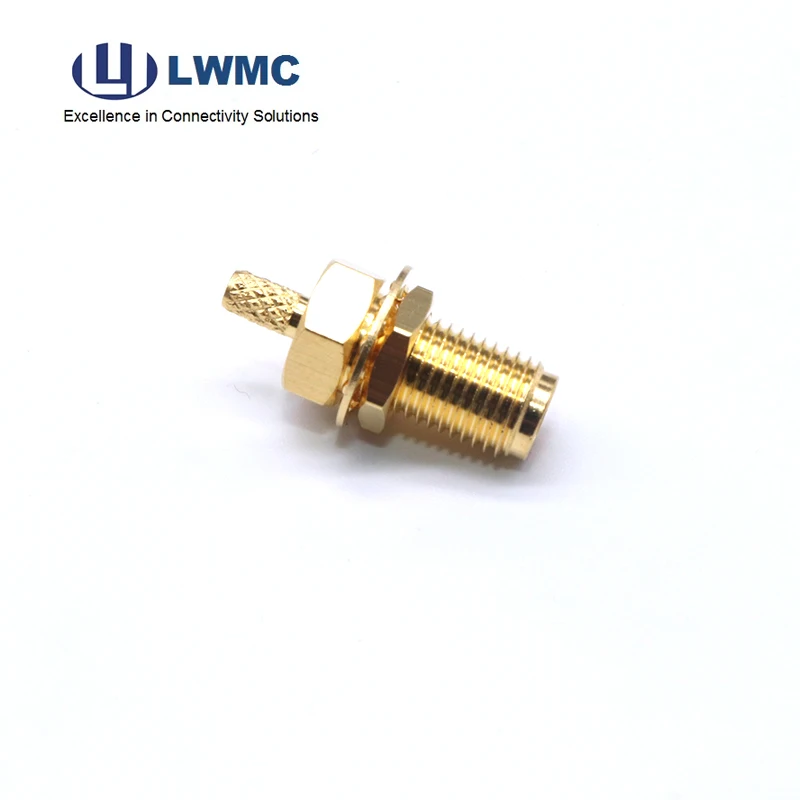

sma female bulkhead crimp for rg316 cable-5

sma female bulkhead crimp for rg316 cable-6

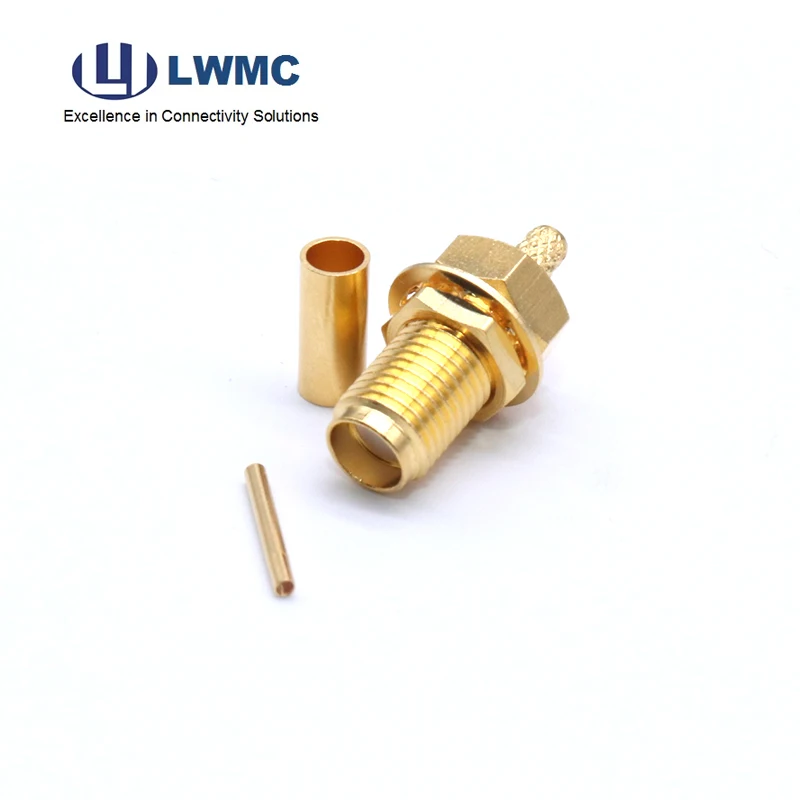

sma female bulkhead crimp for rg316 cable-7

sma female bulkhead crimp for rg316 cable-8

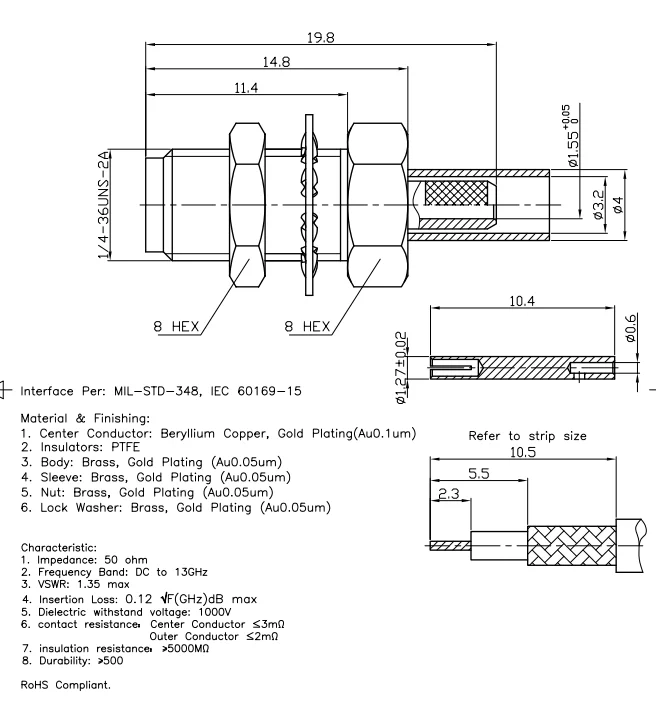

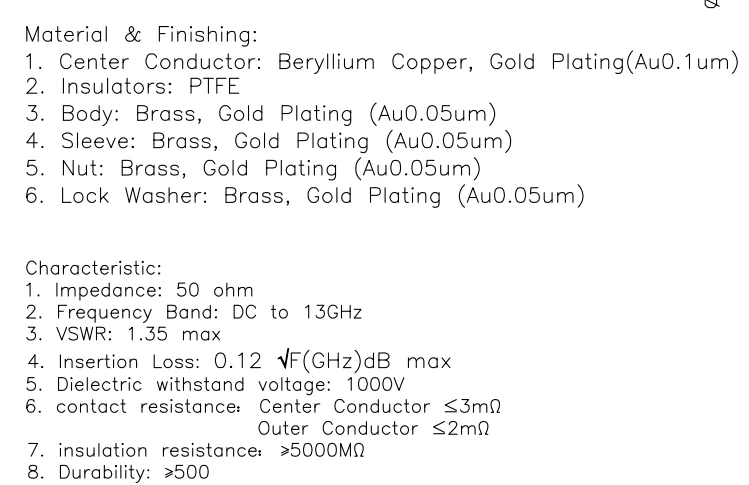

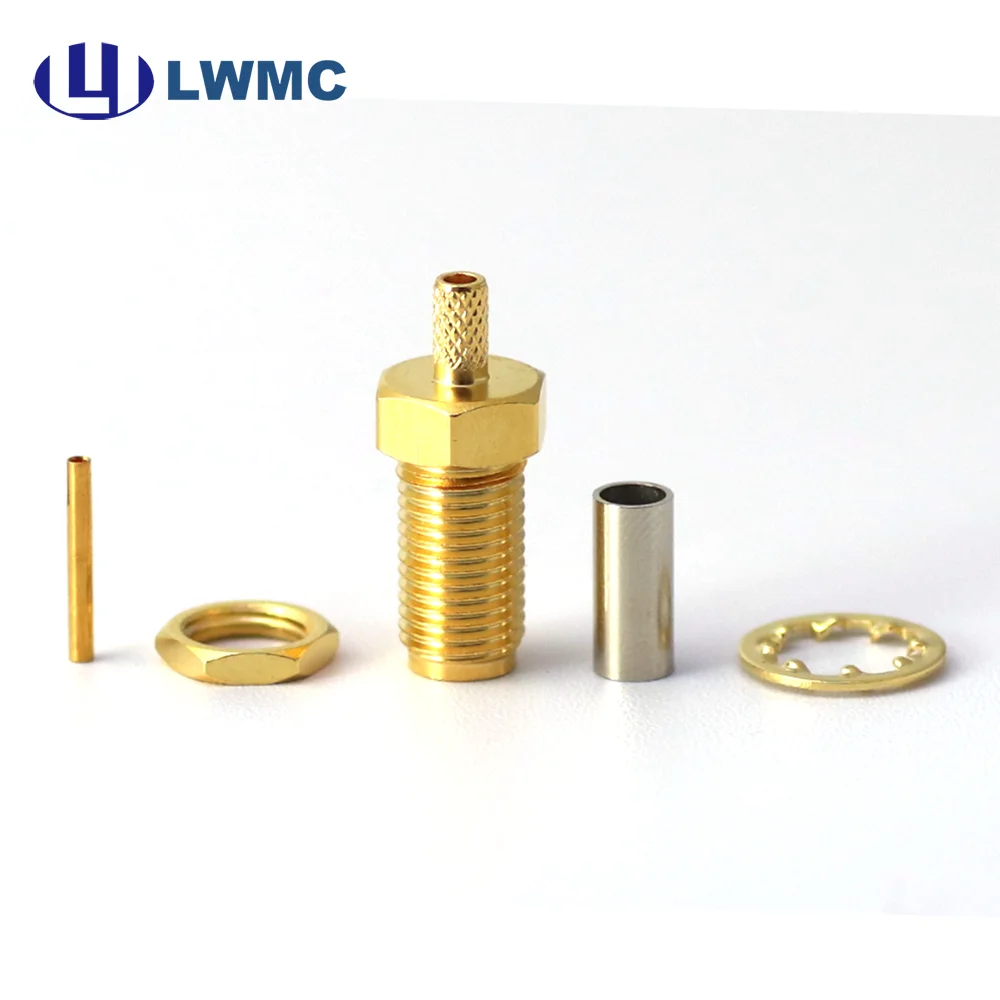

Center Conductor	Beryllium copper,Gold plating(Au0.1um)
Insulators	PTFE
Body	Brass,Gold plating(Au0.05um)
Sleeve	Brass,Gold plating(Au0.05um)
Nut	Brass,Gold plating(Au0.05um)
Lock Washer	Brass,Gold plating(Au0.05um)
Impedance	50 ohm
Frequency Band	DC to 13GHz
VSWR	1.35max
Insertion Loss	0.12 √F(GHz)dB max
Dielectric withstand voltage	1000V
contact resistancer	Center conductor≤3mΩ,Outer conductor≤2mΩ
insulation resistance	≥5000MΩ
Durability	≥500

sma female bulkhead crimp for rg316 cable-9

sma female bulkhead crimp for rg316 cable-10

Performance metrics	Common connector	High-performance connector	Increase ratio
Insertion Loss	＞0.5dB	＜0.1dB	↑80%
Voltage Standing Wave Ratio (VSWR)	＞1.5	≤1.20	↑20%
Signal distortion	Obvious	Minimal	↑90%
Signal strength	Severe attenuation	Almost no attenuation	＞95%
Communication quality	Unstable	Stable and reliable	↑
