Center Conductor Brass,Gold plating Insulators PTFE C'Ring Phosphor Bronze, Passivated Body Brass，Albaloy Plating Couping Nut Brass，Nickel Plati...
|

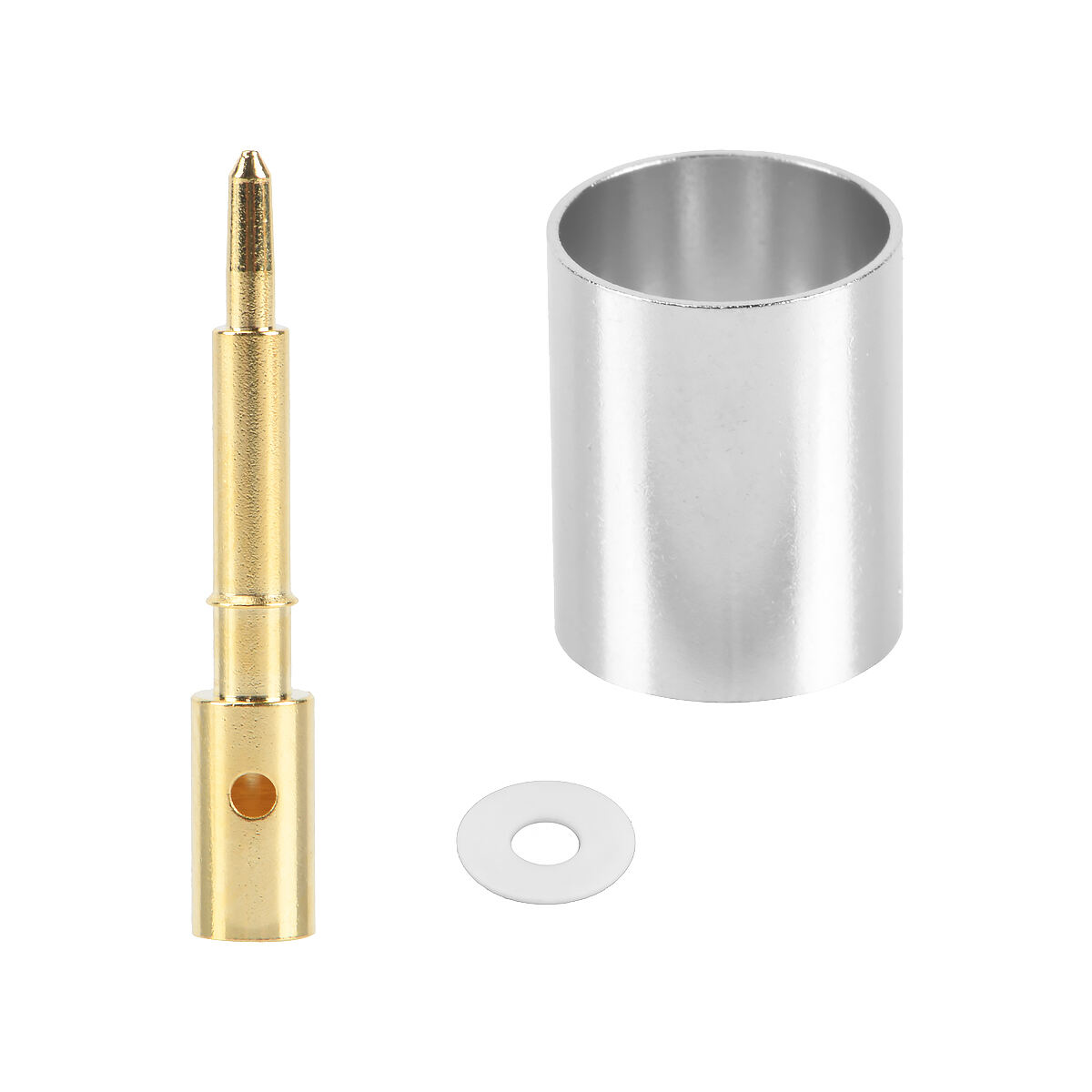

Center Conductor
|
Brass,Gold plating
|
|
Insulators
|
PTFE
|
|
C'Ring
|
Phosphor Bronze, Passivated
|
|
Body
|
Brass，Albaloy Plating
|
|
Couping Nut
|
Brass，Nickel Plating
|
|
Gasket
|
Silicone Rubber
|
|
Impedance
|
50 ohm
|
|
Frequency Band
|
DC to 6 GHz
|
|
VSWR
|
1.3 max
|
|
Dielectric withstand voltage
|
1500V
|
|
contoct resistance
|
Outer Conductor≤1.5mΩ
Outer Conductor≤1mΩ
|
|
insulation resistance
|
≥5000MΩ
|
|
Durability
|
≥500
|
