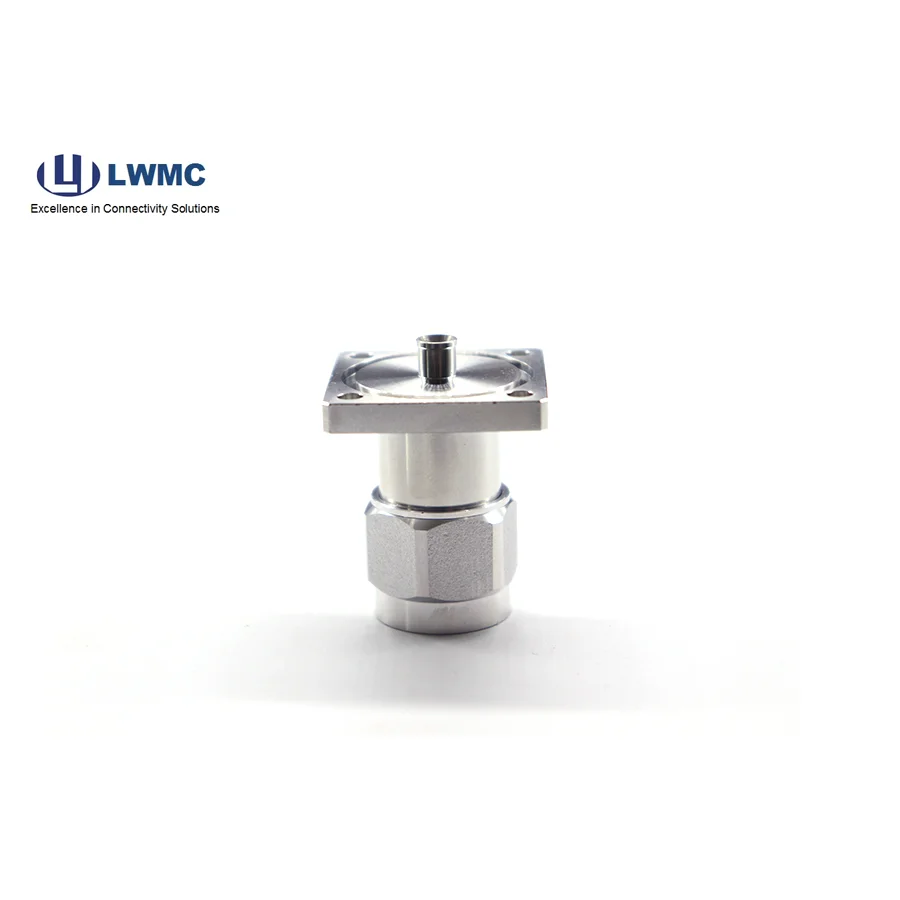

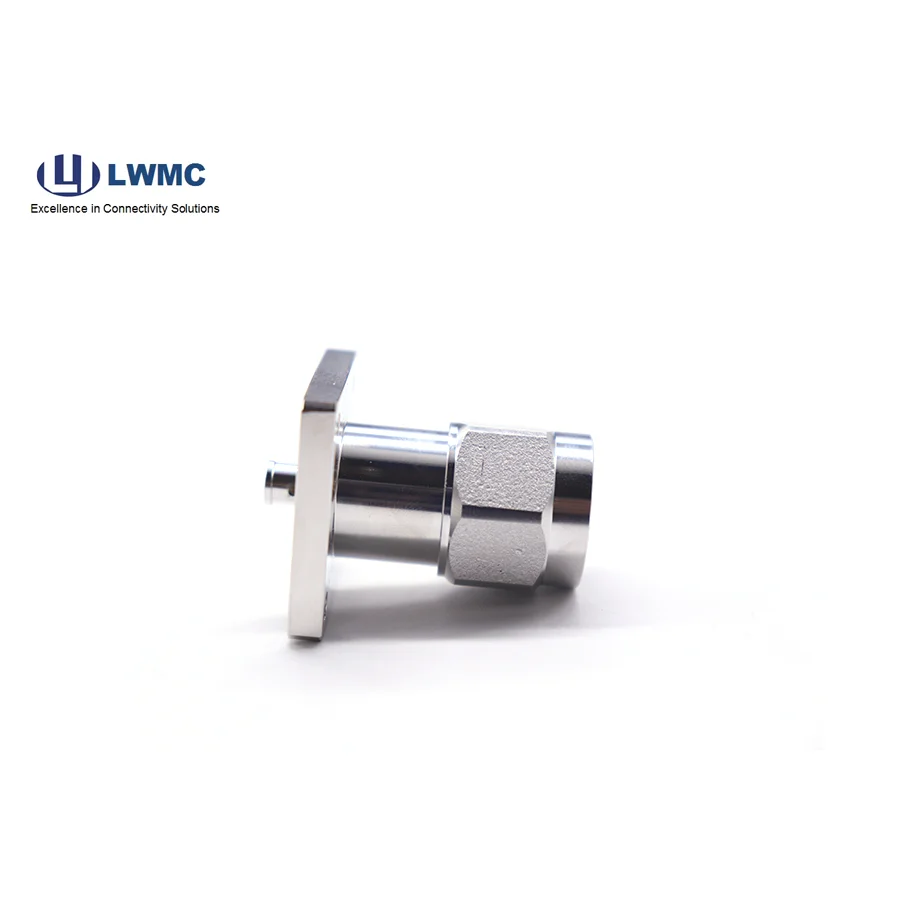

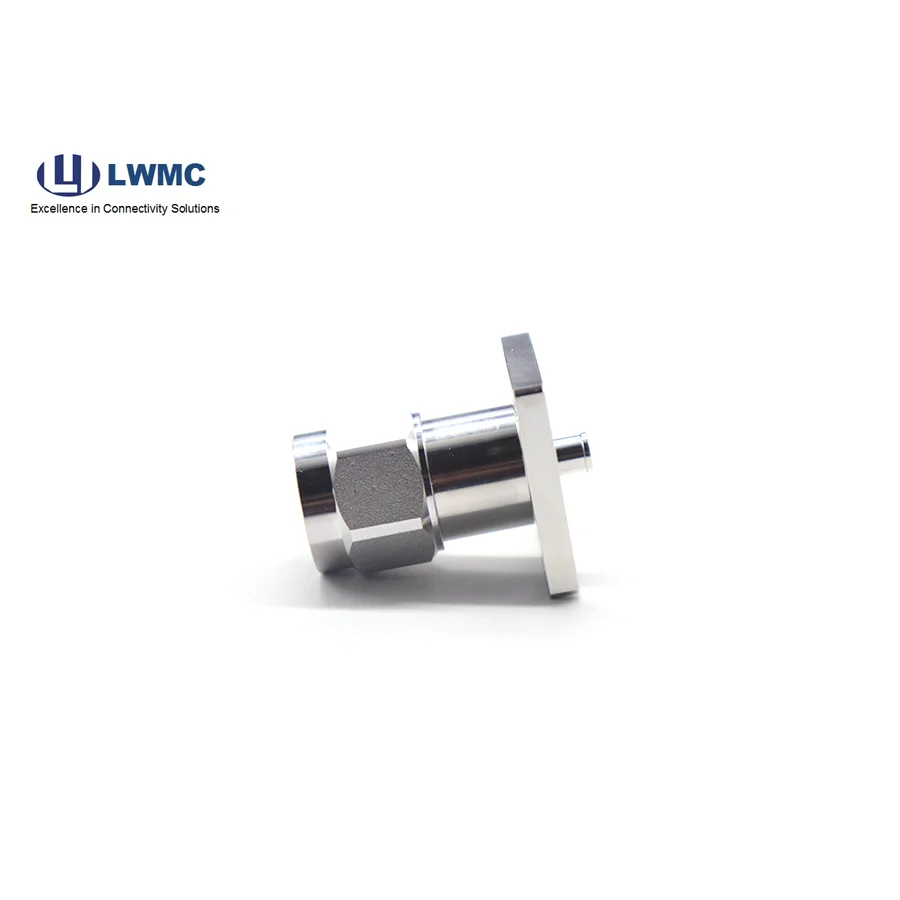

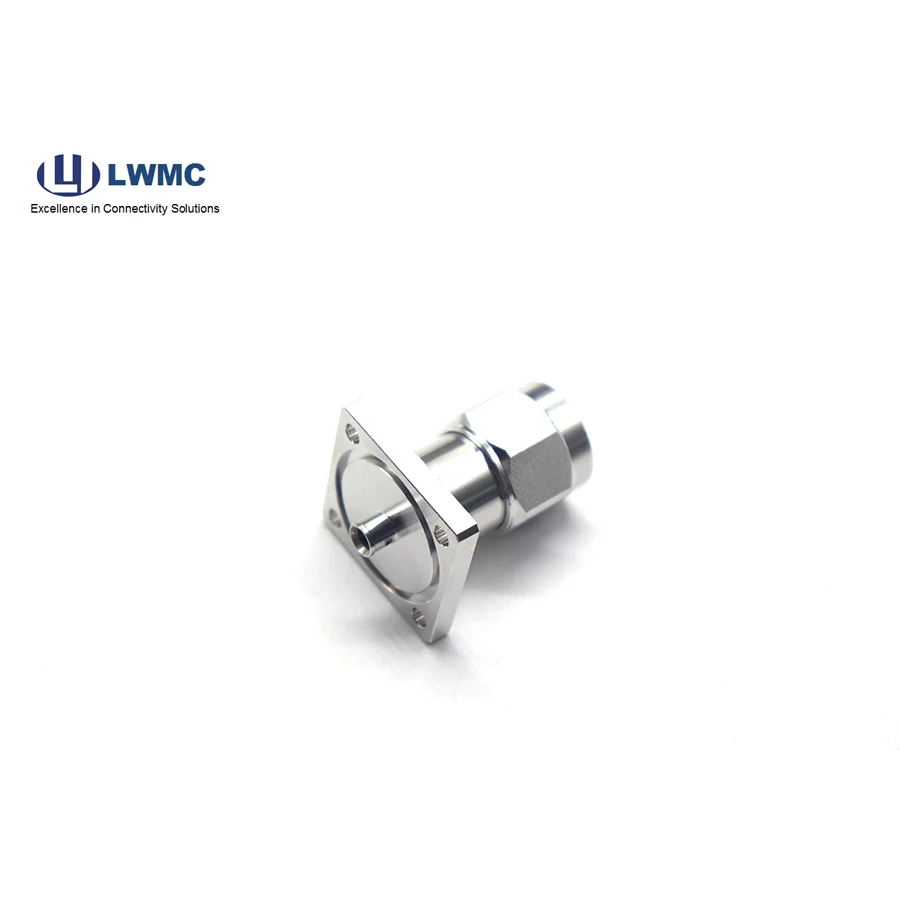

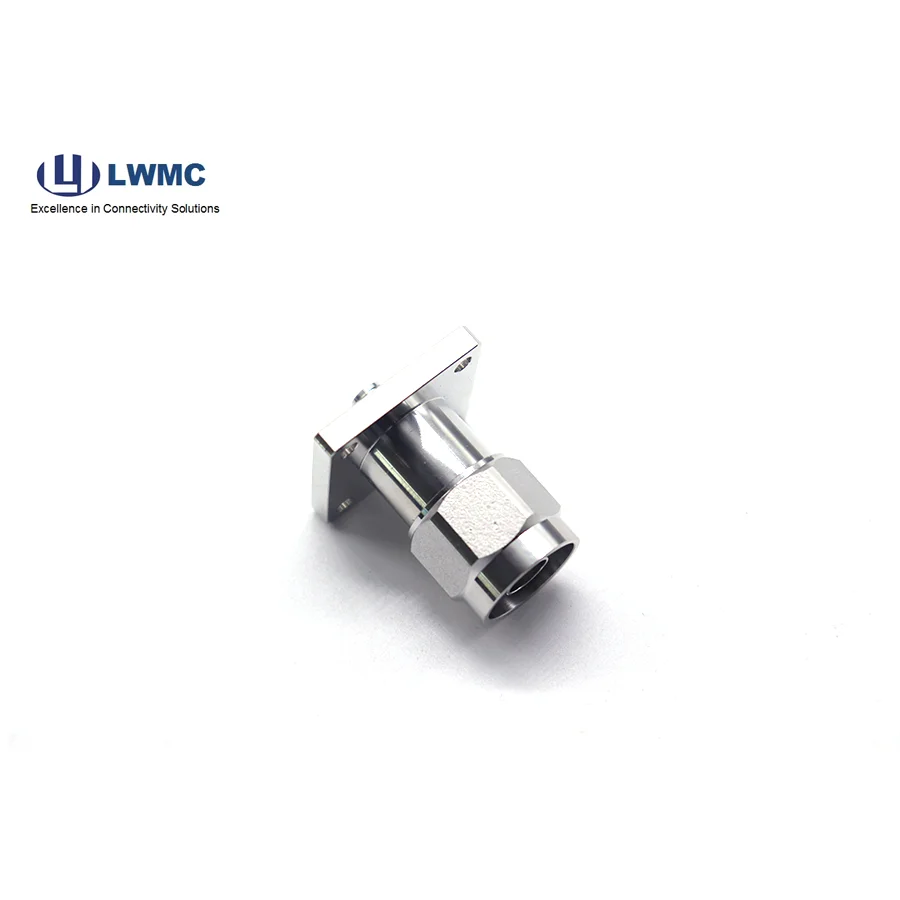

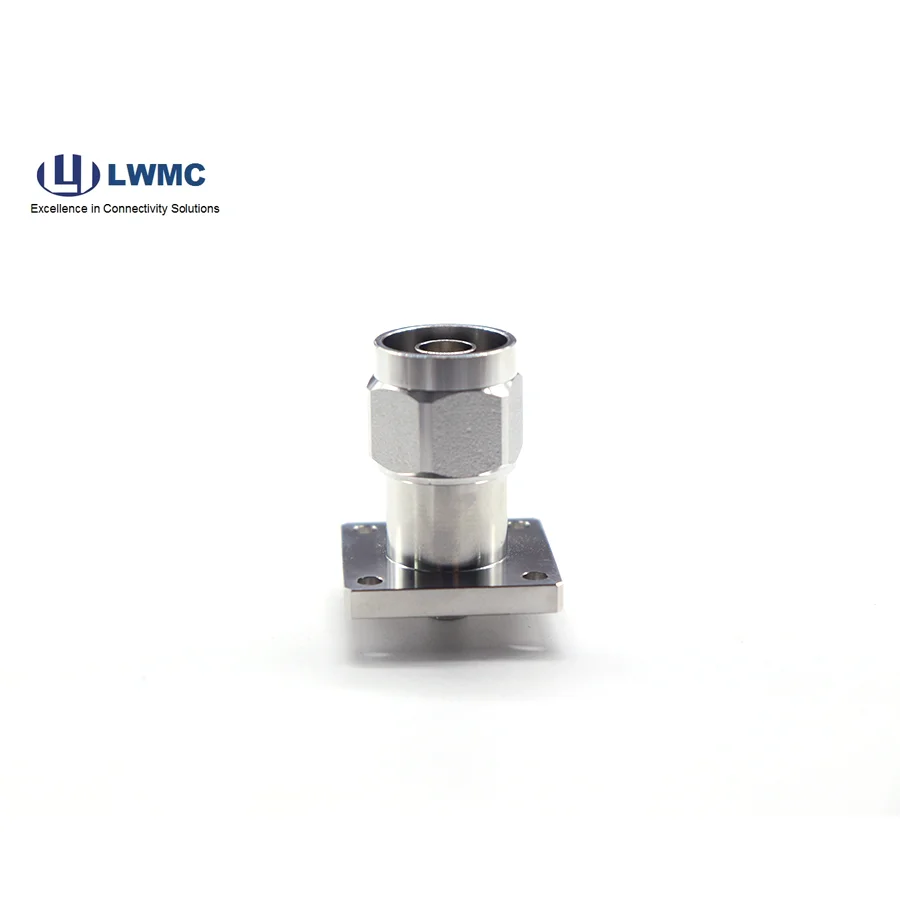

N male 4 holes flange mounted solder for 141.cable
N male 4 holes flange mounted solder for 141.cable
N male 4 holes flange mounted solder for 141.cable
N male 4 holes flange mounted solder for 141.cable
N male 4 holes flange mounted solder for 141.cable
N male 4 holes flange mounted solder for 141.cable
N male 4 holes flange mounted solder for 141.cable
N male 4 holes flange mounted solder for 141.cable
N male 4 holes flange mounted solder for 141.cable
N male 4 holes flange mounted solder for 141.cable
N male 4 holes flange mounted solder for 141.cable
N male 4 holes flange mounted solder for 141.cable

N male 4 holes flange mounted solder for 141.cable

Center ConductorPhosphor Bronze,Silver platingInsulatorsPTFEBodyBrass,Ternary alloy PlatingCoupling NutBrass,Ternary alloy PlatingC'ringPhosphor BronzeGasketSilicone RubberImpedance50 ohmFrequency BandDC to 6 GHzVSWR1.15 max@DC~ to 6 GHzPIM3≤-163 ...

Get a Quote
Introduction
product n male 4 holes flange mounted solder for 141cable-0
product n male 4 holes flange mounted solder for 141cable-1
product n male 4 holes flange mounted solder for 141cable-2
product n male 4 holes flange mounted solder for 141cable-3
Center Conductor
Phosphor Bronze,Silver plating
Insulators
PTFE
Body
Brass,Ternary alloy Plating
Coupling Nut
Brass,Ternary alloy Plating
C'ring
Phosphor Bronze
Gasket
Silicone Rubber
Impedance
50 ohm
Frequency Band
DC to 6 GHz
VSWR
1.15 max@DC~ to 6 GHz
PIM3
≤-163 dBc (@2*43dBm)
Dielectric resistand voltage
1000v
insulation resistance
≥5000mΩ
Durability
≥500
IP Rating of Connectors
IP67
Salt-Spray test
96H
product n male 4 holes flange mounted solder for 141cable-4
product n male 4 holes flange mounted solder for 141cable-5
product n male 4 holes flange mounted solder for 141cable-6
product n male 4 holes flange mounted solder for 141cable-7
product n male 4 holes flange mounted solder for 141cable-8
product n male 4 holes flange mounted solder for 141cable-9
product n male 4 holes flange mounted solder for 141cable-10
product n male 4 holes flange mounted solder for 141cable-11
product n male 4 holes flange mounted solder for 141cable-12
product n male 4 holes flange mounted solder for 141cable-13
product n male 4 holes flange mounted solder for 141cable-14
product n male 4 holes flange mounted solder for 141cable-15
product n male 4 holes flange mounted solder for 141cable-16
product n male 4 holes flange mounted solder for 141cable-17
product n male 4 holes flange mounted solder for 141cable-18
product n male 4 holes flange mounted solder for 141cable-19
Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF
format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
