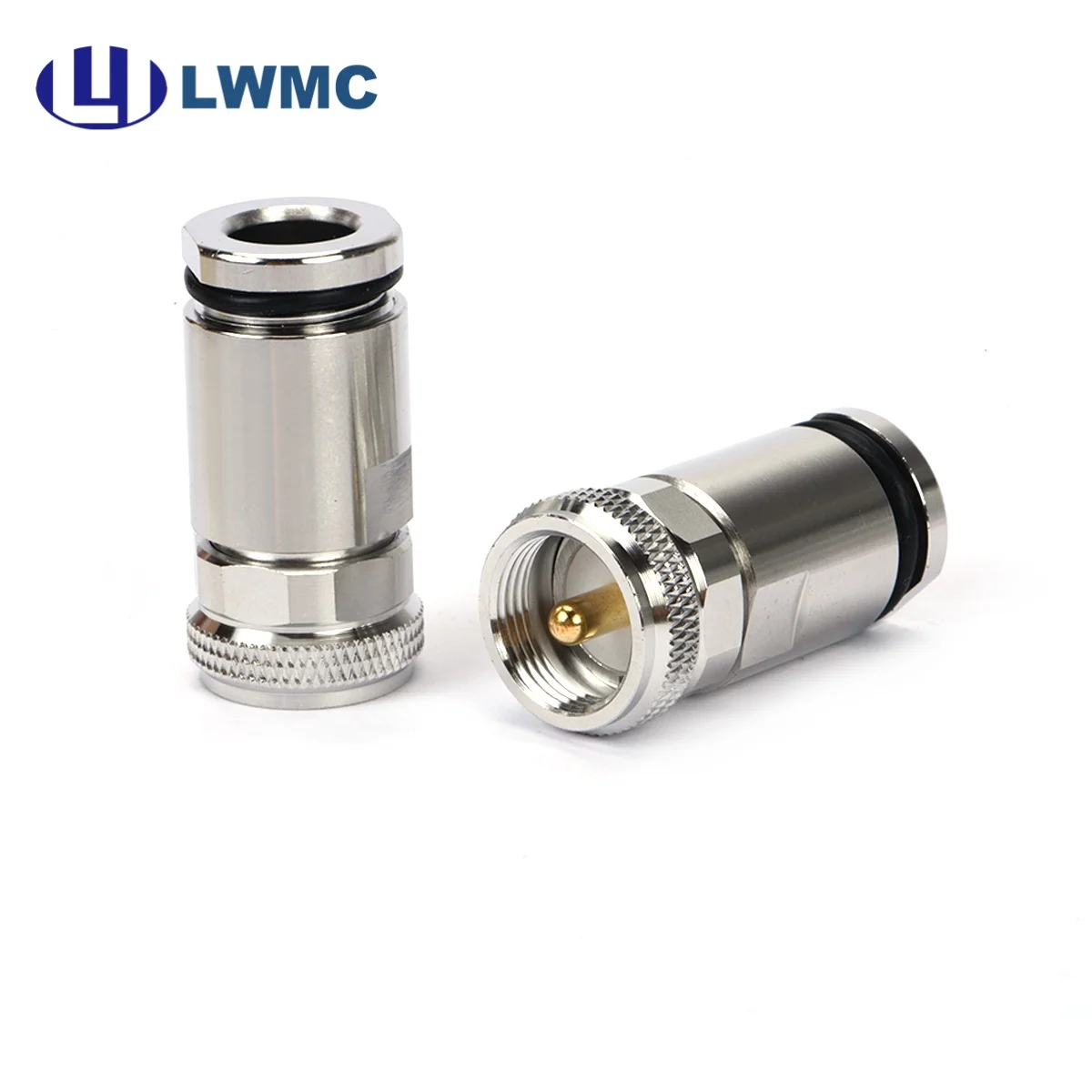

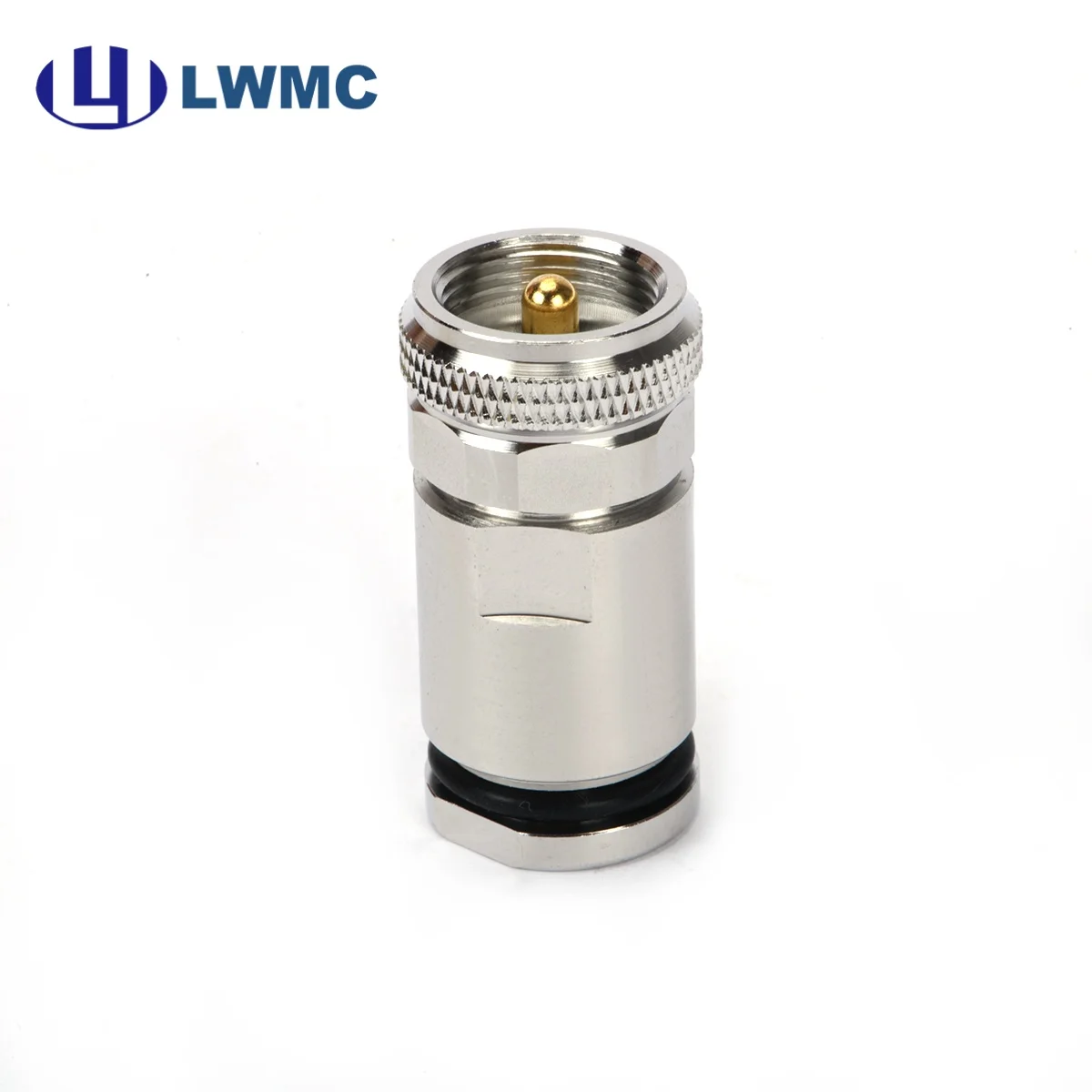

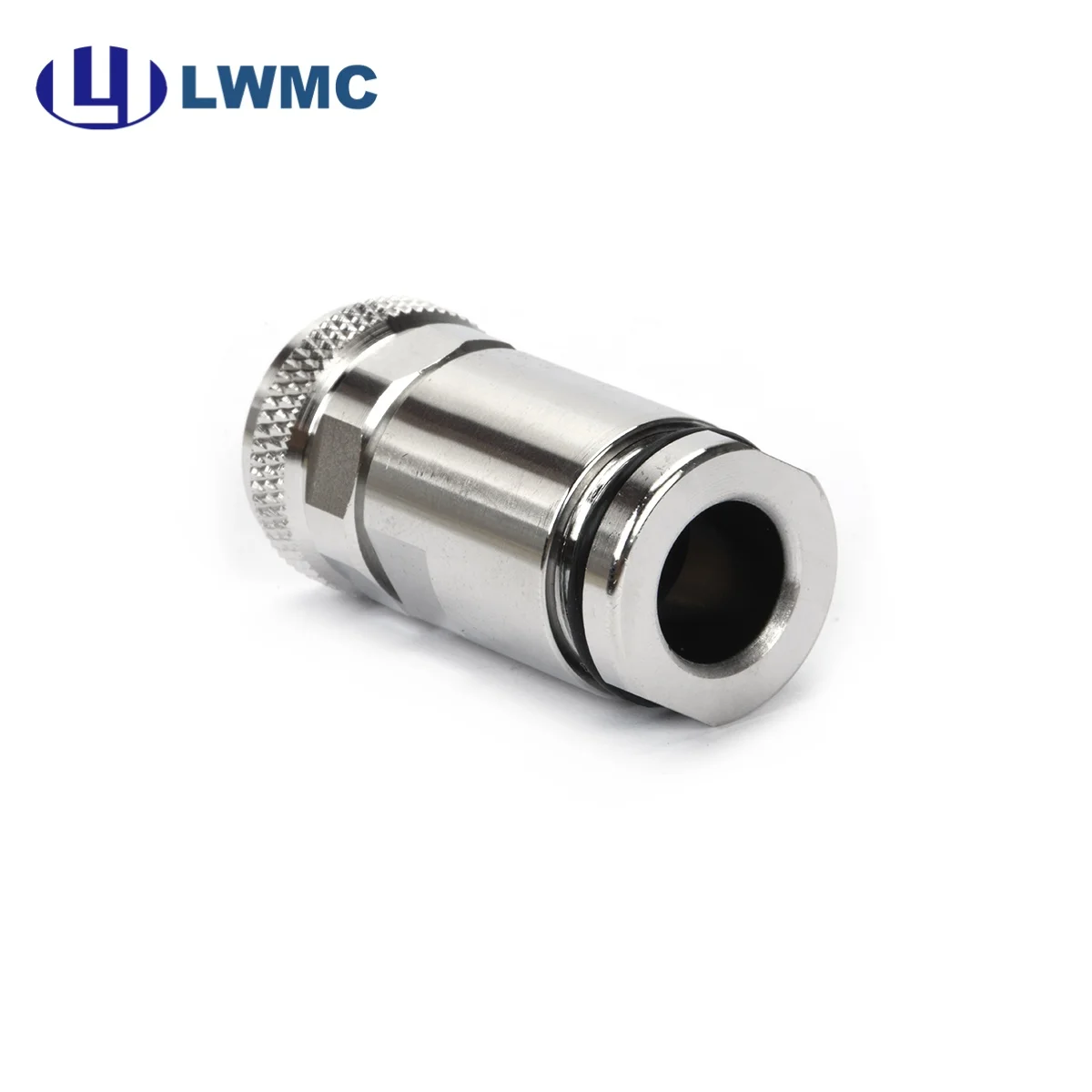

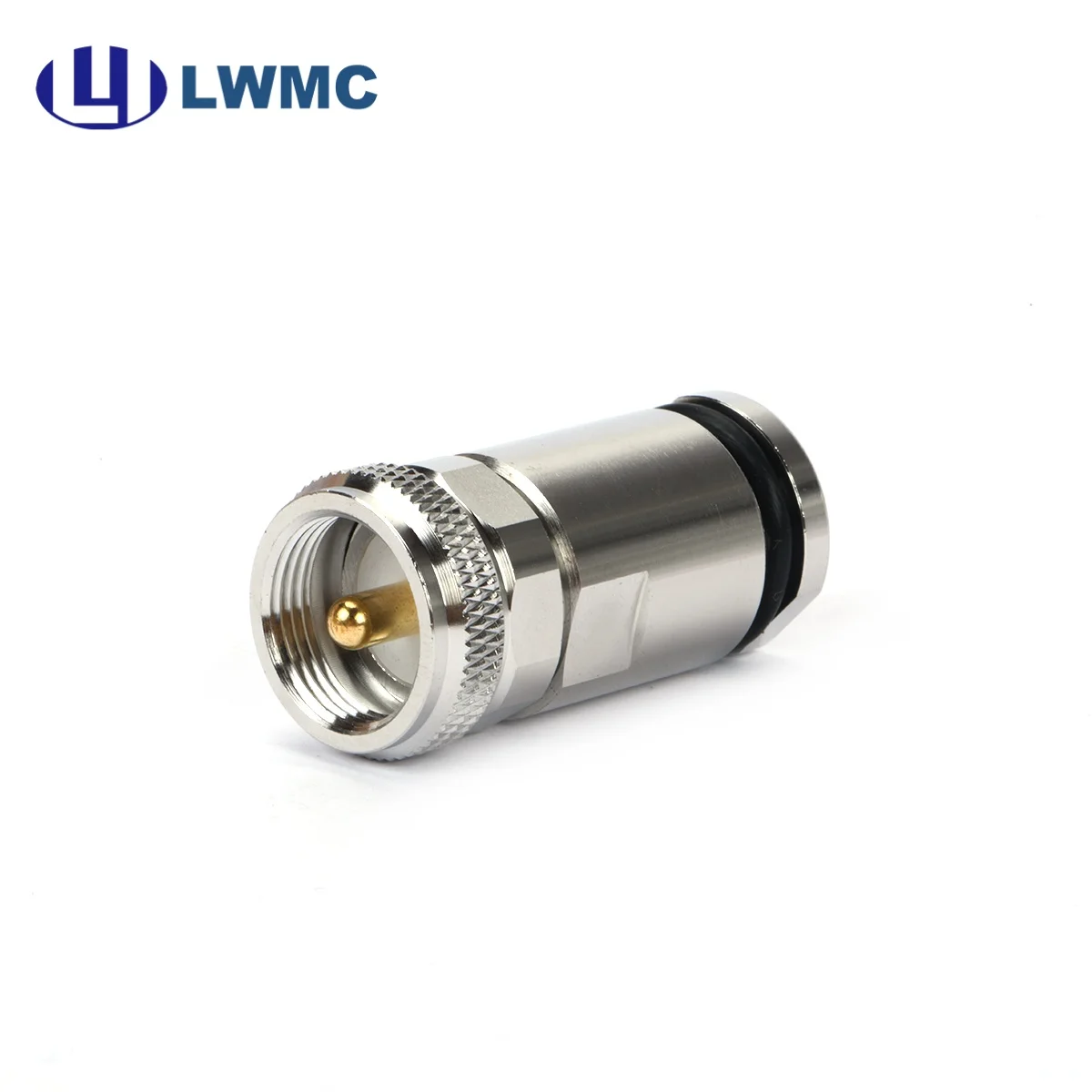

LWMC High Efficiency Good Performance 1.2 Max Pl259 Uhf Coaxial Connector UHF Male Clamp for M&P-HYPERFLEX10/AIRBORNE10 Cable

LWMC High Efficiency Good Performance 1.2 Max Pl259 Uhf Coaxial Connector UHF Male Clamp for M&P-HYPERFLEX10/AIRBORNE10 Cable

Spu:

1601641327857

Introduction

Introduction

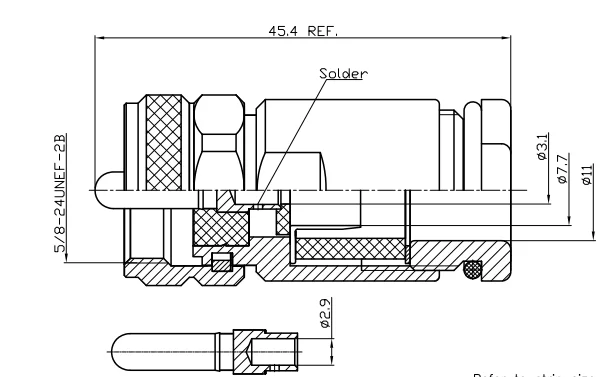

UHF_11_267_144_05MP_RevA
Center Conductor	Brass, Gold Plating(0.03um)
Insulators	PTFE
Body	Brass, Ternary alloy Plating(3um)
Coupling Nut	Brass, Gold Plating(3um)
Nut	Brass, Ternary alloy Plating(3um)
Bushing	Brass, Ternary alloy Plating(3um)
Washer	Brass, Ternary alloy Plating(3um)
C'Ring	Phosphor Bronze
O'Ring	Silicone Rubber(black)
Gasket	Silicone Rubber
Impedance	50 ohm
Frequency Band	DC to 0.5 GHz
VSWR	1.2 max
Dielectric withstand voltage	2000V
contact resistance	Center Conductor ≤5mΩ
contact resistance	Outer Conductor ≤5mΩ
Insulation resistance	≥5000MΩ
Durability	≥500

Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF

format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
