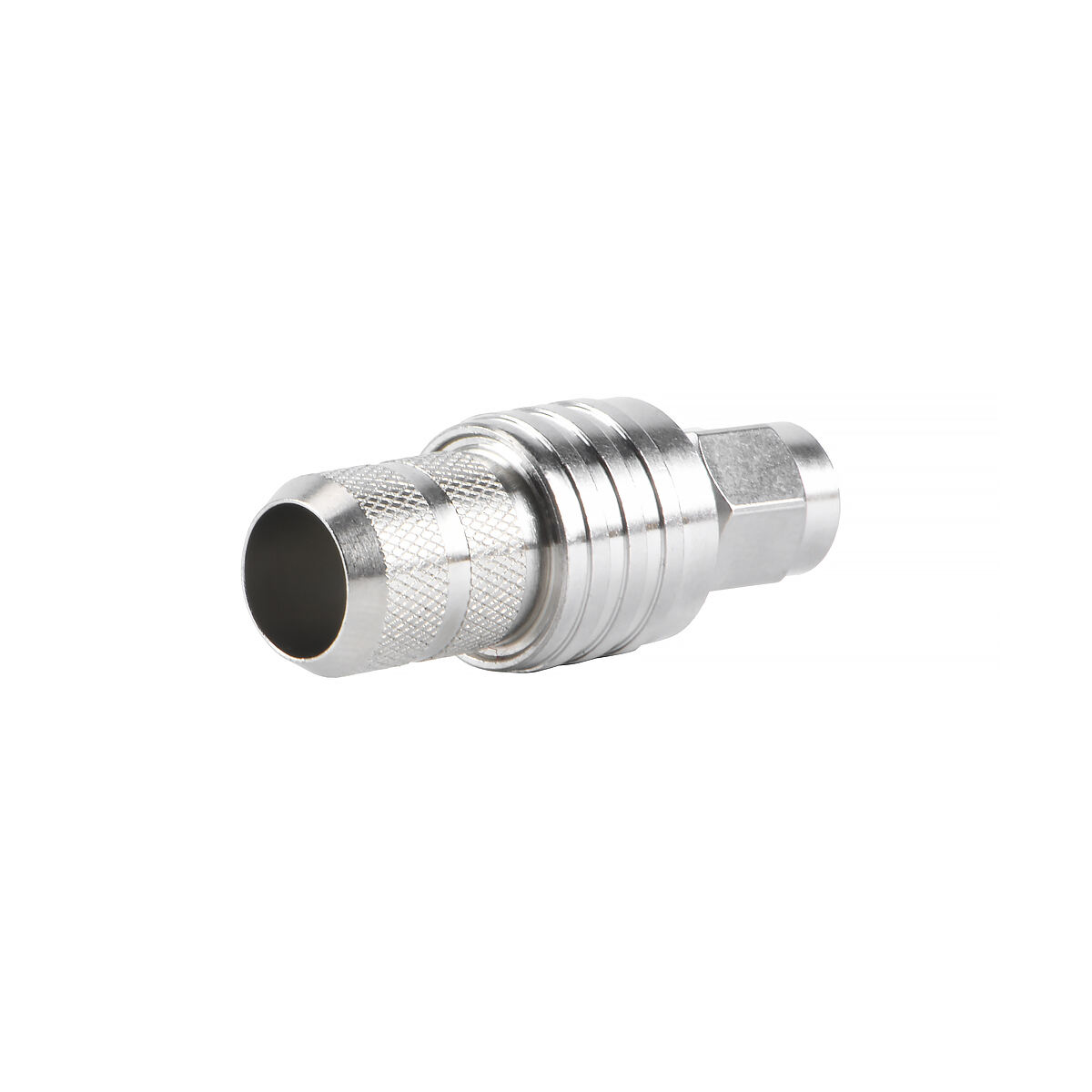

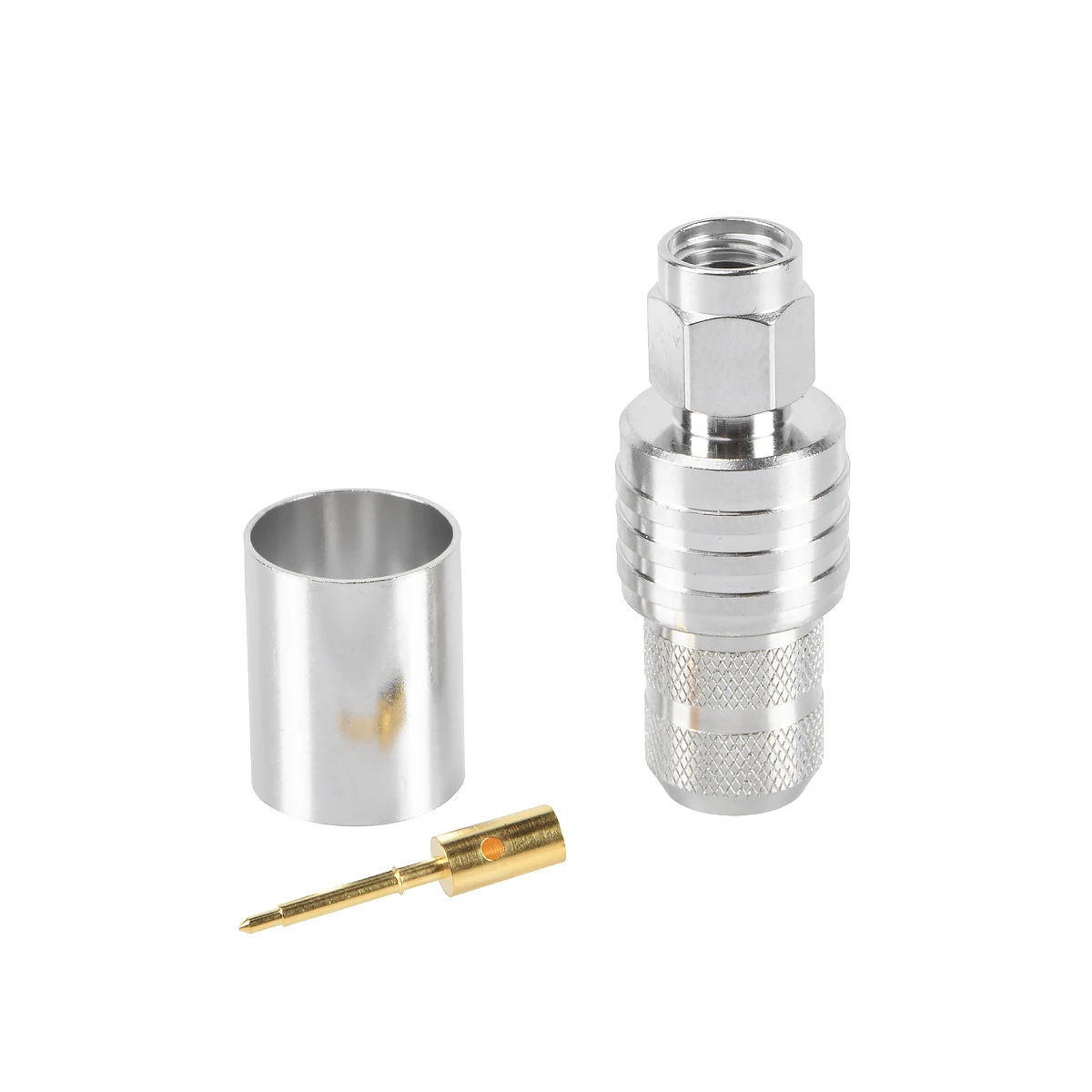

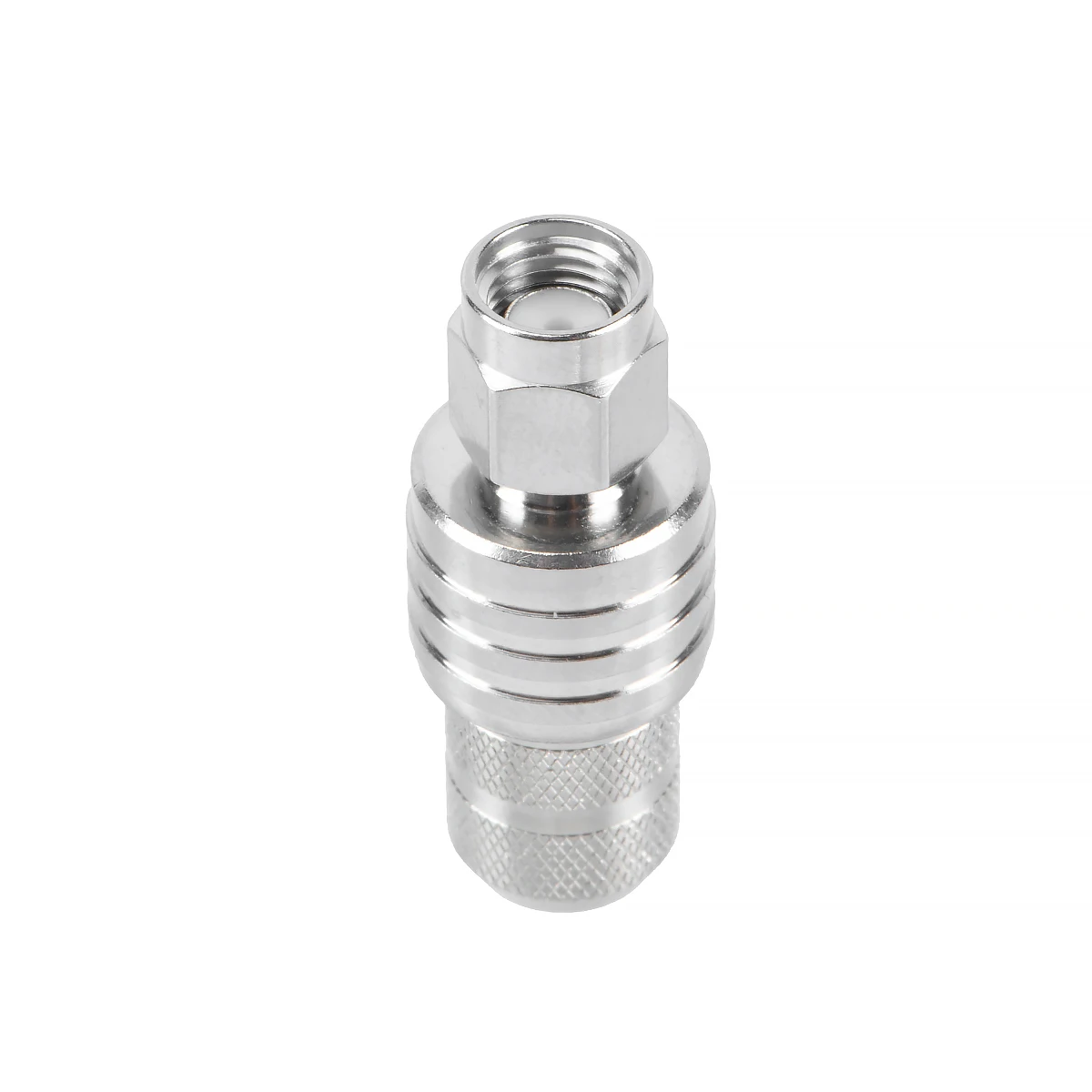

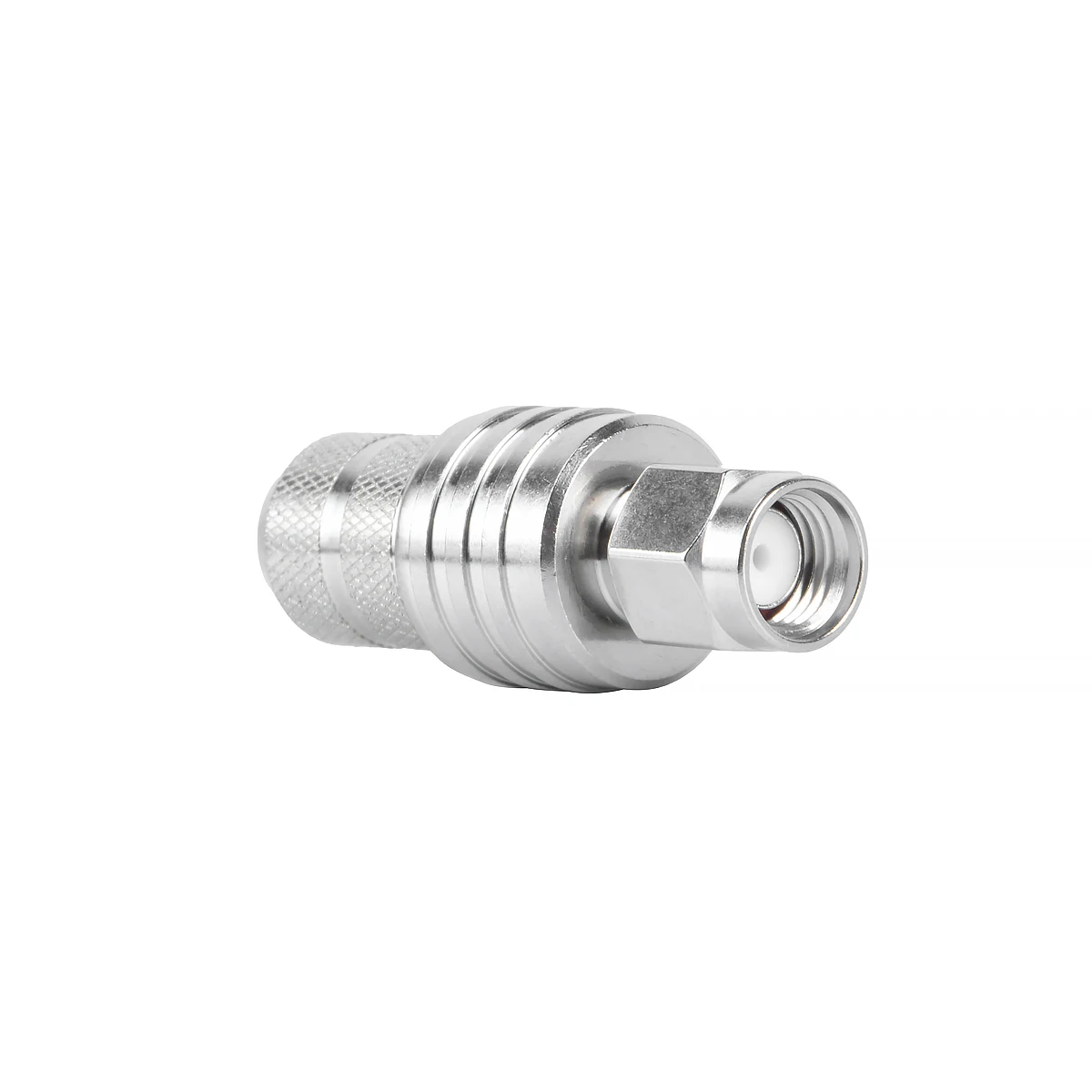

SMA male crimp for LMR400 cable

Center ConductorBrass, Gold platingInsulatorsPTFEBody & Other Metal PartsBrass, Albaloy PlatingC'RingPhosphor Bronze, PassivatedGasketSiliconeImpedance50 ohmFrequency BandDC to 6 GHzVSWR1.30 max...

Introduction

SMA male crimp for LMR400 cable supplier

SMA male crimp for LMR400 cable manufacture

Center Conductor	Brass, Gold plating
Insulators	PTFE
Body & Other Metal Parts	Brass, Albaloy Plating
C'Ring	Phosphor Bronze, Passivated
Gasket	Silicone
Impedance	50 ohm
Frequency Band	DC to 6 GHz
VSWR	1.30 max
Dielectric withstand voltage	1000V
Contact resistance	Center Conductor≤3mΩ
Contact resistance		Outer Conductor≤2mΩ
Insulation resistance	≥5000MΩ
Durability	≥500

Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF

format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
