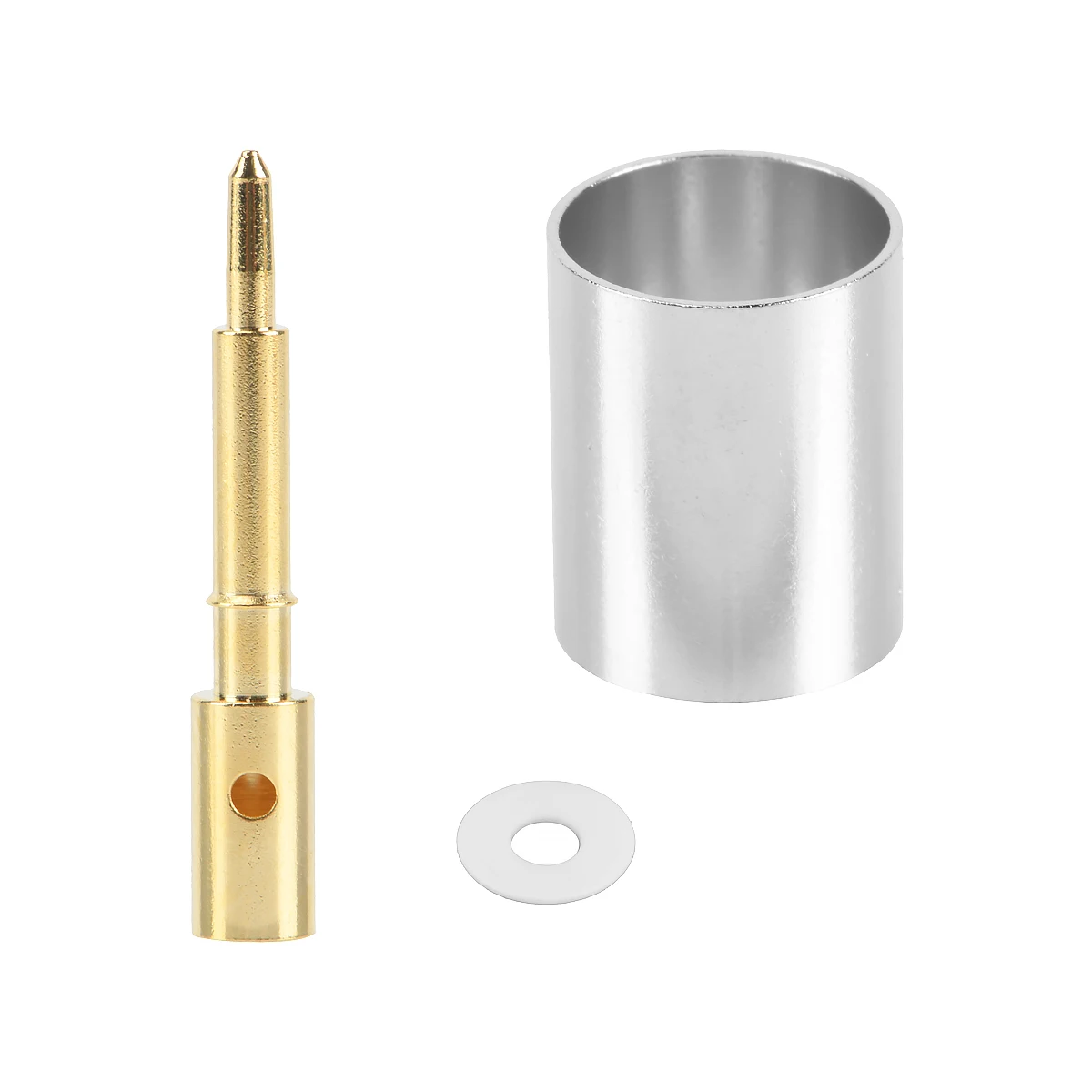

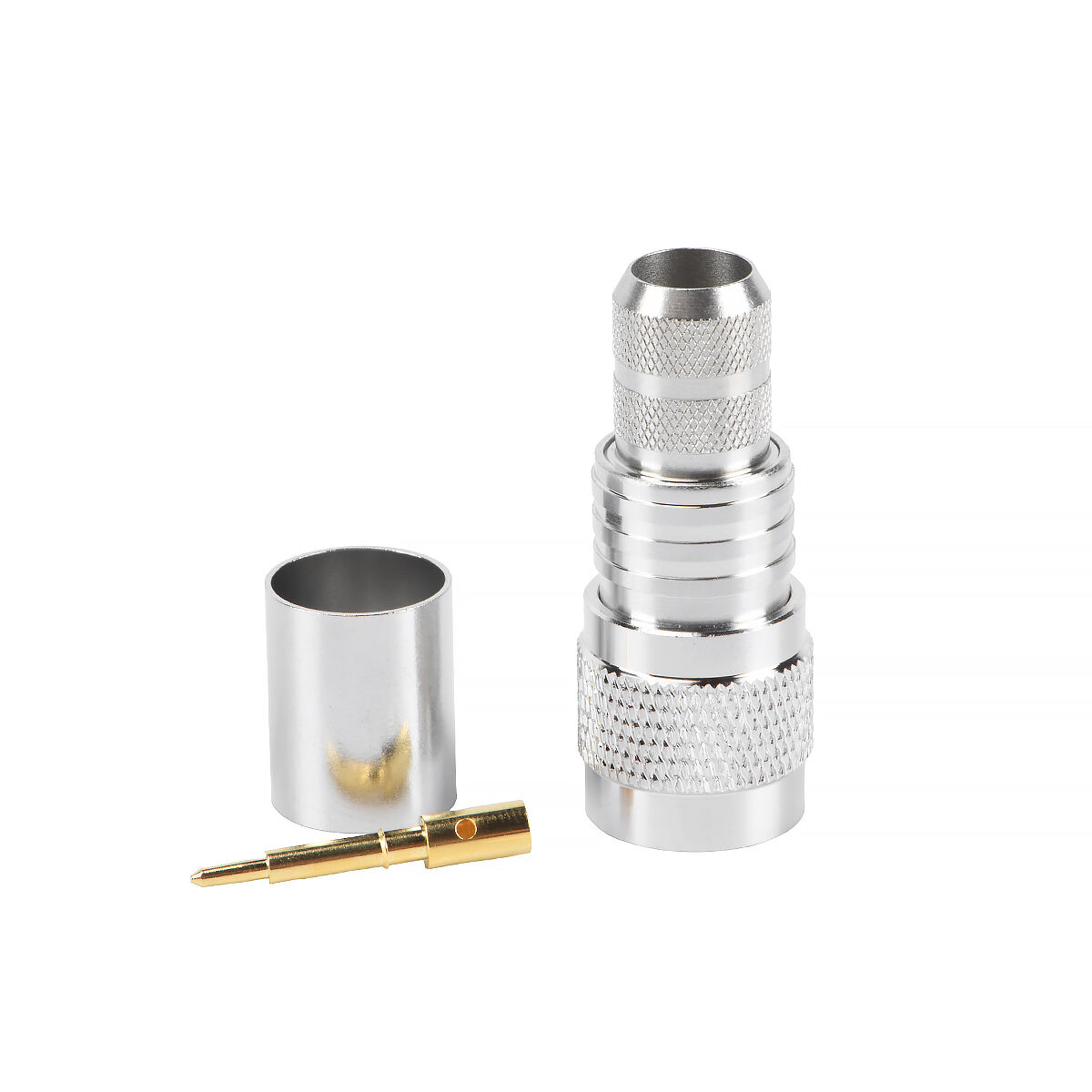

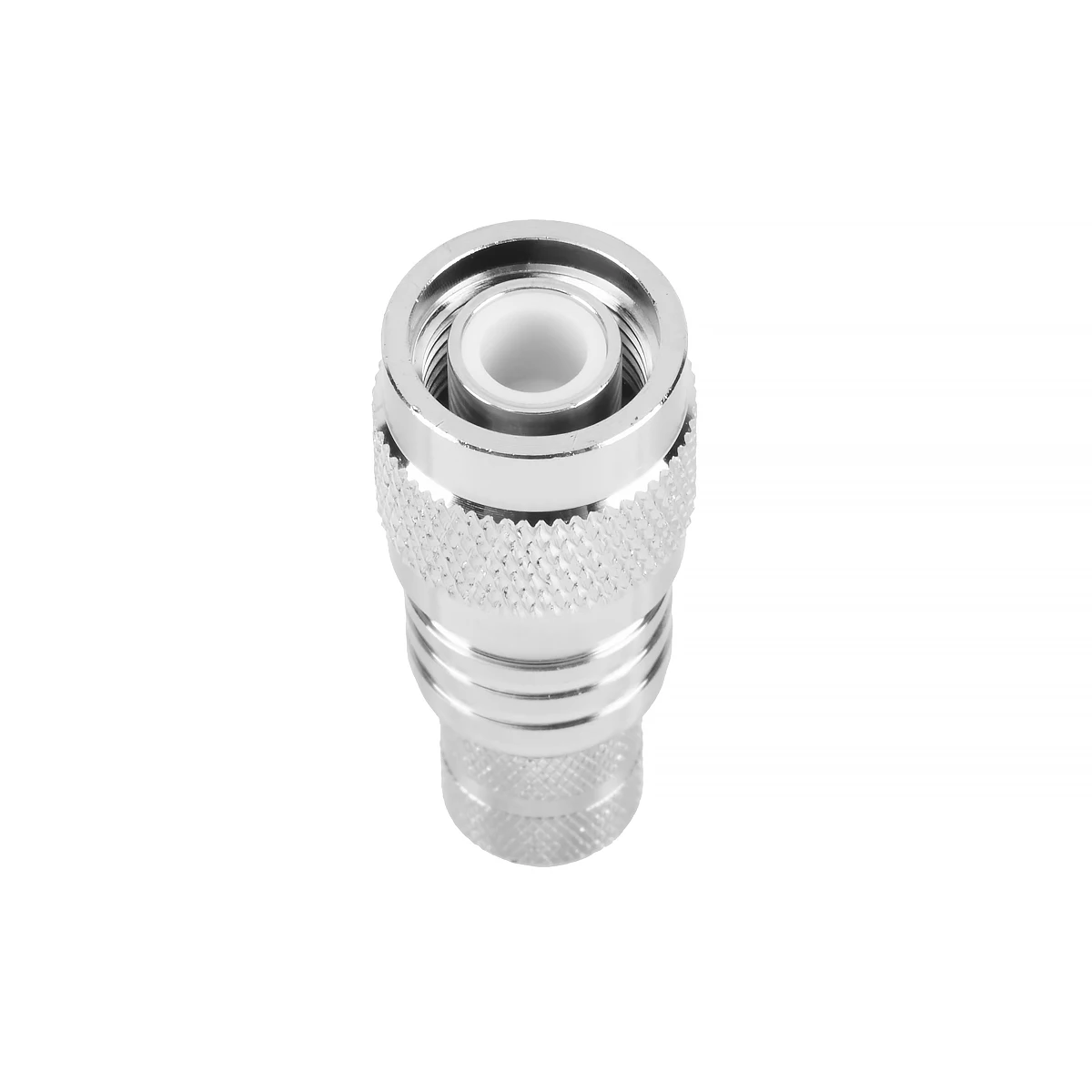

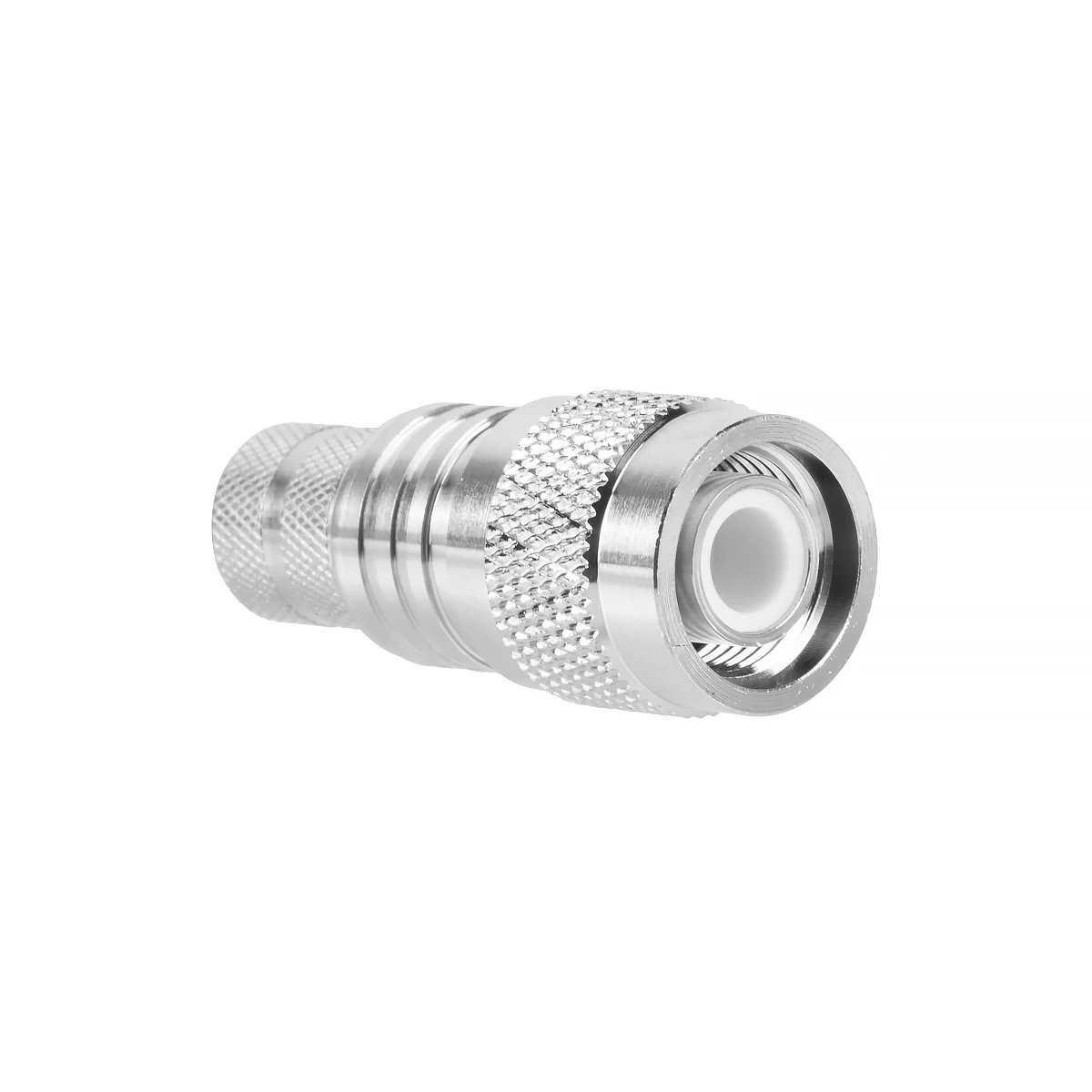

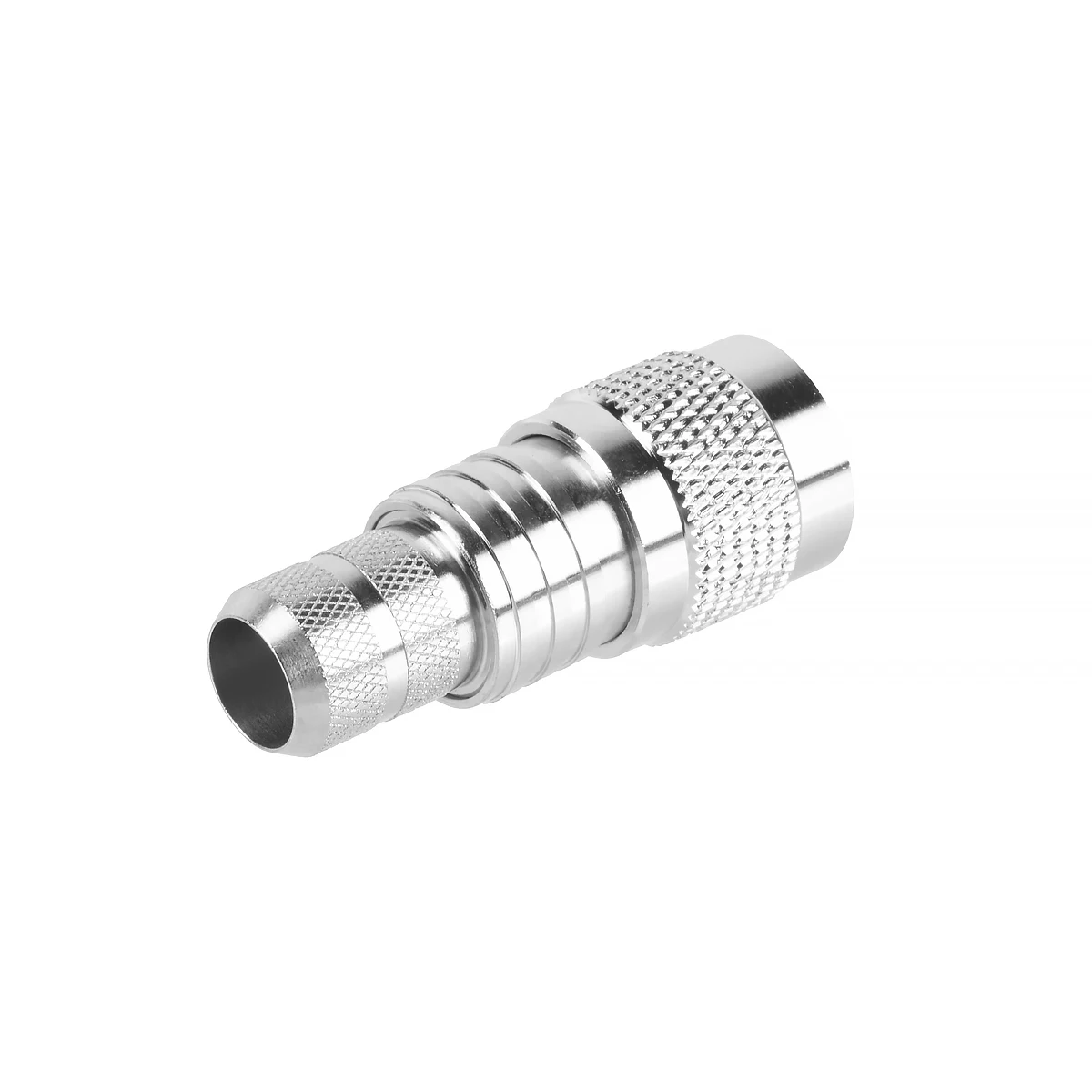

TNC male crimp for LMR400 cable

Center ConductorBrass,Gold platingInsulatorsPTFEC'RingPhosphor Bronze, PassivatedBodyBrass，Albaloy PlatingCouping NutBrass，Nickel PlatingGasketSilicone RubberImpedance50 ohmFrequency BandDC to 6...

Introduction

Center Conductor	Brass,Gold plating
Insulators	PTFE
C'Ring	Phosphor Bronze, Passivated
Body	Brass，Albaloy Plating
Couping Nut	Brass，Nickel Plating
Gasket	Silicone Rubber
Impedance	50 ohm
Frequency Band	DC to 6 GHz
VSWR	1.30 max
Dielectric withstand voltage	1500V
contoct resistance	Outer Conductor≤1mΩ Outer Conductor≤1mΩ
insulation resistance	≥5000MΩ
Durability	≥500

Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF

format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
