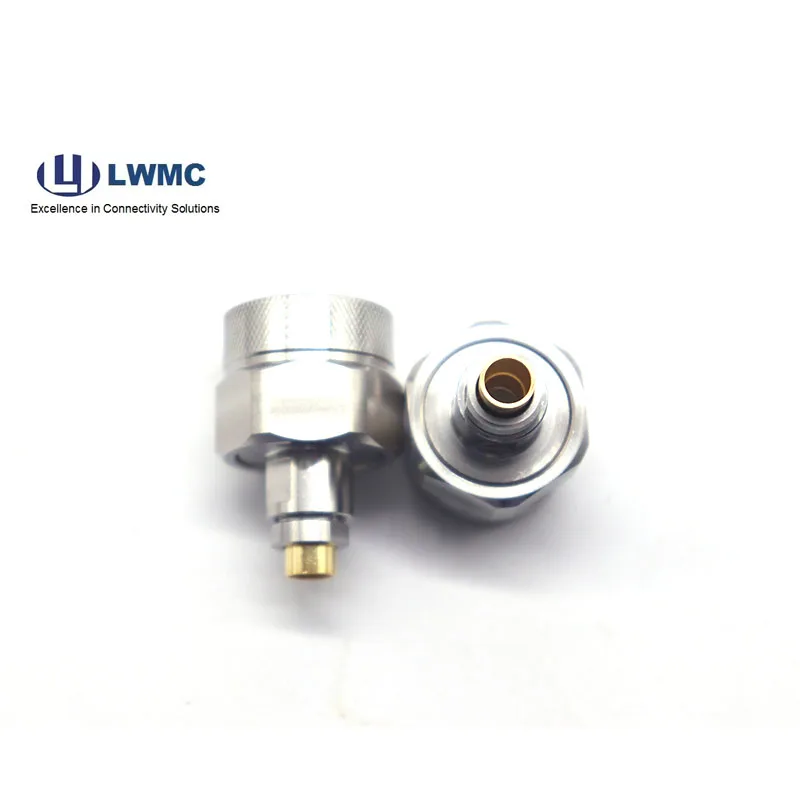

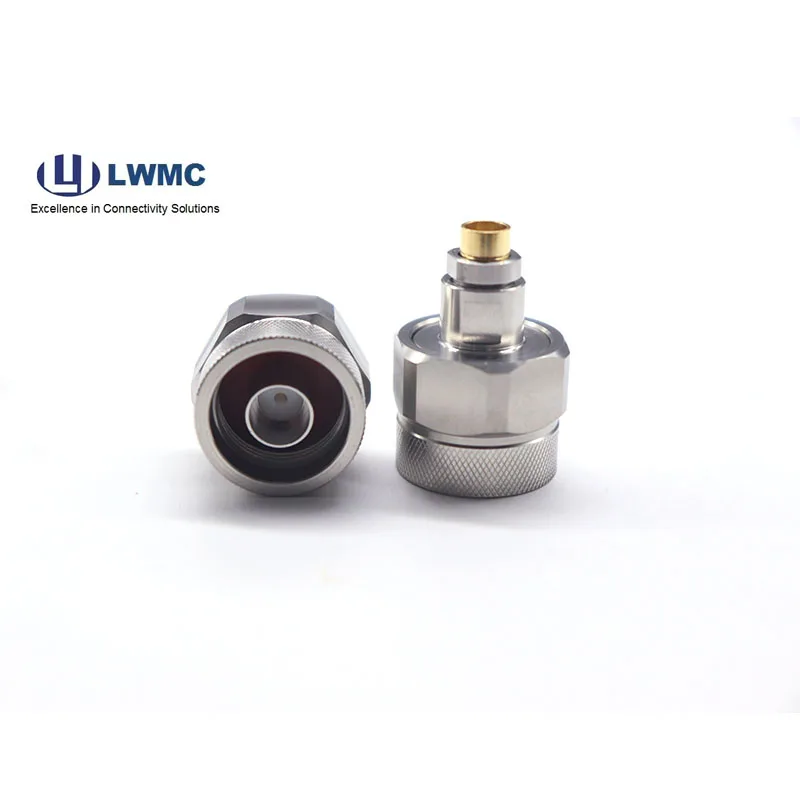

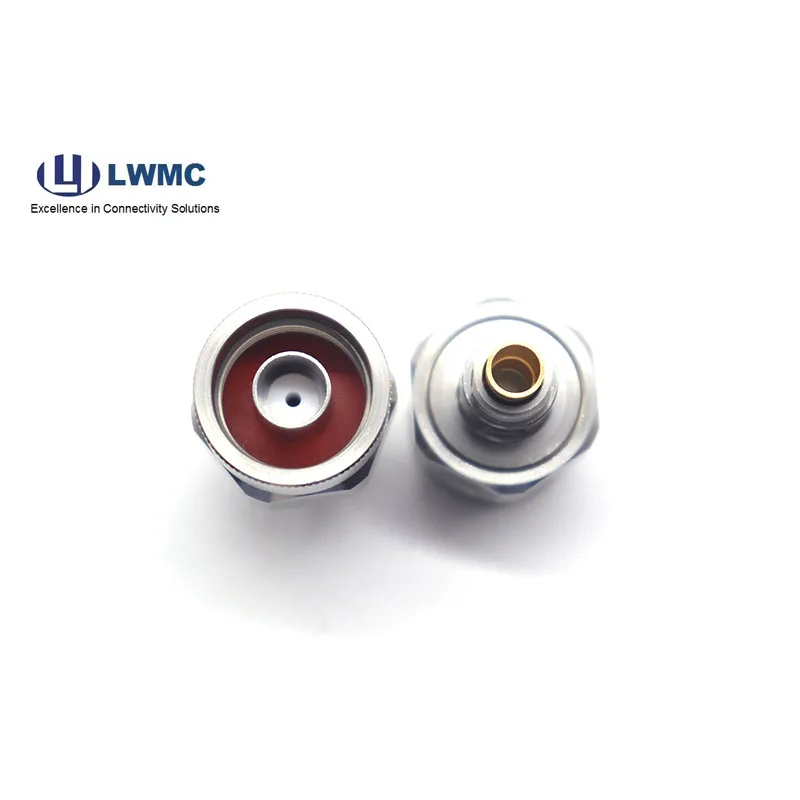

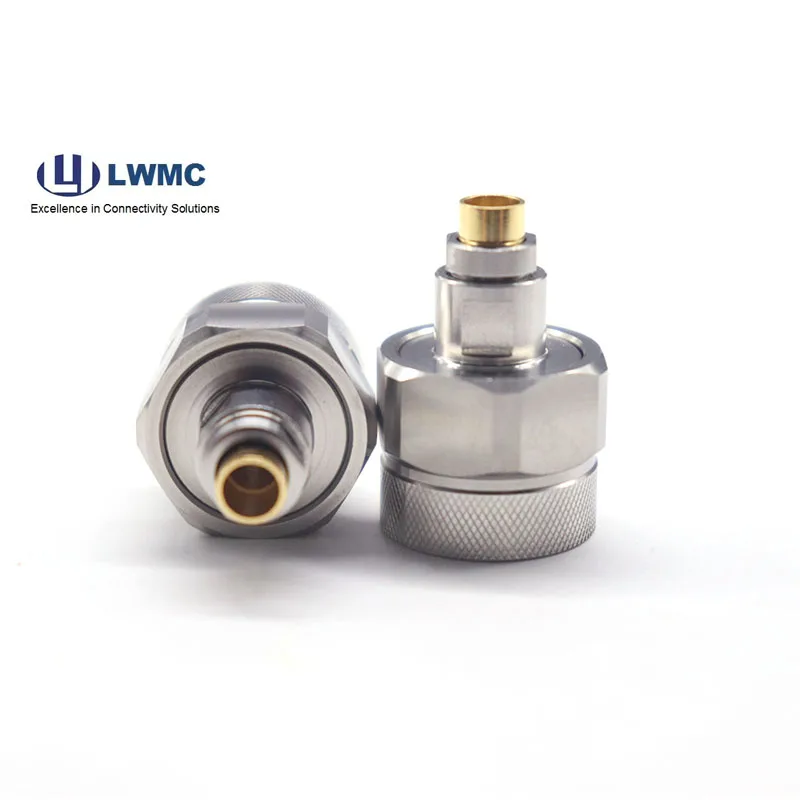

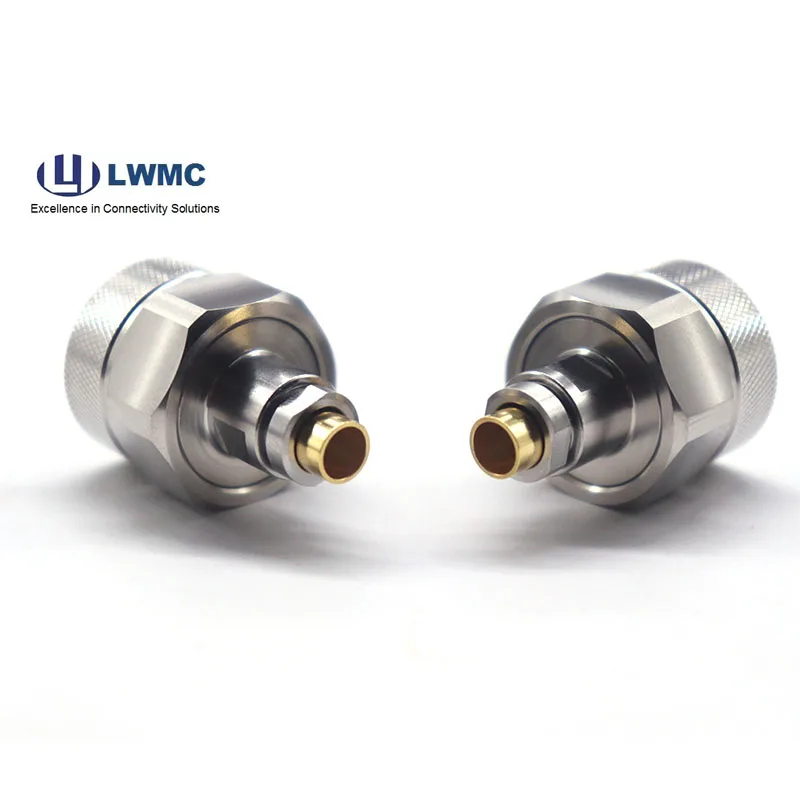

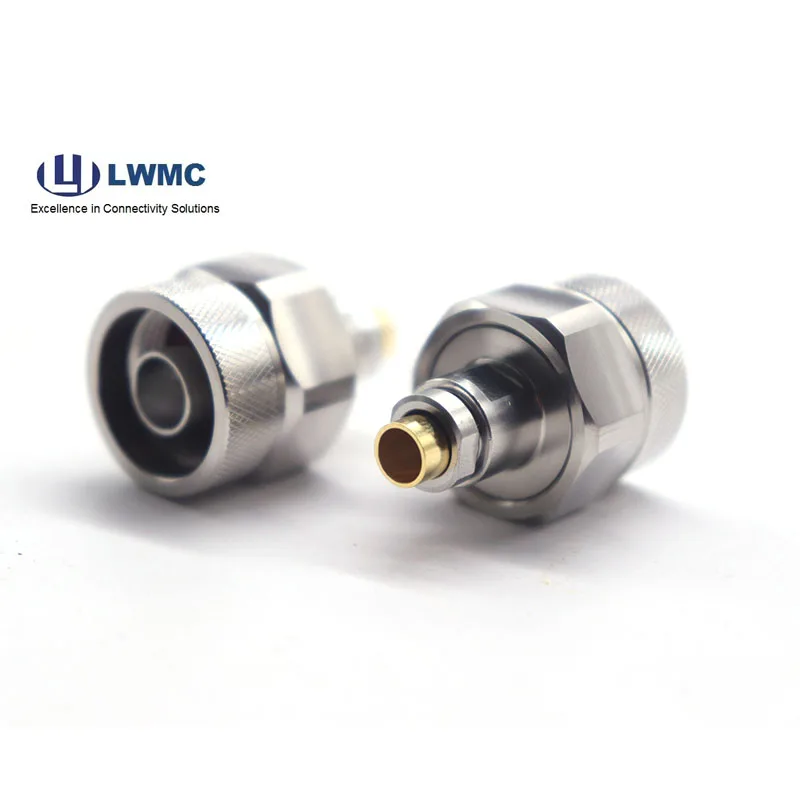

LWMC N male solder for JA480 cable

Center ConductorBrass, Gold platingInsulatorsPTFEOuter ConductorStainless Steel, PassivatedImpedance50 ohmFrequency BandDC to 18 GHzVSWR1.30 maxInsertion Loss0.05 √f dB maxDielectric withs...

Introduction

LWMC N male solder for JA480 cable manufacture

LWMC N male solder for JA480 cable factory

Center Conductor	Brass, Gold plating
Insulators	PTFE
Outer Conductor	Stainless Steel, Passivated
Impedance	50 ohm
Frequency Band	DC to 18 GHz
VSWR	1.30 max
Insertion Loss	0.05 √f dB max
Dielectric withstand voltage	1000V
Insulation resistance	≥5000MΩ
Durability	≥500
Temperature range	-55°C~+125°C

LWMC N male solder for JA480 cable supplier

LWMC N male solder for JA480 cable details

Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF

format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
