2.4 Male 2.92 Female

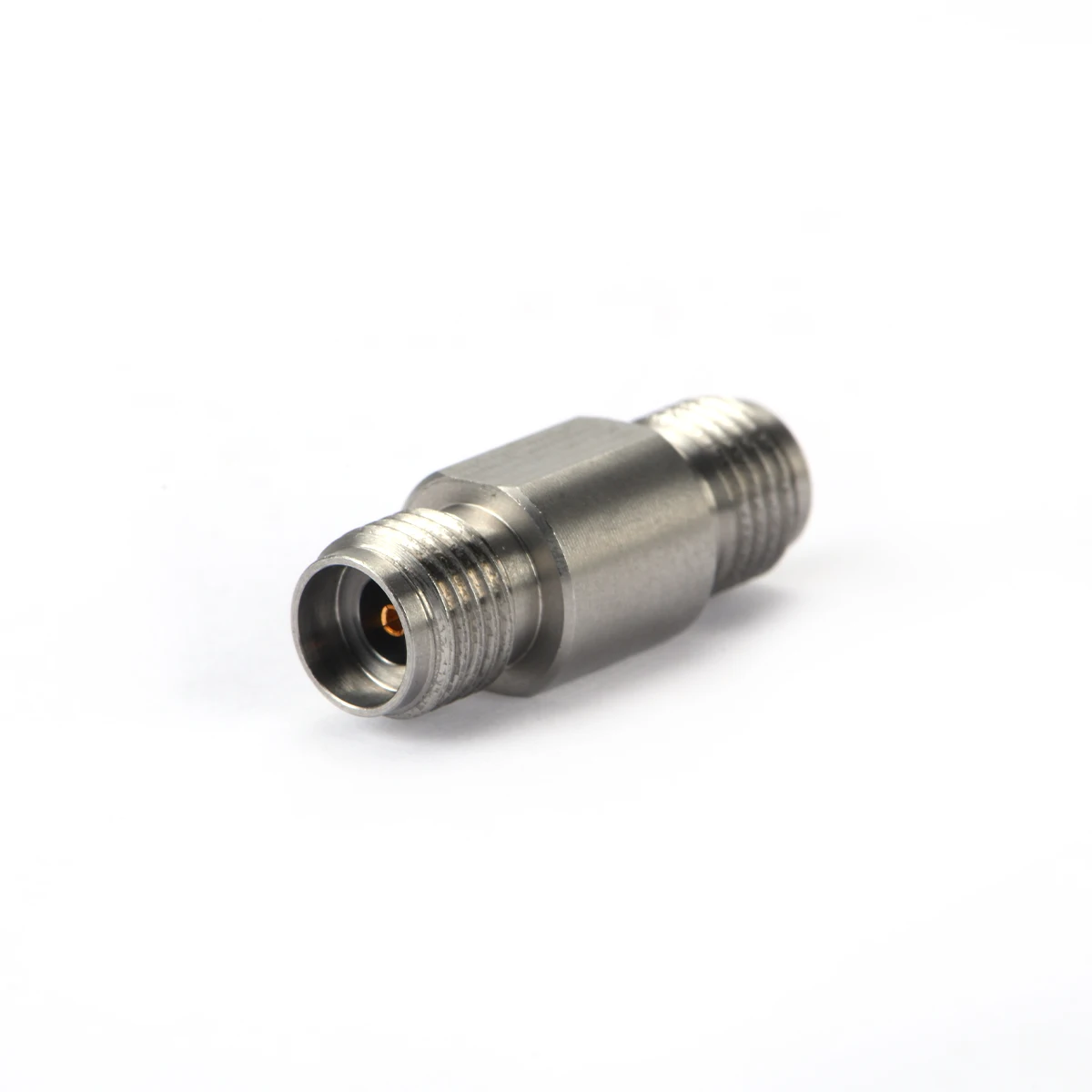

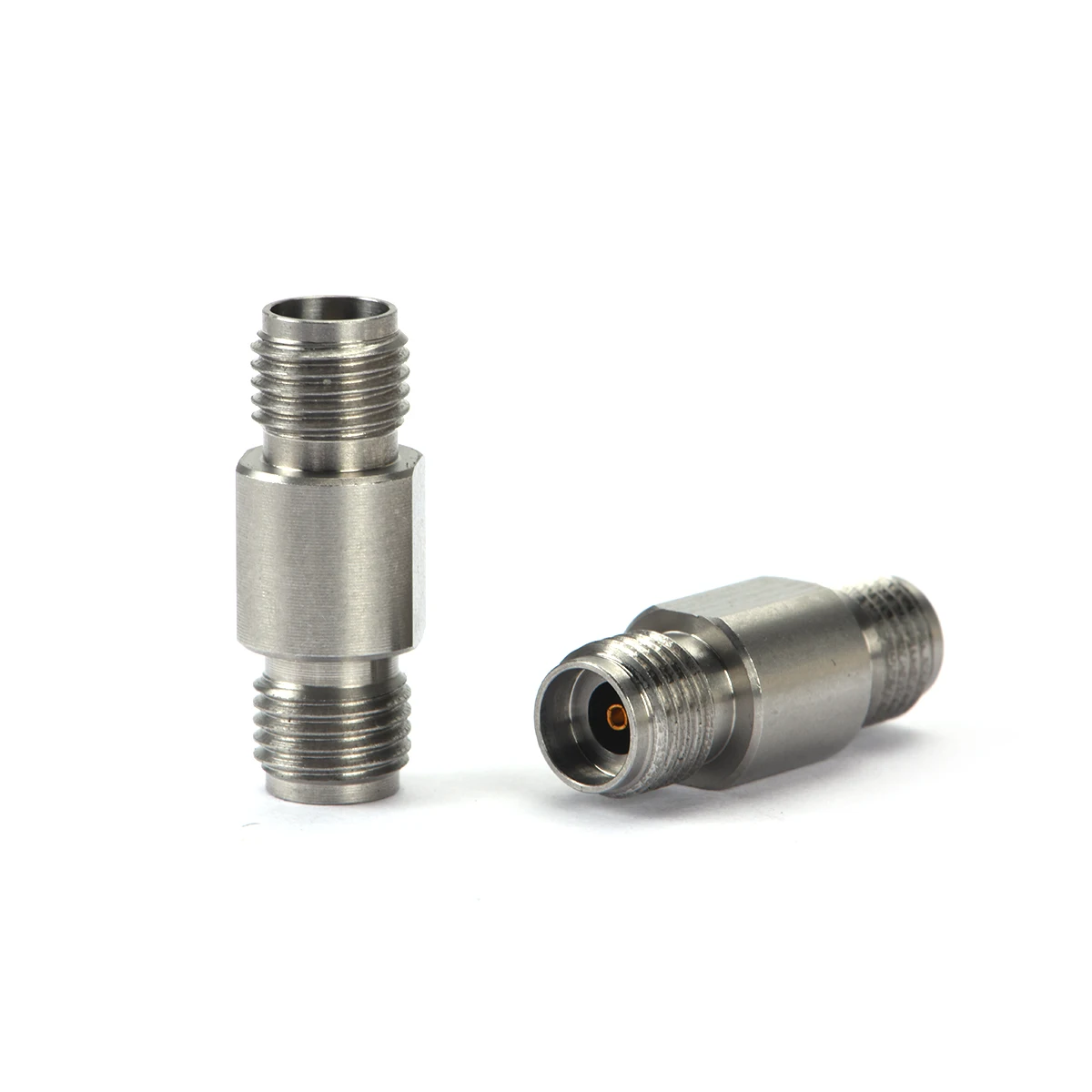

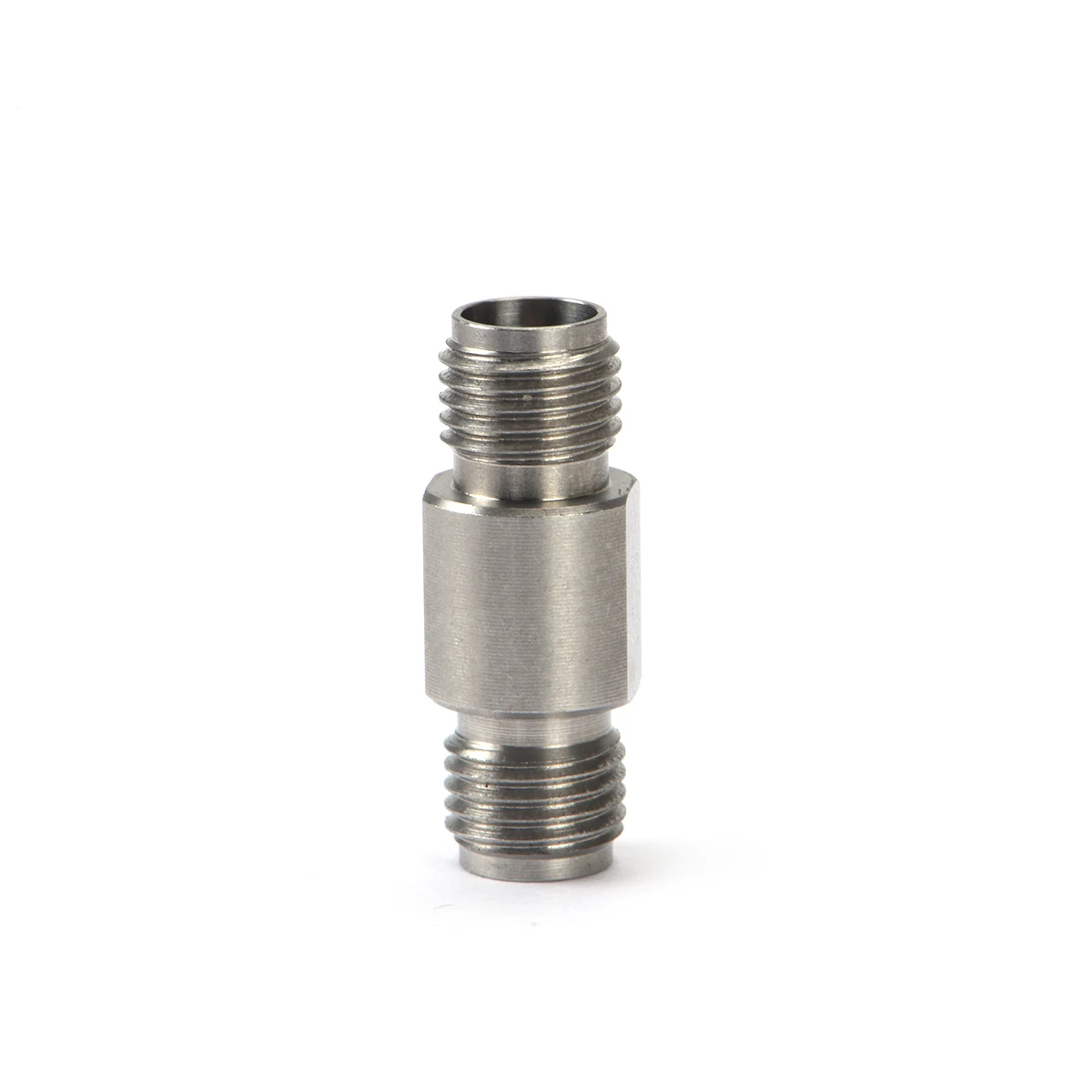

2.4mm Male to 2.92mm Female Adapter | DC-40GHz Precision Adapter

Spu:

1601695183164

Introduction

Introduction

Center Conductor	Beryllium Copper, Gold Plating
Insulators	PEI
Body	Stainless Steel, Passivated
Interface Threads	M7x0.75 (left side) / 1/4-36UNS-2A (right side）
Impedance	50 ohm
Frequency Band	DC to 40 GHZ
VSWR	1.30max
Dielectric resistand voltage	1000V
Dimension Unit	All dimensions are in millimeters
Insulation Resistance	≥ 5000 mΩ
Durability	≥ 500 cycles

Performance metrics	Common connector	High-performance connector	Increase ratio
Voltage Standing Wave Ratio (VSWR)	＞1.5	≤1.30	↑20%
Signal distortion	Obvious	Minimal	↑90%
Signal strength	Severe attenuation	Almost no attenuation	＞95%
Communication quality	Unstable	Stable and reliable	↑

Q:What about the quality of your products?

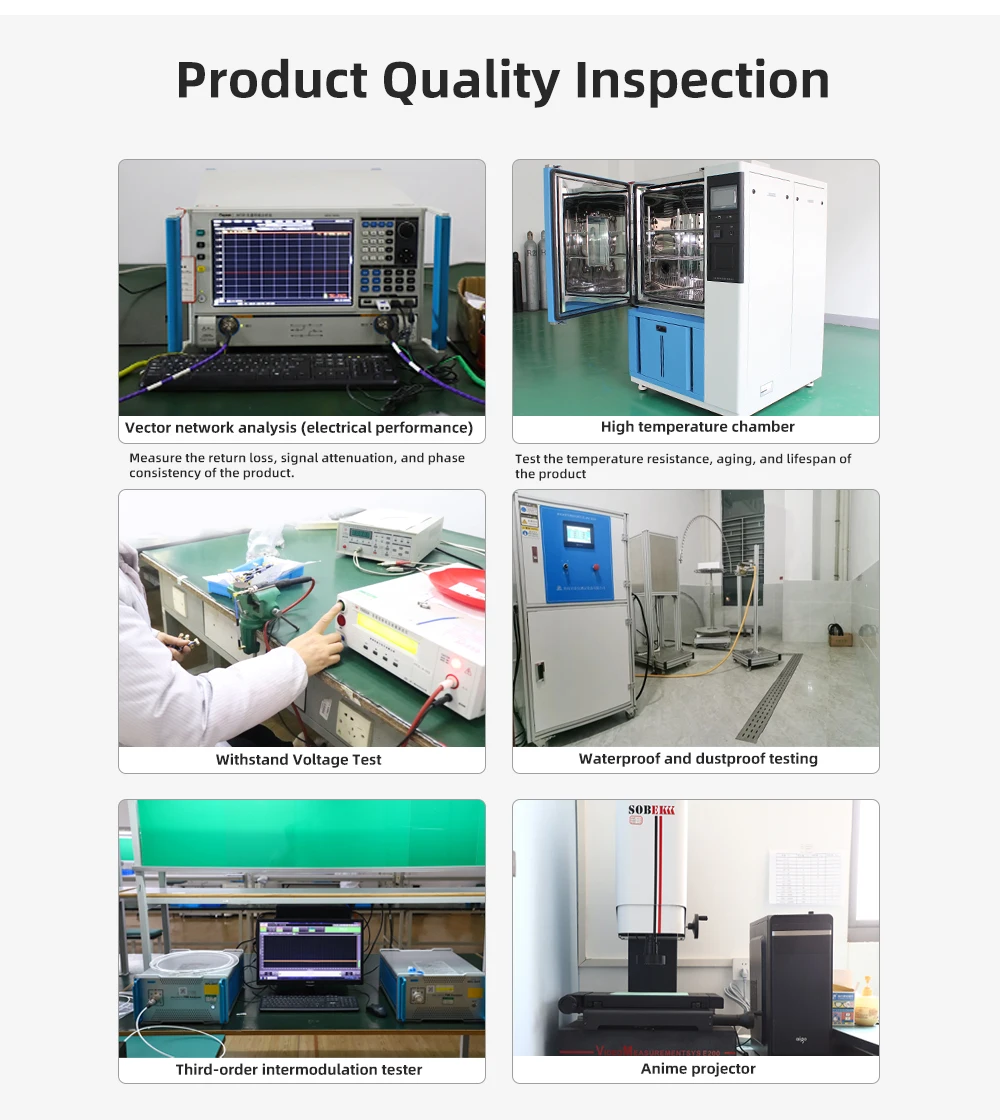

A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied are strictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Sure. You can send us the relevant design drawings via email (in JPEG or TIFF format). Our LOGO is laser-engraved onto the product casing.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
