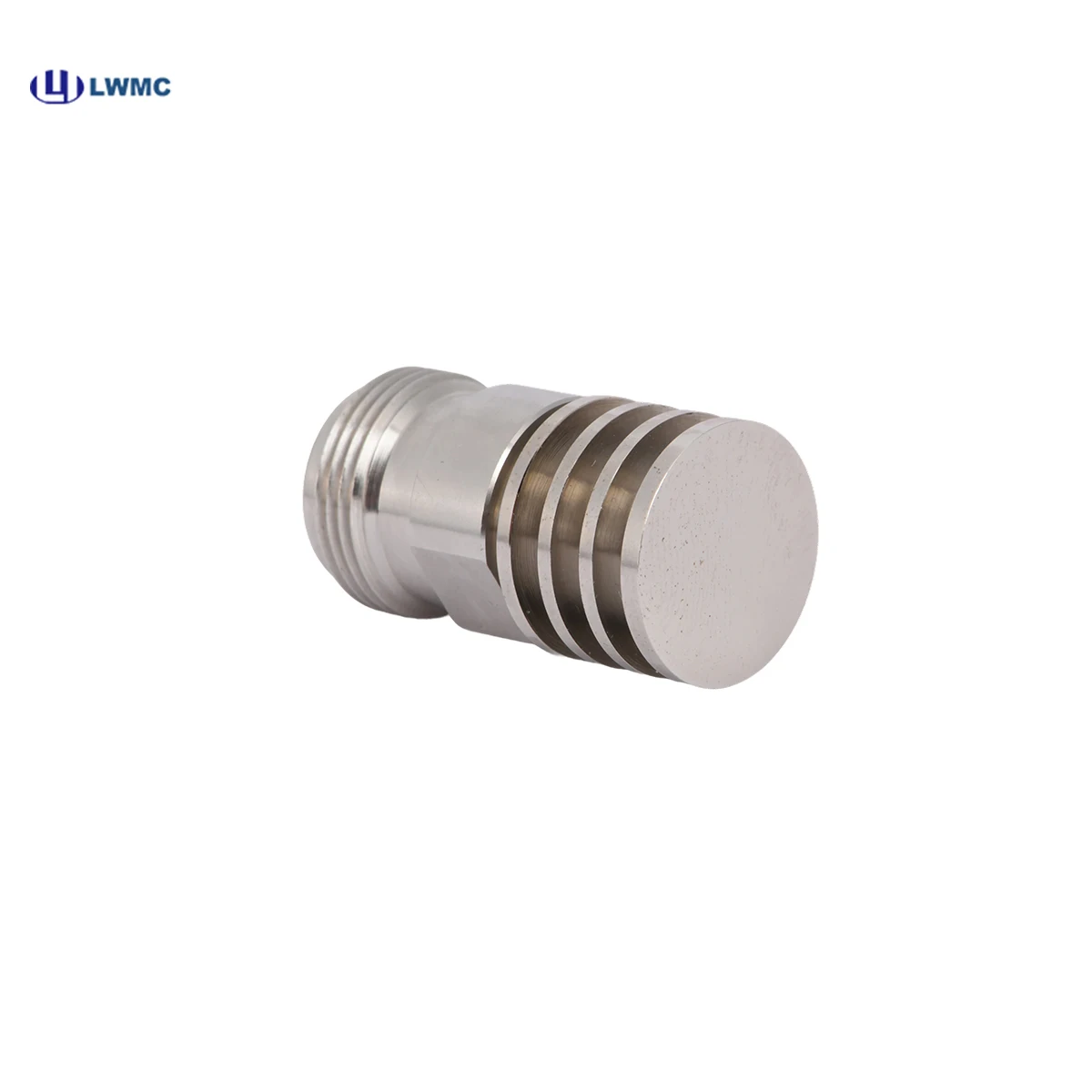

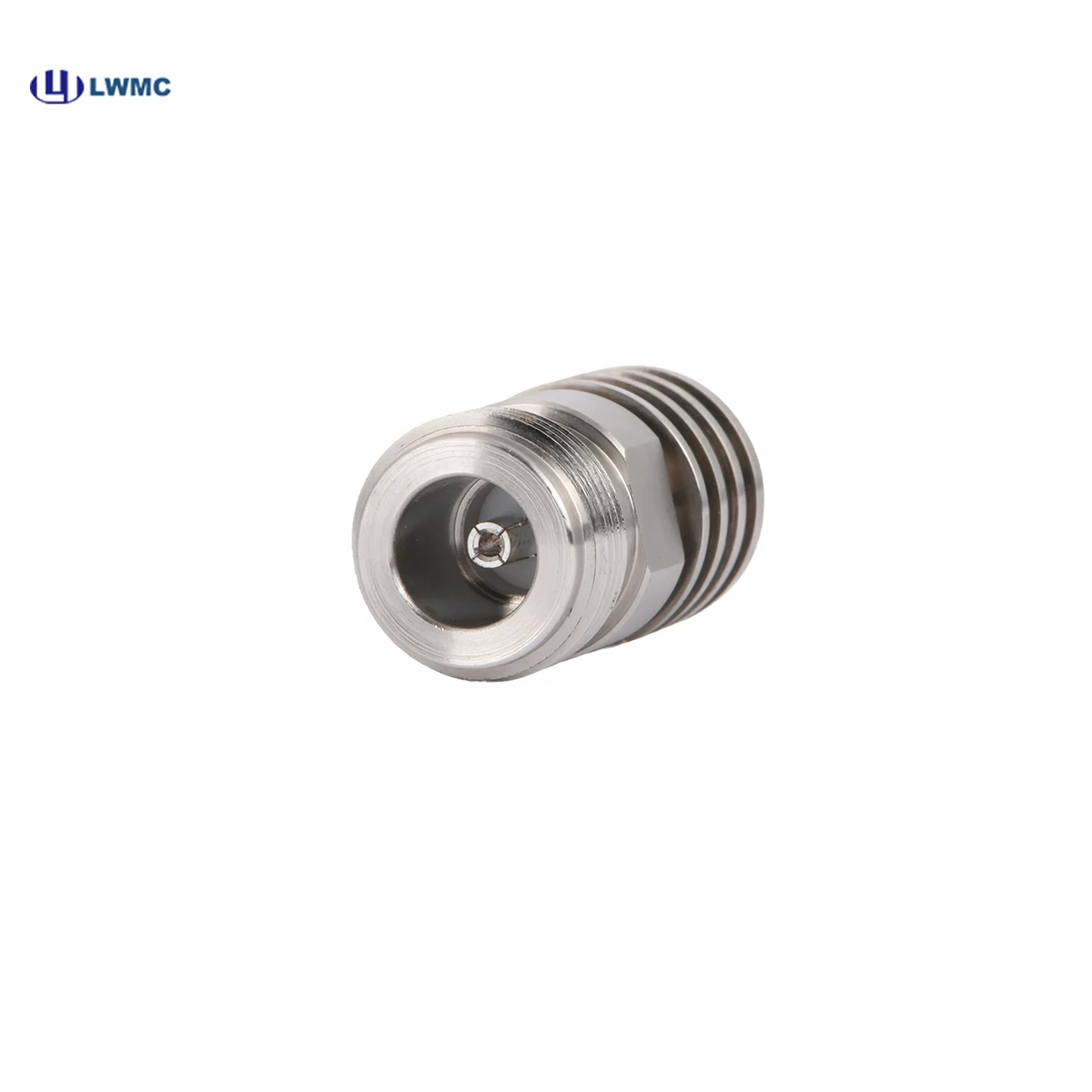

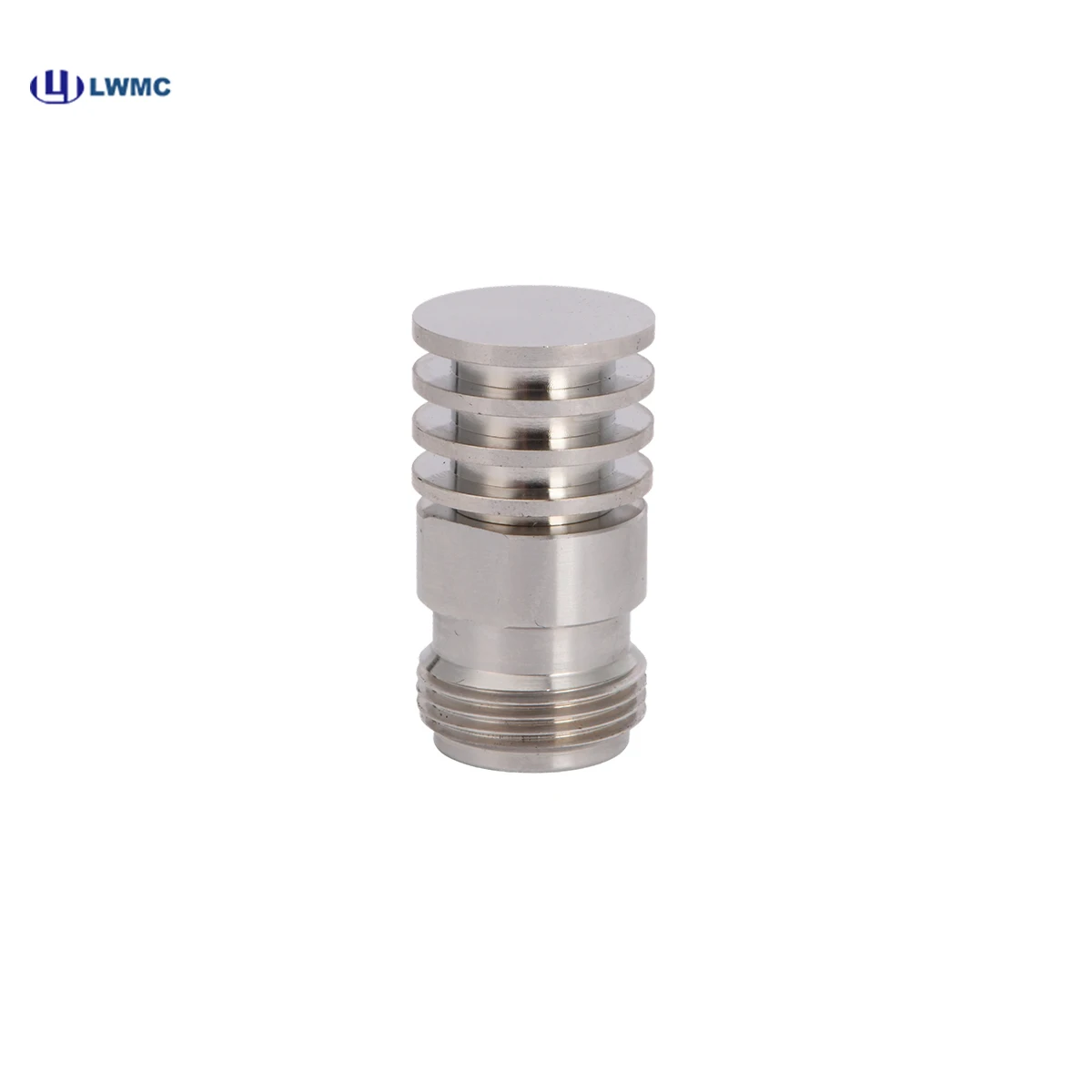

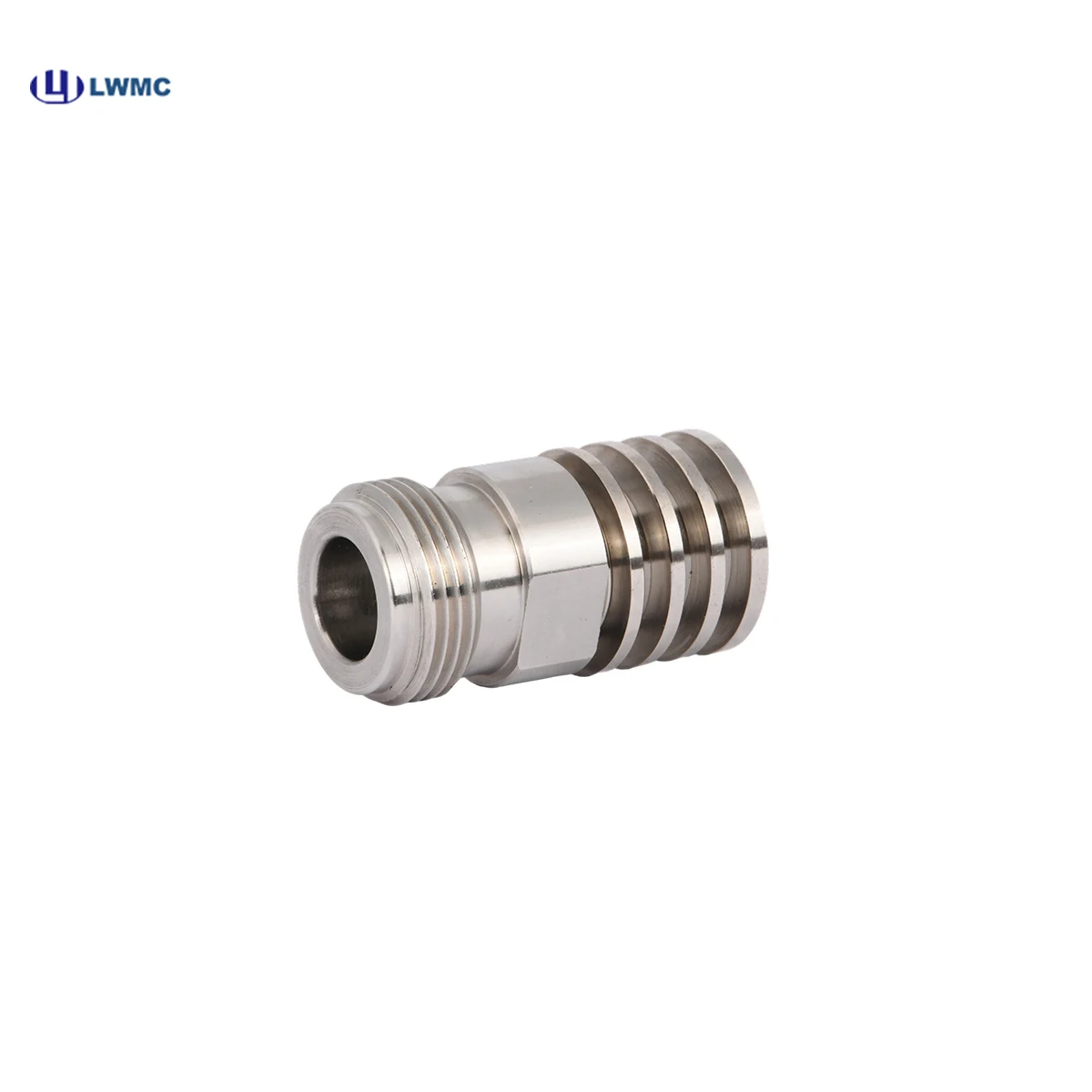

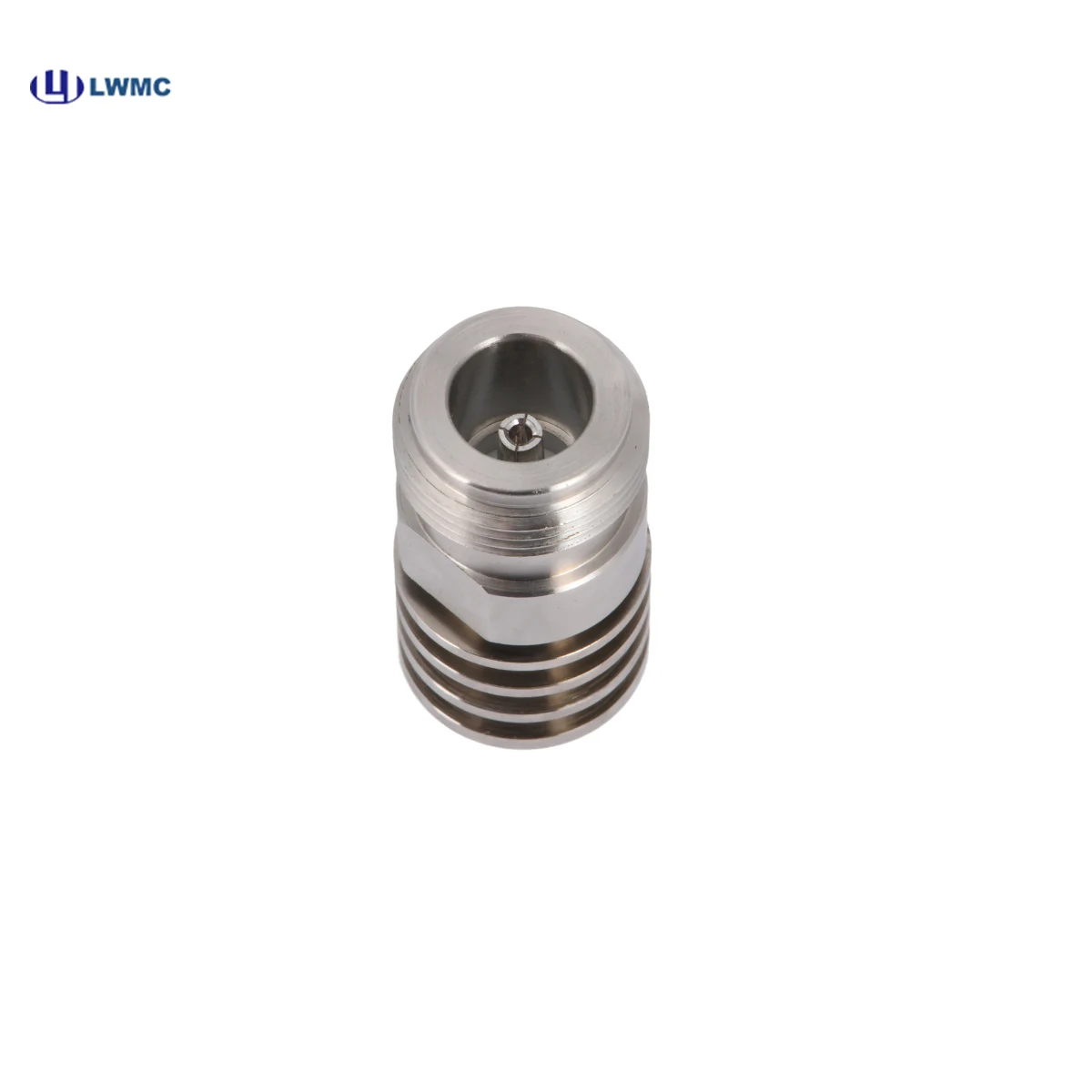

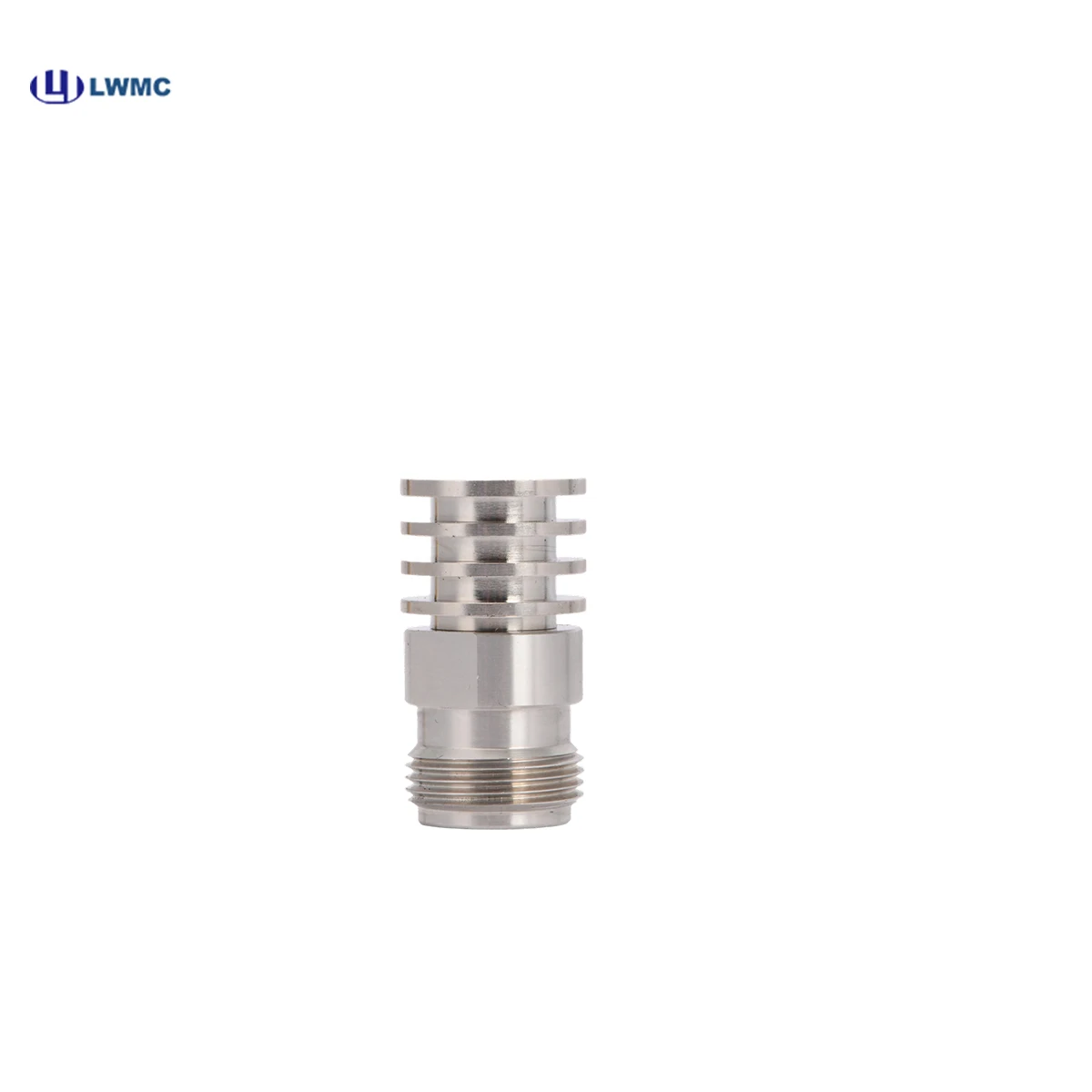

N Female 5W Terminator
N Female 5W Terminator
N Female 5W Terminator
N Female 5W Terminator
N Female 5W Terminator
N Female 5W Terminator
N Female 5W Terminator
N Female 5W Terminator
N Female 5W Terminator
N Female 5W Terminator
N Female 5W Terminator
N Female 5W Terminator

N Female 5W Terminator

Center ConductorBrass, Silver platingInsulatorsPTFEBodyBrass, Ternary alloy PlatingBushingBrass, Silver platingResistanceAluminium oxideCooling finBrass, Nickel platingImpedance50 ohmFrequency BandDC to 6 GHzVSWR1.20 maxPower Capability10WDielectric ...

Get a Quote
Introduction
product n female 5w terminator-0
product n female 5w terminator-1
product n female 5w terminator-2
product n female 5w terminator-3
Center Conductor
Brass, Silver plating
Insulators
PTFE
Body
Brass, Ternary alloy Plating
Bushing
Brass, Silver plating
Resistance
Aluminium oxide
Cooling fin
Brass, Nickel plating
Impedance
50 ohm
Frequency Band
DC to 6 GHz
VSWR
1.20 max
Power Capability
10W
Dielectric withstand voltage
2000V
contact resistance
Center Conductor ≤1mΩ
Outer Conductor ≤1mΩ
Insulation resistance
≥5000MΩ
Durability
≥500
product n female 5w terminator-4
product n female 5w terminator-5
product n female 5w terminator-6
product n female 5w terminator-7
product n female 5w terminator-8
product n female 5w terminator-9
product n female 5w terminator-10
product n female 5w terminator-11
product n female 5w terminator-12
product n female 5w terminator-13
product n female 5w terminator-14
product n female 5w terminator-15
product n female 5w terminator-16
product n female 5w terminator-17
product n female 5w terminator-18
product n female 5w terminator-19
Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF
format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
