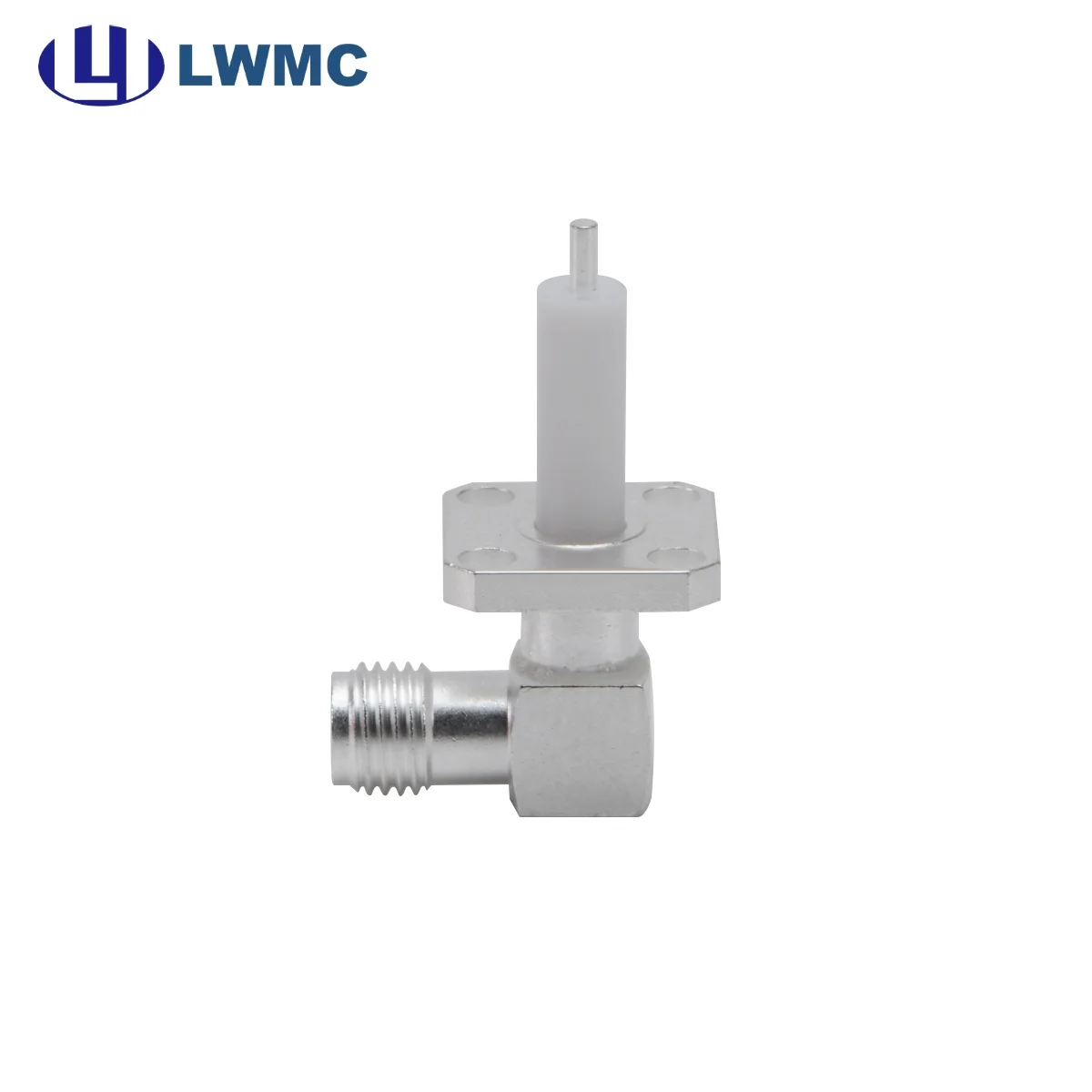

SMA Female R/A 4 Holes Flange

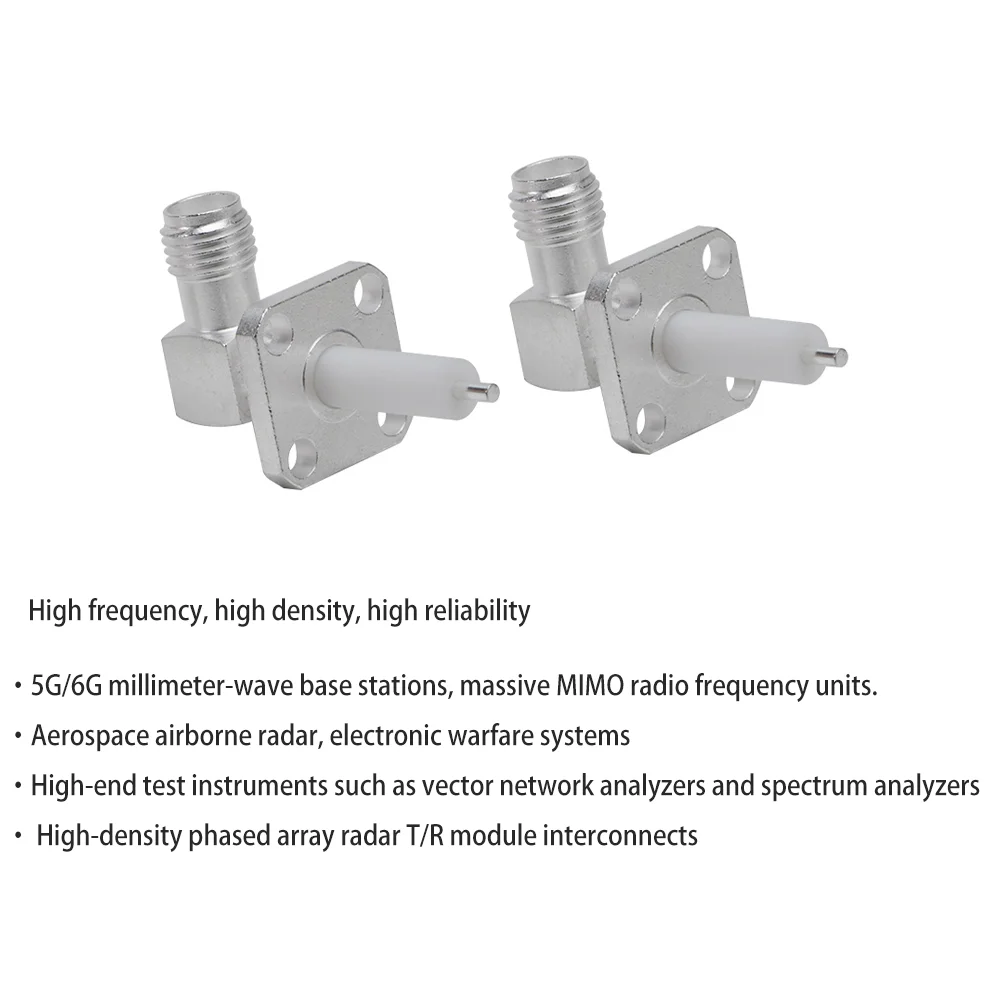

Heavy-Duty Right-Angle RF Interface: Combines 90° Cable Exit with a 4-Point Mounting Flange for Unmatched Stability in Military & Aerospace Panels

Spu:

1601697785116

Introduction

Introduction

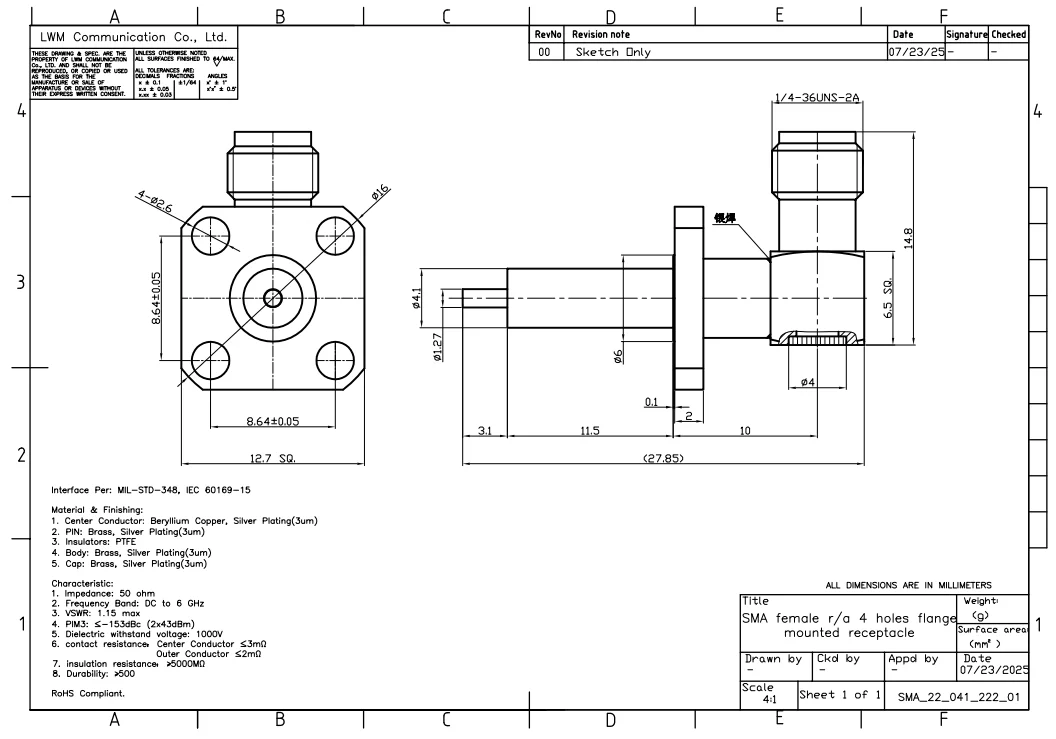

Connector Type	SMA Female R/A 4 Holes Flange Mounted Receptacle
Center Conductor	Beryllium Copper, Silver Plating(3um)
PIN	Brass , Silver Plating(3um)
Insulator	PTFE (Polytetrafluoroethylene)
Body	Brass , Silver Plating(3um)
Cap	Brass , Silver Plating(3um)
Impedance	50 Ω
Frequency Band	DC to 6 GHz
VSWR	1.15 max
Dielectric Withstand Voltage	1000V
PIM3	≤ -153dBc (2x43dBm)
Contact resistance	Center Conductor ≤3mΩ
Contact resistance		Outer Conductor ≤2mΩ
Insulation Resistance	> 5000 MΩ
Durability (Mating Cycles)	≥ 500

Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied are strictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Sure. You can send us the relevant design drawings via email (in JPEG or TIFF format). Our LOGO is laser-engraved onto the product casing.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
