SMA Male R/a to N Male

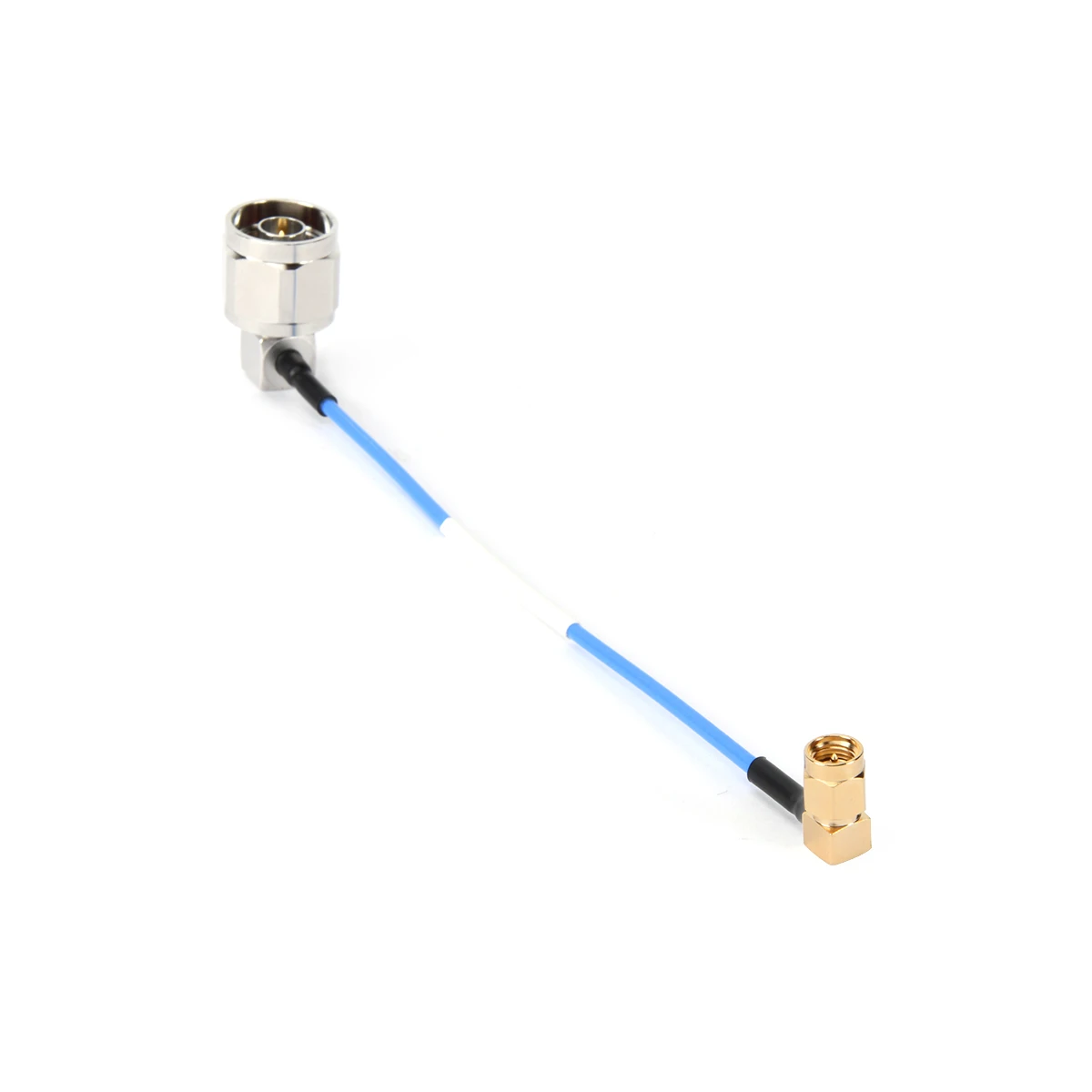

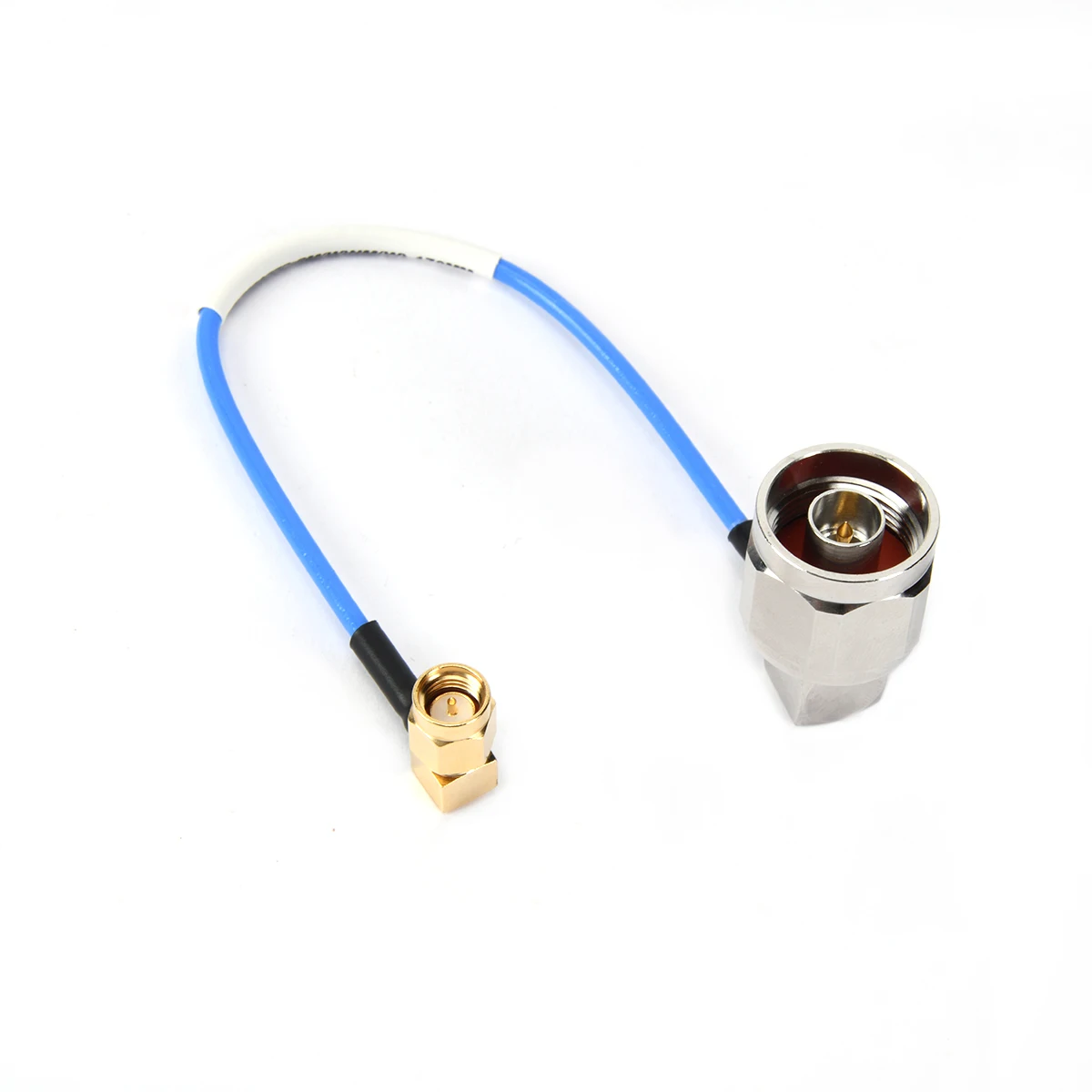

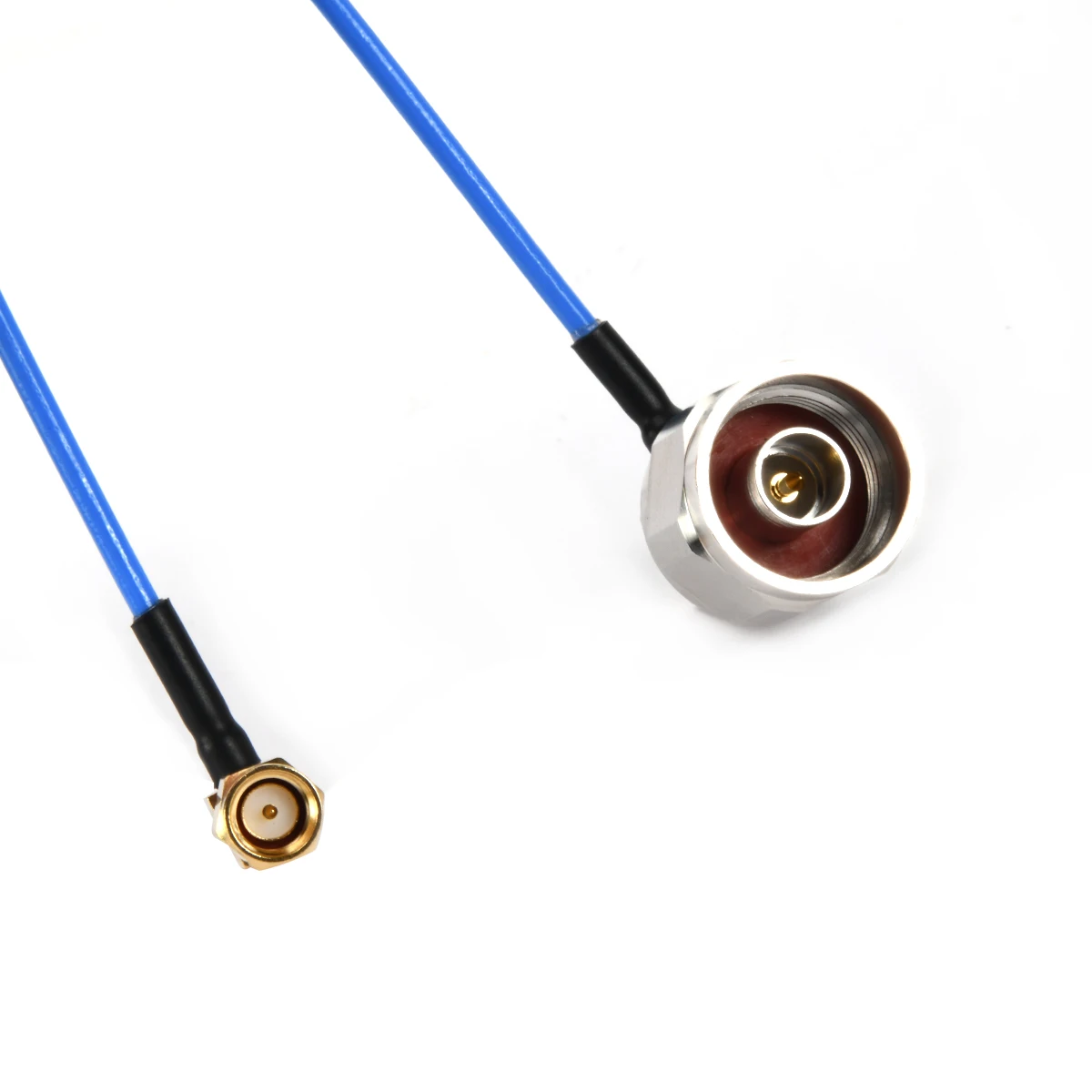

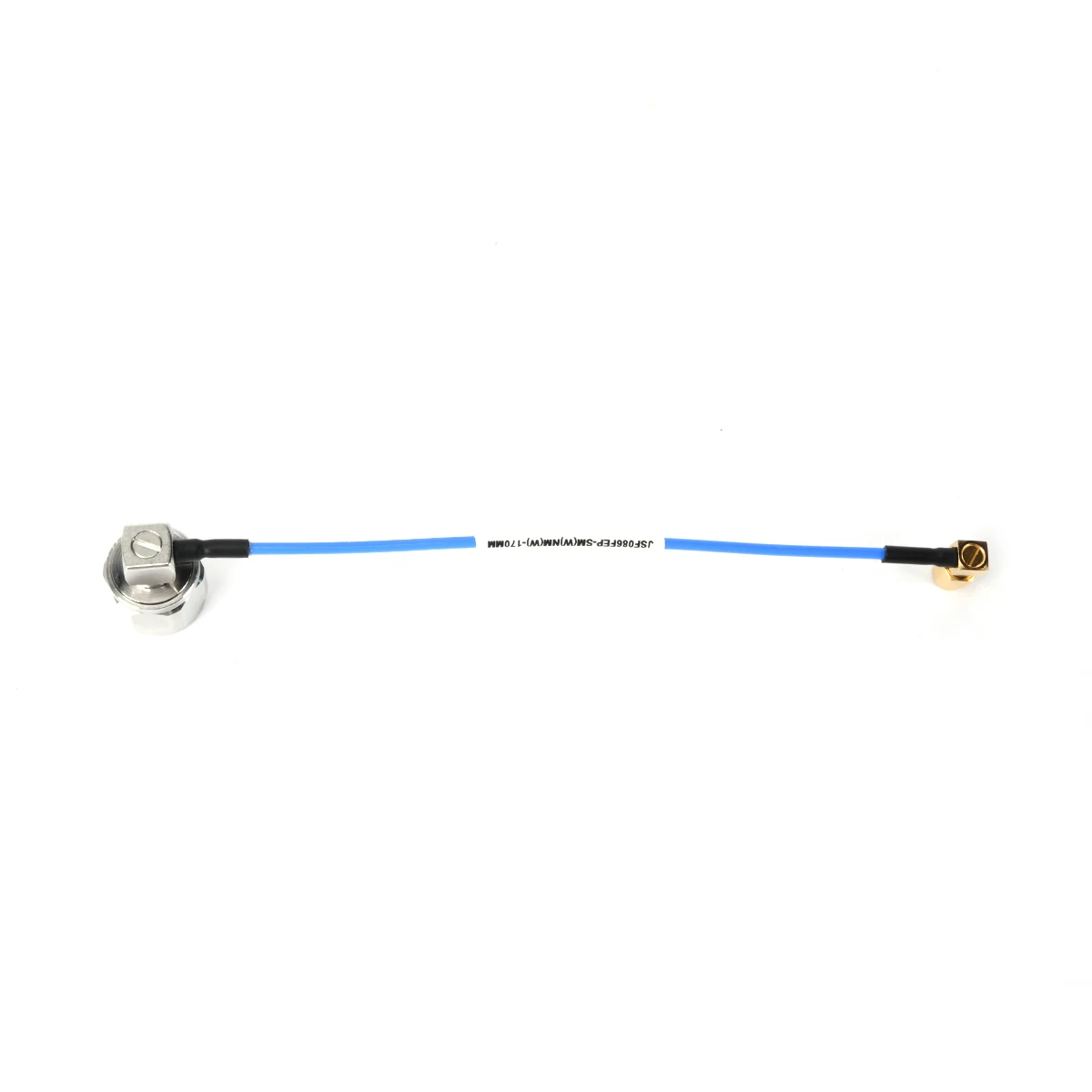

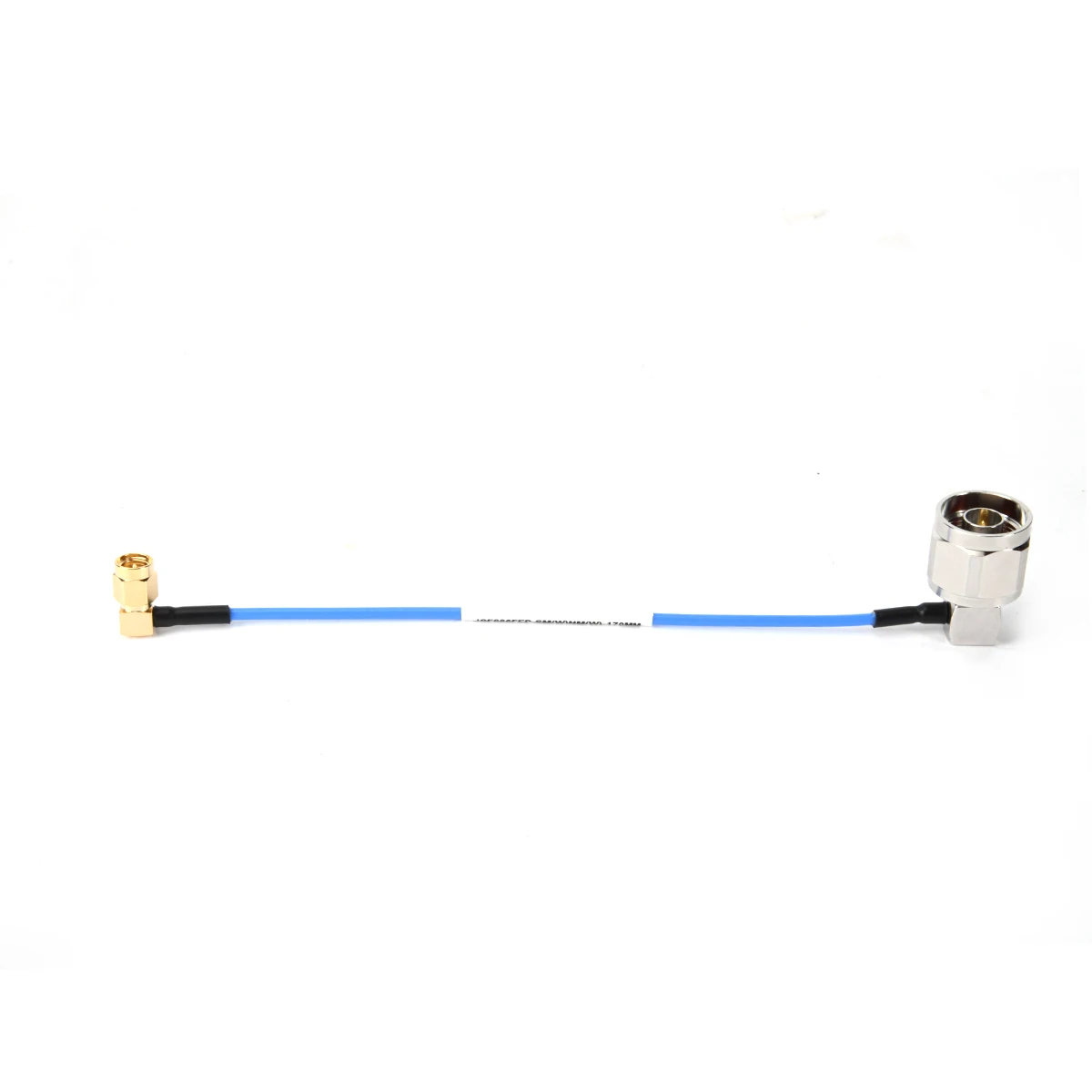

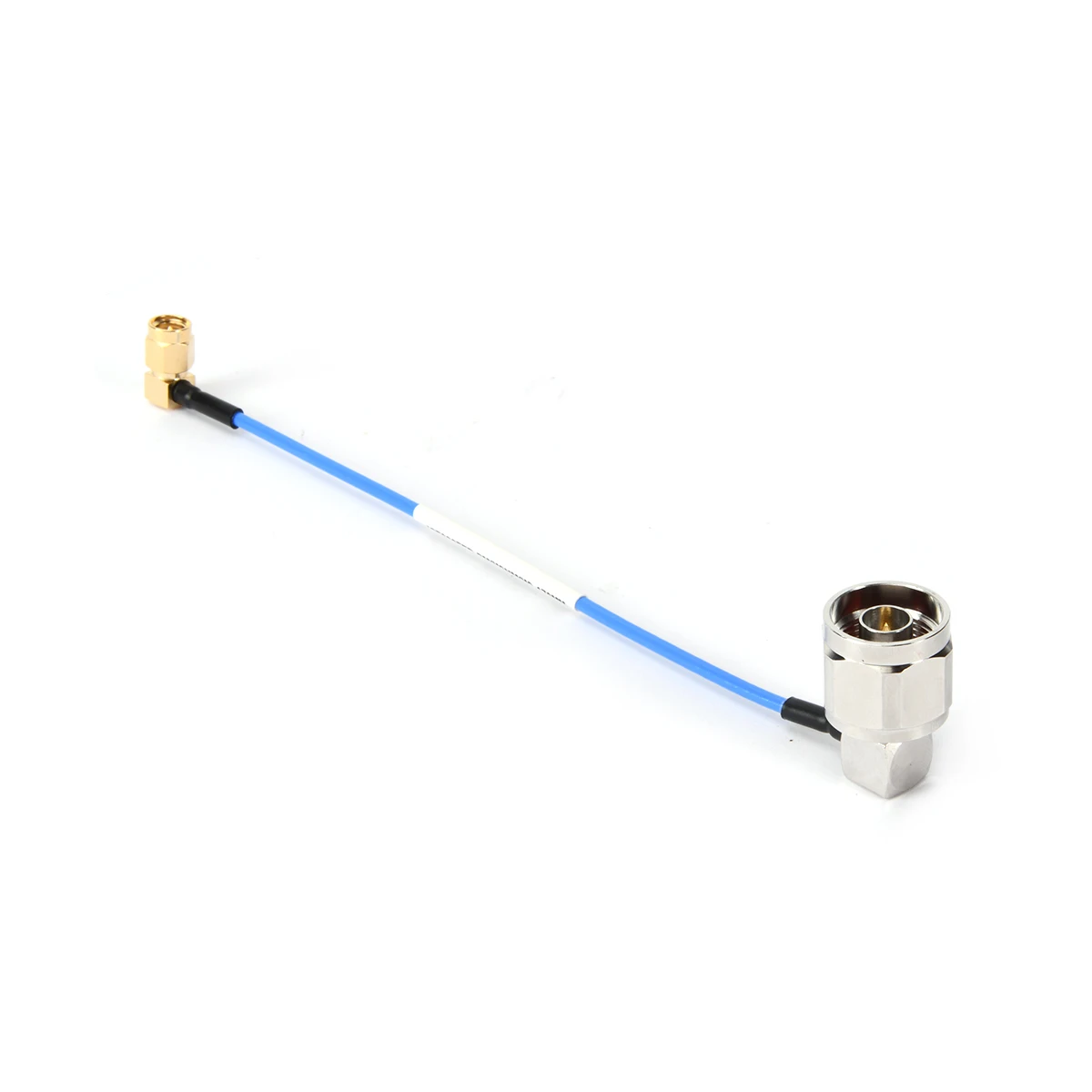

SMA Male Right Angle to N Male Right Angle Test Cable .086" Semi-Rigid 170mm

Introduction

Introduction

SMA Male R/a to N Male R/a Solder for .086 Cable 5.8G002_L170mm supplier

SMA Male R/a to N Male R/a Solder for .086 Cable 5.8G002_L170mm manufacture

SMA Male R/a to N Male R/a Solder for .086 Cable 5.8G002_L170mm factory

SMA male R/A conn：
Center Conductor	Brass,Gold Plating
Insulators	PTFE
Body	Brass,Gold Plating
Coupling Nut	Brass,Gold Plating
Cap	Brass,Gold Plating
C'ring	Phosphor Bronze
Gasket	Silicone Rubber
N male R/A conn：
Center Conductor	Brass, Gold plating
Insulators	PTFE
Body	Brass, Ternary alloy Plating
Bushing	Brass, Ternary alloy Plating
Coupling	Brass, Ternary alloy Plating
C'ring	Phosphor bronze
Gasket	Silicone
Cap	Brass, Ternary alloy Plating
Characteristic:
Impedance	50 ohm
Frequency Band	DC to 5.8 GHz
VSWR	1.25 max
Dielectric withstand voltage	750v

SMA Male R/a to N Male R/a Solder for .086 Cable 5.8G002_L170mm details

Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF

format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
