N Series

Home /  Products /  RF Connector /  N Series

All Products

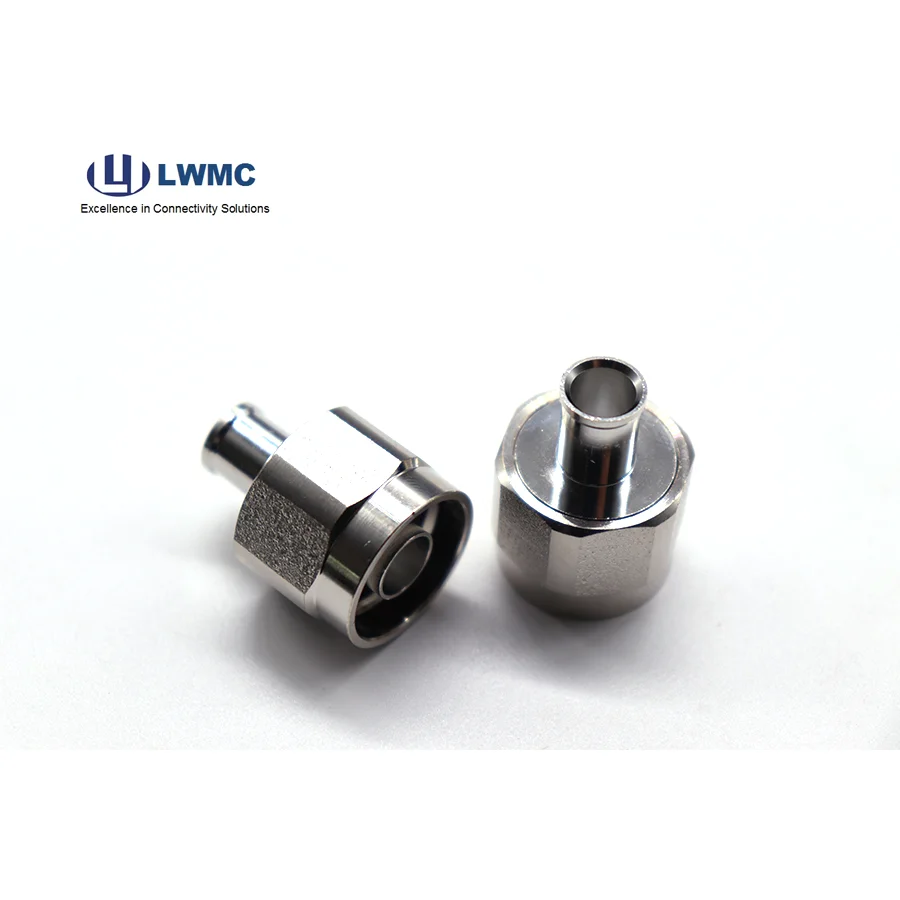

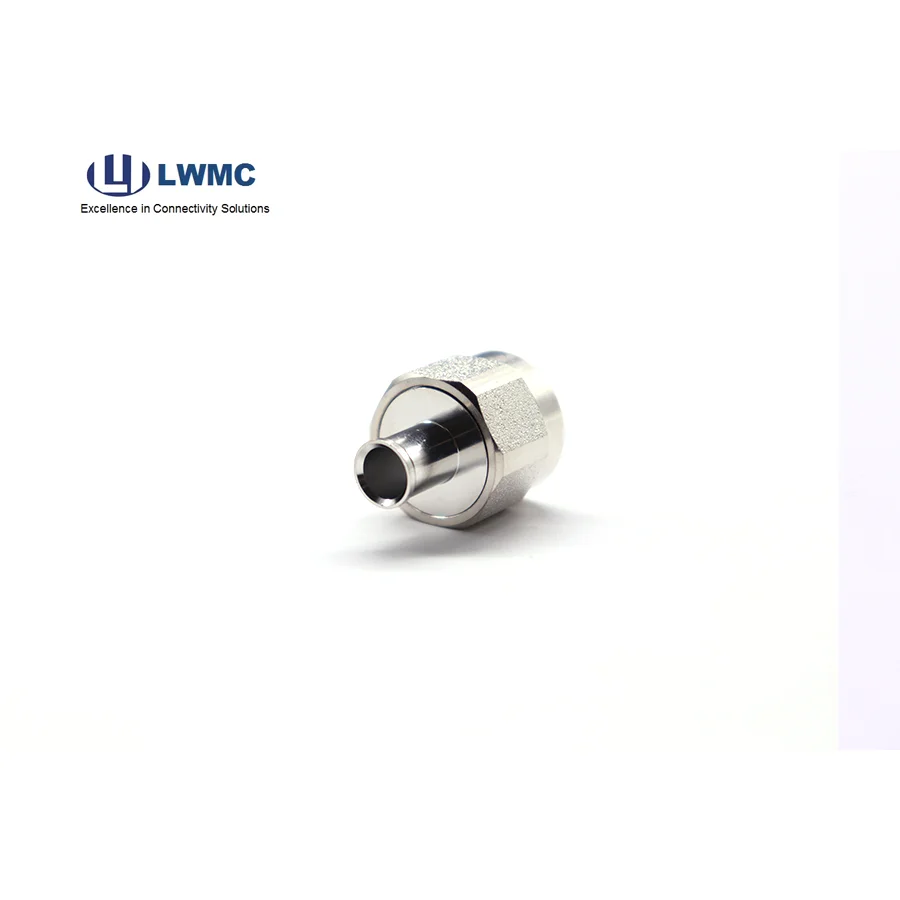

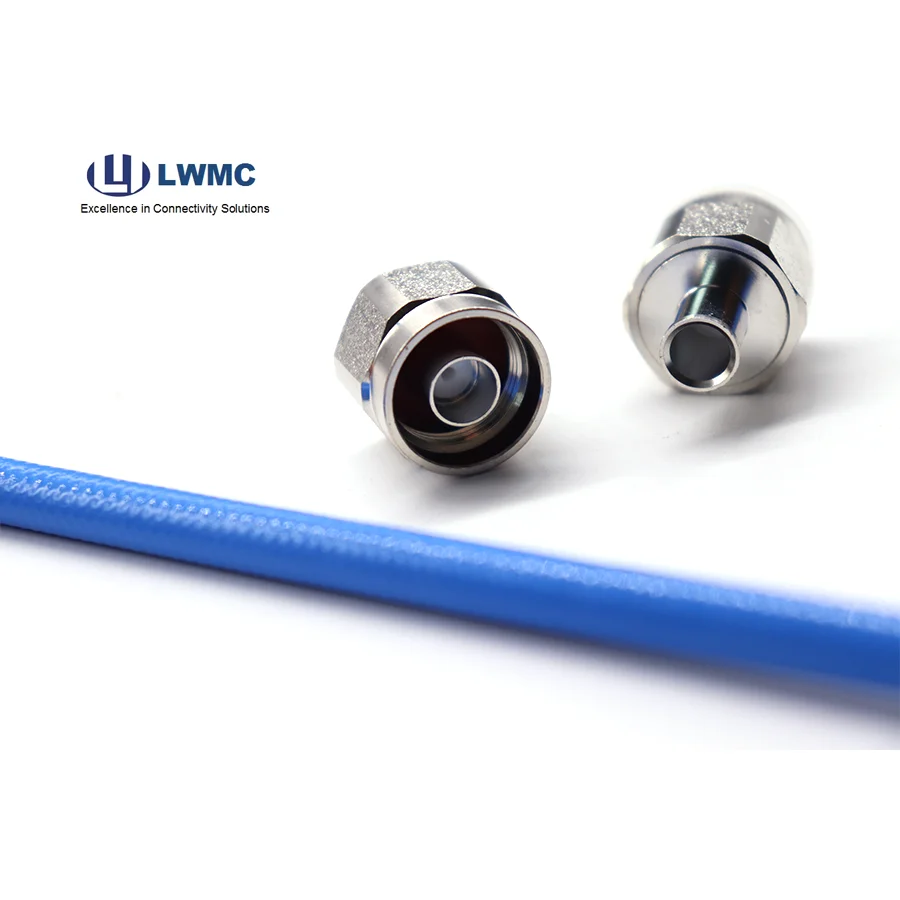

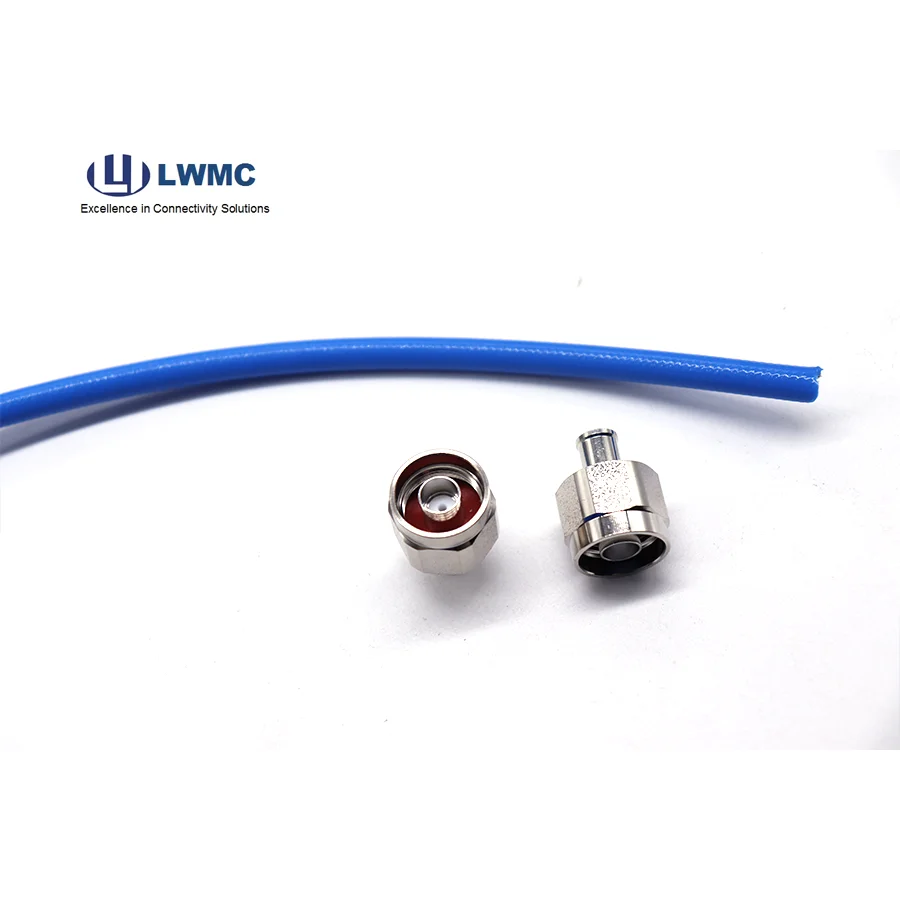

N male solder for RG401/250.cable
N male solder for RG401/250.cable
N male solder for RG401/250.cable
N male solder for RG401/250.cable
N male solder for RG401/250.cable
N male solder for RG401/250.cable
N male solder for RG401/250.cable
N male solder for RG401/250.cable
N male solder for RG401/250.cable
N male solder for RG401/250.cable
N male solder for RG401/250.cable
N male solder for RG401/250.cable

N male solder for RG401/250.cable

Center ConductorBrass,Silver platingInsulatorsPTFEBodyBrass,Ternary alloy PlatingCoupling NutBrass,Nickel platingC'ringPhosphor BronzeGasketSilicone RubberImpedance50 ohmFrequency BandDC to 6 GHzVSWR1.25 maxPIM3≤-155 dBc (2x43dBm)Dielectric resist...

Get a Quote
Introduction
250cable-0
250cable-1
250cable-2
250cable-3
Center Conductor
Brass,Silver plating
Insulators
PTFE
Body
Brass,Ternary alloy Plating
Coupling Nut
Brass,Nickel plating
C'ring
Phosphor Bronze
Gasket
Silicone Rubber
Impedance
50 ohm
Frequency Band
DC to 6 GHz
VSWR
1.25 max
PIM3
≤-155 dBc (2x43dBm)
Dielectric resistand voltage
2000v
contact resistance
center conductor ≤1mΩ
outer conductor ≤0.25mΩ
insulation resistance
≥5000mΩ
Durability
≥500
Temperature range
-45℃~+125℃
Salt spray test
48H
250cable-4
250cable-5
250cable-6
250cable-7
250cable-8
250cable-9
250cable-10
250cable-11
250cable-12
250cable-13
250cable-14
250cable-15
250cable-16
250cable-17
250cable-18
250cable-19
Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF
format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
