N Series

Home /  Products /  RF Connector /  N Series

All Products

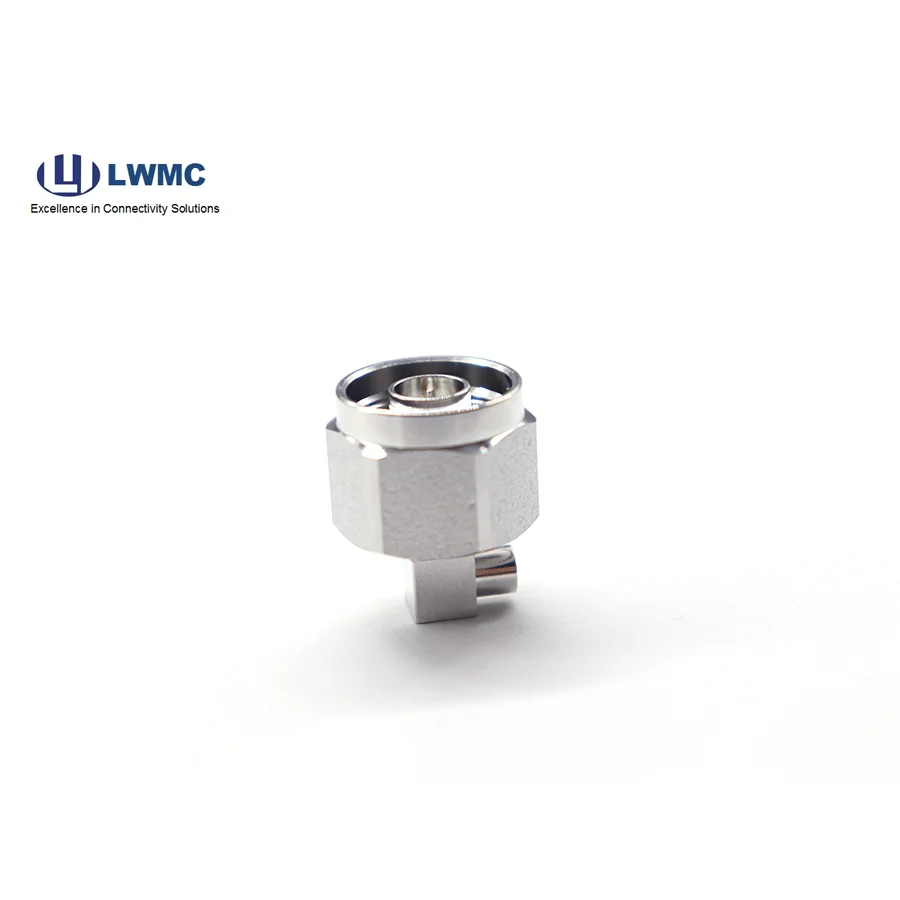

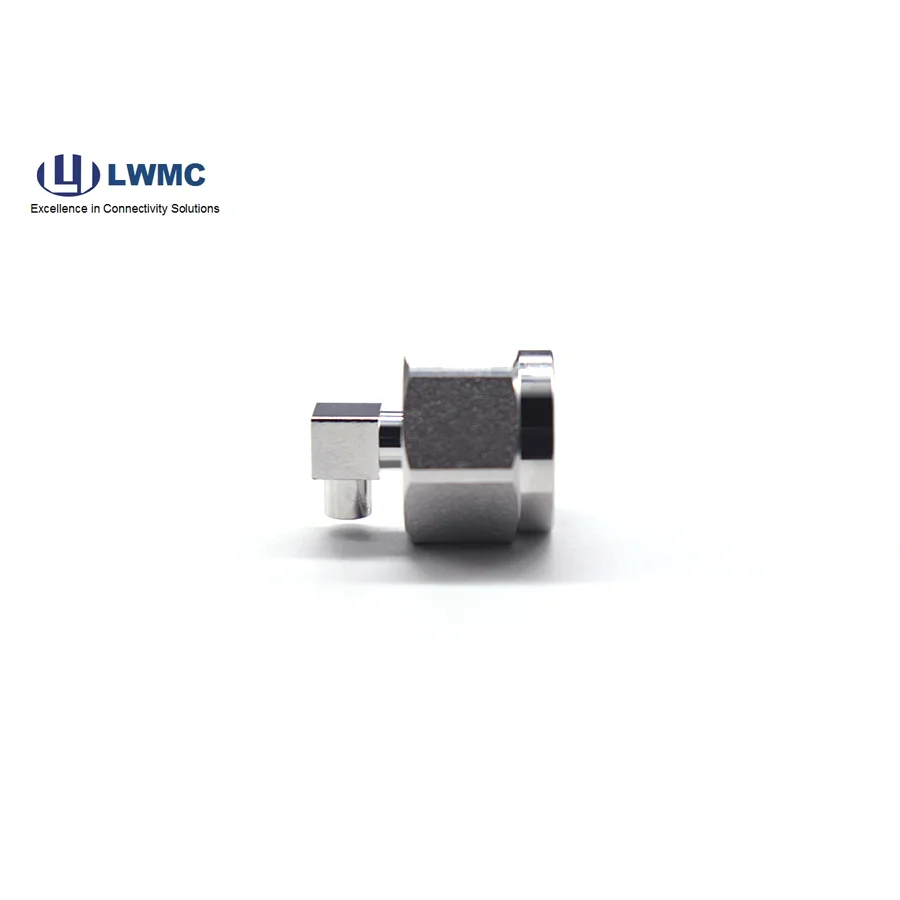

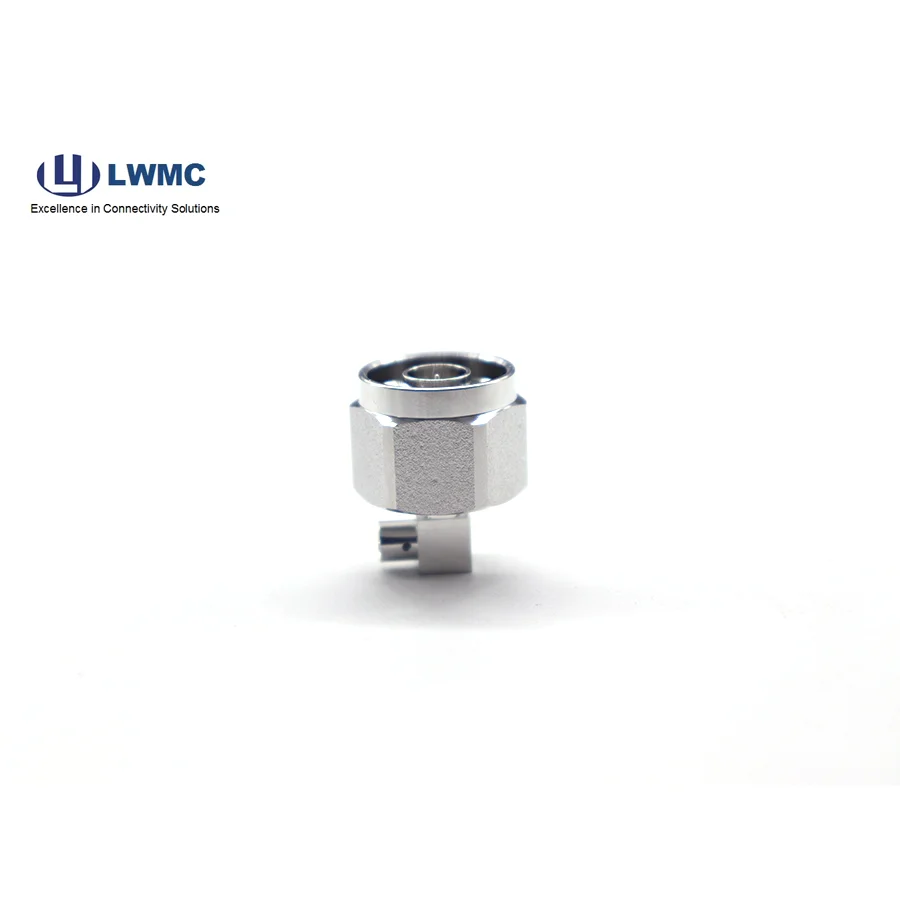

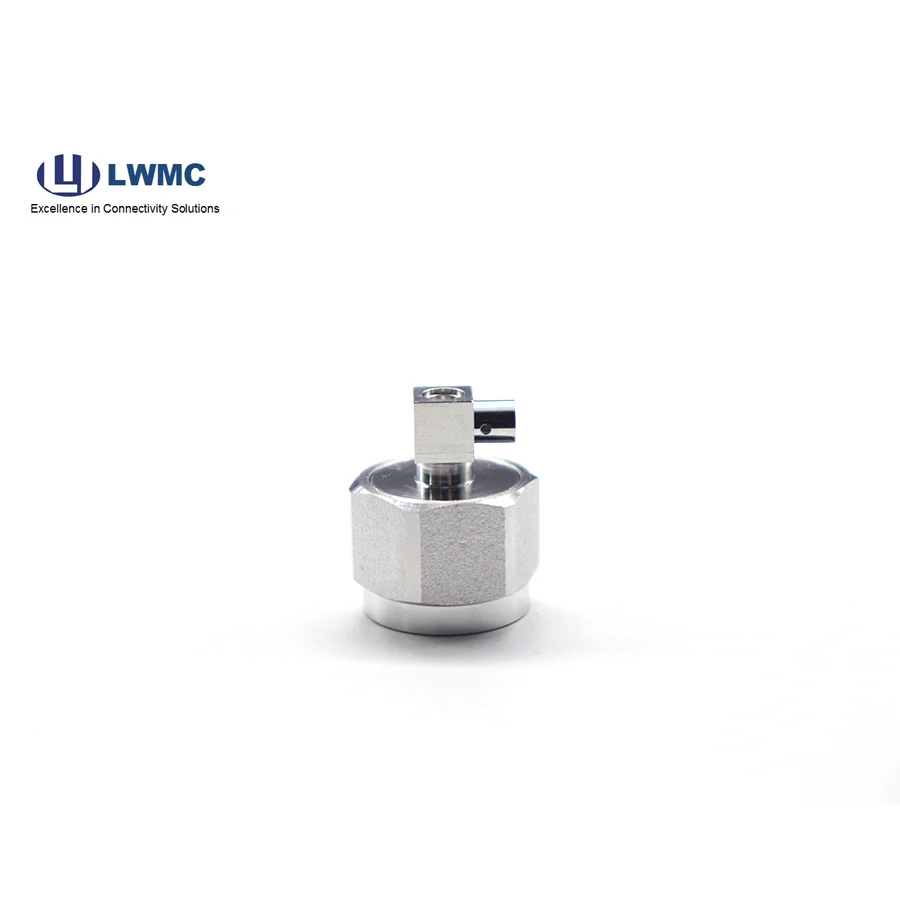

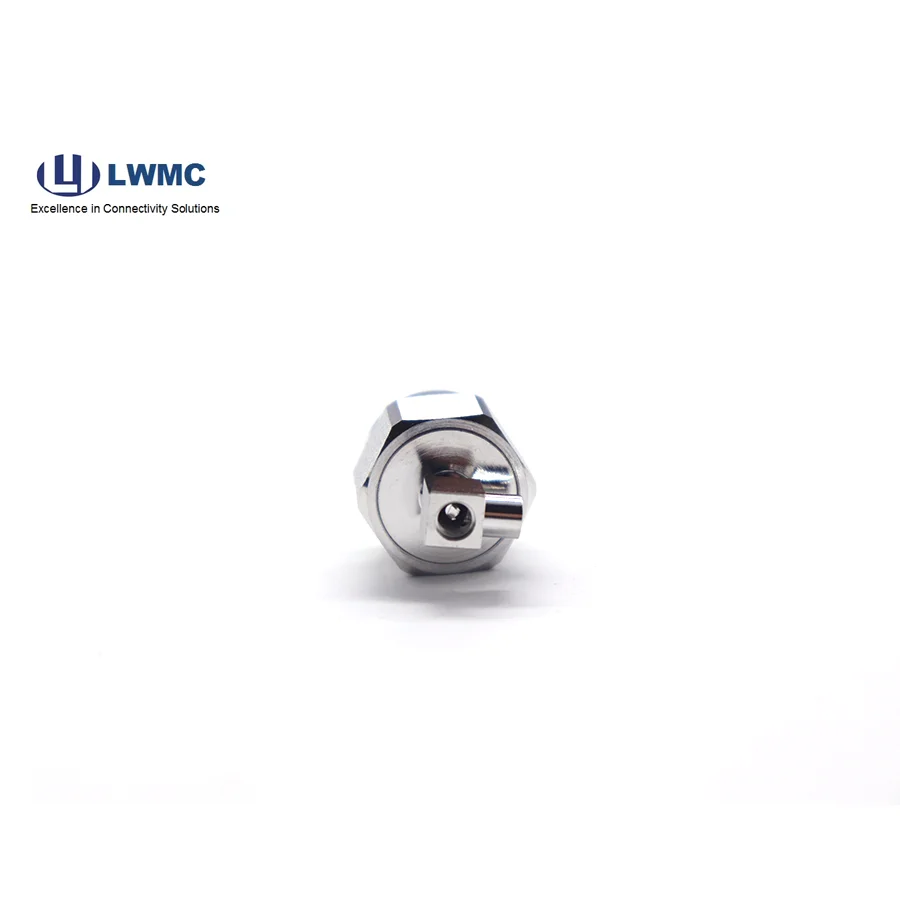

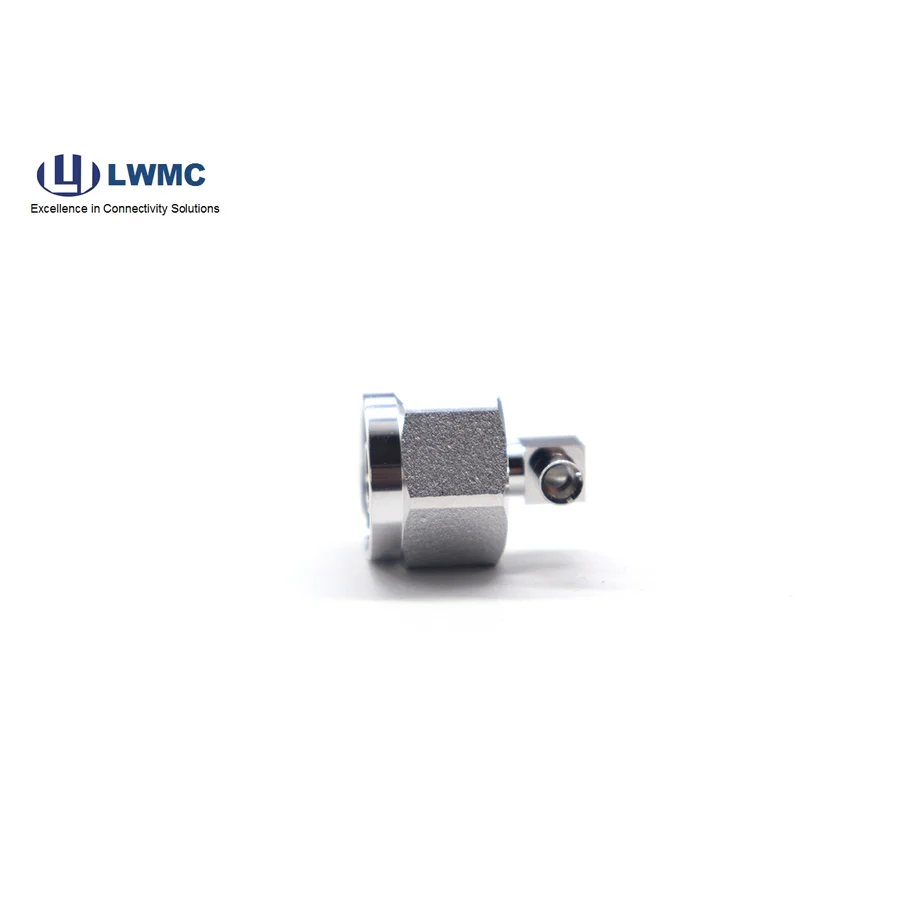

N male r/a solder for 141.cable
N male r/a solder for 141.cable
N male r/a solder for 141.cable
N male r/a solder for 141.cable
N male r/a solder for 141.cable
N male r/a solder for 141.cable
N male r/a solder for 141.cable
N male r/a solder for 141.cable
N male r/a solder for 141.cable
N male r/a solder for 141.cable
N male r/a solder for 141.cable
N male r/a solder for 141.cable

N male r/a solder for 141.cable

Center ConductorPhosphor Bronze,Silver platingInsulatorsPTFEBodyBrass,Ternary alloy PlatingCoupling NutBrass,Ternary alloy PlatingC'ringStainless steel, PassivatedGasketSilicone RubberCapBrass,Ternary alloy PlatingImpedance50 ohmFrequency BandDC to 6...

Get a Quote
Introduction
a solder for 141cable-0
a solder for 141cable-1
a solder for 141cable-2
a solder for 141cable-3
Center Conductor
Phosphor Bronze,Silver plating
Insulators
PTFE
Body
Brass,Ternary alloy Plating
Coupling Nut
Brass,Ternary alloy Plating
C'ring
Stainless steel, Passivated
Gasket
Silicone Rubber
Cap
Brass,Ternary alloy Plating
Impedance
50 ohm
Frequency Band
DC to 6 GHz
VSWR
1.15 max@DC~ to 2.5 GHz
PIM3
≤-163dBc(@2*43dBm)
Dielectric resistand voltage
1000v
insulation resistance
≥5000mΩ
Durability
≥500
IP Rating of connectors
IP67
Salt-Spray test
96H
a solder for 141cable-4
a solder for 141cable-5
a solder for 141cable-5
a solder for 141cable-7
a solder for 141cable-8
a solder for 141cable-9
a solder for 141cable-10
a solder for 141cable-11
a solder for 141cable-12
a solder for 141cable-13
a solder for 141cable-14
a solder for 141cable-15
a solder for 141cable-16
a solder for 141cable-17
a solder for 141cable-18
a solder for 141cable-19
Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF
format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
