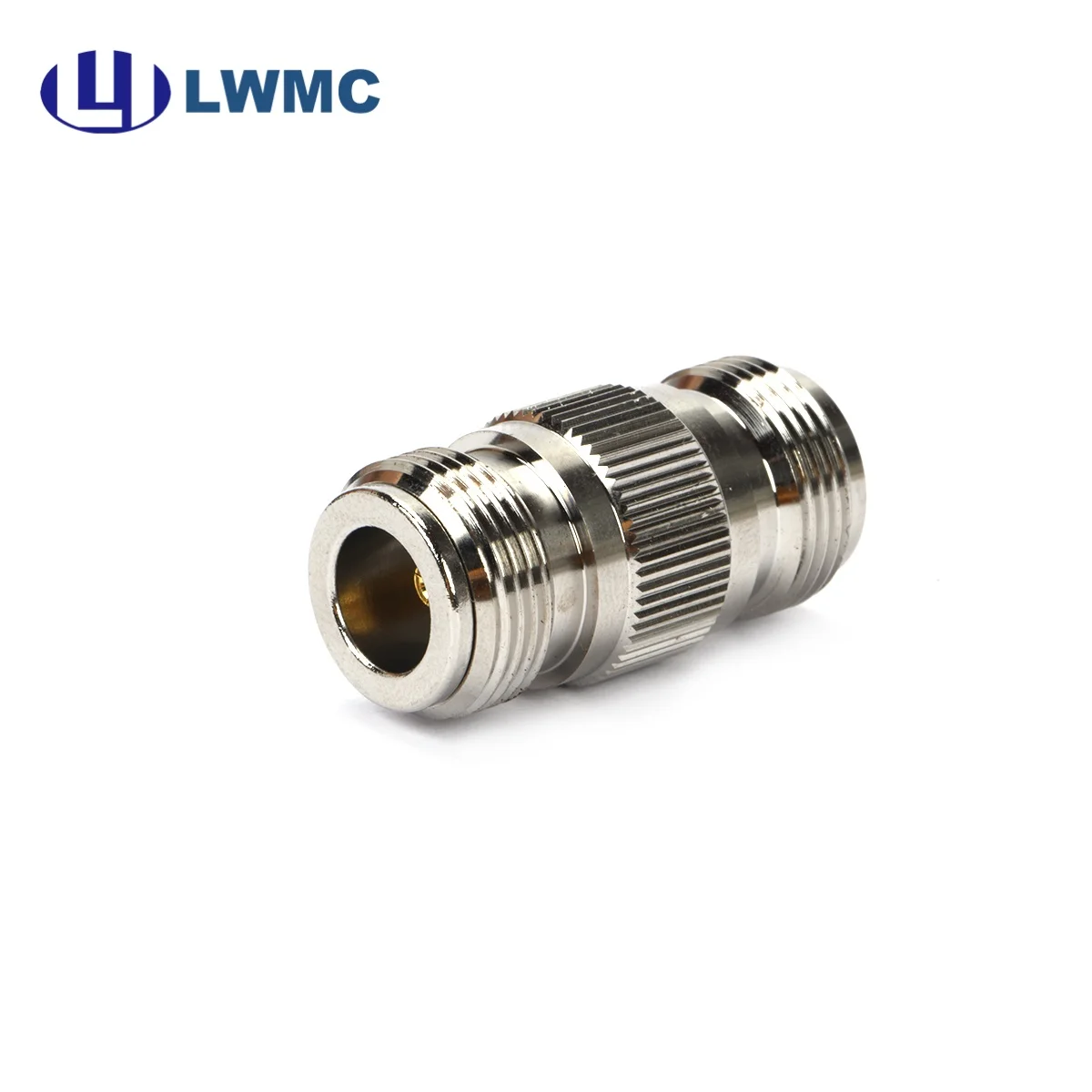

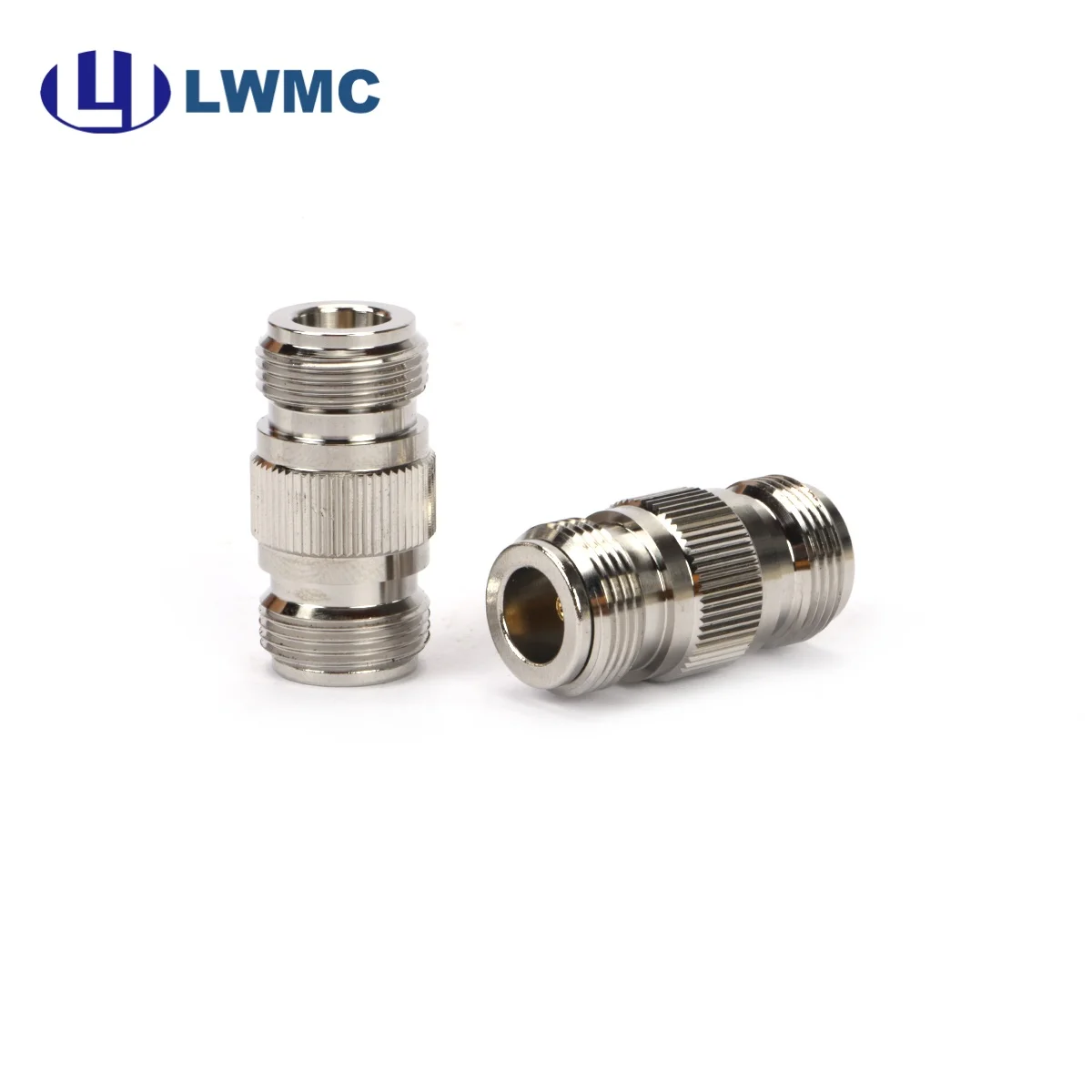

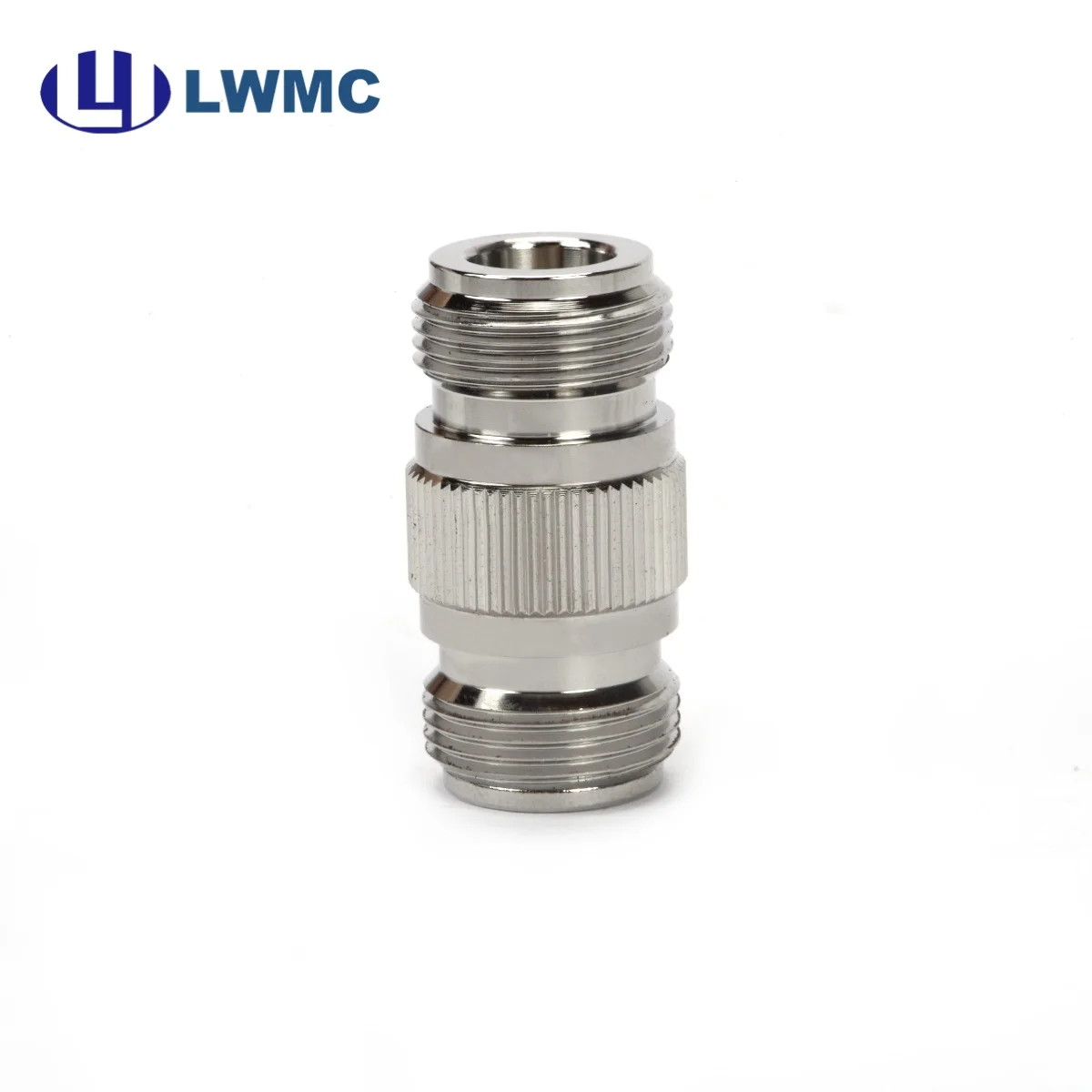

LWMC Top Efficiency Customized PTFE 1.2 Max n Adapter N Female to N Female Adaptor

Spu:
1601640498491
  • Introduction
Introduction
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-0
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-1
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-2
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-3
N_22_11_133_01_Rev0

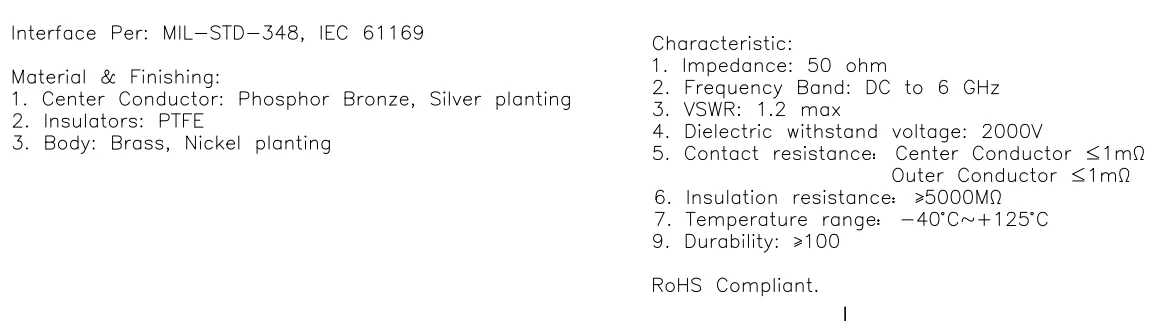

Center Conductor
Phosphor Bronze, Silver Plating
Insulators
PTFE
Body
Brass, Nickel Plating
Impedance
50 ohm
Frequency Band
DC to 6 GHz
VSWR
1.2 max
Dielectric withstand voltage
2000V
contact resistance
Center Conductor ≤1mΩ
Outer Conductor ≤1mΩ
Insulation resistance
≥5000MΩ
Durability
≥100
Temperature range
-40°C~+125°C
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-4
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-5
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-6
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-7
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-8
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-9
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-10
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-11
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-12
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-13
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-14
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-15
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-16
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-17
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-18
product lwmc top efficiency customized ptfe 12 max n adapter n female to n female adaptor-19
Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF
format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
