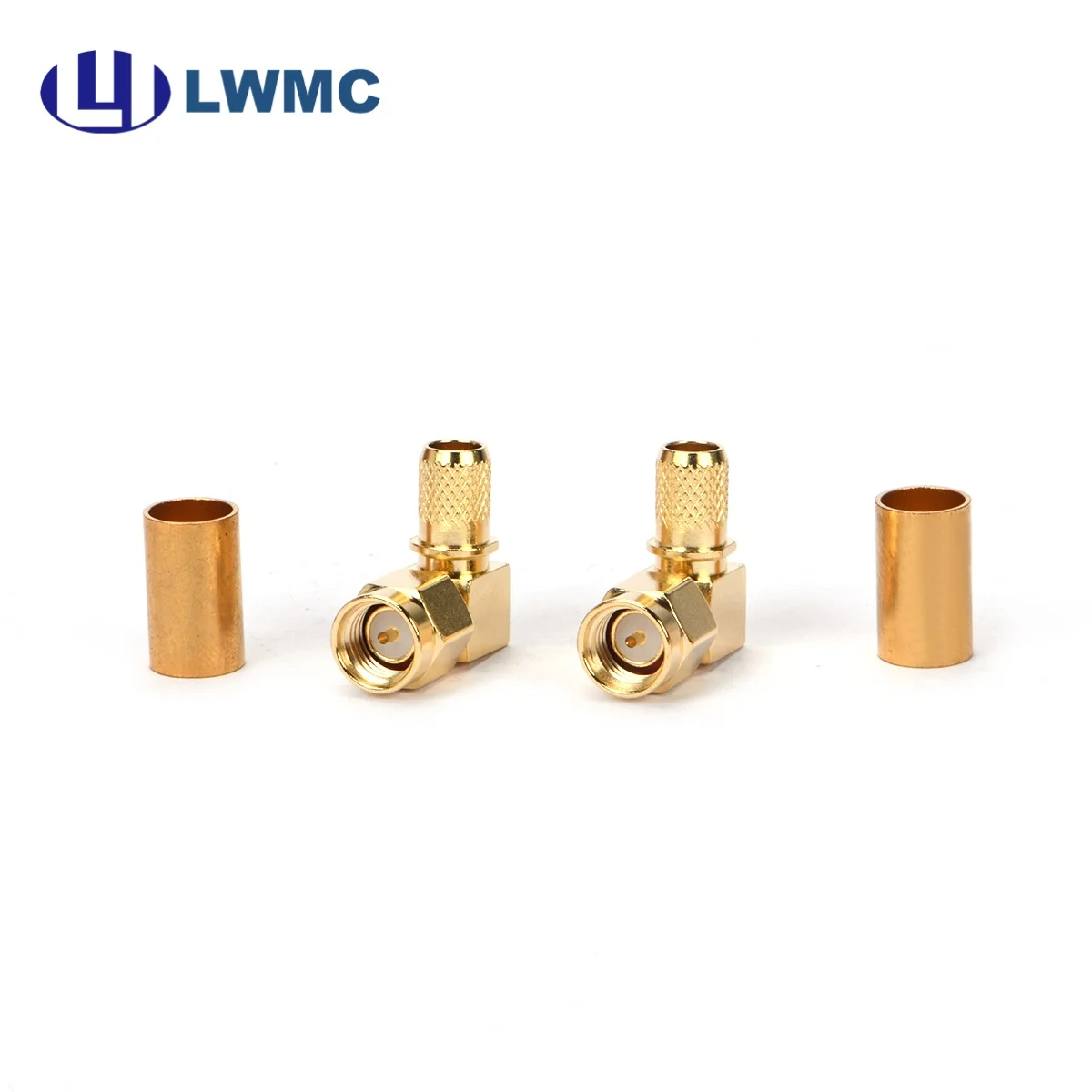

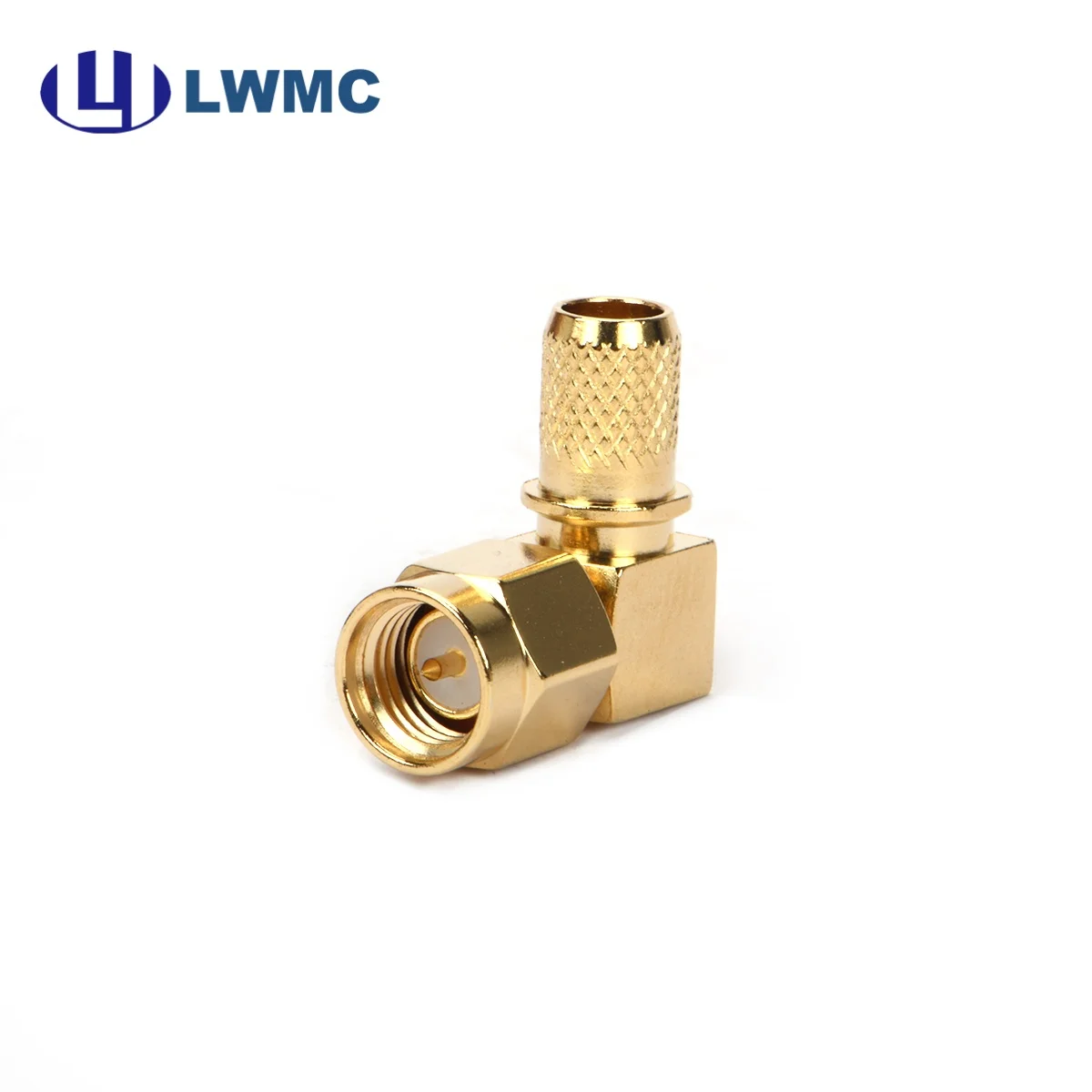

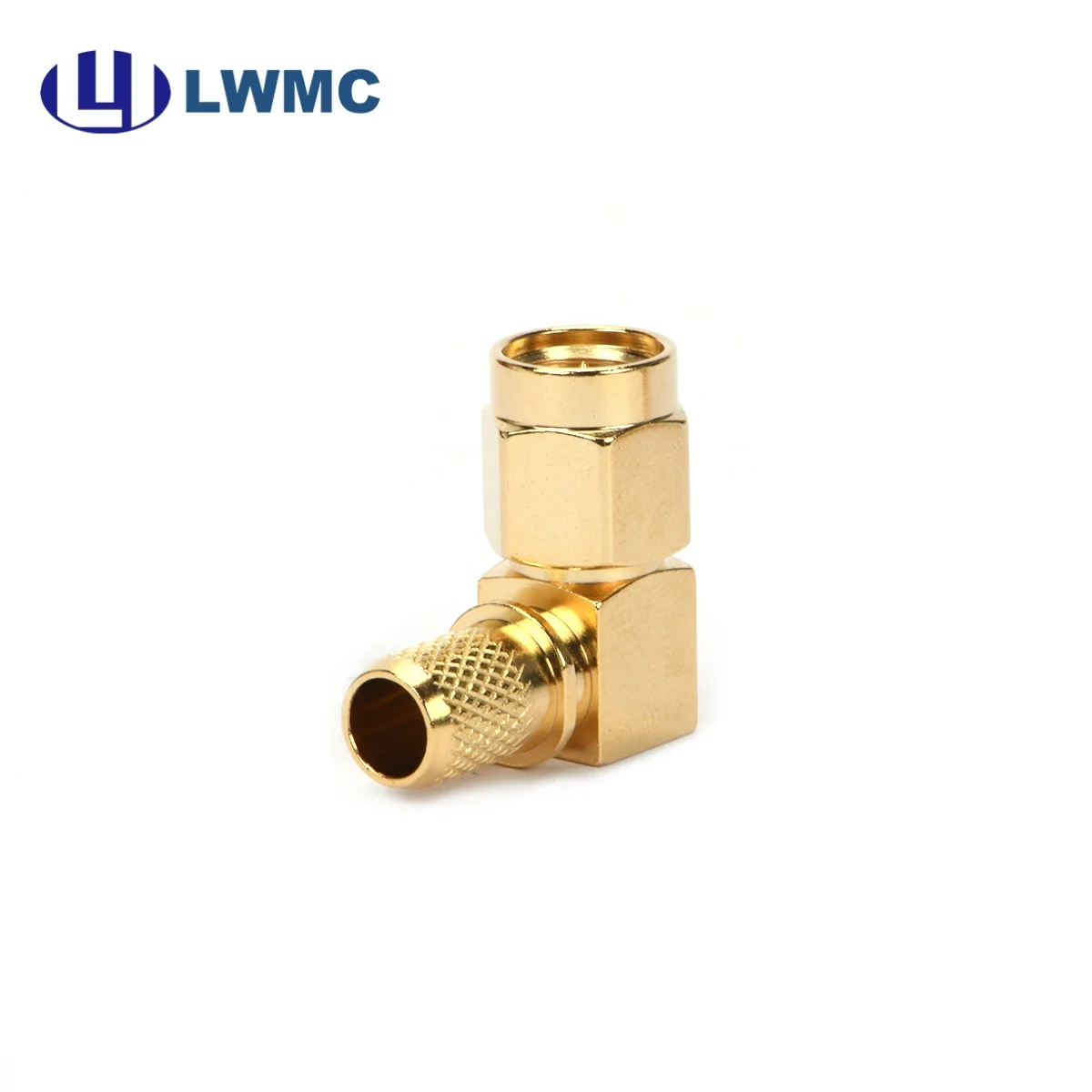

Hot Selling High Quality Cheap Price Silicone Rubber SMA R/A Male Crimp for LMR240/M&P-HYPERFLEX5/RG8 Mini Cable

Hot Selling High Quality Cheap Price Silicone Rubber SMA R/A Male Crimp for LMR240/M&P-HYPERFLEX5/RG8 Mini Cable

Spu:

1601639892057

Introduction

Introduction

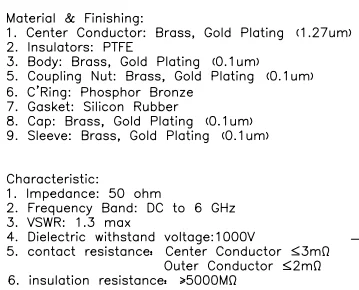

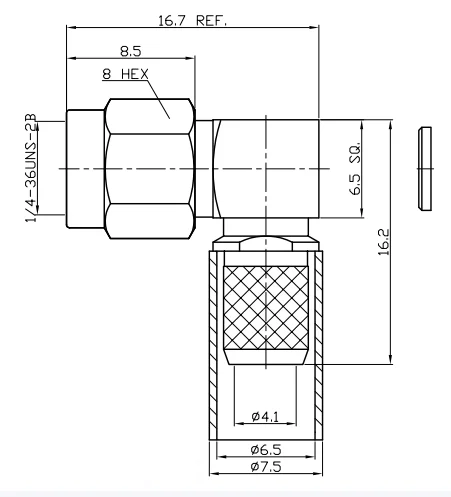

SMA_12_121_111_02_Rev0
Center Conductor	Brass, Gold Plating (1.27um)
Insulators	PTFE
Body	Brass, Gold Plating (0.1um)
Coupling Nut	Brass, Gold Plating (0.1um)
C'Ring	Phosphor Bronze
Gasket	Silicone Rubber
Cap	Brass, Gold Plating (0.1um)
Sleeve	Brass, Gold Plating (0.1um)
Impedance	50 ohm
Frequency Band	DC to 6 GHz
VSWR	1.3 max
Dielectric withstand voltage	1000V
contact resistance	Center Conductor ≤3mΩ
contact resistance	Outer Conductor ≤2mΩ
Insulation resistance	≥5000MΩ

Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF

format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
