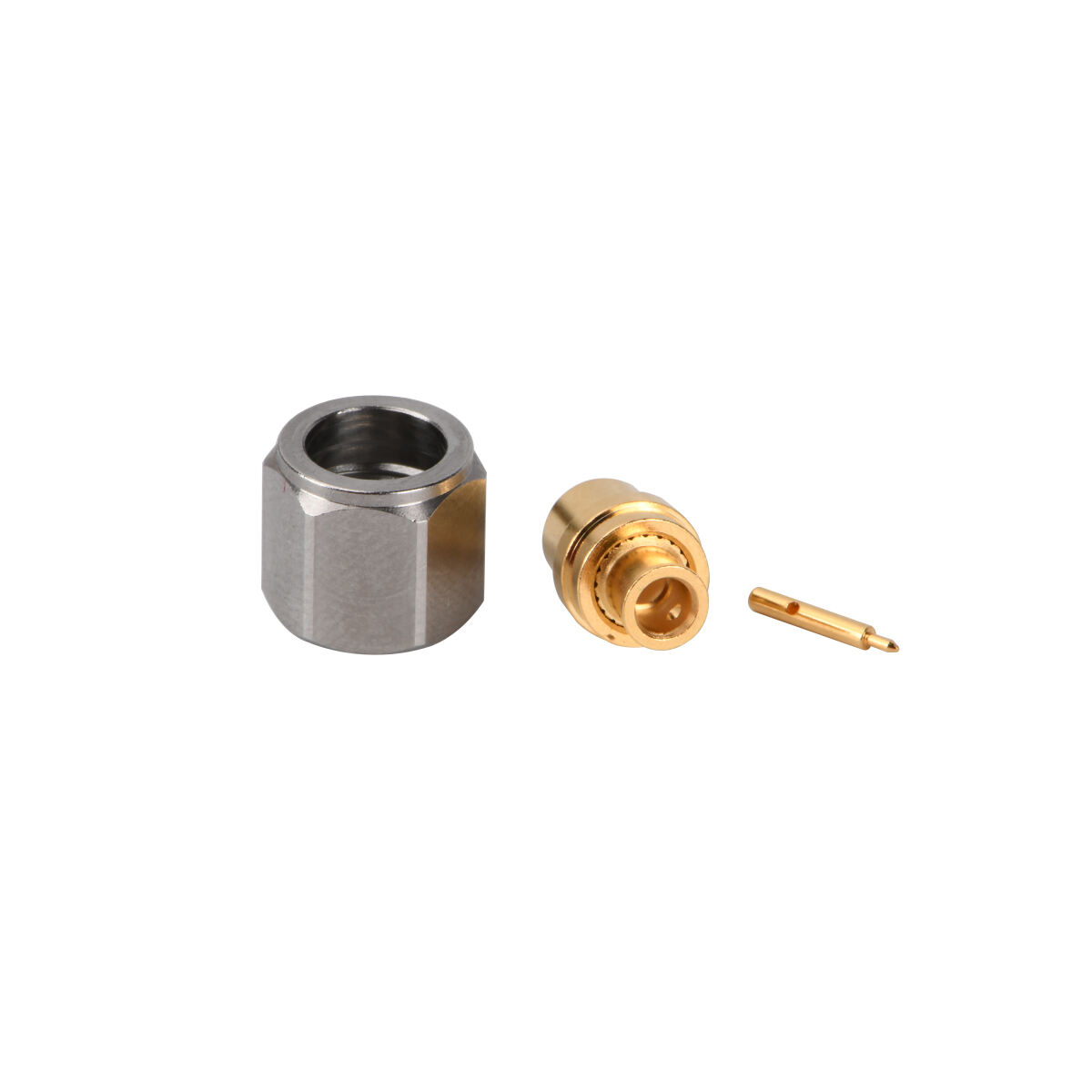

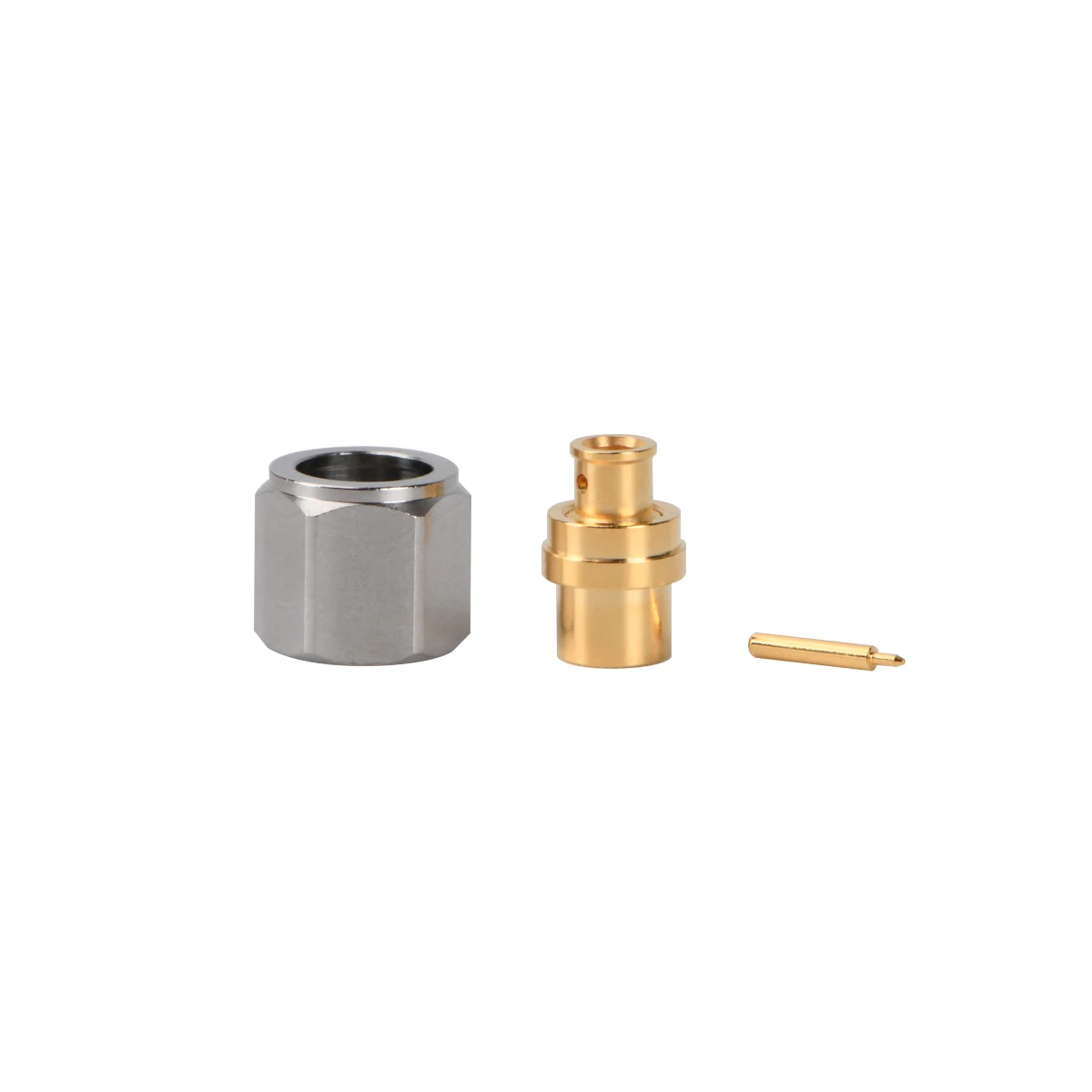

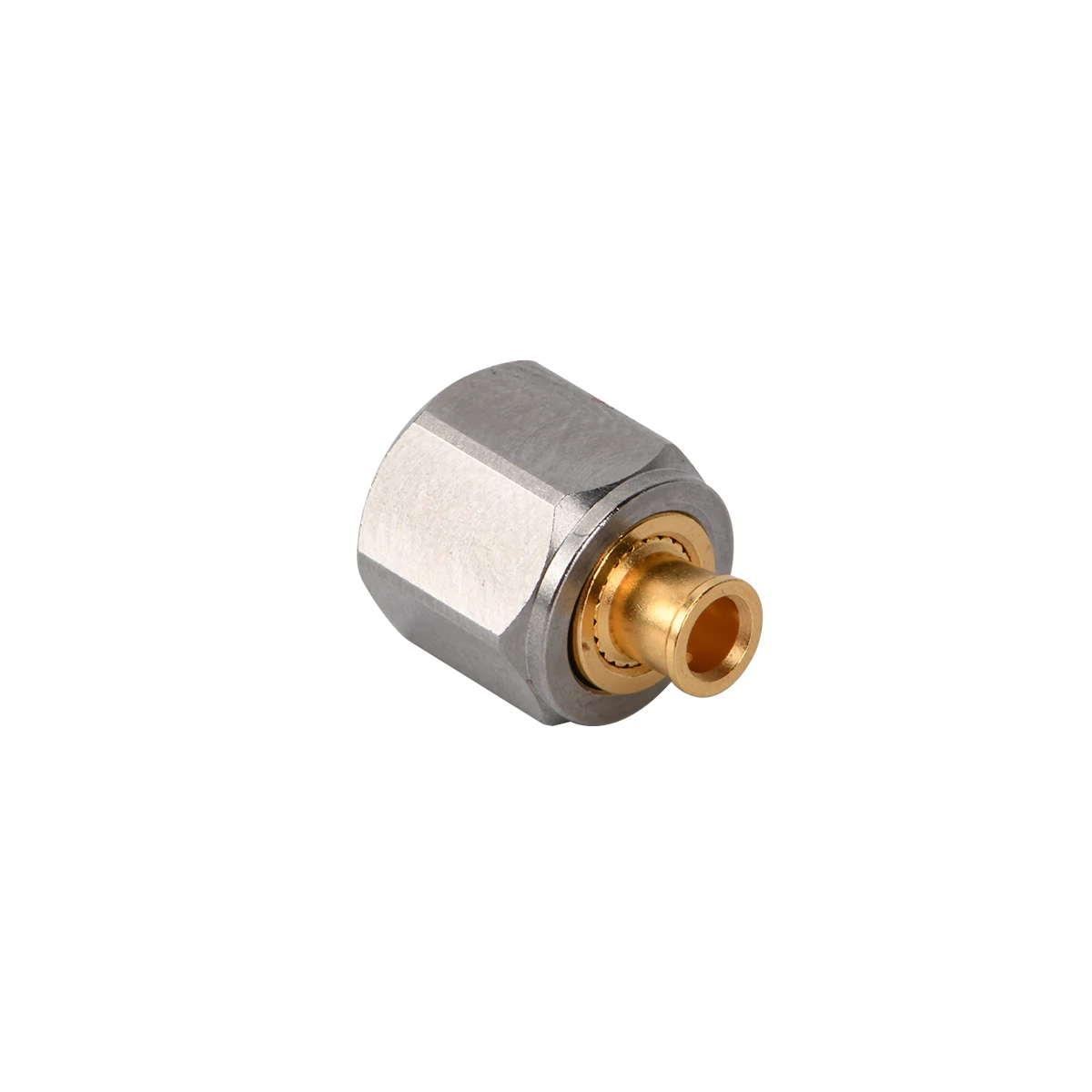

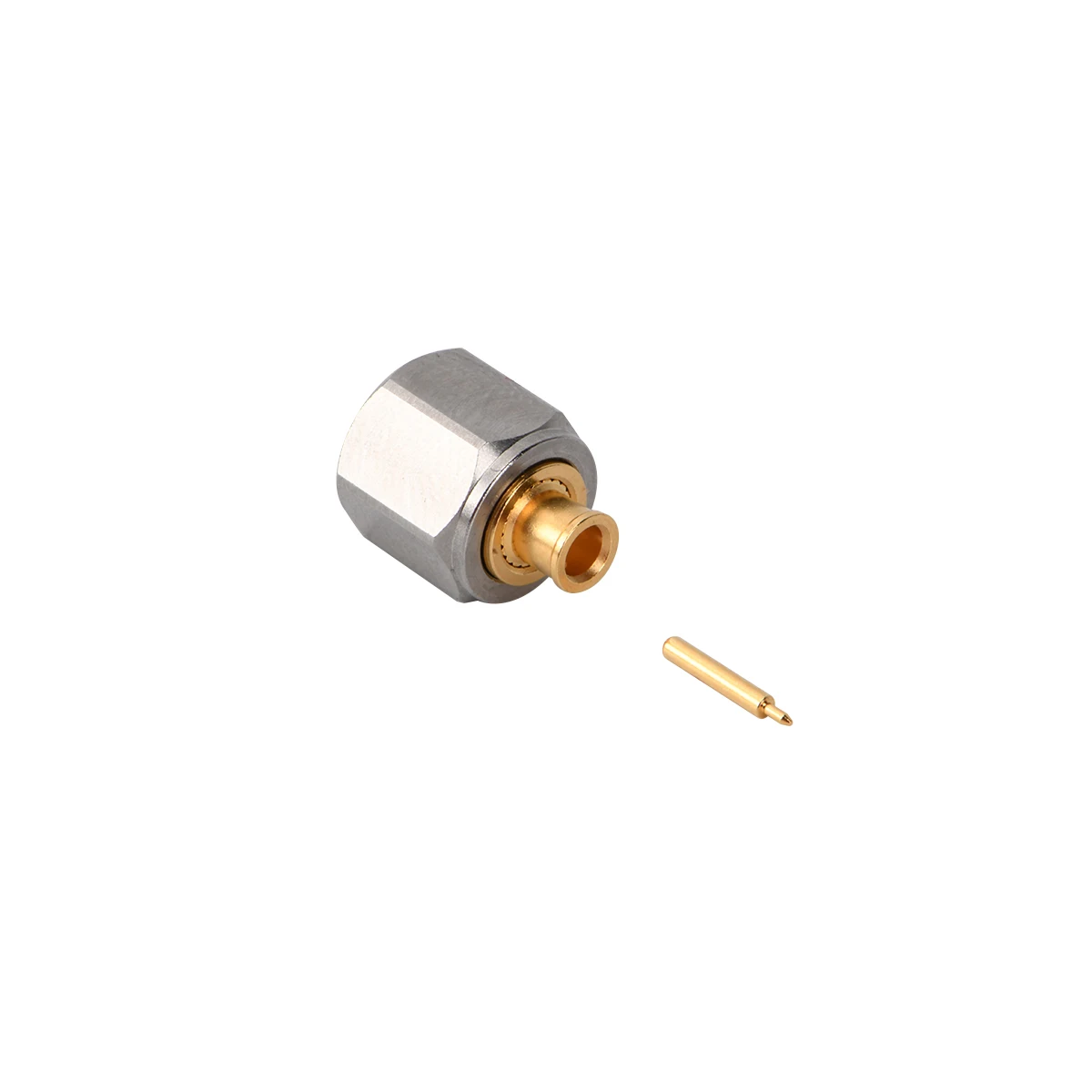

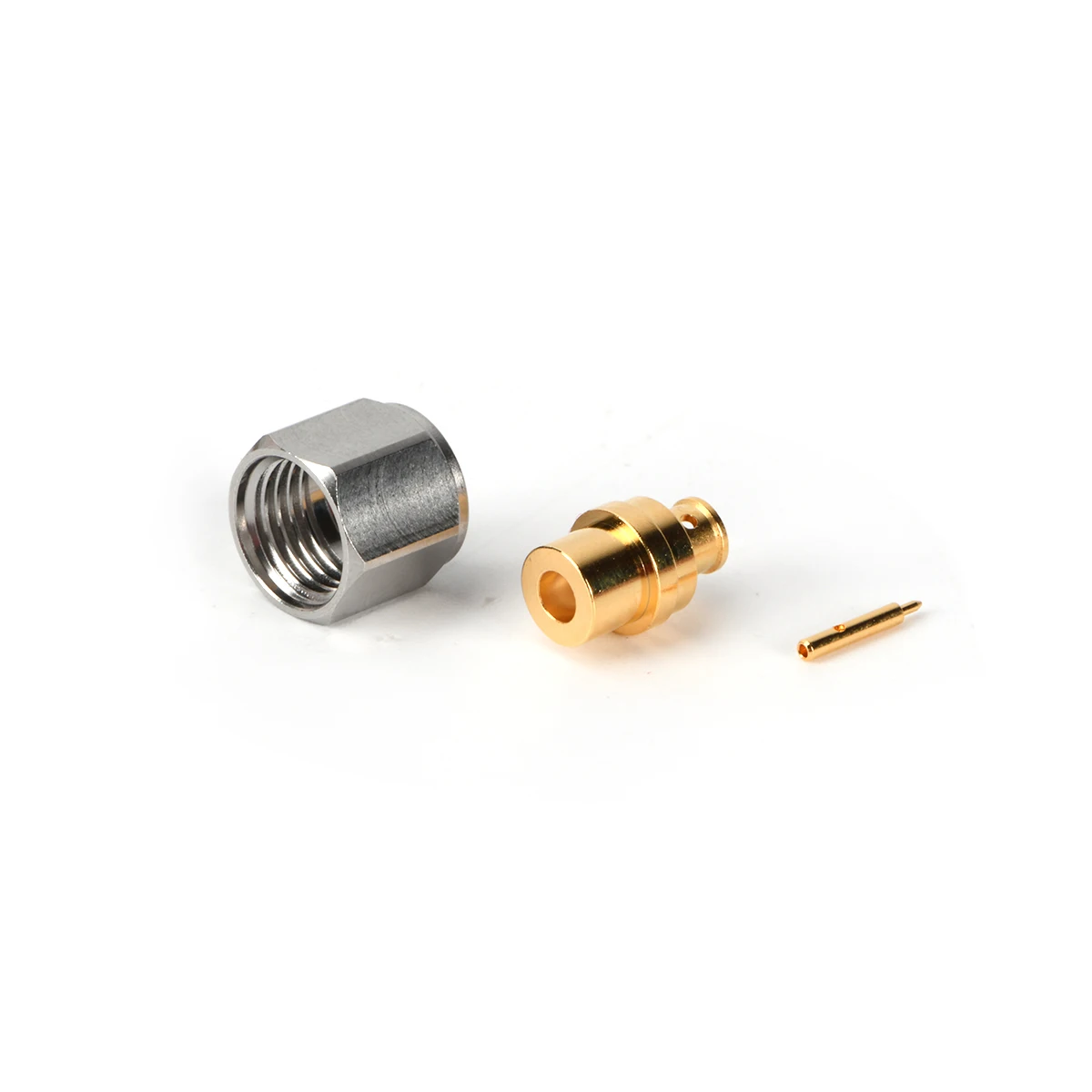

2.4mm male solder for .086 cable

Center ConductorBrass, Gold platingInsulatorsPTFEBodyBrass, Gold platingTallBrass, Gold platingNutStainless steel, PassivatedImpedance50 ohmFrequency BandDC to 27 GHzVSWR1.35 maxInsertion loss0....

Introduction

2.4mm male solder for .086 cable factory

2.4mm male solder for .086 cable supplier

Center Conductor	Brass, Gold plating
Insulators	PTFE
Body	Brass, Gold plating
Tall	Brass, Gold plating
Nut	Stainless steel, Passivated
Impedance	50 ohm
Frequency Band	DC to 27 GHz
VSWR	1.35 max
Insertion loss	0.4dB max
Dielectric withstand voltage	750V
Contact resistance	Center Conductor≤3mΩ
Contact resistance		Outer Conductor≤2.5mΩ
Insulation resistance	≥5000MΩ

2.4mm male solder for .086 cable manufacture

2.4mm male solder for .086 cable details

Q:What about the quality of your products?
A: We have more than 15 years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied arestrictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?
A: Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?
A: Our delivery time is usually within 2 weeks after we receive your order .

Q:What’s your Shipping Methods?
A: By Sea; By air (Shanghai port ); or by UPS, DHL, FeDex, TNT etc.

Q: Can you send a sample for us to develop?
A: Yes, we can. The samples can be delivered within 7-14 business days.

Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, you can. Logo and company name can be printed on our products. You can send us the artwork by email in JPEG or TIFF

format.

Q: Is the MOQ fixed?
A: The MOQ is flexible and we accept small order in the first time as trial order.
