2 Hole Flange Mount Receptacle DC-18 GHz – Replace Amphenol / TE / Rosenberger

Spu:
1601735271957
Get a Quote
  • Introduction
Introduction

About Product

Highlight

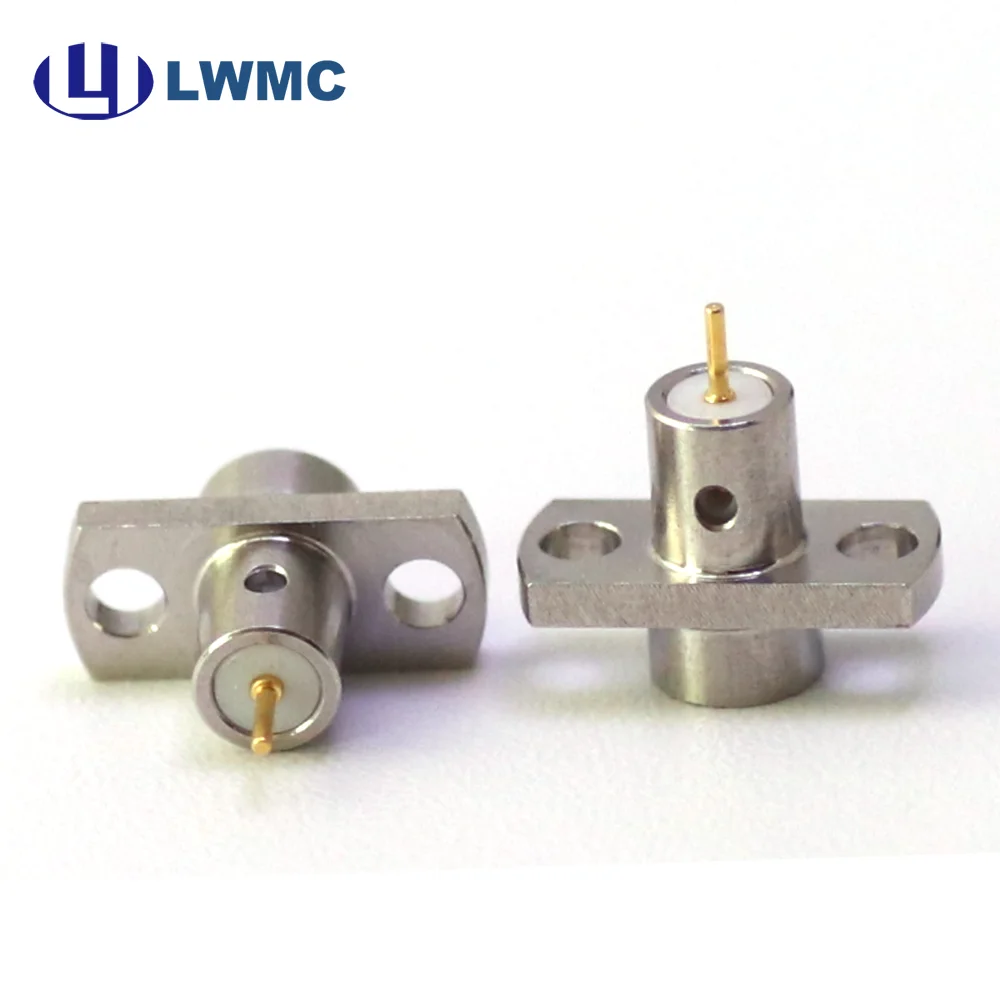

SMP Male 2-Hole Flange Mounted Receptacle: Designed for high-frequency RF applications.
Robust Construction: Made from stainless steel for durability and longevity.
Precision Engineering: Ensures reliable performance in demanding environments.
Superior Electrical Characteristics: Supports DC to 18 GHz frequency band with minimal insertion loss.
High Dielectric Strength: Rated at 500V for enhanced safety and reliability.

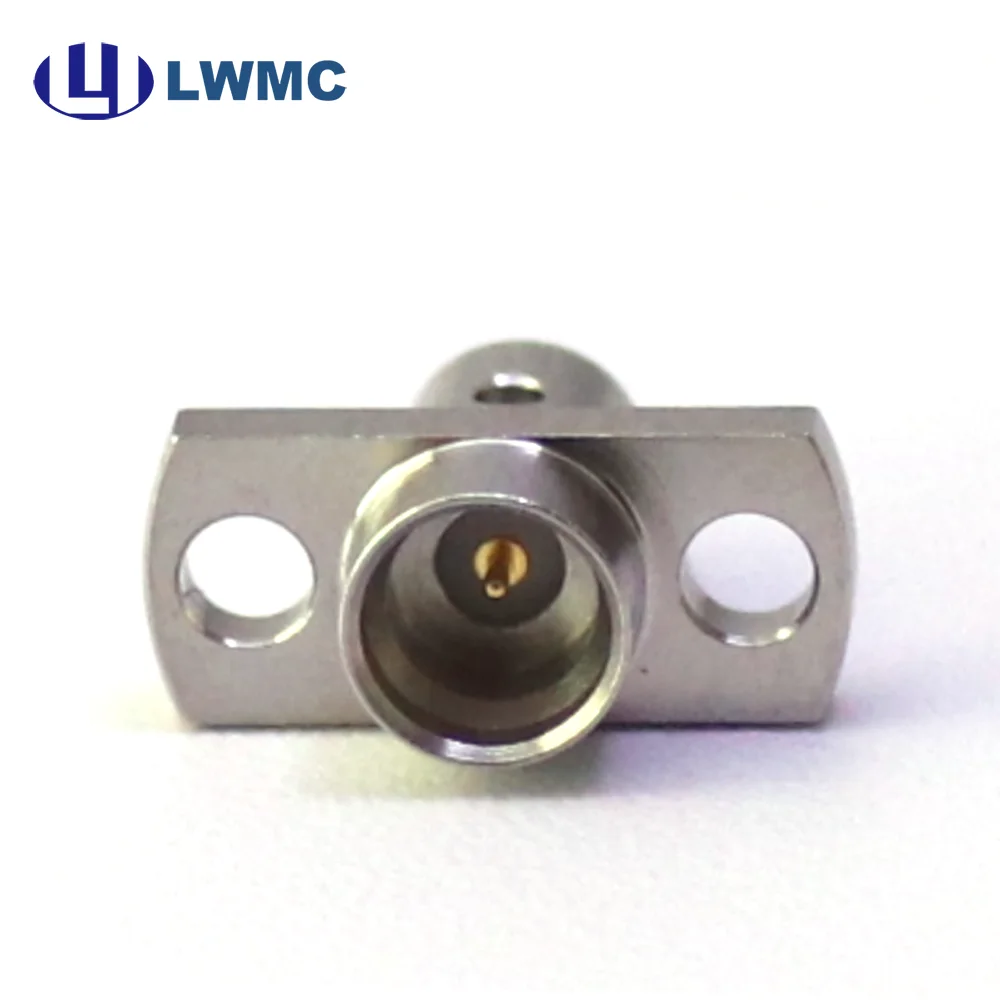

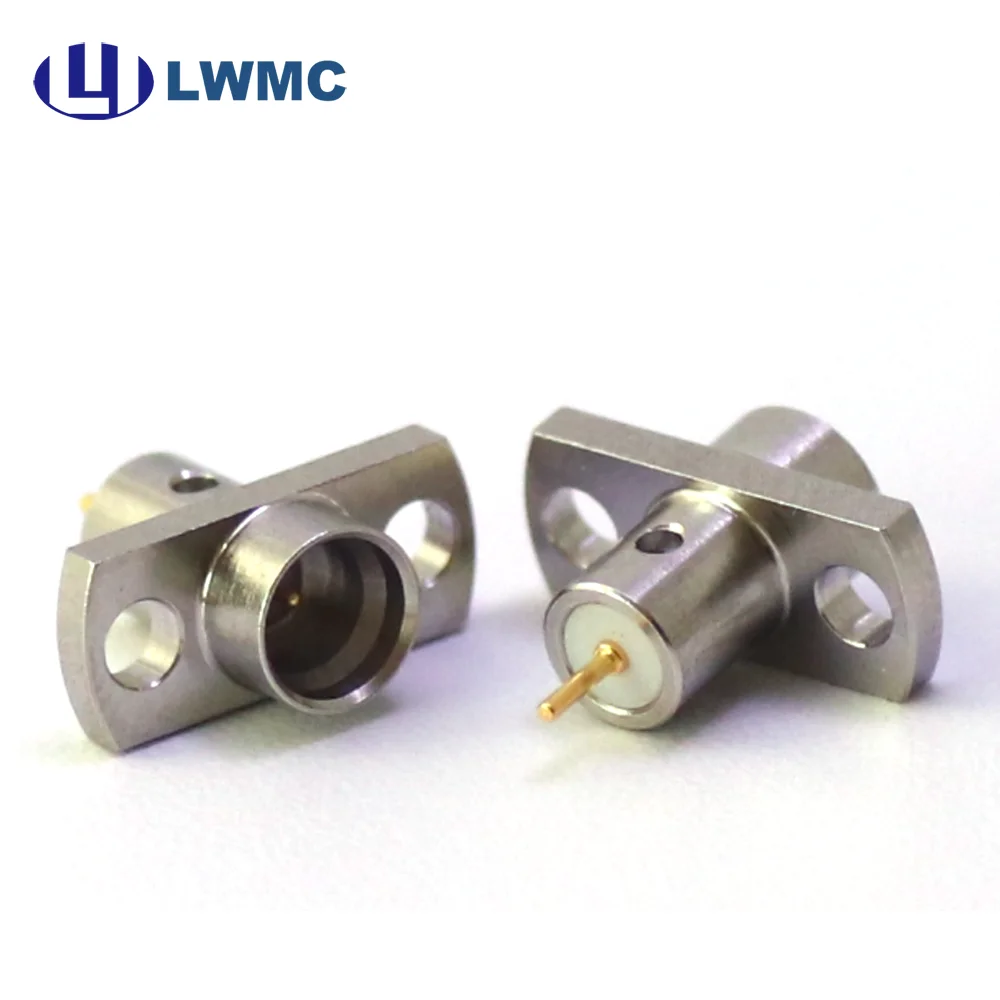

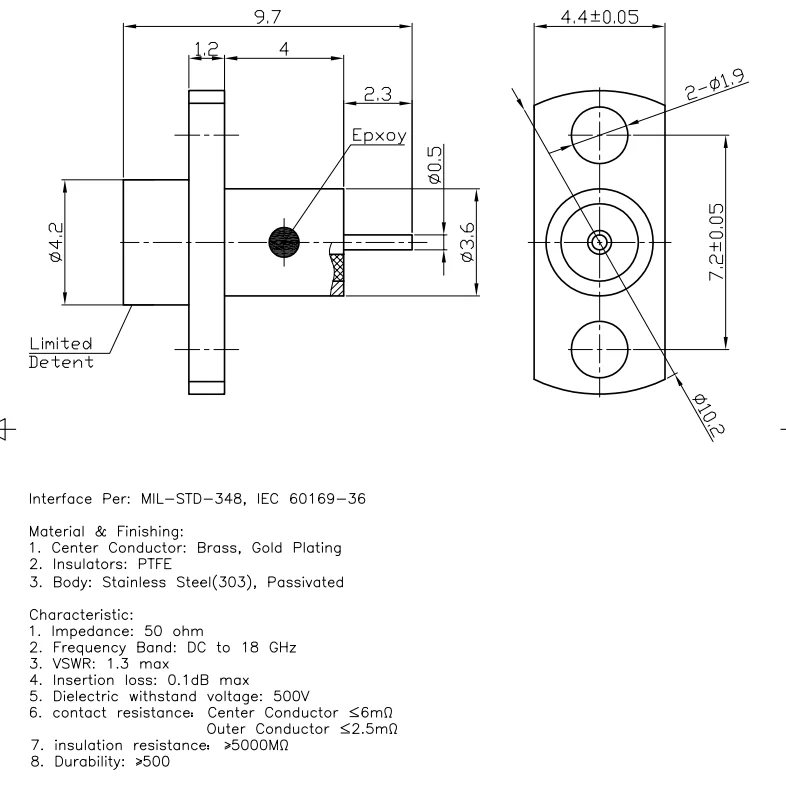

Detail shotDetail shotSpecifications

About Us

Linkworld Microwave Communication Co., Ltd. specializes in RF coaxial connectors and microwave passive components, boasting over 15 years of R&D expertise. With a strong production capacity featuring Japanese CNC machine tools, Our products are widely used in the aeronauticaland space system, satellite system,communications field,instrumentsfield, oil exploration field and medical industry, etc. Adhered to the core values of "honesty and perfection"
Company overviewCompany overviewFactory profileCompetitive advantagesCertificates

FAQs

What about the quality of your products?

We have more than 15 years' experience in R&D for RF coaxial connectors and its components, and all products we supplied are strictly tested by our QC department before shipment.

Can you offer samples to test before placing one formal order?

Samples for test purpose can be presented free provided that you bear the shipping cost.

How long is usually your delivery time?

Our delivery time is usually within 2 weeks after we receive your order.

What is your Shipping Methods?

By Sea; By air (Shanghai port); or by UPS, DHL, FeDex, TNT etc.

Can you send a sample for us to develop?

Yes, we can. The samples can be delivered within 7-14 business days.

Can we have our logo or company name to be printed on your products or the package?

Sure. You can send us the relevant design drawings via email (in JPEG or TIFF format). Our LOGO is laser-engraved onto the product casing.

Is the MOQ fixed?

The MOQ is flexible and we accept small order in the first time as trial order.
